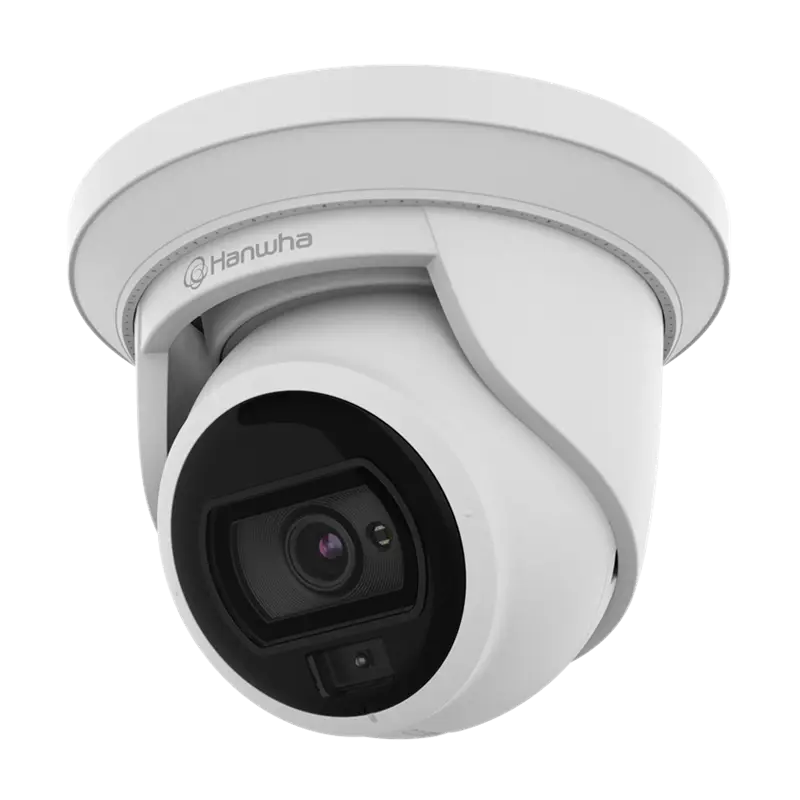

ANE-L7012R 4MP Super-Compact IR Flateye Camera with WDR & Analytics
Top Seller
$219.00
Buying in Bulk? Local installers and contractors can Request Trade Pricing to unlock volume discounts for this project.
Premium Quality
Backed by a 2-Year Full Hardware Warranty.
30-Day Risk-Free
Satisfied or your money back, guaranteed.
USA-Based Live Support
Native technical backing for field technicians.
Free Shipping Over $70
Stocked locally and shipped fast from IL.
Midwestern Stock
3-5 days nationwide shipping. Next-day delivery for local Chicago installers!
Key Features
Product Description
Not every surveillance project calls for a highly visible camera. Retail counters, reception areas, elevators, hallways, banking facilities, and customer-facing environments often require security coverage without drawing unnecessary attention to the surveillance equipment itself.
The ANE-L7012R is a super-compact 4MP IR Flateye camera designed for installations where discreet monitoring is a priority. Its low-profile housing blends naturally into ceilings and walls while still delivering sharp 4MP video, making it ideal for locations that require professional surveillance without the appearance of a traditional dome or bullet camera.
True WDR 120dB technology helps maintain image clarity in scenes with bright windows, entrances, and uneven lighting. Integrated intelligent video analytics including motion detection, directional detection, enter/exit monitoring, defocus detection, and tampering alerts help operators focus on meaningful events rather than reviewing hours of footage.
With support for H.265 compression, WiseStream II bandwidth optimization, local microSD storage, PoE installation, and Hallway View functionality, the ANE-L7012R provides an efficient surveillance solution for businesses seeking reliable video coverage while maintaining a clean and unobtrusive appearance.
Key Features
- Super-Compact Flateye Design – Ideal for locations where discreet surveillance is preferred over highly visible cameras.
- 4MP Quad HD Resolution – Captures clear video at up to 2560 × 1440 resolution.
- True WDR 120dB – Improves image quality in scenes with strong backlighting and lighting variations.
- Built-In Video Analytics – Supports motion, directional, enter/exit, defocus, and tampering detection.
- Smart IR Night Vision – Provides infrared illumination up to 20 meters (65 feet).
- WiseStream II + H.265 – Helps reduce bandwidth and storage requirements.
Technical Specifications
- Camera Style: Flateye Camera
- Resolution: 4MP (2560 × 1440)
- Image Sensor: 1/2.8" CMOS
- Lens: 3mm Fixed Lens
- Viewing Angle: 99° Horizontal, 55° Vertical
- Frame Rate: Up to 30fps
- Night Vision: IR Range up to 20m (65 ft)
- Wide Dynamic Range: True WDR 120dB
- Video Compression: H.265 / H.264 / MJPEG
- Analytics: Motion Detection, Direction Detection, Enter/Exit Detection, Defocus Detection, Tampering Detection
- Local Storage: MicroSD / SDHC up to 128GB
- Bandwidth Optimization: WiseStream II
- Power: PoE (IEEE 802.3af)
- Weather Protection: IP67 Rated
- Impact Protection: IK10 Rated
- Hallway View: Supported
Compatibility
The ANE-L7012R integrates with Hanwha Vision NVRs, Wisenet Wave VMS, and ONVIF-compatible video management platforms. H.265 compression and WiseStream II help optimize storage and bandwidth consumption across professional surveillance deployments.
Ideal Applications
- Retail Checkout Areas
- Reception Desks
- Office Lobbies
- Banking Facilities
- Elevators
- School Hallways
- Healthcare Reception Areas
- Commercial Building Corridors
Key Specs
| Brand | Hanwha |
| Camera Style | Covert |
| Resolution | 4MP (2K Quad HD) |
| System Compatibility | Wisenet Native, ONVIF Profile S/G/T, VMS Compatible |
| Compliance Status | FCC Certified |
| Special Features | Smart AI Detection, Built-in SD Slot |
| Protection Rating | IK10 Rated, IP67 Rated |
| Audio Support | No Audio |
Find answers to common questions about compatibility,
installation, Full-Color night vision, and AcuSense features.
What makes the ANE-L7012R different from a traditional dome or bullet camera?
The ANE-L7012R uses a super-compact Flateye design that provides professional surveillance coverage while maintaining a low-profile appearance. This makes it ideal for customer-facing environments where a less noticeable camera is preferred.
Is the ANE-L7012R suitable for indoor and outdoor installations?
Yes. The camera is rated IP67 for weather protection and IK10 for impact resistance, making it suitable for both indoor and outdoor environments where durability is required.
How far does the infrared night vision reach?
The integrated IR illumination provides nighttime visibility up to approximately 20 meters (65 feet), helping maintain video coverage in low-light conditions.
Does the camera support PoE?
Yes. Power over Ethernet allows both power and network connectivity to be delivered through a single Ethernet cable, simplifying installation and reducing wiring requirements.
What analytics are included with the ANE-L7012R?
The camera supports motion detection, directional detection, enter and exit detection, defocus detection, and tampering detection. These analytics help operators identify important events more efficiently.
What is Hallway View and when is it useful?
Hallway View rotates the video image to better match narrow vertical spaces such as hallways, corridors, stairwells, and entry passages. This helps maximize usable coverage in these environments.
Does the ANE-L7012R support local recording?
Yes. The camera includes a MicroSD/SDHC card slot supporting up to 128GB of local storage for edge recording and backup purposes.
How does WiseStream II help reduce storage requirements?
WiseStream II works alongside H.265 compression to reduce bandwidth usage and storage consumption by dynamically optimizing video data based on scene activity.
Can the ANE-L7012R be used with third-party VMS platforms?
Yes. ONVIF compatibility allows integration with many professional video management systems and network video recorders.
What types of properties is the ANE-L7012R best suited for?
The camera is ideal for retail stores, office lobbies, reception areas, elevators, schools, healthcare facilities, banks, and commercial properties where discreet surveillance coverage is preferred.
