PSW4-2G 6-Port Gigabit Unmanaged PoE Switch, 65W
Compact unmanaged Gigabit PoE switch with four PoE ports, two dedicated uplinks, a 65W power budget, and IEEE 802.3af/at support.
In stock
Questions about compatibility, PoE power, or choosing the right port count? [Ask a CCTV Specialist]
Installer or Dealer? Request Trade Pricing.
Ships from Bensenville, IL
Fast Order Processing
1-Year Warranty
30-Day Return Window

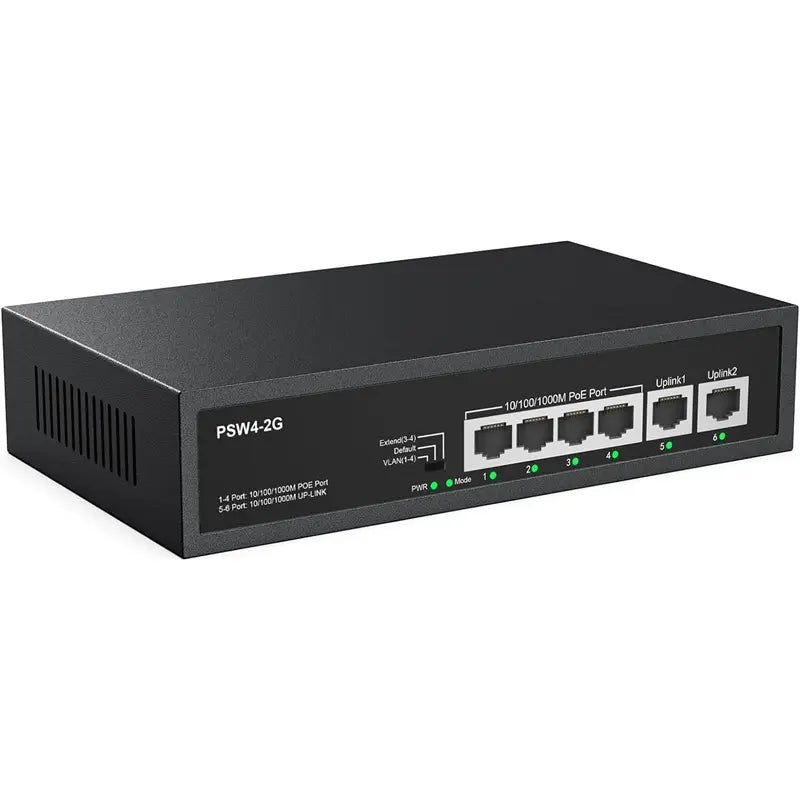

The PSW4-2G is a compact 6-port unmanaged Gigabit PoE switch designed to provide centralized network connectivity and power for compatible IP cameras and other IEEE 802.3af/at devices.
Four Gigabit PoE ports carry power and network data over standard Ethernet cabling. The switch provides a stated 65W total PoE budget, with up to 30W available from an individual port. The combined power demand of all connected devices must remain within the total 65W budget.
Two dedicated Gigabit uplink ports provide connections to a compatible network video recorder, router, or additional network switch. Its unmanaged design normally requires no switch-level configuration, making it suitable for straightforward small-scale surveillance and networking installations.
Compatible network discovery utilities may locate downstream devices through the switch. Actual power delivery and network performance depend on the connected devices, Ethernet cabling, cable length, traffic, and network configuration.
Key Benefits
- Four PoE Device Ports – Connects and powers up to four compatible PoE cameras or network devices through Ethernet cabling.
- Two Dedicated Uplinks – Provides separate Gigabit connections for a compatible NVR, router, or network switch.
- 65W Total Power Budget – Distributes up to 65W of combined PoE power across connected devices.
- Up to 30W Per Port – Supports compatible IEEE 802.3at PoE+ devices that require more power than standard PoE equipment.
- Unmanaged Operation – Normally operates without switch-level software configuration or network management setup.
- Compact Housing – Fits small equipment areas, desktops, shelves, and surveillance installation cabinets.
Recommended Applications
- Small IP Camera Systems
- Retail Store Surveillance Networks
- Office Security Camera Installations
- Restaurant Camera Systems
- Small Warehouse Monitoring Systems
- Apartment Common-Area Surveillance
- Network Video Recorder Connections
- Compatible PoE Access Points and Devices
| Network Interface | |
|---|---|
| Total Ethernet Ports | 6 Gigabit Ethernet ports |
| PoE Ports | 4 Gigabit PoE ports |
| Uplink Ports | 2 dedicated Gigabit uplink ports |
| PoE | |
|---|---|
| PoE Standards | IEEE 802.3af, IEEE 802.3at |
| Total PoE Power Budget | 65 W |
| Maximum Power per Port | Up to 30 W per PoE port |
| General | |
|---|---|
| Model | PSW4-2G |
| Product Type | 6-Port Gigabit PoE Switch |
| Management Type | Unmanaged |
Find answers to common questions about compatibility, PoE power, supported equipment, product selection, and use with security camera and surveillance systems.
How many PoE devices can the PSW4-2G connect?
The PSW4-2G has four PoE ports and can connect up to four compatible PoE devices. The combined power requirement must remain within the switch's 65W total PoE budget.
How much power can each PoE port provide?
Each PoE port can provide up to 30W to a compatible device. Actual available power depends on the combined power consumption of all connected devices.
Which PoE standards does the PSW4-2G support?
The switch supports compatible IEEE 802.3af PoE and IEEE 802.3at PoE+ powered devices. Confirm each device's power requirements before installation.
What are the two Gigabit uplink ports used for?
The two dedicated Gigabit uplink ports can connect the switch to a compatible NVR, router, or additional network switch without using the four PoE device ports.
Does the PSW4-2G require software configuration?
No switch-level configuration is normally required because the PSW4-2G is an unmanaged switch. Connected cameras, recorders, and other network devices may still require their own network settings.
