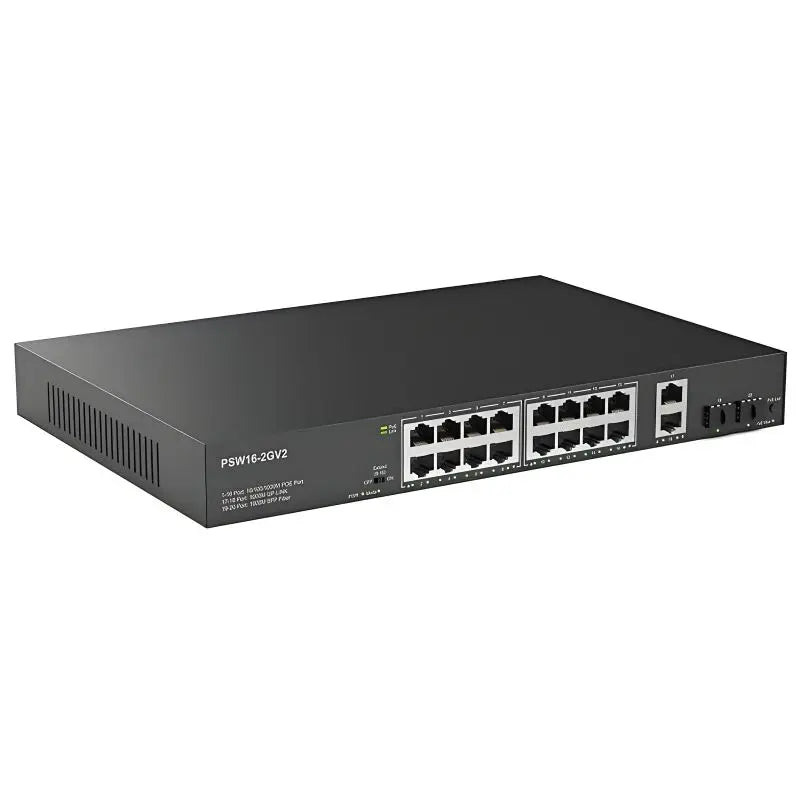

The PSW16-2GV2 is an unmanaged full Gigabit PoE+ switch designed to provide centralized power and network connectivity for compatible IP cameras, wireless access points, VoIP phones, and other standards-based PoE devices.
Sixteen 10/100/1000 Mbps RJ45 PoE ports support connected devices without limiting them to Fast Ethernet speeds. Two dedicated Gigabit RJ45 uplinks and two Gigabit SFP fiber ports provide flexible connections to compatible NVRs, routers, network switches, and fiber infrastructure.
The switch provides a 300W total PoE power budget, with up to 30W available from an individual port for compatible IEEE 802.3af and IEEE 802.3at devices. The combined power requirement of all connected equipment must remain within the total power budget.
Extend Mode supports power and network data transmission up to 600 feet at a reduced 10 Mbps speed. The built-in power supply, fanless metal housing, 4kV surge protection design, and rack-mountable form factor support centralized commercial surveillance installations.
Key Benefits
-
Sixteen Full Gigabit PoE+ Ports – Provides power and 10/100/1000 Mbps network connectivity for up to sixteen compatible PoE devices.
-
Four Dedicated Uplinks – Includes two Gigabit RJ45 uplinks and two Gigabit SFP fiber ports without using the PoE device ports.
-
300W PoE Power Budget – Distributes shared PoE power across connected devices, with up to 30W available from an individual port.
-
Extended PoE Transmission – Supports power and data transmission up to 600 feet at 10 Mbps for suitable long-distance installations.
-
Unmanaged Operation – Normally requires no switch-level software configuration for standard network deployment.
-
Fanless Metal Housing – Supports quiet operation, passive cooling, and rack installation in surveillance or network equipment cabinets.
Recommended Applications
- Warehouse Camera Networks
- Commercial Building Surveillance
- School and Campus Security Systems
- Retail Store Camera Installations
- Office Network Closets
- Apartment Building Surveillance
- Parking Lot Camera Networks
- Loading Dock and Perimeter Monitoring
- Multi-Camera NVR Installations
- Fiber-Connected Surveillance Networks
| Network Interface |
| PoE Ports |
16 × 10/100/1000 Mbps RJ45 PoE ports |
| RJ45 Uplink Ports |
2 × 10/100/1000 Mbps RJ45 uplink ports |
| SFP Uplink Ports |
2 × 1000 Mbps SFP fiber ports |
| Total Network Interfaces |
20 |
| PoE |
| PoE Standards |
IEEE 802.3af, IEEE 802.3at |
| Total PoE Power Budget |
300 W |
| Maximum Power per Port |
Up to 30 W per PoE port |
| Powered Device Detection |
Automatic detection for compatible standards-based PoE devices |
| Operating Modes |
| Default Mode |
Transmission distance up to 300 ft at 10/100/1000 Mbps |
| Extend Mode |
PoE power and data transmission up to 600 ft at a reduced 10 Mbps network speed |
| Extend Mode Ports |
Ports 1–16 |
| Transmission Considerations |
Actual distance and performance depend on cable quality, cable length, device power requirements, and installation conditions |
| General |
| Model |
PSW16-2GV2 |
| Product Type |
16-Port Full Gigabit Unmanaged PoE+ Switch |
| Management Type |
Unmanaged |
| Power Supply |
Built-in industrial power supply |
| Cooling |
Fanless cooling design |
| Surge Protection |
4 kV surge protection design |
| Housing |
Metal enclosure |
| Installation |
Rack-mountable |
| Operating Temperature |
-20°C to 50°C (-4°F to 122°F) |
| Dimensions |
12.6 × 8.1 × 1.7 in |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
How many PoE devices can the PSW16-2GV2 connect?
The switch has sixteen Gigabit PoE ports and can connect up to sixteen compatible powered devices. Their combined power requirement must remain within the 300W total PoE budget.
What uplink connections does the switch provide?
The PSW16-2GV2 provides two Gigabit RJ45 uplink ports and two 1000 Mbps SFP fiber ports for connections to compatible NVRs, routers, network switches, or fiber infrastructure.
How much power can each PoE port provide?
Each PoE port can provide up to 30W to a compatible IEEE 802.3af or IEEE 802.3at powered device. Available power also depends on the combined load across all sixteen ports.
What does Extend Mode do?
Extend Mode supports PoE power and network data transmission up to 600 feet at a reduced speed of 10 Mbps. Actual distance depends on cable quality, device power requirements, and installation conditions.
Does the PSW16-2GV2 require software configuration?
No switch-level software configuration is normally required because the PSW16-2GV2 is an unmanaged switch. Connected cameras, recorders, and other network devices may still require their own network settings.
