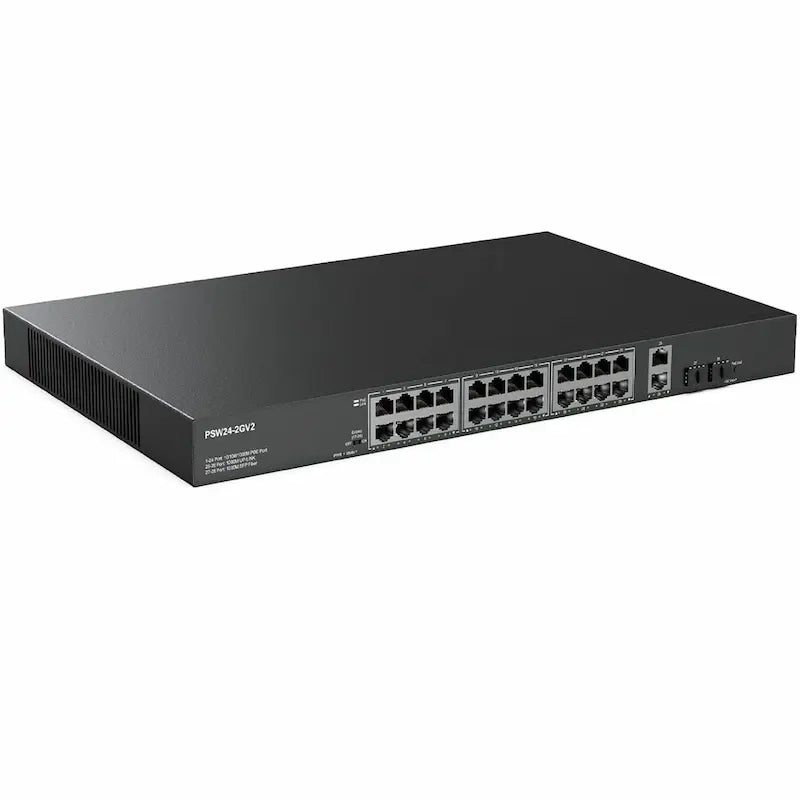

The PSW24-2GV2 is an unmanaged Gigabit PoE+ switch designed to provide centralized network connectivity and power for commercial IP camera systems and other compatible IEEE 802.3af/at devices.
Twenty-four 10/100/1000 Mbps PoE ports support connected network devices. Two dedicated Gigabit RJ45 uplinks and two Gigabit SFP uplink ports provide flexible connections to compatible NVRs, routers, network switches, and fiber infrastructure.
The switch provides a stated 300W total PoE power budget, with up to 30W available from an individual PoE port. The combined power requirements of all connected devices must remain within the total power budget.
Physical operating modes support standard network operation, port isolation, and extended PoE transmission. Extend Mode supports distances up to 600 feet at a reduced 10 Mbps data rate when suitable Ethernet cabling and installation conditions are used.
Key Benefits
-
Twenty-Four Gigabit PoE+ Ports – Connects and powers up to twenty-four compatible PoE cameras or network devices through Gigabit Ethernet ports.
-
Four Dedicated Uplinks – Provides two Gigabit RJ45 and two Gigabit SFP uplink ports without using the PoE device ports.
-
300W PoE Power Budget – Distributes shared PoE power across connected devices, with up to 30W available from an individual port.
-
Extended PoE Transmission – Supports power and network data transmission up to 600 feet at 10 Mbps in Extend Mode.
-
Hardware Port Isolation – VLAN isolation mode separates ports 1–24 from each other while maintaining communication with the uplink ports.
-
Fanless Rackmount Housing – Combines passive cooling, a metal enclosure, and a 1U-height design for surveillance equipment cabinets.
Recommended Applications
- Warehouse Camera Networks
- Commercial Building Surveillance
- School and Campus Security Systems
- Retail Store Camera Installations
- Apartment Building Surveillance
- Office Network Closets
- Parking Lot Camera Systems
- Loading Dock and Perimeter Monitoring
- Multi-Camera NVR Installations
- Fiber-Connected Surveillance Networks
| Network Interface |
| PoE Device Ports |
24 × 10/100/1000 Mbps RJ45 PoE ports |
| RJ45 Uplink Ports |
2 × 10/100/1000 Mbps RJ45 uplink ports |
| SFP Uplink Ports |
2 × 1000 Mbps SFP fiber uplink ports |
| PoE |
| PoE Standards |
IEEE 802.3af, IEEE 802.3at |
| Total PoE Power Budget |
300 W |
| Maximum Power per Port |
Up to 30 W per PoE port |
| Powered Device Detection |
Automatically detects and supplies power to compatible standards-based PoE devices |
| Passive PoE Compatibility |
Does not support passive 24 V PoE devices |
| Operating Modes |
| Default Mode |
Standard 10/100/1000 Mbps network operation |
| Extend Mode |
Supports PoE power and data transmission up to 600 ft at a reduced 10 Mbps network speed |
| Port Isolation Mode |
Ports 1–24 are isolated from each other while retaining communication with the uplink ports |
| Transmission Considerations |
Actual distance and performance depend on cable quality, cable length, connected-device power requirements, and installation conditions |
| General |
| Model |
PSW24-2GV2 |
| Product Type |
24-Port Gigabit Unmanaged PoE+ Switch |
| Management Type |
Unmanaged; no IP address or web management interface |
| Power Supply |
Built-in power supply |
| Cooling |
Fanless cooling design |
| Surge Protection |
4 kV surge protection design |
| Housing |
Metal enclosure |
| Installation |
Rack-mountable |
| Dimensions |
17.3 × 8.1 × 1.7 in |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
How many PoE devices can the PSW24-2GV2 connect?
The switch has twenty-four Gigabit PoE ports and can connect up to twenty-four compatible powered devices. Their combined power requirement must remain within the 300W total PoE budget.
How much power can each PoE port provide?
Each PoE port can provide up to 30W to a compatible IEEE 802.3af or IEEE 802.3at device. Available power also depends on the combined load across all twenty-four ports.
What uplink connections does the switch provide?
The PSW24-2GV2 provides two Gigabit RJ45 uplink ports and two 1000 Mbps SFP uplink ports for connections to compatible NVRs, routers, switches, or fiber network equipment.
What does Extend Mode do?
Extend Mode supports PoE power and network data transmission up to 600 feet at a reduced speed of 10 Mbps. Actual performance depends on cable quality, device power requirements, and installation conditions.
Does the PSW24-2GV2 require software configuration?
No. It is an unmanaged switch without an IP address or web management interface. Its physical controls provide standard, extended-distance, and port-isolation operating options.
