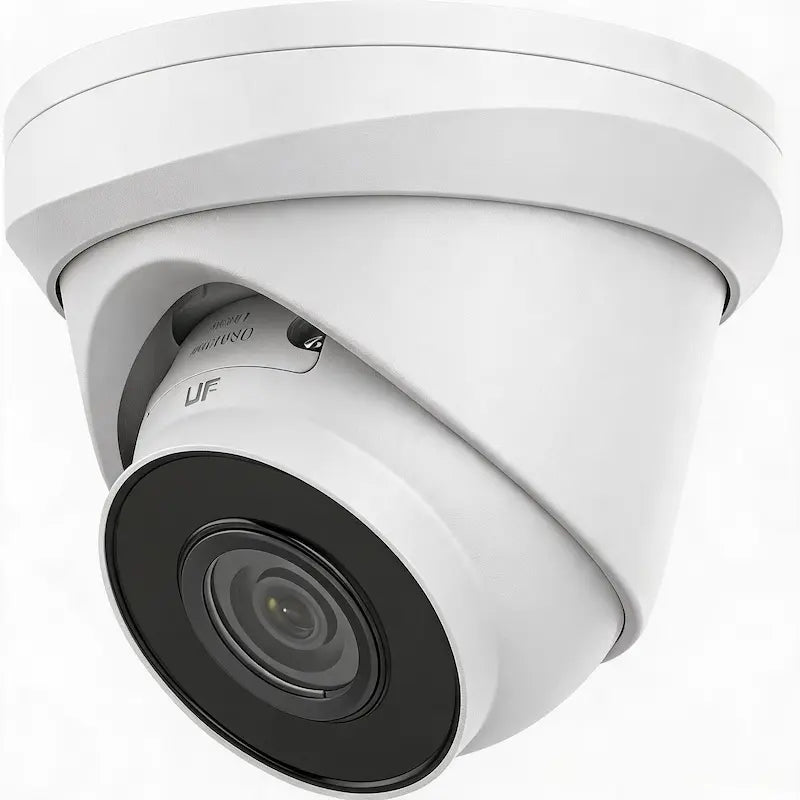

The ECI-T24F2 is a 4MP turret camera designed for commercial surveillance applications that require reliable video quality, integrated audio recording, and dependable nighttime monitoring.
With a 2.8 mm wide-angle lens, the camera provides broader coverage for entrances, walkways, retail areas, office spaces, and small commercial properties. Its 4MP resolution delivers detailed video, while EXIR 2.0 infrared illumination supports clear monitoring in low-light and zero-light environments.
The camera uses 120 dB WDR, BLC, and 3D DNR technologies to improve image quality in challenging lighting conditions, including bright entrances, shadows, and changing indoor or outdoor environments.
The ECI-T24F2 includes a built-in microphone for audio recording and supports onboard microSD storage up to 256 GB. With H.265+ compression, PoE support, network video integration, and IP67 weather protection, it provides a flexible solution for professional commercial surveillance installations.
Flexible Turret Monitoring Benefits
-
4MP Video Resolution – Captures detailed video for everyday commercial monitoring applications.
-
2.8 mm Wide-Angle Coverage – Provides broader visibility for entrances, walkways, and general business areas.
-
EXIR 2.0 Night Vision – Supports nighttime visibility up to 30 meters with infrared illumination.
-
Built-In Audio Recording – Adds audio information to compatible surveillance recordings.
-
120 dB WDR Image Enhancement – Helps maintain clear video in high-contrast lighting conditions.
-
Local Edge Storage – Supports onboard recording with a microSD card up to 256 GB.
Recommended Applications
- Retail Store Entrances
- Office Building Walkways
- Warehouse Personnel Entrances
- Apartment Common Areas
- Commercial Parking Access Points
- Small Business Exteriors
- Covered Loading Areas
- School Administrative Entrances
- Healthcare Facility Corridors
- Commercial Service Areas
| Camera |
| Image Sensor |
1/3" progressive scan CMOS |
| Max. Resolution |
2560 × 1440 |
| Min. Illumination |
Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens |
| Lens Type |
Fixed focal length, 2.8 and 4 mm optional |
| Focal Length & FOV |
2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7° |
| Lens Mount |
M12 |
| Iris Type |
Fixed |
| Aperture |
F2.0 |
| Illuminator |
| Supplement Light Type |
IR |
| Supplement Light Range |
Up to 30 m |
| Smart Supplement Light |
Yes |
| IR Wavelength |
850 nm |
| Video |
| Main Stream |
50 Hz:20 fps (2560 × 1440)
25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
60 Hz:20 fps (2560 × 1440)
30 fps (2304 × 1296, 1920 × 1080, 1280 × 720) |
| Sub-Stream |
50 Hz:25 fps (640 × 480, 640 × 360)
60 Hz:30 fps (640 × 480, 640 × 360) |
| Video Compression |
Main stream:H.265/H.264/H.264+/H.265+
Sub-stream:H.265/H.264/MJPEG |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Type |
Baseline Profile/Main Profile/High Profile |
| H.265 Type |
Main Profile |
| Region of Interest (ROI) |
1 fixed region for main stream |
| Audio |
| Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
| Audio Bit Rate |
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) |
| Audio Sampling Rate |
8 kHz/16 kHz |
| Environment Noise Filtering |
Yes |
| Network |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Simultaneous Live View |
Up to 6 channels |
| API |
Open Network Video Interface, ISAPI |
| User/Host |
Up to 32 users. 3 levels: administrator, operator and user |
| Network Storage |
NAS (NFS, SMB/CIFS), ANR |
| Client |
iVMS-4200, Mobile App |
| Web Browser |
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+ |
| Image |
| Image Settings |
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day/Night Switch |
Auto, Schedule, Day, Night |
| Wide Dynamic Range (WDR) |
120 dB |
| Image Enhancement |
BLC, 3D DNR |
| Interface |
| Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage |
Built-in memory card slot, support microSD card, up to 256 GB |
| Built-in Microphone |
Yes |
| Reset Key |
Yes |
| Event |
| Basic Event |
Motion detection, video tampering, exception |
| Linkage |
Upload to FTP, notify surveillance center, send email，upload to memory card, trigger recording, trigger capture |
| General |
| Power |
12 VDC± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE:802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W |
| Dimension |
Ø127.3 mm × 95.9 mm (Ø 5.0" × 3.7") |
| Package Dimension |
150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
| Weight |
Approx. 469 g (1.03 lb.) |
| With Package Weight |
Approx. 705 g (1.55 lb.) |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function |
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Approval |
| EMC |
FCC SDoC(47 CFR Part 15, Subpart B);
IC VoC(ICES-003: Issue 6, 2016) |
| Protection |
IP67(IEC 60529-2013) |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Where is the ECI-T24F2 commonly installed?
The ECI-T24F2 is suitable for retail entrances, office walkways, warehouse personnel doors, apartment common areas, parking access points, covered loading areas, and other commercial locations.
Why choose a turret camera for a commercial installation?
The turret design supports flexible positioning and a clean appearance while providing 4MP video, infrared night vision, built-in audio, local storage, and weather protection.
Can the ECI-T24F2 be used outdoors?
Yes. The camera has an IP67-rated enclosure and supports operation from -30 °C to 60 °C when installed according to applicable mounting requirements.
What types of organizations may use this camera?
Retail stores, offices, warehouses, apartment communities, schools, healthcare facilities, service businesses, and commercial property managers may use this model.
How does EXIR 2.0 improve nighttime monitoring?
EXIR 2.0 provides infrared illumination designed to support more effective low-light and zero-light monitoring, with a verified range of up to 30 meters.
What is the difference between the 2.8 mm and 4 mm lens options?
The 2.8 mm lens provides a wider 98° horizontal field of view, while the 4 mm lens provides a narrower 78.7° horizontal view for more focused monitoring.
Does the ECI-T24F2 support intelligent human and vehicle classification?
No human and vehicle classification is listed in the provided specifications. The camera supports standard motion detection, video tampering alerts, and system exception events.
Does this camera include built-in audio and local storage?
Yes. The camera includes a built-in microphone and a microSD card slot supporting up to 256 GB.
Can the ECI-T24F2 integrate with compatible video management systems?
Yes. The provided specifications list ONVIF and ISAPI support. Available functions depend on the recording platform and system configuration.
What are the maximum resolution and infrared range of the ECI-T24F2?
The camera supports a maximum resolution of 2560 × 1440 and provides infrared illumination up to 30 meters.
