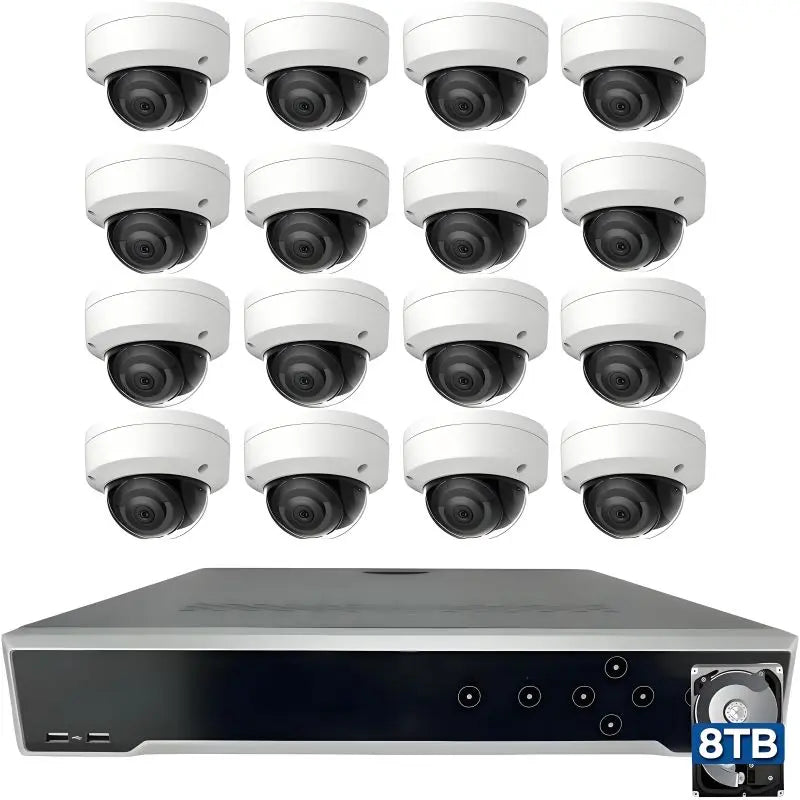

Designed for commercial properties that need broad multi-area coverage, this PoE surveillance system combines sixteen DS-2CD2183G2-I 8MP vandal-resistant dome cameras with one DS-7732NI-M4/24P 32-channel network video recorder and a preinstalled 8TB hard drive. The configuration supports centralized local recording for warehouses, offices, schools, apartment communities, retail properties, and other larger facilities.
Each camera uses a 2.8 mm fixed lens with a 107° horizontal field of view, human and vehicle classification, 120 dB WDR, and infrared illumination up to 98 feet. The NVR provides 24 built-in PoE ports, 320 Mbps incoming bandwidth, four SATA interfaces, and recording support up to 32MP. Sixteen additional recording channels remain available, while eight additional cameras can connect directly through the unused onboard PoE ports. Network cables are not included.
Key System Features
-
Sixteen 8MP Dome Cameras – Provides sixteen 4K monitoring points for entrances, interiors, parking areas, loading zones, corridors, and building exteriors.
-
Human and Vehicle Classification – Helps focus supported motion and perimeter events on people and vehicles.
-
2.8 mm Wide-Angle Lenses – Delivers a 107° horizontal field of view for broad general-purpose coverage.
-
Infrared Night Monitoring – Provides infrared illumination up to 98 feet for supported low-light environments.
-
IP67 and IK10 Protection – Supports exposed outdoor installations and areas where impact resistance is important.
-
32-Channel Recording Capacity – Leaves room for future compatible camera expansion within recorder bandwidth and system limits.
-
24 Integrated PoE Ports – Provides direct power, video, and data connections for the included cameras and additional compatible devices.
-
Preinstalled 8TB Storage – Includes an 8TB hard drive for centralized local video recording.
Package Configuration
-
16 × 8MP Vandal Dome Cameras – DS-2CD2183G2-I with 2.8 mm fixed lenses
-
1 × 32-Channel PoE NVR – DS-7732NI-M4/24P
-
1 × Hard Drive – 8TB HDD
- 1 × NVR Power Supply
- 1 × USB Mouse
- 16 × Quick Start Guides
- 16 × Waterproof Connector Covers
- 16 × Mounting Templates
- 16 × Mounting Screw Sets
-
Network Cables – Not included
| System Configuration |
| System Type |
PoE Network Security Camera System |
| Included Cameras |
16 × DS-2CD2183G2-I |
| Included NVRs |
1 × DS-7732NI-M4/24P |
| Included Camera Resolution |
8MP (3840 × 2160) |
| Camera Style |
Vandal-Resistant Fixed Dome |
| Included Camera Channels |
16 channels |
| Maximum NVR Channels |
32 IP camera channels |
| Built-in PoE Ports |
24 |
| Unused Built-in PoE Ports |
8 |
| Remaining Recording Channels |
16 additional compatible IP camera channels, subject to recorder bandwidth and system configuration |
| Connection Type |
Direct PoE Ethernet |
| Network Cables |
Not included |
| Camera Specifications — DS-2CD2183G2-I |
| Camera Model |
DS-2CD2183G2-I |
| Quantity |
16 |
| Camera Type |
8MP AcuSense Vandal WDR Fixed Dome Network Camera |
| Image Sensor |
1/2.8" Progressive Scan CMOS |
| Maximum Resolution |
3840 × 2160 |
| Maximum Frame Rate |
Up to 20 fps at 3840 × 2160 |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Lens |
2.8 mm fixed focal lens |
| Field of View |
2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128° |
| Aperture |
F1.6 |
| Minimum Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Supplement Light Type |
IR |
| Supplement Light Range |
Up to 30 m |
| IR Wavelength |
850 nm |
| Wide Dynamic Range |
120 dB |
| Target Classification |
Human and vehicle classification based on deep learning |
| Smart Events |
Line crossing detection, intrusion detection, and face detection |
| Video Compression |
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264 |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| Audio |
No built-in microphone or camera audio interface |
| Onboard Storage |
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Network Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Power |
12 VDC ± 25%, 0.5 A, max. 6 W,Ø 5.5 mm coaxial power plug,reverse polarity protection,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 7.5 W |
| Dimensions |
Ø 110.8 mm × 84.7 mm (Ø 4.4" × 3.3") |
| Material |
Aluminum alloy body, bubble: plastic |
| Weight |
Approx. 520 g (1.1 lb.) |
| Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Protection |
IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
| NVR Specifications — DS-7732NI-M4/24P |
| NVR Model |
DS-7732NI-M4/24P |
| Quantity |
1 |
| IP Video Input |
32-ch |
| Maximum IP Camera Resolution |
Up to 32 MP resolution |
| Incoming Bandwidth |
320 Mbps |
| Outgoing Bandwidth |
400 Mbps |
| Recording Resolution |
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Decoding Capability |
2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps) |
| Synchronous Playback |
16-ch |
| Video Compression |
H.265+/H.265/H.264+/H.264 |
| HDMI 1 Output |
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 720/60Hz |
| HDMI 2 Output |
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 720/60Hz |
| VGA Output |
1920 × 1080/60Hz, 1280 × 720/60Hz |
| Video Output Mode |
HDMI1/VGA simultaneous output, HDMI2/VGA independent output |
| Network Interface |
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Built-in PoE Ports |
24, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| PoE Power |
≤ 210 W |
| PoE Standard |
IEEE 802.3 af/at |
| SATA Interfaces |
4 SATA interfaces |
| Maximum Capacity per HDD |
Up to 16 TB capacity for each disk |
| Maximum Supported Storage |
Up to 64TB across four supported HDDs |
| eSATA |
1 eSATA interface |
| Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Alarm In/Out |
16/9 |
| USB Interface |
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Power Supply |
100 to 240 VAC, 50 to 60 Hz |
| Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity |
10% to 90% |
| Chassis |
19-inch rack-mounted 1.5U chassis |
| Dimensions |
445 × 400 × 75 mm (17.5"× 15.7" × 3.0") |
| Weight |
≤ 5 kg (without HDD, 11 lb.) |
| Storage Configuration |
| Hard Drive Included |
Yes |
| Included HDD Capacity |
8TB |
| Number of Included HDDs |
1 |
| Preinstalled HDD |
Yes |
| Storage Type |
Local NVR recording |
| SATA Interfaces |
4 |
| Occupied SATA Interfaces |
1 |
| Available SATA Interfaces |
3 |
| Maximum Capacity per HDD |
Up to 16TB |
| Maximum Supported Storage |
Up to 64TB across four supported HDDs |
| Recording Compression |
H.265+/H.265/H.264+/H.264 |
| Recording Retention |
Varies by resolution, frame rate, bitrate, compression, recording schedule, and scene activity |
| Package Contents |
| PoE Network Video Recorder |
1 × DS-7732NI-M4/24P |
| Network Cameras |
16 × DS-2CD2183G2-I with 2.8 mm fixed lenses |
| 8TB HDD |
1 |
| NVR Power Supply |
1 |
| Mouse |
1 |
| Quick Start Guide |
16 |
| Waterproof Lid |
16 |
| Mounting Template |
16 |
| Screws |
16 sets |
| Network Cables |
Not included |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
How many cameras are included in this security system?
The package includes sixteen DS-2CD2183G2-I 8MP vandal-resistant fixed dome network cameras.
Which recorder is included with the system?
The package includes one DS-7732NI-M4/24P network video recorder with 32 IP camera channels and 24 built-in PoE ports.
Does the system include a hard drive?
Yes. The recorder includes one preinstalled 8TB hard drive for centralized local video storage.
How are the included cameras connected?
The sixteen included cameras can connect directly to the NVR through its built-in PoE ports using compatible Ethernet cables for power, video, and data.
Are network cables included?
No. Network cables are not included and must be selected separately according to the required installation distances.
Can additional compatible cameras be added?
Yes. The recorder supports up to 32 IP camera channels. Eight additional cameras can use the remaining built-in PoE ports, while further expansion may require an external PoE network and sufficient recorder bandwidth.
How long will the 8TB hard drive retain recordings?
Retention depends on camera quantity, resolution, frame rate, bitrate, compression, recording schedule, and scene activity. A fixed number of recording days cannot be guaranteed without the final settings.
Is this system suitable for warehouse monitoring?
The sixteen-camera configuration can support entrances, loading areas, storage aisles, parking zones, building exteriors, and other monitored areas across a warehouse property.
Can the cameras be installed outdoors?
Yes. The included cameras carry IP67 weather protection and IK10 impact resistance when installed according to product requirements.
Do the included cameras record audio?
No. The included DS-2CD2183G2-I cameras do not have a built-in microphone or integrated camera audio interface.
