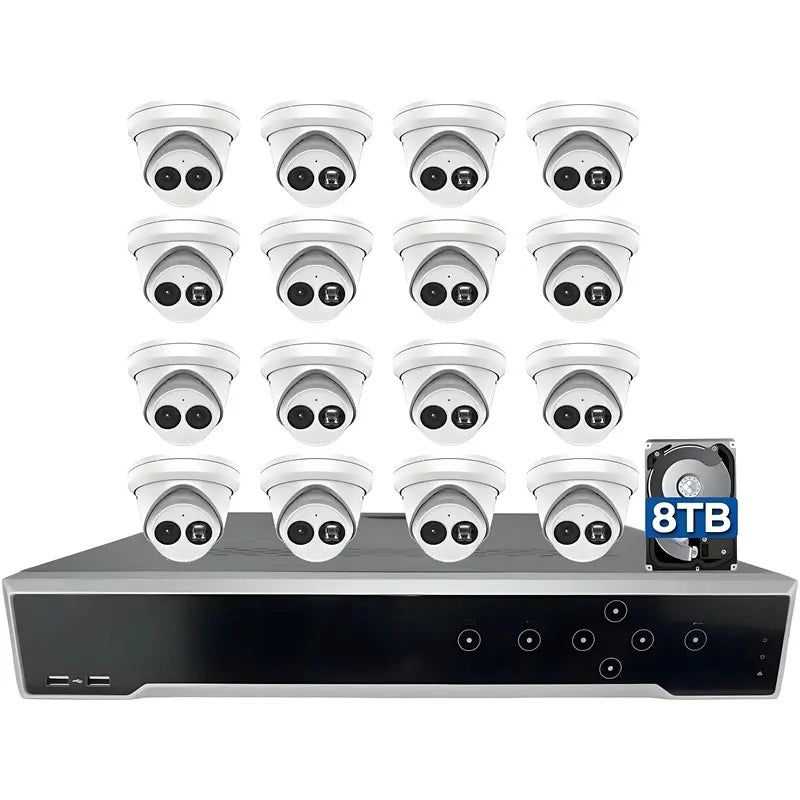

Built for larger commercial properties that require coverage across multiple indoor and outdoor areas, this PoE surveillance kit combines sixteen DS-2CD2343G2-I 4MP AcuSense turret cameras with one DS-7732NI-M4/24P 32-channel network video recorder and an included 8TB hard drive. The system supports centralized local recording for offices, retail properties, warehouses, schools, healthcare facilities, parking areas, and industrial sites.
Each camera provides up to 2688 × 1520 resolution, human and vehicle classification, 120 dB WDR, infrared illumination up to 98 feet, and IP67 weather protection. The recorder supports 32 IP camera channels, provides 24 built-in PoE ports, 320 Mbps incoming bandwidth, and four SATA interfaces. Eight additional cameras can connect directly through the unused PoE ports, while further expansion requires a compatible external network connection. Network cables are not included.
Key System Features
-
Sixteen 4MP Turret Cameras – Provides sixteen monitoring points for entrances, interiors, parking areas, corridors, loading zones, and building exteriors.
-
AcuSense Target Classification – Supports human and vehicle classification for more focused motion and perimeter event review.
-
120 dB Wide Dynamic Range – Helps preserve visible detail in scenes containing bright and dark areas.
-
Infrared Night Monitoring – Provides infrared illumination up to 98 feet for supported low-light environments.
-
IP67 Weather Protection – Supports properly installed indoor and outdoor camera deployments.
-
32-Channel Recording Capacity – Provides room for future compatible camera expansion within recorder bandwidth and system limits.
-
24 Integrated PoE Ports – Supplies direct camera power, video, and data connectivity through compatible Ethernet cabling.
-
Included 8TB Storage – Provides centralized local storage for recorded surveillance footage.
Package Configuration
-
16 × 4MP Turret Network Cameras – DS-2CD2343G2-I
-
1 × 32-Channel PoE NVR – DS-7732NI-M4/24P
-
1 × Hard Drive – 8TB HDD
- 1 × Power Supply
- 1 × USB Mouse
- 16 × Quick Start Guides
- 16 × Waterproof Connector Covers
- 16 × Mounting Templates
- 16 × Mounting Screw Sets
-
Network Cables – Not included
| System Configuration |
| System Type |
PoE Network Security Camera System |
| Included Cameras |
16 × DS-2CD2343G2-I |
| Included NVRs |
1 × DS-7732NI-M4/24P |
| Included Camera Resolution |
4MP (2688 × 1520) |
| Camera Style |
Fixed Turret |
| Included Camera Channels |
16 channels |
| Maximum NVR Channels |
32 IP camera channels |
| Built-in PoE Ports |
24 |
| Unused Built-in PoE Ports |
8 |
| Remaining Recording Channels |
16 additional compatible IP camera channels, subject to recorder bandwidth and system configuration |
| Connection Type |
Direct PoE Ethernet |
| Network Cables |
Not included |
| Camera Specifications — DS-2CD2343G2-I |
| Camera Model |
DS-2CD2343G2-I |
| Quantity |
16 |
| Camera Type |
4 MP AcuSense Fixed Turret Network Camera |
| Image Sensor |
1/3" Progressive Scan CMOS |
| Maximum Resolution |
2688 × 1520 |
| Maximum Frame Rate |
Up to 30 fps at 2688 × 1520 |
| Minimum Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Infrared Range |
Up to 30 m |
| Wide Dynamic Range |
120 dB |
| Target Classification |
Human and vehicle classification based on deep learning |
| Smart Events |
Line crossing detection and intrusion detection |
| Video Compression |
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264 |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| Audio |
No built-in microphone |
| Onboard Storage |
Built-in microSD card slot, up to 512 GB |
| Network Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
| Power |
12 VDC ± 25%, reverse polarity protection
PoE: IEEE 802.3af, Class 3 |
| Material |
Aluminum alloy body |
| Dimensions |
Ø127.3 × 95.9 mm (Ø5.01" × 3.78") |
| Weight |
Approx. 600 g (1.3 lb.) |
| Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Protection |
IP67 (IEC 60529-2013) |
| NVR Specifications — DS-7732NI-M4/24P |
| NVR Model |
DS-7732NI-M4/24P |
| Quantity |
1 |
| IP Video Input |
32-ch, up to 32 MP resolution |
| Incoming Bandwidth |
320 Mbps |
| Outgoing Bandwidth |
400 Mbps |
| Recording Resolution |
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Decoding Format |
H.265+/H.265/H.264+/H.264 |
| Decoding Capability |
2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps) |
| Synchronous Playback |
16-ch |
| HDMI 1 Output |
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 720/60Hz |
| HDMI 2 Output |
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 720/60Hz |
| VGA Output |
1920 × 1080/60Hz, 1280 × 720/60Hz |
| Video Output Mode |
HDMI1/VGA simultaneous output, HDMI2/VGA independent output |
| Network Interface |
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Built-in PoE Ports |
24, RJ-45 10/100 Mbps self-adaptive Ethernet interfaces |
| PoE Power |
≤ 210 W |
| PoE Standard |
IEEE 802.3 af/at |
| SATA Interfaces |
4 SATA interfaces |
| Maximum Capacity per HDD |
Up to 16 TB capacity for each disk |
| Maximum Supported Storage |
Up to 64TB across four supported HDDs |
| eSATA |
1 eSATA interface |
| Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Alarm In/Out |
16/9 |
| USB Interface |
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Power Supply |
100 to 240 VAC, 50 to 60 Hz |
| Power Consumption |
≤ 15 W (without HDD and PoE off) |
| Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity |
10% to 90% |
| Chassis |
19-inch rack-mounted 1.5U chassis |
| Dimensions |
445 × 400 × 75 mm (17.5"× 15.7" × 3.0") |
| Weight |
≤ 5 kg (without HDD, 11 lb.) |
| Storage Configuration |
| Hard Drive Included |
Yes |
| Included HDD Capacity |
8TB |
| Number of Included HDDs |
1 |
| Storage Type |
Local NVR recording |
| SATA Interfaces |
4 |
| Occupied SATA Interfaces |
1 |
| Available SATA Interfaces |
3 |
| Maximum Capacity per HDD |
Up to 16TB |
| Maximum Supported Storage |
Up to 64TB across four supported HDDs |
| Recording Compression |
H.265+/H.265/H.264+/H.264 |
| Recording Retention |
Varies by resolution, frame rate, bitrate, compression, recording schedule, and scene activity |
| Package Contents |
| PoE Network Video Recorder |
1 × DS-7732NI-M4/24P |
| Network Cameras |
16 × DS-2CD2343G2-I |
| 8TB HDD |
1 |
| Power Supply |
1 |
| Mouse |
1 |
| Quick Start Guide |
16 |
| Waterproof Lid |
16 |
| Mounting Template |
16 |
| Screws |
16 sets |
| Network Cables |
Not included |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
How many cameras are included in this security system?
The package includes sixteen DS-2CD2343G2-I 4MP fixed turret network cameras.
Which recorder is included with the system?
The package includes one DS-7732NI-M4/24P recorder with 32 IP camera channels and 24 built-in PoE ports.
Does the package include a hard drive?
Yes. The package includes one 8TB hard drive for centralized local NVR recording. The installation status of the drive is not specified.
How are the included cameras connected?
The sixteen included cameras can connect directly to the recorder's built-in PoE ports using compatible Ethernet cables that carry power, video, and data.
Are network cables included?
No. Network cables are not included and must be selected separately according to the required installation distances.
Can additional compatible cameras be added?
Yes. Eight additional cameras can use the remaining built-in PoE ports. The recorder supports up to 32 channels, so further expansion may use a compatible external PoE network within recorder bandwidth limits.
Can the recorder's storage capacity be expanded?
The recorder provides four SATA interfaces and supports up to 16TB per compatible disk, for a maximum supported internal capacity of 64TB.
Is this system suitable for warehouse or industrial monitoring?
The sixteen-camera configuration can support entrances, loading zones, storage areas, production spaces, parking areas, and building exteriors across larger properties.
Can the cameras be installed outdoors?
Yes. The included cameras carry IP67 weather protection when installed according to the product requirements.
Do the included cameras record audio?
No. The included DS-2CD2343G2-I cameras do not have a built-in microphone.
