12-Camera 8MP AcuSense Dome PoE System with 16CH NVR & 4TB HDD

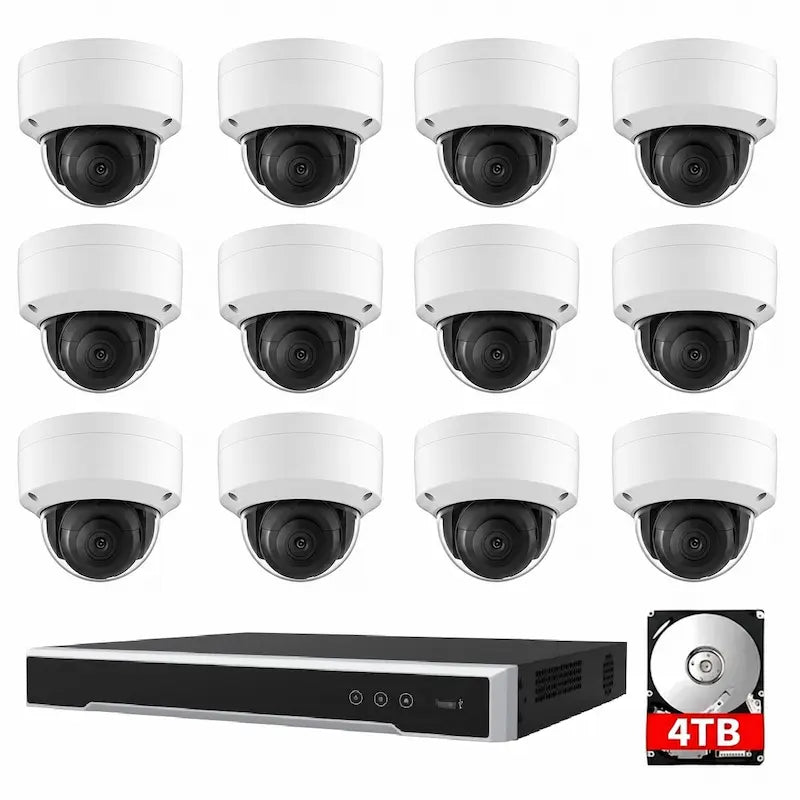

Includes 12 × DS-2CD2183G2-I 8MP vandal-resistant dome cameras, one DS-7616NI-Q2/16P(D) 16-channel PoE NVR, and a preinstalled 4TB surveillance HDD.
In stock
Questions about camera placement, installation, or compatibility? [Ask a CCTV Specialist]
Installer or Dealer? Request Trade Pricing.
Ships from Bensenville, IL
Fast Order Processing
1-Year Warranty
30-Day Return Window
Built for commercial properties that need wide multi-camera coverage, this 12-camera PoE system combines twelve DS-2CD2183G2-I 8MP vandal-resistant dome cameras with one DS-7616NI-Q2/16P(D) 16-channel NVR and a preinstalled 4TB hard drive. The matched configuration supports centralized local recording for offices, retail properties, warehouses, apartment communities, schools, and other multi-area sites.
Each camera uses a 2.8 mm fixed lens with a 107° horizontal field of view, human and vehicle classification, 120 dB WDR, and infrared illumination up to 98 feet. The recorder provides 16 built-in PoE ports, 160 Mbps incoming bandwidth, H.265+ compression, and capacity for up to four additional compatible cameras within its channel and bandwidth limits. Network cables are not included.
Key System Features
- Twelve 8MP Dome Cameras – Provides twelve 4K viewing points for monitoring entrances, interiors, parking areas, loading zones, and building exteriors.
- AcuSense Target Classification – Supports human and vehicle classification for more focused motion event review.
- 2.8 mm Wide-Angle Lenses – Delivers a 107° horizontal field of view for broad area coverage.
- Low-Light and Backlight Performance – Combines infrared illumination up to 98 feet with 120 dB true WDR.
- IP67 and IK10 Camera Protection – Supports outdoor installation and locations where impact resistance is important.
- 16-Channel PoE Recording – Provides 16 integrated PoE interfaces for centralized camera power, video, and data connectivity.
- Preinstalled 4TB Storage – Includes a 4TB hard drive for local video recording.
- Four-Channel Expansion Capacity – Supports up to four additional compatible cameras within the recorder’s bandwidth and system limits.
Package Configuration
- 12 × 8MP Vandal Dome Cameras – DS-2CD2183G2-I with 2.8 mm fixed lenses
- 1 × 16-Channel PoE NVR – DS-7616NI-Q2/16P(D)
- 1 × Hard Drive – 4TB HDD
- 1 × NVR Power Supply
- 1 × USB Mouse
- 1 × Quick Start Guide
- 12 × Waterproof Connector Covers
- 12 × Mounting Templates
- 12 × Mounting Screw Sets
- Network Cables – Not included
| System Configuration | |
|---|---|
| System Type | PoE Network Security Camera System |
| Included Cameras | 12 × DS-2CD2183G2-I |
| Included NVRs | 1 × DS-7616NI-Q2/16P(D) |
| Included Camera Resolution | 8MP (3840 × 2160) |
| Camera Style | Vandal-Resistant Fixed Dome |
| Included Camera Channels | 12 channels |
| Maximum NVR Channels | 16 IP camera channels |
| Built-in PoE Ports | 16 |
| Remaining Channel Capacity | Up to 4 additional compatible IP cameras, subject to recorder bandwidth and system configuration |
| Connection Type | Direct PoE Ethernet |
| Network Cables | Not included |
| Camera Specifications — DS-2CD2183G2-I | |
| Camera Model | DS-2CD2183G2-I |
| Quantity | 12 |
| Camera Type | 8MP AcuSense Vandal WDR Fixed Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 3840 × 2160 |
| Maximum Frame Rate | Up to 20 fps at 3840 × 2160 |
| Lens | 2.8 mm fixed focal lens |
| Field of View | 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128° |
| Aperture | F1.6 |
| Minimum Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Day & Night | IR cut filter |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Wide Dynamic Range | 120 dB |
| Target Classification | Human and vehicle classification based on deep learning |
| Smart Events | Line crossing detection, intrusion detection, and face detection |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 |
| Audio | No built-in microphone or camera audio interface |
| Onboard Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Power | 12 VDC ± 25%, 0.5 A, max. 6 W PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 7.5 W |
| Weather Protection | IP67 rated |
| Impact Protection | IK10 rated |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| NVR Specifications — DS-7616NI-Q2/16P(D) | |
| NVR Model | DS-7616NI-Q2/16P(D) |
| Quantity | 1 |
| IP Camera Inputs | 16 channels |
| Built-in PoE Ports | 16 independent PoE network interfaces |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Decoding Capacity | 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) |
| Synchronous Playback | 16 channels |
| Human/Vehicle Analysis | 4 channels |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| HDMI Output | 1 channel, up to 4K resolution |
| VGA Output | 1 channel, up to 1920 × 1080/60 Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Network Interface | 1 × RJ45 10/100/1000 Mbps self-adaptive Ethernet interface |
| SATA Interfaces | 2 |
| Maximum Capacity per HDD | Up to 8TB |
| Maximum Supported Storage | Up to 16TB across two supported HDDs |
| USB Interfaces | 2 × USB 2.0 |
| Storage Configuration | |
| Hard Drive Included | Yes |
| Included HDD Capacity | 4TB |
| Number of Included HDDs | 1 |
| Preinstalled HDD | Yes |
| Storage Type | Local NVR recording |
| SATA Interfaces | 2 |
| Occupied SATA Interfaces | 1 |
| Available SATA Interfaces | 1 |
| Maximum Capacity per HDD | Up to 8TB |
| Maximum Supported Storage | Up to 16TB across two supported HDDs |
| Recording Retention | Varies by resolution, frame rate, bitrate, compression, recording schedule, and scene activity |
| Package Contents | |
| PoE Network Video Recorder | 1 × DS-7616NI-Q2/16P(D) |
| Network Cameras | 12 × DS-2CD2183G2-I with 2.8 mm fixed lenses |
| 4TB HDD | 1 |
| NVR Power Supply | 1 |
| Mouse | 1 |
| Manual | 1 |
| Waterproof Lid | 12 |
| Mounting Template | 12 |
| Screws | 12 sets |
| Network Cables | Not included |
Find answers to common questions about included equipment, camera coverage, PoE installation, recording storage, system expansion, compatibility, and remote viewing.
How many cameras are included in this security system?
The package includes twelve DS-2CD2183G2-I 8MP vandal-resistant fixed dome network cameras.
Which recorder is included with the camera package?
The system includes one DS-7616NI-Q2/16P(D) 16-channel PoE network video recorder.
Does the system include a hard drive?
Yes. The recorder includes one preinstalled 4TB hard drive for local video storage.
How are the cameras connected to the NVR?
The cameras connect directly to the recorder's built-in PoE ports using compatible Ethernet cables, allowing one cable to carry power, video, and data.
Are network cables included?
No. Network cables are not included and must be selected separately based on the required installation distances.
Can additional cameras be added to the system?
The 16-channel recorder has four unused channels after the twelve included cameras are connected. Additional compatible cameras may be added within the recorder's bandwidth and system limits.
How long will the 4TB hard drive retain recordings?
Recording retention depends on camera quantity, resolution, frame rate, bitrate, compression, recording schedule, and scene activity. A fixed retention period cannot be guaranteed without the final recording settings.
Is this camera system suitable for a warehouse?
Yes. The twelve-camera configuration can support entrances, loading areas, storage aisles, exterior walls, parking zones, and other monitored areas across a warehouse property.
Can the cameras be installed outdoors?
Yes. The included cameras carry IP67 weather protection and IK10 impact resistance when installed according to the product requirements.
Do the included cameras record audio?
No. The included DS-2CD2183G2-I cameras do not have a built-in microphone or integrated camera audio interface.
