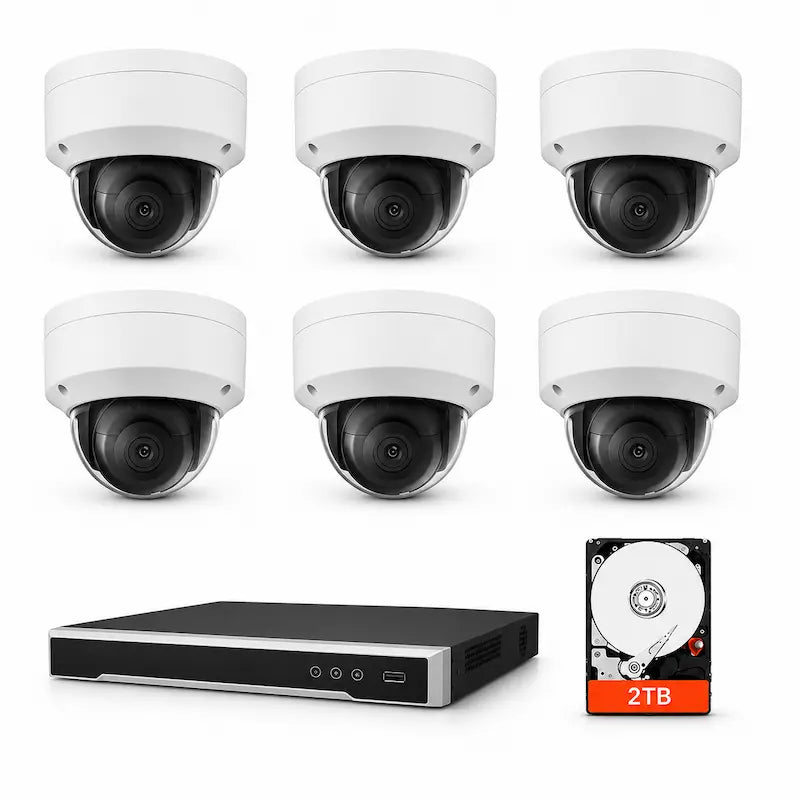

Built for homes and small businesses, this system combines six DS-2CD2183G2-I 8MP vandal-resistant dome cameras with a DS-7608NI-Q2/8P 8-channel PoE NVR and a preinstalled 2TB surveillance HDD.
Get human and vehicle detection, IR night vision up to 98 ft., 120 dB WDR, IP67 weather resistance, and IK10 impact protection. The NVR also supports up to two additional compatible IP cameras.
What’s Included
-
6 × DS-2CD2183G2-I 8MP Dome Cameras
-
1 × DS-7608NI-Q2/8P 8-Channel PoE NVR
-
1 × Preinstalled 2TB Surveillance HDD
-
Power supply, USB mouse, waterproof covers, and mounting hardware
Storage & Setup
-
Approximately 7–14 days of continuous recording with six cameras
-
A local monitor is optional; remote viewing requires network and app setup.
-
Network cables are not included
Actual recording time varies by bitrate, frame rate, scene activity, and recording schedule.
| System Configuration |
| System Type |
PoE Network Security Camera System |
| Included Cameras |
6 × DS-2CD2183G2-I |
| Included NVRs |
1 × DS-7608NI-Q2/8P |
| Included Camera Resolution |
8MP (3840 × 2160) |
| Camera Style |
Vandal-Resistant Fixed Dome |
| Included Camera Channels |
6 channels |
| Maximum NVR Channels |
8 IP camera channels |
| Built-in PoE Ports |
8 |
| Remaining Channel Capacity |
Up to 2 additional compatible IP cameras, subject to recorder bandwidth and system configuration |
| Connection Type |
Direct PoE Ethernet |
| Network Cables |
Not included |
| Camera Specifications — DS-2CD2183G2-I |
| Camera Model |
DS-2CD2183G2-I |
| Quantity |
6 |
| Camera Type |
8MP AcuSense Vandal-Resistant Fixed Dome Network Camera |
| Image Sensor |
1/2.8" Progressive Scan CMOS |
| Maximum Resolution |
3840 × 2160 |
| Maximum Frame Rate |
Up to 20 fps at 3840 × 2160 |
| Lens |
2.8 mm fixed focal lens |
| Field of View |
2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128° |
| Aperture |
F1.6 |
| Minimum Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Day & Night |
IR cut filter |
| Night Vision |
Infrared illumination |
| Infrared Range |
Up to 98 ft. (30 m) |
| Wide Dynamic Range |
120 dB true WDR |
| Target Classification |
Human and vehicle classification based on deep learning |
| Smart Events |
Line crossing detection, intrusion detection, and face detection |
| Video Compression |
H.265+, H.265, H.264+, H.264, and MJPEG |
| Audio |
No built-in microphone or camera audio interface |
| Onboard Storage |
Built-in microSD card slot supporting up to 512GB |
| Network Interface |
1 × RJ45 10/100 Mbps Ethernet port |
| Power |
12 VDC or PoE: IEEE 802.3af |
| Weather Protection |
IP67 rated |
| Impact Protection |
IK10 rated |
| Operating Temperature |
-22°F to 140°F (-30°C to 60°C) |
| NVR Specifications — DS-7608NI-Q2/8P |
| NVR Model |
DS-7608NI-Q2/8P |
| Quantity |
1 |
| IP Camera Inputs |
8 channels |
| Built-in PoE Ports |
8 × RJ45 10/100 Mbps PoE interfaces |
| PoE Standard |
IEEE 802.3af/at |
| PoE Power Budget |
Up to 80 W |
| Incoming Bandwidth |
80 Mbps |
| Outgoing Bandwidth |
80 Mbps |
| Maximum Recording Resolution |
Up to 8MP |
| Synchronous Playback |
Up to 8 channels |
| Video Compression |
H.265+, H.265, H.264+, and H.264 |
| HDMI Output |
1 × HDMI with output up to 4K |
| VGA Output |
1 × VGA |
| Video Output Mode |
Simultaneous HDMI and VGA output |
| SATA Interfaces |
2 |
| Maximum Capacity per HDD |
Up to 8TB |
| Maximum Supported Storage |
Up to 16TB across two supported HDDs |
| Audio Interfaces |
1 input (RCA), 1 output (RCA) |
| USB Interfaces |
2 × USB 2.0 |
| Power Supply |
48 VDC |
| Chassis |
1U chassis |
| Storage Configuration |
| Hard Drive Included |
Yes |
| Included HDD Capacity |
2TB |
| Number of Included HDDs |
1 |
| Preinstalled HDD |
Yes |
| Storage Type |
Local NVR recording |
| SATA Interfaces |
2 |
| Occupied SATA Interfaces |
1 |
| Available SATA Interfaces |
1 |
| Maximum Capacity per HDD |
Up to 8TB |
| Maximum Supported Storage |
Up to 16TB across two supported HDDs |
| Recording Compression |
H.265+, H.265, H.264+, and H.264 |
| Recording Retention |
Varies by resolution, frame rate, bitrate, compression, recording schedule, and scene activity |
| Package Contents |
| PoE Network Video Recorder |
1 × DS-7608NI-Q2/8P |
| Network Cameras |
6 × DS-2CD2183G2-I with 2.8 mm fixed lenses |
| 2TB HDD |
1 |
| NVR Power Supply |
1 |
| Mouse |
1 |
| Manual |
1 |
| Waterproof Lid |
6 |
| Mounting Template |
6 |
| Screws |
6 sets |
| Network Cables |
Not included |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
How many cameras are included in this security system?
The package includes six DS-2CD2183G2-I 8MP fixed dome network cameras.
Which recorder is included with the camera package?
The system includes one DS-7608NI-Q2/8P 8-channel PoE network video recorder.
Does the system include a hard drive?
Yes. A 2TB surveillance hard drive is included and listed as preinstalled in the recorder configuration.

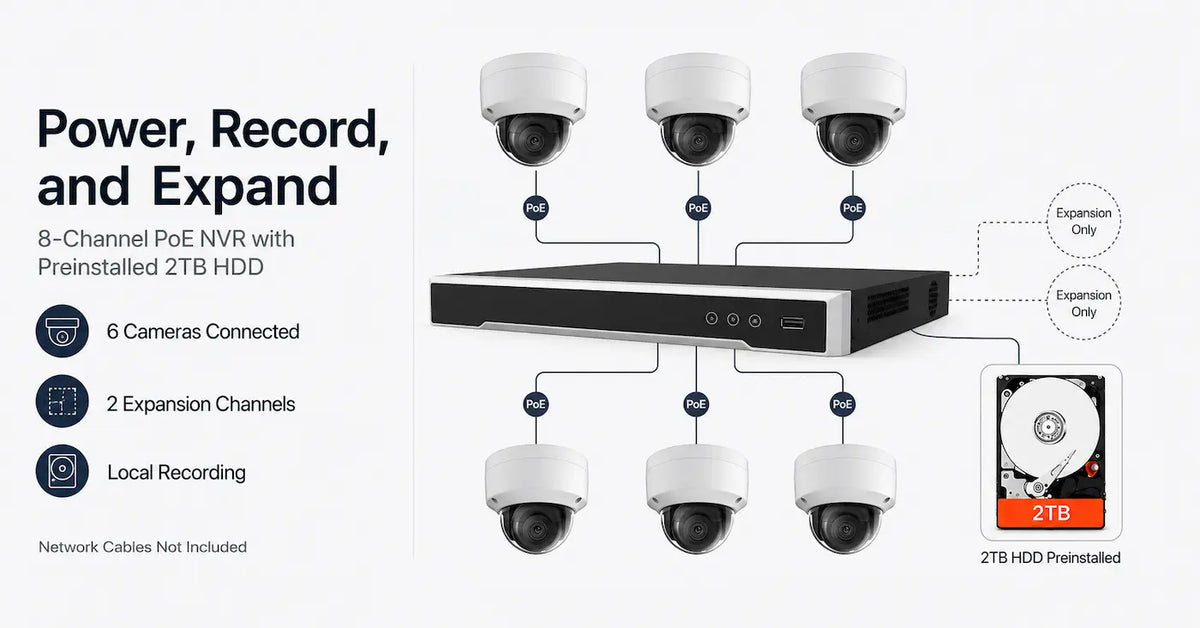

How are the cameras connected to the NVR?
The cameras connect to the recorder through its built-in PoE ports, allowing compatible Ethernet cabling to carry video, data, and power.
Are network cables included?
No. Network cables are not included, so suitable Ethernet cables must be supplied separately for each camera connection.
How many total cameras can the NVR support?
The DS-7608NI-Q2/8P supports up to eight IP camera channels. With six cameras included, up to two additional compatible cameras may be added within the recorder's bandwidth limits.
How long will the 2TB hard drive retain recordings?
Retention varies with camera quantity, resolution, frame rate, compression, bitrate, recording schedule, and scene activity. A fixed number of recording days cannot be guaranteed without the final settings.
Is this system suitable for a small business?
Yes. The six-camera configuration is suitable for retail stores, offices, restaurants, small warehouses, and other properties that need multiple indoor or outdoor viewing points.
Can the cameras be installed outdoors?
Yes. The cameras carry IP67 weather protection and IK10 impact resistance, making them suitable for exposed or vandal-prone locations when installed correctly.
Do the included cameras support audio recording?
No. The DS-2CD2183G2-I configuration does not include a built-in microphone or integrated audio interface.
