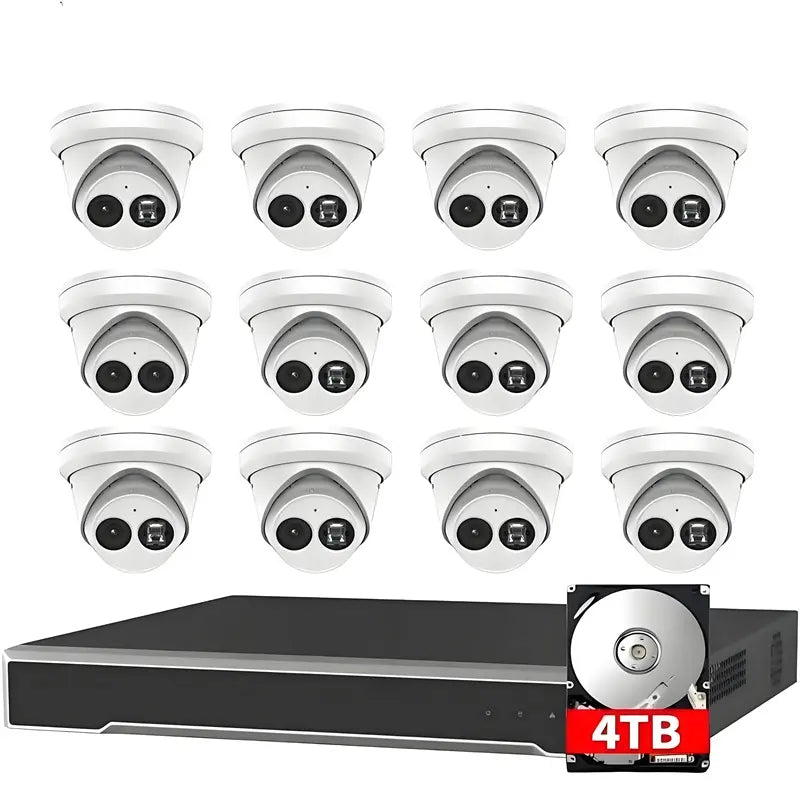

Built for commercial properties that need coverage across multiple areas, this PoE surveillance kit combines twelve DS-2CD2343G2-I 4MP AcuSense turret cameras with one DS-7616NI-Q2/16P(D) 16-channel network video recorder and an included 4TB hard drive. The system supports centralized local recording for offices, retail properties, warehouses, restaurants, parking areas, and other medium-sized sites.
Each camera provides up to 2688 × 1520 resolution, human and vehicle classification, 120 dB WDR, infrared illumination up to 98 feet, and IP67 weather protection. The recorder offers 16 built-in PoE ports, 160 Mbps incoming bandwidth, H.265+ compression, and four unused channels for future compatible camera expansion. Network cables are not included.
Key System Features
-
Twelve 4MP Turret Cameras – Provides twelve monitoring points for entrances, interiors, parking areas, loading zones, corridors, and building exteriors.
-
AcuSense Target Classification – Supports human and vehicle classification for more focused motion and perimeter event review.
-
120 dB Wide Dynamic Range – Helps preserve visible detail in scenes containing bright and dark areas.
-
Infrared Night Monitoring – Provides infrared illumination up to 98 feet for supported low-light environments.
-
IP67 Weather Protection – Supports properly installed indoor and outdoor camera deployments.
-
16-Channel PoE Recording – Provides direct power, video, and data connections through 16 integrated PoE interfaces.
-
Four-Channel Expansion Capacity – Supports up to four additional compatible cameras within recorder bandwidth and system limits.
-
Included 4TB Storage – Provides local NVR storage for recorded surveillance footage.
Package Configuration
-
12 × 4MP Turret Network Cameras – DS-2CD2343G2-I
-
1 × 16-Channel PoE NVR – DS-7616NI-Q2/16P(D)
-
1 × Hard Drive – 4TB HDD
- 1 × NVR Power Supply
- 1 × USB Mouse
- 1 × Quick Start Guide
- 12 × Waterproof Connector Covers
- 12 × Mounting Templates
- 12 × Mounting Screw Sets
-
Network Cables – Not included
| System Configuration |
| System Type |
PoE Network Security Camera System |
| Included Cameras |
12 × DS-2CD2343G2-I |
| Included NVRs |
1 × DS-7616NI-Q2/16P(D) |
| Included Camera Resolution |
4MP (2688 × 1520) |
| Camera Style |
Fixed Turret |
| Included Camera Channels |
12 channels |
| Maximum NVR Channels |
16 IP camera channels |
| Built-in PoE Ports |
16 |
| Remaining Channel Capacity |
Up to 4 additional compatible IP cameras, subject to recorder bandwidth and system configuration |
| Connection Type |
Direct PoE Ethernet |
| Network Cables |
Not included |
| Camera Specifications — DS-2CD2343G2-I |
| Camera Model |
DS-2CD2343G2-I |
| Quantity |
12 |
| Camera Type |
4 MP AcuSense Fixed Turret Network Camera |
| Image Sensor |
1/3" Progressive Scan CMOS |
| Maximum Resolution |
2688 × 1520 |
| Main Stream |
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Minimum Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Day & Night |
ICR Cut |
| Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Aperture |
F1.6 |
| IR Range |
Up to 30 m |
| Wavelength |
850 nm |
| Wide Dynamic Range |
120 dB |
| Target Classification |
Human and vehicle target classification based on deep learning |
| Smart Events |
Line crossing detection and intrusion detection |
| Face Detection |
Yes |
| Video Compression |
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264 |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| Audio |
No built-in microphone |
| Onboard Storage |
Built-in microSD card slot, up to 512 GB |
| Network Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
| Power |
12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, Class 3 |
| Power Consumption |
12 VDC, 0.5 A, max. 6 W
PoE (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 7 W |
| Material |
Aluminum alloy body |
| Dimensions |
Ø127.3 × 95.9 mm (Ø5.01" × 3.78") |
| Weight |
Approx. 600 g (1.3 lb.) |
| Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Protection |
IP67 (IEC 60529-2013) |
| NVR Specifications — DS-7616NI-Q2/16P(D) |
| NVR Model |
DS-7616NI-Q2/16P(D) |
| Quantity |
1 |
| IP Video Input |
16-ch |
| Human/Vehicle Analysis |
4-ch |
| Incoming Bandwidth |
160 Mbps |
| Outgoing Bandwidth |
80 Mbps |
| Recording Resolution |
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Decoding Format |
H.265+/H.265/H.264+/H.264 |
| Decoding Capacity |
1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) |
| Synchronous Playback |
16-ch |
| HDMI Output |
1-ch, up to 4K resolution |
| VGA Output |
1-ch, up to 1920 × 1080p/60Hz |
| Video Output Mode |
HDMI/VGA simultaneous output |
| Network Interface |
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Built-in PoE Ports |
16, RJ-45 10/100 Mbps self-adaptive Ethernet interfaces |
| PoE Power |
≤ 150 W |
| PoE Standard |
IEEE 802.3 af/at |
| SATA Interfaces |
2 SATA interfaces |
| Maximum Capacity per HDD |
Up to 8 TB |
| Maximum Supported Storage |
Up to 16TB across two supported HDDs |
| USB Interfaces |
2 × USB 2.0 |
| Power Supply |
100 to 240 VAC, 50 to 60 Hz |
| Power Consumption |
≤ 15 W (without HDD and PoE off) |
| Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity |
10% to 90% |
| Dimensions |
385 × 315 × 52 mm (15.2" × 12.4" × 2.0") |
| Weight |
≤ 2.6 kg without HDD (5.7 lb.) |
| Storage Configuration |
| Hard Drive Included |
Yes |
| Included HDD Capacity |
4TB |
| Number of Included HDDs |
1 |
| Storage Type |
Local NVR recording |
| SATA Interfaces |
2 |
| Maximum Capacity per HDD |
Up to 8TB |
| Maximum Supported Storage |
Up to 16TB across two supported HDDs |
| Recording Compression |
H.265+/H.265/H.264+/H.264 |
| Recording Retention |
Varies by resolution, frame rate, bitrate, compression, recording schedule, and scene activity |
| Package Contents |
| PoE Network Video Recorder |
1 × DS-7616NI-Q2/16P(D) |
| Network Cameras |
12 × DS-2CD2343G2-I |
| 4TB HDD |
1 |
| NVR Power Supply |
1 |
| Mouse |
1 |
| Quick Start Guide |
1 |
| Waterproof Lid |
12 |
| Mounting Template |
12 |
| Screws |
12 sets |
| Network Cables |
Not included |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
How many cameras are included in this security system?
The package includes twelve DS-2CD2343G2-I 4MP fixed turret network cameras.
Which recorder is included with the camera package?
The system includes one DS-7616NI-Q2/16P(D) network video recorder with 16 IP camera channels and 16 built-in PoE ports.
Does this package include a hard drive?
Yes. The package includes one 4TB hard drive for centralized local NVR recording. The installation status of the included drive is not specified.
How are the cameras connected to the recorder?
The cameras connect directly to the recorder's built-in PoE ports using compatible Ethernet cables that carry power, video, and data.
Are network cables included with the system?
No. Network cables are not included and must be selected separately according to the required installation distances.
Can additional cameras be added later?
The recorder supports up to 16 IP camera channels. With twelve cameras included, up to four additional compatible cameras may be added within the recorder's bandwidth and system limits.
Can the NVR storage capacity be expanded?
The recorder provides two SATA interfaces and supports up to 8TB per disk, for a verified maximum of 16TB across two supported hard drives.
Is this system suitable for a warehouse or commercial property?
The twelve-camera configuration can support entrances, loading areas, storage zones, offices, parking areas, and building exteriors across medium-sized commercial properties.
Can the included cameras be installed outdoors?
Yes. The cameras carry IP67 weather protection when installed according to the product requirements.
Do the included cameras record audio?
No. The included DS-2CD2343G2-I cameras do not have a built-in microphone.
