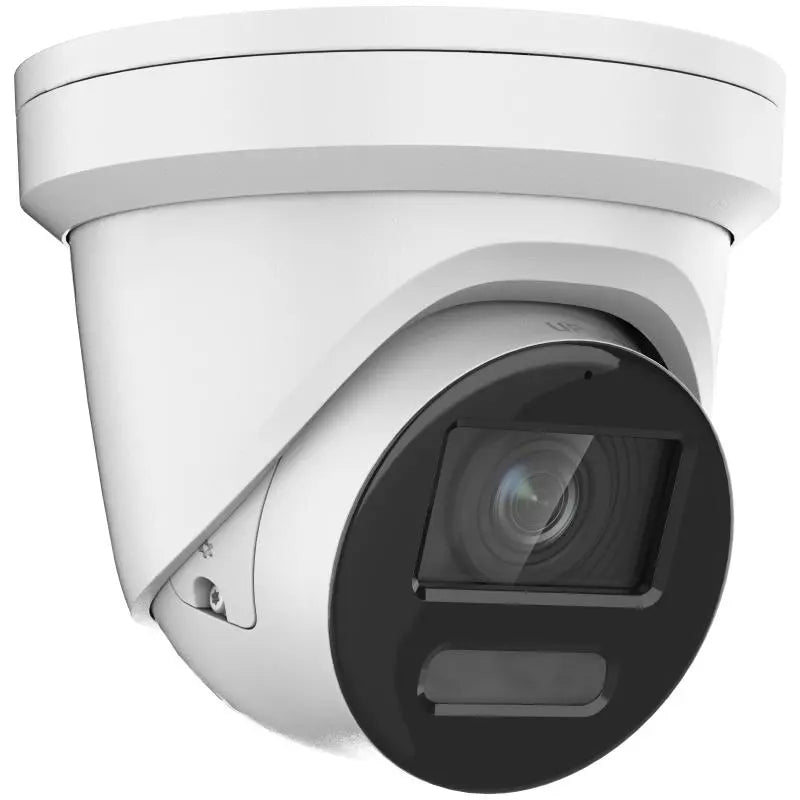

Built for commercial sites that need high-resolution color video after dark, the DS-2CD2387G2-LU combines 8MP ColorVu imaging, deep learning-based human and vehicle classification, built-in audio recording, and a durable fixed turret design.
The 1/1.2-inch image sensor and F1.0 aperture support 24/7 color imaging with white light illumination up to 30 meters. This helps preserve useful visual details such as clothing color, vehicle color, and activity context around storefronts, parking entrances, loading areas, and exterior access points.
Human and vehicle classification supports more relevant motion and perimeter events, including line crossing, intrusion, region entrance, and region exit detection. The camera also supports face capture and 130 dB WDR for improved image visibility in scenes with strong backlight or deep shadows.
The DS-2CD2387G2-LU includes a built-in microphone, onboard microSD storage up to 256 GB, H.265+ compression, IEEE 802.3af PoE, ONVIF Profile S/G/T compatibility, and an IP67-rated metal housing for professional commercial surveillance deployments.
Full-Color Monitoring Benefits
-
8MP Image Detail – 3840 × 2160 resolution supports detailed monitoring across wider commercial scenes.
-
24/7 ColorVu Imaging – The F1.0 aperture and large image sensor help preserve color information in low-light environments.
-
White Light Illumination – Supplemental lighting supports full-color nighttime monitoring up to 30 meters.
-
Human and Vehicle Classification – Deep learning helps focus supported events on relevant targets.
-
Built-in Audio Recording – The integrated microphone adds audio context to compatible surveillance recordings.
-
Outdoor Commercial Design – The IP67-rated metal housing supports exposed business installations.
Recommended Applications
- After-Hours Storefronts
- Commercial Parking Entrances
- Warehouse Loading Approaches
- Office Building Exteriors
- Retail Service Entrances
- Apartment Vehicle Access Areas
- Employee Entry Points
- Customer Pickup Zones
- Commercial Walkways
- Distribution Center Entrances
| Camera |
| Image Sensor |
1/1.2″ Progressive Scan CMOS |
| Max. Resolution |
3840 × 2160 |
| Min. Illumination |
Color：0.0005 Lux @ (F1.0, AGC ON) |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Day & Night |
24/7 Color imaging |
| Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens |
| Lens Type |
Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV |
2.8 mm:horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124° |
| Lens Mount |
M16 |
| Iris Type |
Fixed |
| Aperture |
F1.0 |
| Depth of Field |
2.8 mm:3.1 m to ∞ |
| DORI |
| DORI |
2.8 mm:D: 96 m, O: 38 m, R: 19 m, I: 9 m |
| Illuminator |
| Supplement Light Type |
White Light |
| Supplement Light Range |
Up to 30 m |
| Smart Supplement Light |
Yes |
| Video |
| Main Stream |
50 Hz:
25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3840 × 2160)
30 fps (3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream |
50 Hz:25 fps (640 × 480, 640 × 360)
60 Hz:30 fps (640 × 480, 640 × 360) |
| Third Stream |
50 Hz:10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz:10 fps (1920 x 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Video Compression |
Main stream:H.265/H.264/H.264+/H.265+
Sub-stream:H.265/H.264/MJPEG
Third stream:H.265/H.264 |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| H.264 Type |
Baseline Profile/Main Profile/High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR/VBR |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
| Region of Interest (ROI) |
1 fixed region for main stream and sub-stream |
| Audio |
| Environment Noise Filtering |
-U: Yes |
| Audio Sampling Rate |
-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression |
-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate |
-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
| Network |
| Simultaneous Live View |
Up to 6 channels |
| API |
Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK , ISUP |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP |
| User/Host |
Up to 32 users. 3 user levels: administrator, operator and user |
| Security |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage |
NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client |
iVMS-4200, Mobile App, VMS Platform |
| Web Browser |
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+ |
| Image |
| Wide Dynamic Range (WDR) |
130 dB |
| Privacy Mask |
8 programmable polygon privacy masks, mask color or mosaic configurable |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Image Enhancement |
BLC, HLC, 3D DNR |
| Image Parameters Switch |
Yes |
| Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Interface |
| Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage |
Built-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 256 GB |
| Built-in Microphone |
-LU: Yes |
| Event |
| Basic Event |
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))
Scene change detection |
| Linkage |
Upload to NAS/memory card/FTP, notify surveillance center, trigger record, trigger capture, send email |
| Deep Learning Function |
| Face Capture |
Yes |
| General |
| Power |
-L:
12 VDC:0.42 A, max. 5 W
PoE:802.3af, 36 V to 57 V, 0.17 A to 0.11 A, max. 6.0 W
-LU:
12 VDC:0.46 A, max. 5.5 W
PoE:802.3af, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W |
| Material |
Cover: metal, main body: metal |
| Dimension |
Ø138.3 mm × 120.1 mm (Ø5.4" × 4.7") |
| Package Dimension |
170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9") |
| Weight |
Approx. 870 g (1.9 lb.) |
| With Package Weight |
Approx. 1160 g (2.6 lb.) |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language |
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function |
Anti-flicker, heartbeat, mirror, password reset via e-mail, pixel counter |
| Software Reset |
Yes |
| Approval |
| EMC |
FCC:47 CFR Part 15, Subpart B
CE-EMC:EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014
RCM:AS/NZS CISPR 32: 2015
IC:ICES-003: Issue 7
KC:KN32: 2015, KN35: 2015 |
| Safety |
UL:UL 62368-1
CB:IEC 62368-1: 2014+A11
CE-LVD:EN 62368-1: 2014/A11: 2017 |
| Environment |
CE-RoHS:2011/65/EU
WEEE:2012/19/EU
Reach:Regulation (EC) No 1907/2006 |
| Protection |
IP67:IEC 60529-2013 |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Where is the DS-2CD2387G2-LU commonly installed?
The DS-2CD2387G2-LU is commonly installed at storefronts, commercial parking entrances, warehouse loading approaches, office exteriors, employee entrances, customer pickup zones, apartment access areas, and other outdoor business locations.
Is this camera suitable for full-color monitoring after dark?
Yes. ColorVu technology, a 1/1.2-inch image sensor, an F1.0 aperture, and white light illumination support 24/7 color imaging in low-light commercial environments.
Can the DS-2CD2387G2-LU monitor commercial parking entrances?
Yes. Its 8MP resolution, wide-angle lens options, human and vehicle classification, 130 dB WDR, and full-color low-light imaging make it suitable for parking entrances and vehicle access areas.
What types of businesses may benefit from this camera?
Retail stores, warehouses, offices, apartment communities, distribution centers, commercial property managers, service businesses, and multi-site operators may use this model for detailed outdoor monitoring.
How does ColorVu help with nighttime identification?
ColorVu uses a large image sensor, an F1.0 aperture, and white light illumination to help preserve color information such as clothing, vehicle color, and scene context after dark.
Does the DS-2CD2387G2-LU support human and vehicle classification?
Yes. The camera supports deep learning-based human and vehicle classification for motion detection and perimeter events including line crossing, intrusion, region entrance, and region exit.
Does this model include built-in audio?
Yes. The DS-2CD2387G2-LU includes a built-in microphone for real-time audio recording through compatible surveillance systems. It does not include a built-in speaker for two-way audio.
Does the camera support local recording and PoE?
Yes. It includes a built-in memory card slot supporting microSD, SDHC, SDXC, and TF cards up to 256 GB and supports IEEE 802.3af PoE.
Can the DS-2CD2387G2-LU integrate with ONVIF systems?
Yes. The camera supports ONVIF Profile S, Profile G, and Profile T for integration with compatible professional NVRs and video management systems.
What is the maximum resolution and frame rate of the DS-2CD2387G2-LU?
The camera supports a maximum resolution of 3840 × 2160 at up to 24 frames per second in 60 Hz environments.
