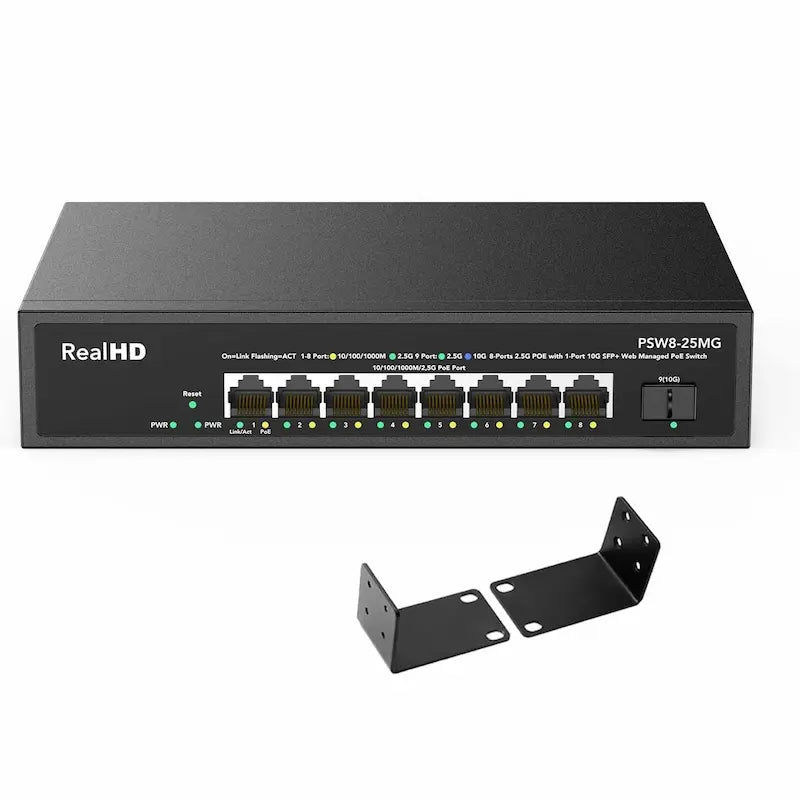

The PSW8-25MG is a web-managed multi-gigabit PoE+ switch designed for high-bandwidth surveillance and commercial network installations. It combines eight 2.5G PoE RJ45 ports with one 10G SFP+ uplink slot for compatible cameras, access points, recorders, storage devices, and other network equipment.
Each RJ45 port supports adaptive 10/100/1000 Mbps and 2.5 Gbps connections under the IEEE 802.3bz standard. A stated 60 Gbps switching capacity supports traffic between connected multi-gigabit devices and the high-speed SFP+ uplink.
All eight RJ45 ports support IEEE 802.3af and IEEE 802.3at PoE, with up to 30W available per port and a 135W total PoE power budget. The switch does not support passive 24V PoE devices, so connected equipment must use a compatible standards-based PoE input.

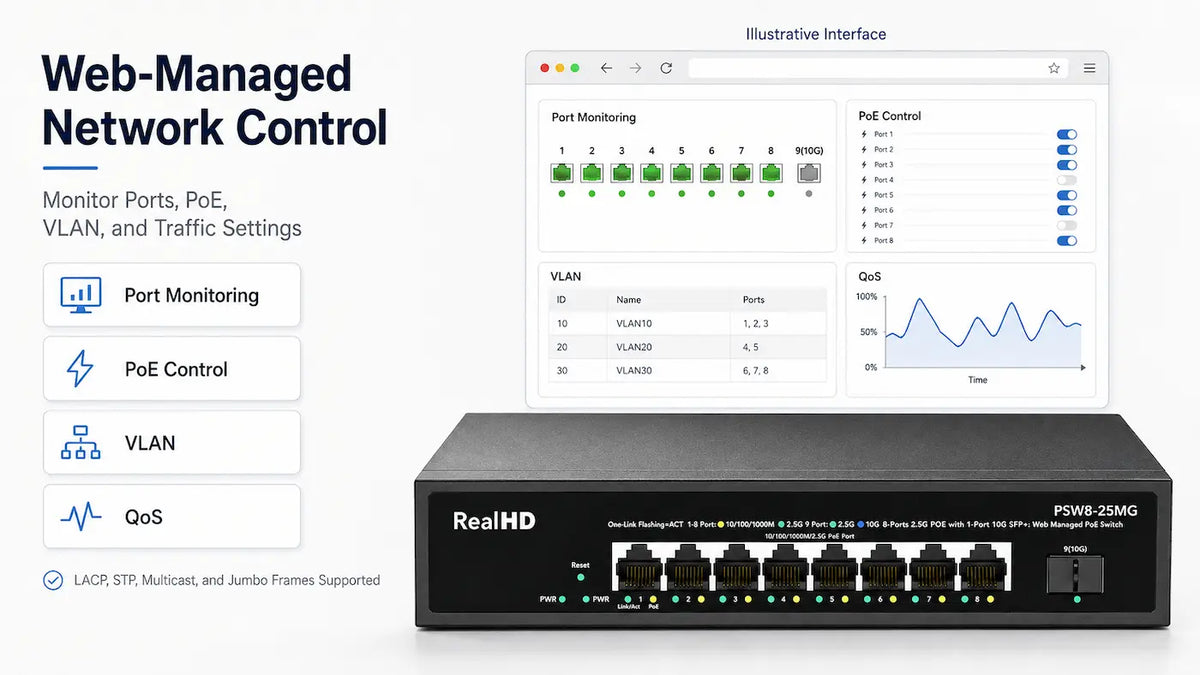

The browser-based management interface supports port monitoring, PoE port management, VLAN, QoS, LACP, multicast, spanning tree, jumbo frames, and related network controls. Its fanless metal housing supports desktop placement or 1U rack installation with the included mounting ears.
Key Benefits
-

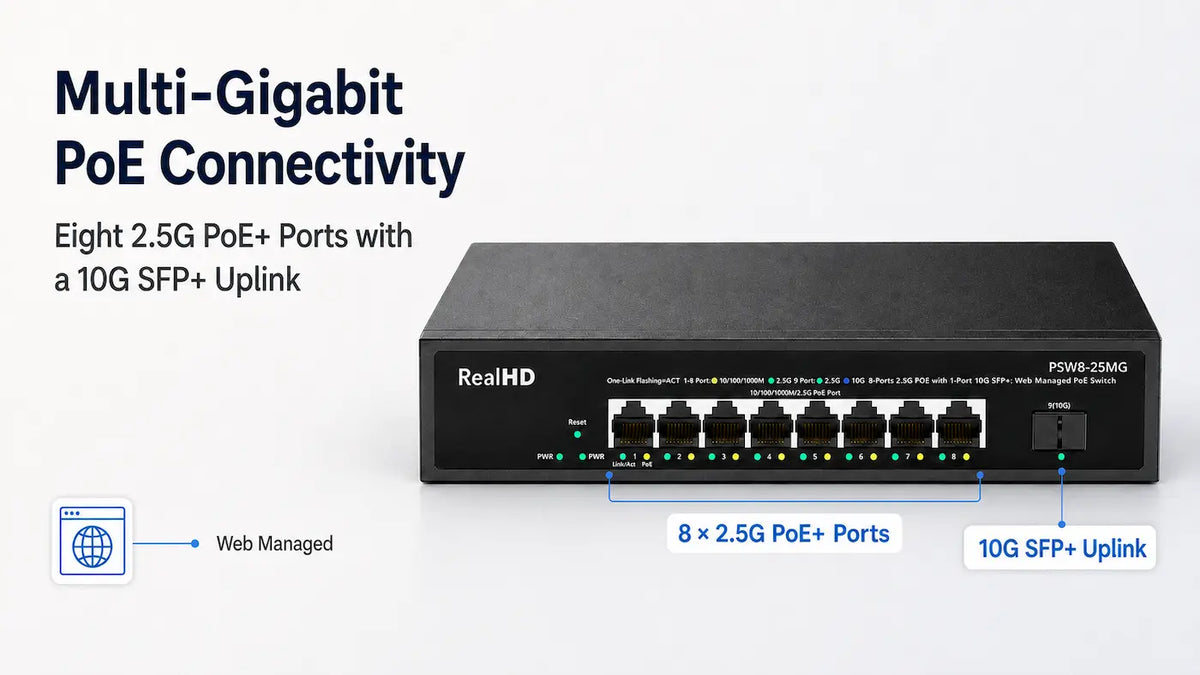

Eight 2.5G PoE+ Ports – Provides multi-gigabit network connectivity and standards-based PoE power through each RJ45 device port.
-
10G SFP+ Uplink – Supports a compatible fiber or copper SFP+ module for higher-bandwidth connections to network infrastructure.
-

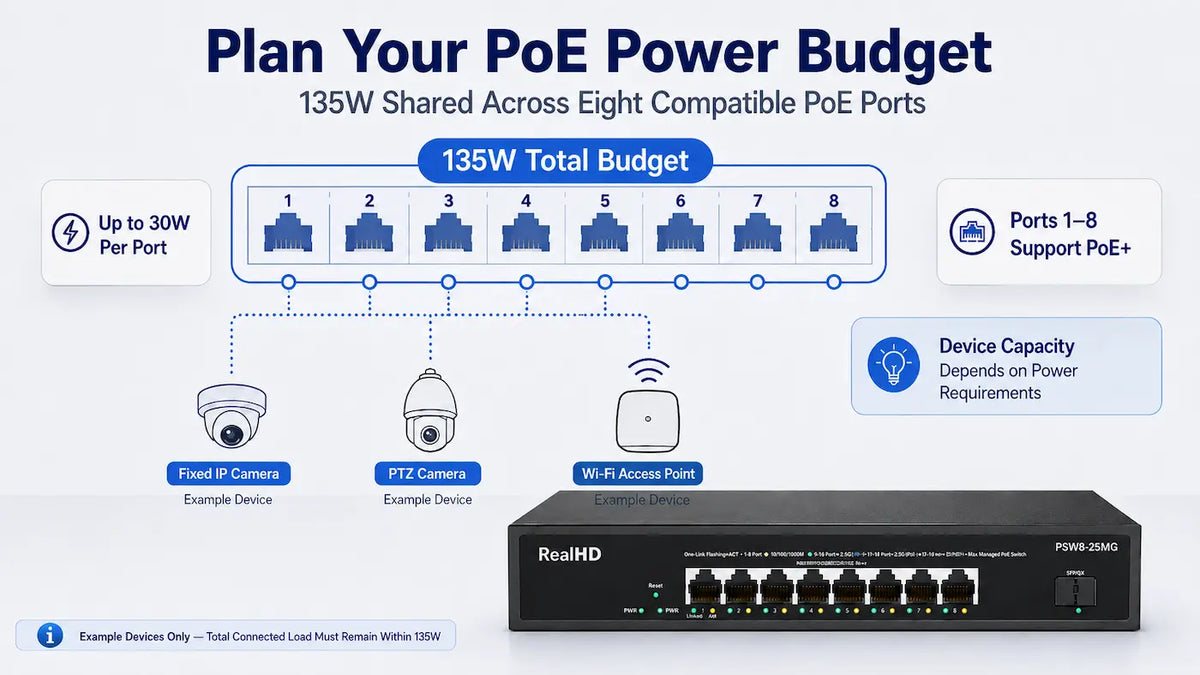

135W PoE Budget – Distributes shared PoE power across eight connected devices, with up to 30W available from an individual port.
-
Web-Based Management – Provides browser access to port status, PoE controls, VLAN, QoS, multicast, and other supported network settings.
-

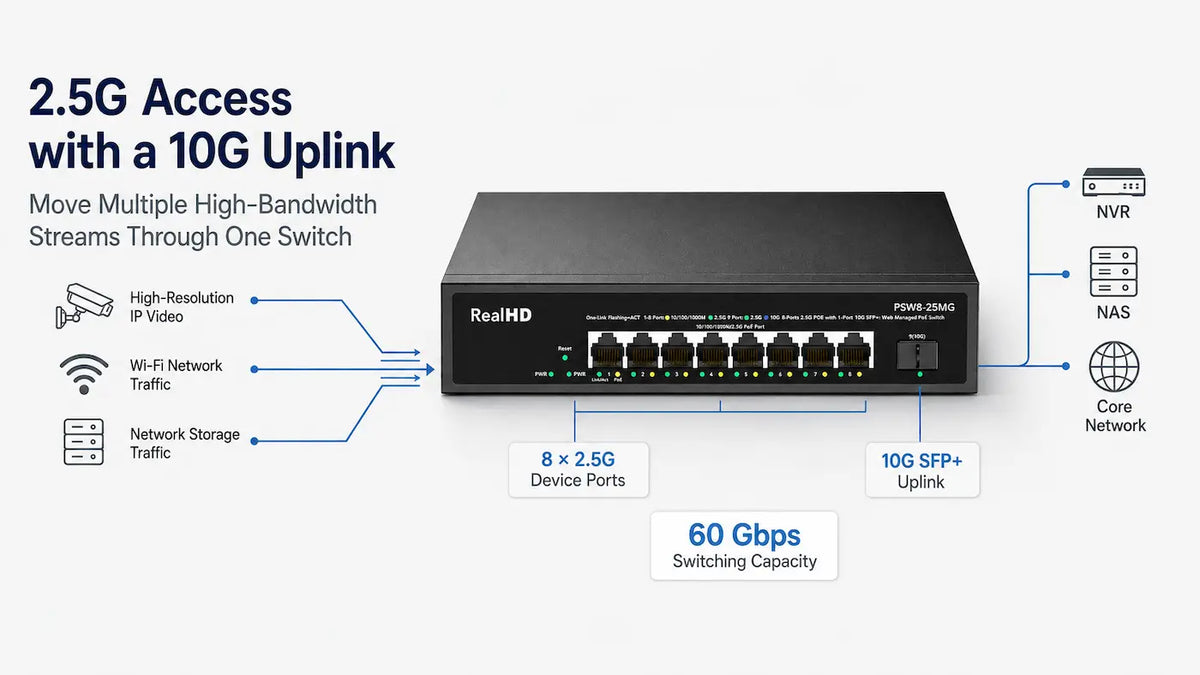

60 Gbps Switching Capacity – Supports data movement between multi-gigabit RJ45 ports and the 10G uplink in higher-bandwidth networks.
-

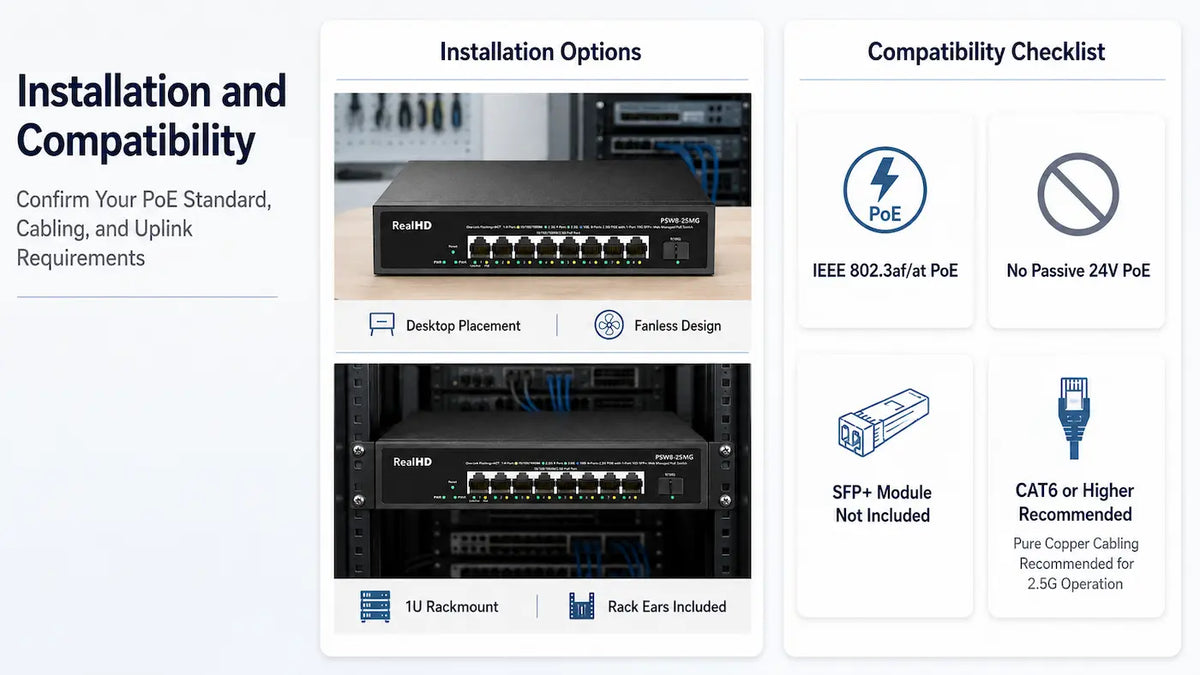

Fanless Rackmount Design – Uses passive cooling and supports desktop or 1U rack installation without fan noise.
Recommended Applications
- Multi-Gigabit IP Camera Networks
- Wi-Fi 6 Access Point Deployments
- NVR Network Aggregation
- NAS and Video Storage Networks
- Commercial Office Networks
- Retail Surveillance Systems
- Warehouse Camera Networks
- Small Server Rooms
- Network Equipment Cabinets
- Business Network Upgrades
| Network Interface |
| RJ45 PoE Ports |
8 × 10/100/1000 Mbps and 2.5 Gbps adaptive RJ45 ports |
| SFP+ Uplink |
1 × 10 Gbps SFP+ slot |
| Total Network Interfaces |
9 |
| Multi-Gigabit Standard |
IEEE 802.3bz |
| Supported SFP+ Module Speeds |
Compatible 1 Gbps, 2.5 Gbps, and 10 Gbps modules |
| PoE |
| PoE Ports |
Ports 1–8 |
| PoE Standards |
IEEE 802.3af, IEEE 802.3at |
| Total PoE Power Budget |
135 W |
| Maximum Power per Port |
Up to 30 W |
| Passive PoE Compatibility |
Does not support passive 24 V PoE devices |
| Switching Performance |
| Switching Capacity |
60 Gbps |
| MAC Address Table |
4K entries |
| Packet Buffer |
8 Mbit |
| Network Management |
| Management Type |
Web managed |
| Status Monitoring |
Device status, port status, and port statistics |
| PoE Management |
PoE port management through the web interface |
| VLAN |
Supported |
| Quality of Service |
QoS supported |
| Link Aggregation |
LACP supported |
| Spanning Tree |
Spanning Tree Protocol supported |
| Multicast |
Supported |
| Jumbo Frame |
Supported |
| General |
| Model |
PSW8-25MG |
| Product Type |
8-Port 2.5G Web-Managed PoE+ Switch with 10G SFP+ |
| Housing |
Metal enclosure |
| Cooling |
Fanless design with dual-side ventilation |
| Lightning Protection |
6 kV lightning protection design |
| Operating Temperature |
-10°C to 50°C (14°F to 122°F) |
| Dimensions |
8.6 × 6.3 × 1.7 in |
| Installation |
Desktop or 1U rackmount |
| Recommended Cabling |
CAT6 or higher pure copper Ethernet cable for 2.5 Gbps operation |
| Package and Compatibility Notes |
| Rack-Mounting Ears |
Included |
| SFP+ Module |
Not included |
| PoE Device Requirement |
Connected powered devices must support compatible IEEE 802.3af or IEEE 802.3at PoE |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
How many PoE devices can the PSW8-25MG connect?
The switch has eight PoE+ RJ45 ports and can connect up to eight compatible powered devices. Their combined power requirement must remain within the 135W total PoE budget.
What network speeds do the eight RJ45 ports support?
Each RJ45 port supports adaptive 10/100/1000 Mbps and 2.5 Gbps network connections. Compatible cabling and connected devices are required to achieve 2.5 Gbps operation.
What is the 10G SFP+ slot used for?

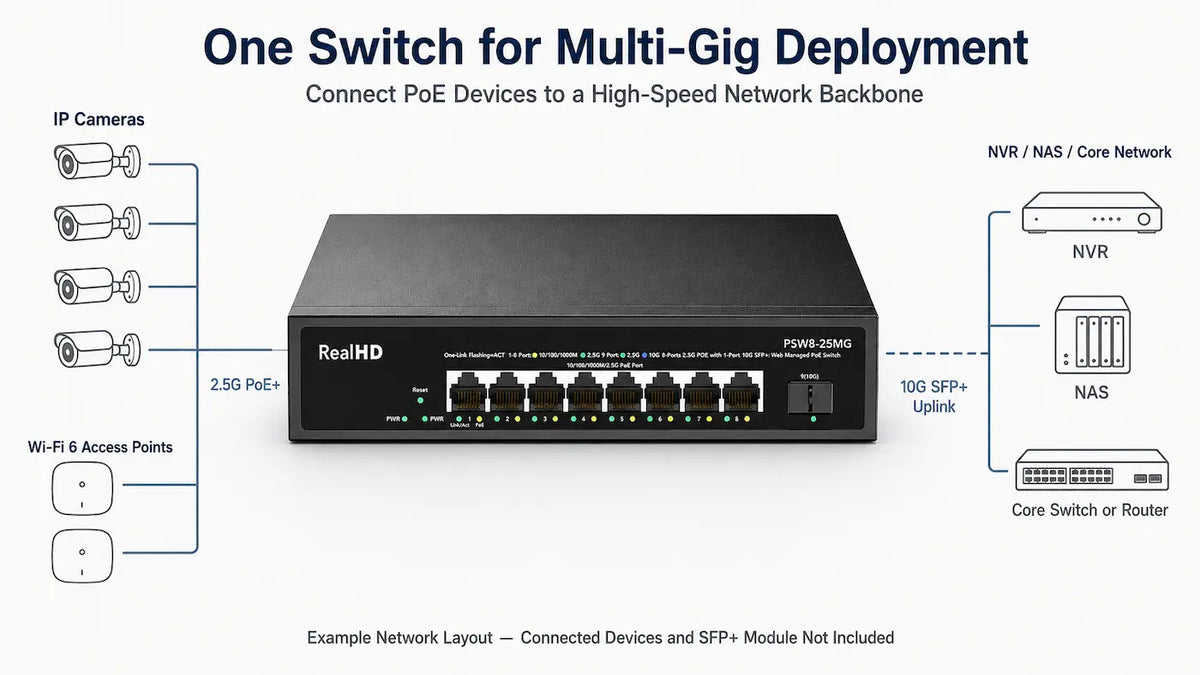

The SFP+ slot provides a high-speed uplink for a compatible network switch, router, server, recorder, or storage network. A compatible SFP or SFP+ module is required and is not included.
Which network management features are supported?
The web interface supports device and port status monitoring, PoE port management, VLAN, QoS, LACP, multicast, spanning tree, jumbo frames, and port statistics.
Does the PSW8-25MG support passive 24V PoE devices?
No. The switch supports compatible IEEE 802.3af and IEEE 802.3at powered devices and does not support passive 24V PoE equipment.
