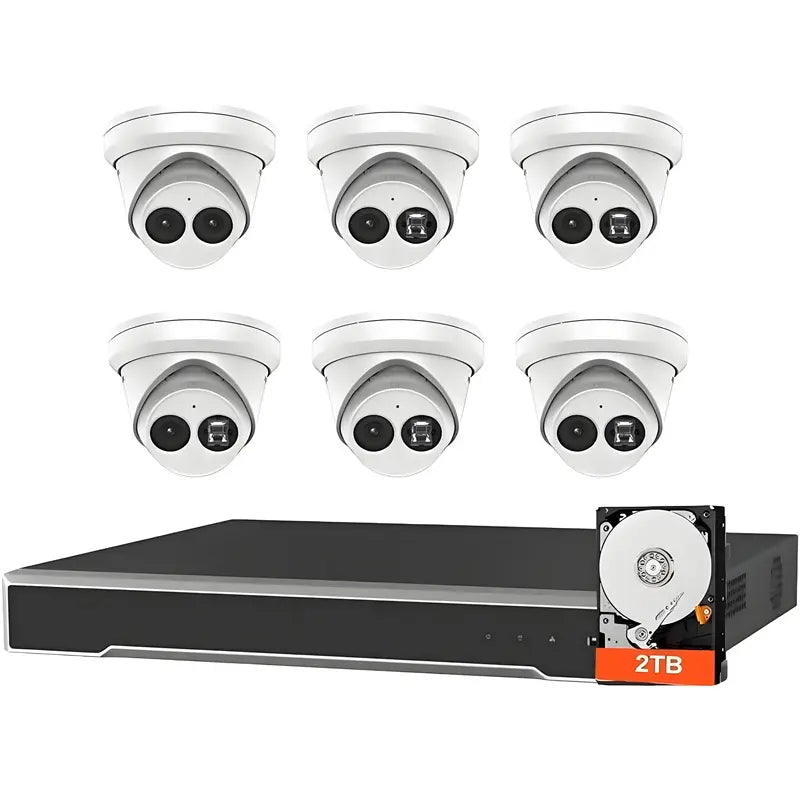

6-Camera 4MP AcuSense Turret PoE System with 8CH NVR & 2TB HDD
Includes 6 × DS-2CD2343G2-I 4MP AcuSense turret cameras, one DS-7608NI-Q2/8P 8-channel PoE NVR, and an included 2TB HDD.
In stock
Questions about camera placement, installation, or compatibility? [Ask a CCTV Specialist]
Installer or Dealer? Request Trade Pricing.
Ships from Bensenville, IL
Fast Order Processing
1-Year Warranty
30-Day Return Window
The 6-camera PoE surveillance system combines six DS-2CD2343G2-I 4MP AcuSense turret cameras with one DS-7608NI-Q2/8P 8-channel NVR and an included 2TB hard drive. It is suited to homes, offices, retail stores, restaurants, parking areas, and other smaller properties that need centralized local recording.
Human and vehicle classification helps make event review more focused, while the 8-channel recorder provides two available channels for future compatible camera expansion. Network cables are not included.
Package Configuration
-
6 × DS-2CD2343G2-I 4MP Turret Cameras
-
1 × DS-7608NI-Q2/8P 8-Channel PoE NVR
-
1 × 2TB HDD
-
1 × NVR Power Supply
-
1 × USB Mouse
-
1 × Quick Start Guide
-
6 × Waterproof Connector Covers
-
6 × Mounting Templates
-
6 × Mounting Screw Sets
-
Network Cables Not Included
| System Configuration | |
|---|---|
| System Type | PoE Network Security Camera System |
| Included Cameras | 6 × DS-2CD2343G2-I |
| Included NVRs | 1 × DS-7608NI-Q2/8P |
| Included Camera Resolution | 4MP (2688 × 1520) |
| Camera Style | Fixed Turret |
| Included Camera Channels | 6 channels |
| Maximum NVR Channels | 8 IP camera channels |
| Built-in PoE Ports | 8 |
| Remaining Channel Capacity | Up to 2 additional compatible IP cameras, subject to recorder bandwidth and system configuration |
| Connection Type | Direct PoE Ethernet |
| Network Cables | Not included |
| Camera Specifications — DS-2CD2343G2-I | |
| Camera Model | DS-2CD2343G2-I |
| Quantity | 6 |
| Camera Type | 4 MP AcuSense Fixed Turret Network Camera |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 2688 × 1520 |
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Minimum Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Day & Night | ICR Cut |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| Wide Dynamic Range | 120 dB |
| Target Classification | Human and vehicle target classification based on deep learning |
| Smart Events | Line crossing detection and intrusion detection |
| Face Detection | Yes |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Audio | No built-in microphone |
| Onboard Storage | Built-in microSD card slot, up to 512 GB |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Power | 12 VDC ± 25%, reverse polarity protection PoE: 802.3af, Class 3 |
| Power Consumption | 12 VDC, 0.5 A, max. 6 W PoE (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 7 W |
| Material | Aluminum alloy body |
| Dimensions | Ø127.3 × 95.9 mm (Ø5.01" × 3.78") |
| Weight | Approx. 600 g (1.3 lb.) |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Protection | IP67 (IEC 60529-2013) |
| NVR Specifications — DS-7608NI-Q2/8P | |
| NVR Model | DS-7608NI-Q2/8P |
| Quantity | 1 |
| IP Video Input | 8-ch, up to 8 MP resolution |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Decoding Capacity | Up to 1-ch @ 8MP or 5-ch @ 1080p |
| HDMI Output | 1-ch, up to 4K resolution |
| Video Output Mode | Simultaneous HDMI and VGA outputs |
| Built-in PoE Ports | 8 independent PoE network interfaces |
| PoE Power Budget | Up to 80 W |
| PoE Standard | IEEE 802.3af/at |
| Network Interface | 1 self-adaptive 10/100 Mbps Ethernet interface |
| SATA Interfaces | 2 SATA interfaces |
| Maximum Capacity per HDD | Up to 8TB |
| Maximum Supported Storage | Up to 16TB across two supported HDDs |
| USB Interfaces | 2 × USB 2.0 |
| Power Supply | 48 VDC, 2.5 A |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Chassis | 1U chassis |
| Dimensions | 385 × 315 × 52 mm (15.2" × 12.4" × 2.0") |
| Weight | ≤ 2.6 kg without HDD (5.7 lb.) |
| Storage Configuration | |
| Hard Drive Included | Yes |
| Included HDD Capacity | 2TB |
| Number of Included HDDs | 1 |
| Storage Type | Local NVR recording |
| SATA Interfaces | 2 |
| Occupied SATA Interfaces | 1 |
| Available SATA Interfaces | 1 |
| Maximum Capacity per HDD | Up to 8TB |
| Maximum Supported Storage | Up to 16TB across two supported HDDs |
| Recording Compression | H.265+/H.265/H.264+/H.264 |
| Recording Retention | Varies by resolution, frame rate, bitrate, compression, recording schedule, and scene activity |
| Package Contents | |
| PoE Network Video Recorder | 1 × DS-7608NI-Q2/8P |
| Network Cameras | 6 × DS-2CD2343G2-I |
| 2TB HDD | 1 |
| NVR Power Supply | 1 |
| Mouse | 1 |
| Quick Start Guide | 1 |
| Waterproof Lid | 6 |
| Mounting Template | 6 |
| Screws | 6 sets |
| Network Cables | Not included |
Find answers to common questions about included equipment, camera coverage, PoE installation, recording storage, system expansion, compatibility, and remote viewing.
How many cameras are included in this security system?
The package includes six DS-2CD2343G2-I 4MP fixed turret network cameras.
Which recorder is included with the camera package?
The system includes one DS-7608NI-Q2/8P network video recorder with eight IP camera channels and eight built-in PoE ports.
Does this package include a hard drive?
Yes. The package includes one 2TB hard drive for local NVR video storage.
How are the cameras connected to the recorder?
The cameras connect directly to the recorder's built-in PoE ports using compatible Ethernet cables that carry power, video, and data.
Are network cables included with the system?
No. Network cables are not included and must be selected separately according to the required installation distances.
Can additional cameras be added later?
The recorder supports up to eight IP camera channels. With six cameras included, up to two additional compatible cameras may be added within the recorder's bandwidth and system limits.
How long will the 2TB hard drive retain recordings?
Recording retention depends on camera quantity, resolution, frame rate, bitrate, compression, recording schedule, and scene activity.
Is this system suitable for home security?
The six-camera configuration can support monitoring around entrances, driveways, yards, garages, and other residential areas.
Is this system appropriate for a retail store or small business?
The system can support entrances, sales floors, stockrooms, offices, customer areas, and exterior approaches at smaller commercial properties.
Do the included cameras record audio?
No. The included DS-2CD2343G2-I cameras do not have a built-in microphone.
