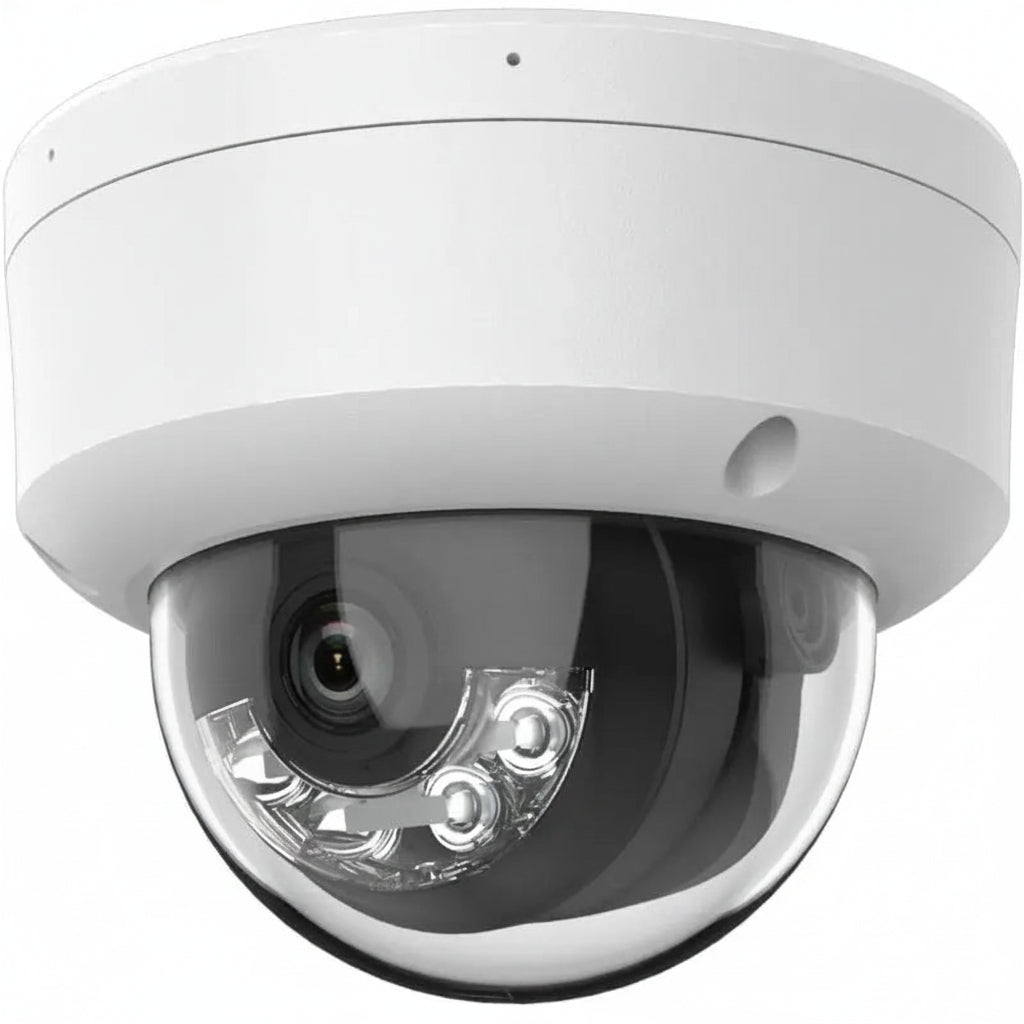

The DS-2CD1183G2-LIUF is an 8MP Smart Hybrid Light fixed dome network camera designed for commercial monitoring that requires detailed video, human and vehicle detection, built-in audio, and flexible nighttime illumination.
Its 2.8 mm fixed lens provides a 113° horizontal field of view for wide coverage of entrances, corridors, walkways, and access areas. The camera records video at up to 3840 × 2160 resolution.
Smart Hybrid Light combines infrared and white light with a range of up to 30 meters. Human and vehicle detection helps focus supported motion events on relevant targets, while 120 dB WDR helps preserve detail in high-contrast scenes.
The built-in microphone supports synchronized audio recording. The camera also includes H.265+ compression, microSD storage up to 512 GB, IEEE 802.3af PoE, ONVIF Profile S/G/T support, IP67 weather protection, and IK08 impact resistance.
Smart Hybrid Light Monitoring Benefits
-
8MP 4K Imaging – Records video at up to 3840 × 2160.
-
2.8 mm Wide-Angle Lens – Provides a 113° horizontal field of view.
-
Human and Vehicle Detection – Helps focus supported motion events on relevant targets.
-
Smart Hybrid Light – Combines infrared and white light with a range of up to 30 meters.
-
Built-in Microphone – Adds synchronized audio to compatible recordings.
-
120 dB WDR – Helps maintain detail in strong backlight.
Technical Specifications
-
Resolution: 8MP, 3840 × 2160
-
Frame Rate: Up to 15 fps at 3840 × 2160 in 60 Hz mode
-
Lens: 2.8 mm fixed lens
-
Horizontal FOV: 113°
-
Lighting: Smart Hybrid Light with IR and white light
-
Light Range: Up to 30 m
-
WDR: 120 dB
-
Audio: Built-in microphone
-
Storage: microSD support up to 512 GB
-
Compression: H.265+, H.265, H.264+, H.264
-
Compatibility: ONVIF Profile S/G/T, ISAPI, SDK
-
Power: 12 VDC or IEEE 802.3af PoE
-
Protection: IP67 and IK08
Recommended Applications
- Retail Entrances
- Office Corridors
- Apartment Common Areas
- Commercial Walkways
- Parking Access Points
- School Interior Areas
- Warehouse Entrances
- Covered Business Entries
| Camera |
| Image Sensor |
1/2.7" Progressive Scan CMOS |
| Max. Resolution |
3840 × 2160 |
| Min. Illumination |
Color: 0.01 Lux @ (F2.0, AGC ON)
B/W: 0 Lux with IR |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° |
| Lens |
| Lens Type |
2.8 mm fixed focal lens |
| Focal Length & FOV |
2.8 mm, Horizontal FOV 113°, Vertical FOV 62°, Diagonal FOV 134° |
| Lens Mount |
M12 |
| Iris Type |
Fixed |
| Aperture |
F2.0 |
| DORI |
| DORI Distance |
Detect: 79 m, Observe: 31 m, Recognize: 15 m, Identify: 7 m |
| Illuminator |
| Supplement Light Type |
Infrared and white light |
| Supplement Light Range |
Up to 30 m |
| Smart Supplement Light |
Yes |
| IR Wavelength |
850 nm |
| Video |
| Main Stream |
50 Hz: 12.5 fps at 3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, and 1280 × 720
60 Hz: 15 fps at 3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, and 1280 × 720 |
| Sub-Stream |
50 Hz: 12.5 fps at 1280 × 720, 640 × 480, and 640 × 360
60 Hz: 15 fps at 1280 × 720, 640 × 480, and 640 × 360 |
| Video Compression |
Main Stream: H.265+, H.265, H.264+, H.264
Sub-Stream: H.265, H.264, MJPEG |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| H.264 Type |
Baseline Profile, Main Profile, High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR, VBR |
| Region of Interest |
One fixed region for the main stream |
| Scalable Video Coding |
Supported with H.264 and H.265 encoding |
| Audio |
| Audio Type |
Mono sound |
| Built-in Microphone |
Yes |
| Environment Noise Filtering |
Yes |
| Audio Sampling Rate |
8 kHz, 16 kHz |
| Audio Compression |
G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, AAC-LC |
| Audio Bit Rate |
64 Kbps with G.711; 16 Kbps with G.722.1 and G.726; 32 to 160 Kbps with MP2L2; 16 to 64 Kbps with AAC-LC |
| Network |
| Security |
Password protection, complex password support, watermarking, HTTP authentication, ONVIF authentication, security audit log, and MAC address authentication |
| Simultaneous Live View |
Up to 6 channels |
| API |
ONVIF Profile S, Profile G, and Profile T; ISAPI; SDK |
| Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
| User Access |
Up to 32 users with administrator, operator, and user access levels |
| Client Support |
Desktop client, mobile application, and compatible video management platforms |
| Web Browser |
Plug-in Live View: IE 10 and IE 11
Local Service: Chrome 57.0+, Firefox 52.0+, and Edge 89+ |
| Image |
| Wide Dynamic Range |
120 dB |
| Signal-to-Noise Ratio |
≥ 52 dB |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Image Enhancement |
BLC, HLC, 3D DNR |
| Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain, and white balance adjustment through compatible client software or web browser |
| Privacy Mask |
4 programmable polygon privacy masks |
| Interface |
| Ethernet Interface |
1 RJ45 10/100 Mbps self-adaptive Ethernet port |
| Onboard Storage |
Built-in microSD, microSDHC, and microSDXC card slot supporting up to 512 GB |
| Reset Key |
Yes |
| Event |
| Basic Events |
Motion detection with human and vehicle target classification, video tampering alarm, and system exception events |
| Event Linkage |
Upload to FTP or memory card, send email, notify surveillance center, trigger recording, and trigger capture |
| General |
| Power |
12 VDC: ±25%, 0.5 A, maximum 6 W, reverse polarity protection
PoE: IEEE 802.3af, Class 3, maximum 7.5 W |
| Material |
Metal and plastic |
| Dimensions |
Ø121.5 × 97.6 mm (Ø4.78" × 3.84") |
| Package Dimensions |
150 × 150 × 141 mm (5.9" × 5.9" × 5.6") |
| Weight |
Approximately 550 g (1.2 lb.) |
| Package Weight |
Approximately 800 g (1.8 lb.) |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less, non-condensing |
| Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less, non-condensing |
| General Functions |
Heartbeat, anti-banding, mirror, password protection, and password reset by email |
| Approvals and Protection |
| EMC |
CE-EMC, RCM, and IC |
| Safety |
UL, CB, CE-LVD, and BIS |
| Environmental Compliance |
CE-RoHS, WEEE, and REACH |
| Protection Ratings |
IP67 weather protection and IK08 impact resistance |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Is the DS-2CD1183G2-LIU(F) compatible with H-Series NVR systems?
Yes. The DS-2CD1183G2-LIU(F) is designed for seamless integration with H-Series NVR systems and supports advanced event management, remote monitoring, synchronized recording, and optimized video storage.
What video resolution does the DS-2CD1183G2-LIU(F) provide?
The camera delivers 8MP 4K Ultra HD resolution (3840 × 2160) at up to 15fps, providing detailed surveillance footage for identifying people, vehicles, and critical events.
What is Smart Hybrid Light technology?
Smart Hybrid Light combines infrared and white-light illumination with multiple lighting modes. The camera can automatically switch to full-color night vision during detected events, helping capture more useful visual evidence.
Does this camera support human and vehicle detection?
Yes. Intelligent human and vehicle classification helps focus alerts on meaningful security events while reducing false alarms caused by animals, weather conditions, moving trees, or other environmental factors.
Can I connect this camera to a third-party NVR?
Yes. The camera supports ONVIF Profile S, G, and T as well as ISAPI protocols, making it compatible with many third-party NVRs, video management systems, and surveillance platforms.
Does the DS-2CD1183G2-LIU(F) record audio?
Yes. The built-in microphone captures synchronized audio alongside video recordings, providing additional context for security incidents and investigations.
Can I record directly to a microSD card?
Yes. The -F version includes a built-in memory card slot and supports microSD cards up to 512GB, allowing local video recording even without a network video recorder.
How far does the night vision reach?
The Smart Hybrid Light system provides infrared and white-light illumination up to 100 feet (30 meters), helping maintain reliable visibility in low-light and nighttime environments.
Is this camera suitable for outdoor installation?
Yes. The camera features an IP67 weatherproof rating and IK08 impact-resistant housing, making it suitable for outdoor use in residential, commercial, and light industrial environments.
Does the camera support Power over Ethernet (PoE)?
Yes. The camera supports IEEE 802.3af PoE, allowing both power and data to be transmitted through a single Ethernet cable for easier installation and reduced wiring costs.
