Real HD Gigabit 4-Port PoE Extender & Repeater for IP Cameras
Extend one Gigabit PoE connection to three compatible devices without local AC power, ideal for cameras and other low-power PoE equipment.
In stock
Questions about compatibility, PoE power, or choosing the right port count? [Ask a CCTV Specialist]
Installer or Dealer? Request Trade Pricing.
Ships from Bensenville, IL
Fast Order Processing
1-Year Warranty
30-Day Return Window

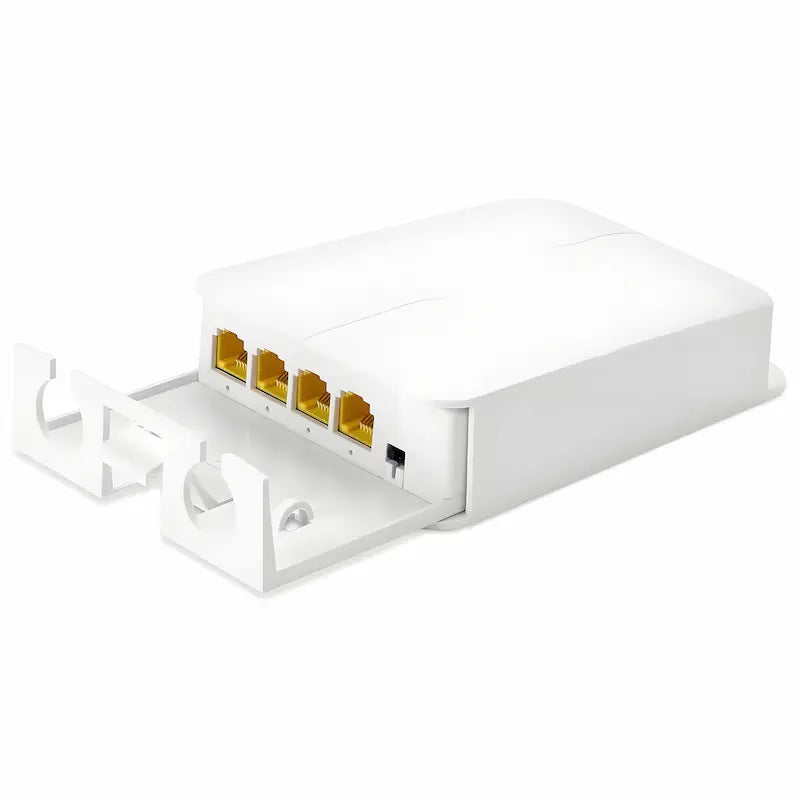

This Gigabit PoE extender expands one compatible PoE connection into three PoE outputs, making it useful when several network devices need to be installed farther from the main switch or NVR.
Because power and data are supplied through the incoming PoE connection, no local AC outlet is required at the extender location. This can simplify installations for IP cameras, wireless access points, VoIP phones, and other compatible low-power PoE devices.
The plug-and-play design requires no software configuration and supports Gigabit network connections, making it a practical way to extend and split an existing PoE run.
Key Benefits
- 1-to-3 PoE Expansion – Connects up to three compatible PoE devices from one incoming PoE connection.
- No Local AC Power – Operates from incoming PoE power without a separate power adapter.
- Gigabit Connectivity – Supports Gigabit Ethernet for compatible network devices.
- Simple Installation – Plug-and-play operation requires no software configuration.
Recommended Applications
- IP Camera Extensions
- Multi-Camera Connections
- Wireless Access Points
- VoIP Phones
- Office and Commercial Networks
- Locations Without Nearby AC Power
| Network Interface | |
|---|---|
| PoE Input | 1 × Gigabit PoE input port |
| PoE Outputs | 3 × Gigabit PoE output ports |
| Network Speed | 10/100/1000 Mbps |
| PoE | |
|---|---|
| PoE Standards | IEEE 802.3af, IEEE 802.3at |
| Maximum Input Power | 30 W |
| Maximum Total Output Power | 24 W |
| Maximum Output per Port | 8 W |
| Operating Voltage | 44–57 V DC |
| Passive PoE Compatibility | 48 V active PoE only; does not support passive PoE |
| Transmission | |
|---|---|
| PoE Extension Distance | Up to 100 m (330 ft) |
| General | |
|---|---|
| Product Type | Gigabit PoE Extender / Repeater |
| Port Architecture | 1 PoE input / 3 PoE outputs |
| External Power Required | No |
| Configuration | Plug and play; no configuration required |
| Installation | Wall mount |
Find answers to common questions about compatibility, PoE power, supported equipment, product selection, and use with security camera and surveillance systems.
How many PoE devices can this extender connect?
The extender has one Gigabit PoE input and three Gigabit PoE outputs, allowing it to connect up to three compatible powered devices from a single incoming PoE connection.
Does the PoE extender need a separate power adapter?
No. It operates from the incoming PoE connection, so a separate local AC power adapter is not required.
How much PoE power can the extender provide?
The extender accepts up to 30W of input power and provides up to 24W total across its three PoE outputs, with up to 8W available from an individual output port.
Does this PoE extender support Gigabit Ethernet?
Yes. The input and output ports support 10/100/1000 Mbps Ethernet connections for compatible network devices.
Does the extender support passive 24V PoE devices?
No. It is designed for compatible active PoE equipment using IEEE 802.3af or IEEE 802.3at and does not support passive PoE devices.
