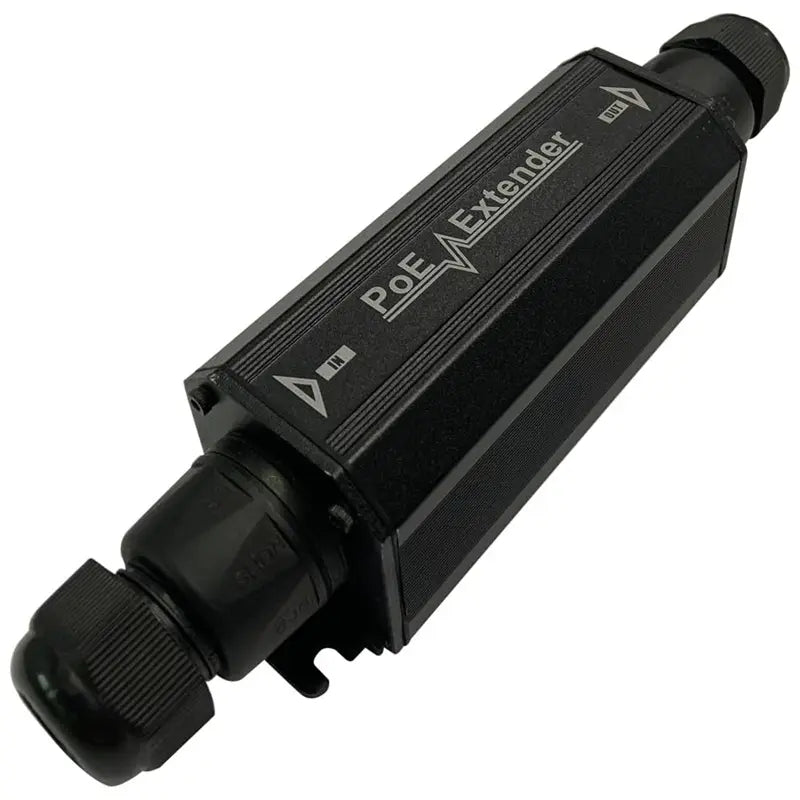

Real HD Gigabit Outdoor IP67 Waterproof 1-Channel PoE Extender
Outdoor IP67 Gigabit PoE+ extender that adds up to 330 ft to compatible PoE connections without requiring local AC power
In stock
Questions about compatibility, PoE power, or choosing the right port count? [Ask a CCTV Specialist]
Installer or Dealer? Request Trade Pricing.
Ships from Bensenville, IL
Fast Order Processing
1-Year Warranty
30-Day Return Window
This outdoor Gigabit PoE+ extender adds up to 330 feet to a compatible PoE network connection, helping reach IP cameras and other supported PoE devices installed beyond the normal Ethernet distance.
The IP67 weatherproof enclosure supports outdoor installations, while power is supplied through the incoming PoE connection so no separate AC outlet is required at the extender location.
Gigabit connectivity and plug-and-play operation make it a practical solution for extending compatible surveillance and network devices without adding local power or switch-level configuration.
Key Benefits
- Extends Outdoor PoE Connections – Adds up to 330 feet to a compatible Ethernet and PoE cable run.
- No Local AC Power Required – Operates from the incoming PoE connection without a separate power adapter.
- Weatherproof Installation – IP67 housing supports exposed outdoor camera and network installations.
- Gigabit Network Support – Maintains 10/100/1000 Mbps connectivity with compatible equipment and cabling.
Recommended Applications
- Outdoor IP Camera Extensions
- Parking Lot Camera Installations
- Building Perimeter Surveillance
- Gate and Entrance Cameras
- Warehouse Exterior Cameras
- Locations Without Nearby AC Power
| Network Interface | |
|---|---|
| Channels | 1 |
| PoE Input | 1 × Ethernet PoE input |
| PoE Output | 1 × Ethernet PoE output |
| Network Speed | 10/100/1000 Mbps |
| PoE | |
|---|---|
| PoE Standards | IEEE 802.3af, IEEE 802.3at |
| Maximum PoE Output | Up to 30 W |
| External Power Required | No |
| Passive 24 V PoE | Not supported |
| Transmission | |
|---|---|
| Additional Extension Distance | Up to 100 m (330 ft) |
| Environmental & Installation | |
|---|---|
| Weather Protection | IP67 |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Installation | Wall mount |
| Configuration | Plug and play; no additional power supply required |
Find answers to common questions about compatibility, PoE power, supported equipment, product selection, and use with security camera and surveillance systems.
What is this outdoor PoE extender used for?
It extends Ethernet data and PoE power to a compatible device installed farther from the main PoE switch or injector, making it useful for outdoor IP cameras and other supported PoE equipment.
How much additional distance can the PoE extender provide?
A single extender can add up to approximately 100 meters or 330 feet to a compatible PoE connection. Actual performance depends on the source equipment, cable quality, available PoE power, and connected device.
Does the extender need a separate power supply?
No. The extender receives its operating power from the incoming PoE connection, so a local AC power adapter is not required.
Can this PoE extender be installed outdoors?
Yes. The extender uses an IP67-rated weatherproof enclosure designed for outdoor installations.
Does it support Gigabit Ethernet and PoE+?
Yes. It supports 10/100/1000 Mbps Ethernet and compatible IEEE 802.3af and IEEE 802.3at PoE connections. Passive 24V PoE devices are not supported.
