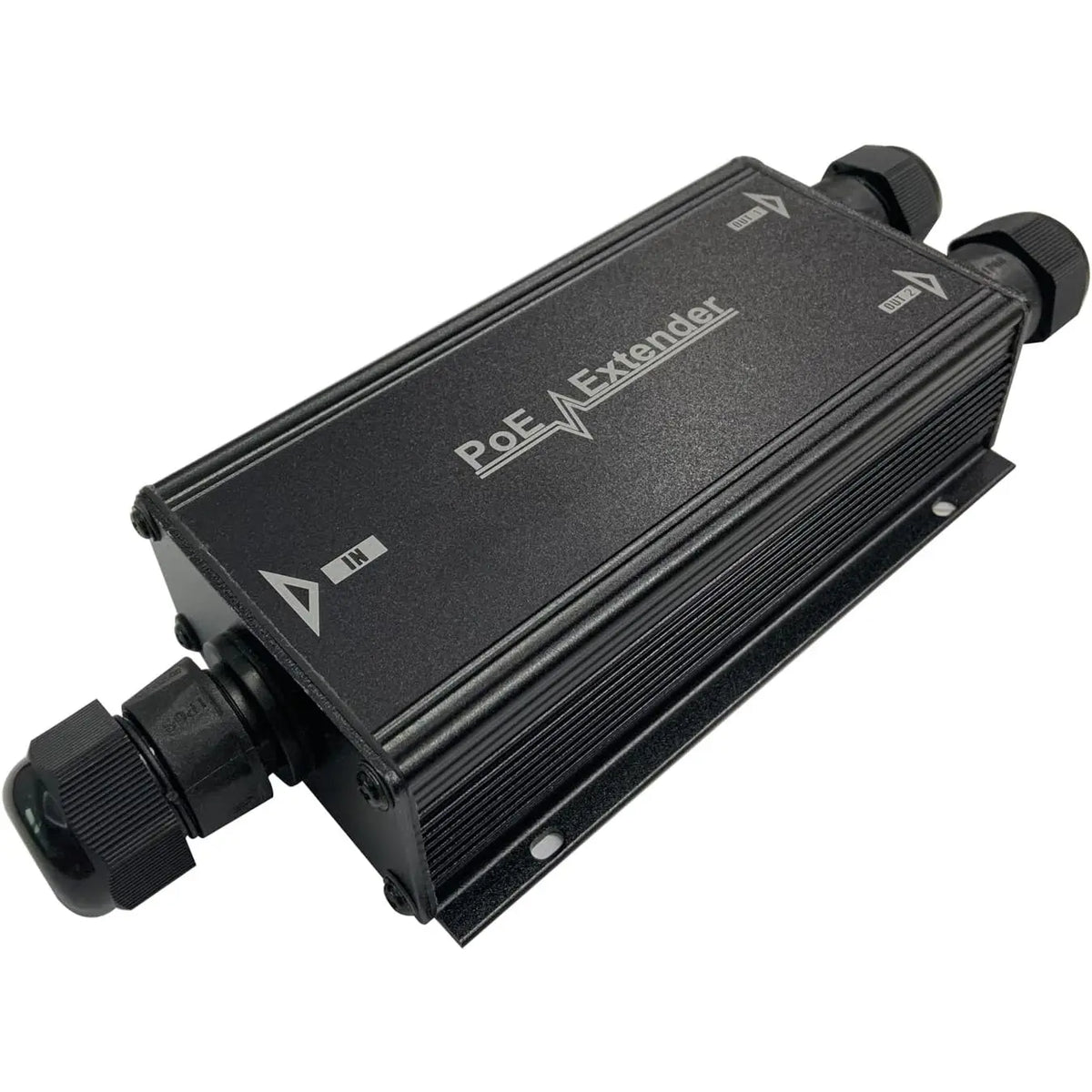

2-Port Outdoor Gigabit PoE+ Extender, IP67, 100m Reach

Outdoor Gigabit PoE+ extender with one PoE input, two PoE outputs, IP67 protection, and an additional 100 m network extension.

In stock

Questions about compatibility, PoE power, or choosing the right port count? [Ask a CCTV Specialist]

Installer or Dealer? Request Trade Pricing.

✓ 1 PoE input and 2 PoE outputs
✓ 10/100/1000 Mbps Gigabit data
✓ Extends network reach by 100 m
✓ IP67-rated outdoor protection
✓ Up to 90W IEEE 802.3bt input
✓ Up to 30W per PoE output

Chicago-Area Warehouse

Same-Day Processing Available

1-Year Warranty

30-Day Return Window

This outdoor Gigabit PoE+ extender uses a 1-input, 2-output design to extend one PoE network connection to two compatible powered devices. It supports 10/100/1000 Mbps Ethernet for IP cameras, VoIP phones, and other standards-based PoE equipment.

The extender adds up to 100 meters (328 feet) of network reach beyond the incoming Ethernet connection, helping installers place compatible PoE devices farther from the original switch or injector without installing a separate local power source.

The input supports IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt PoE with up to 90W input power. Both output ports support IEEE 802.3af and IEEE 802.3at devices with up to 30W available per output port, subject to available input power.

An IP67-rated enclosure and an operating temperature range from -40°C to 70°C (-40°F to 158°F) support outdoor installations. The wall-mount design is powered through PoE and does not require a separate external power supply.

Key Benefits

One Input to Two Outputs – Extends a single PoE network connection to two compatible powered devices from one installation point.
Gigabit Network Support – Supports 10/100/1000 Mbps Ethernet for compatible surveillance, voice, and network equipment.
Additional 100 m Reach – Extends power and network data by up to another 100 meters for devices located farther from the source.
High-Power PoE Input – Accepts compatible IEEE 802.3bt input power up to 90W while also supporting IEEE 802.3af and 802.3at sources.
Dual PoE+ Outputs – Provides two IEEE 802.3af/at output ports with up to 30W available per port.
Outdoor Installation – IP67 protection, wide operating temperature support, and wall mounting suit exposed installation locations.

Recommended Applications

Outdoor IP Camera Installations
Warehouse Perimeter Cameras
Parking Lot Surveillance
Building Exterior Cameras
Campus Security Networks
Long-Distance PoE Deployments
Outdoor VoIP Devices
Remote Network Equipment
Multi-Camera Extension Points
Commercial Property Surveillance

Network Interface
PoE Input Ports	1 × RJ45 PoE input
PoE Output Ports	2 × RJ45 PoE output ports
Network Speed	10/100/1000 Mbps
Additional Extension Distance	Up to 100 m (328 ft)

PoE
Input PoE Standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Maximum PoE Input	Up to 90 W
Output PoE Standards	IEEE 802.3af, IEEE 802.3at
Maximum PoE Output	Up to 30 W per output port
External Power Supply	Not required; powered through the PoE input

Environmental
Protection Rating	IP67
Operating Temperature	-40°C to 70°C (-40°F to 158°F)
Installation Environment	Outdoor

General
Product Type	2-Port Outdoor Gigabit PoE+ Extender
Port Configuration	1 PoE input, 2 PoE outputs
Mounting Type	Wall mount
Installation	Plug and play

Find answers to common questions about compatibility, PoE power, supported equipment, product selection, and use with security camera and surveillance systems.

How many PoE devices can this extender connect?

The extender uses one PoE input and provides two PoE output ports, allowing up to two compatible powered devices to connect from a single incoming PoE connection.

How much additional network distance does the PoE extender provide?

It can extend the PoE network connection by up to an additional 100 meters (328 feet), helping reach devices located farther from the original PoE source.

Which PoE standards does the extender support?

The input supports IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt with up to 90W input power. The two output ports support IEEE 802.3af and IEEE 802.3at devices with up to 30W available per port.

Does the PoE extender require a separate power supply?

No. The extender receives power through its PoE input and does not require an additional local power supply.

Can this PoE extender be installed outdoors?

Yes. It has an IP67-rated enclosure and a specified operating temperature range of -40°C to 70°C (-40°F to 158°F). Proper cable connections and installation practices are still required to maintain outdoor protection.
