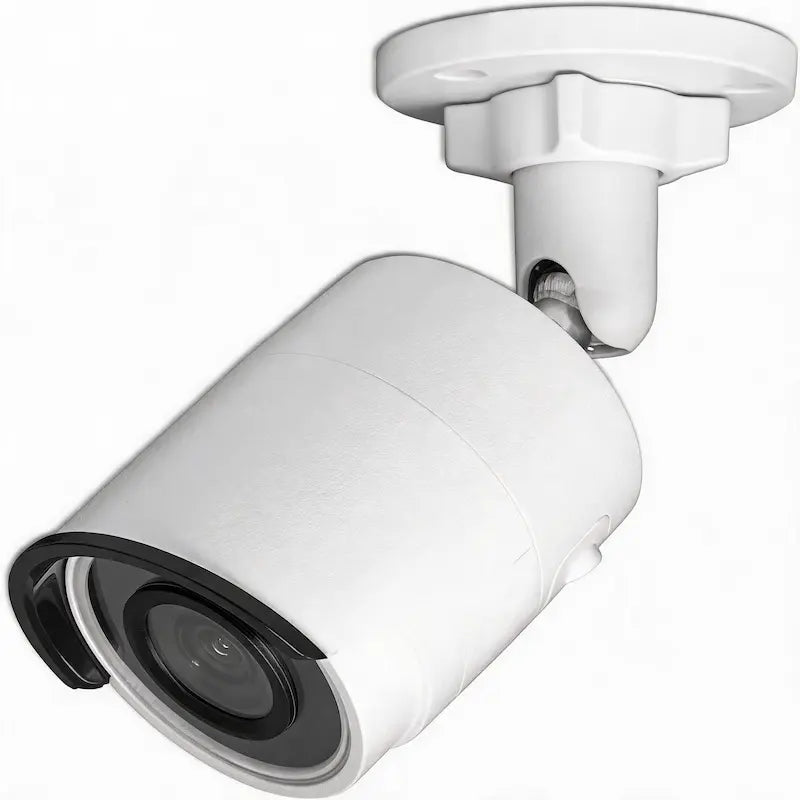

The DS-2CD2083G2-I is an 8MP AcuSense fixed bullet network camera designed for commercial perimeter monitoring that requires detailed 4K video, human and vehicle classification, and dependable outdoor performance.
Its 2.8 mm fixed lens provides wide-area coverage for entrances, parking access points, loading areas, walkways, and building exteriors. AcuSense technology helps focus supported motion and perimeter events on people and vehicles.
120 dB WDR helps preserve image detail in scenes with strong backlight, while H.265+ compression helps reduce bandwidth and recording storage requirements.
The IP67-rated housing supports exposed outdoor installations in warehouses, offices, retail properties, schools, and industrial facilities.
Perimeter Monitoring Advantages
-
8MP 4K Imaging – Records detailed video for commercial monitoring and event review.
-
2.8 mm Fixed Lens – Supports broad coverage of entrances and perimeter areas.
-
Human and Vehicle Detection – Helps focus supported events on relevant targets.
-
120 dB WDR – Improves visibility in backlit and high-contrast scenes.
-
H.265+ Compression – Helps reduce storage and network bandwidth use.
-
IP67 Protection – Supports outdoor commercial installations.
Recommended Applications
- Warehouse Entrances
- Vehicle Gates
- Loading Docks
- Commercial Perimeters
- Office Building Entrances
- Retail Property Exteriors
- Parking Access Points
- School Campus Perimeters
| Camera |
| Image Sensor |
1/2.8" Progressive Scan CMOS |
| Max. Resolution |
3840 × 2160 |
| Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON)
B/W: 0 Lux with IR |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| Lens |
| Lens Type |
2.8 mm fixed focal lens |
| Field of View |
Horizontal FOV 107°, Vertical FOV 57°, Diagonal FOV 128° |
| Lens Mount |
M12 |
| Iris Type |
Fixed |
| Aperture |
F1.6 |
| DORI |
| DORI Distance |
Detect: 88 m, Observe: 35 m, Recognize: 17 m, Identify: 9 m |
| Illuminator |
| Supplement Light Type |
Infrared |
| Supplement Light Range |
Up to 40 m |
| Smart Supplement Light |
Yes |
| IR Wavelength |
850 nm |
| Video |
| Main Stream |
50 Hz: 20 fps at 3840 × 2160; 25 fps at 3200 × 1800, 2688 × 1520, 1920 × 1080, and 1280 × 720
60 Hz: 20 fps at 3840 × 2160; 30 fps at 3200 × 1800, 2688 × 1520, 1920 × 1080, and 1280 × 720 |
| Sub-Stream |
50 Hz: 25 fps at 1280 × 720, 640 × 480, and 640 × 360
60 Hz: 30 fps at 1280 × 720, 640 × 480, and 640 × 360 |
| Third Stream |
10 fps at 1920 × 1080, 1280 × 720, 640 × 480, and 640 × 360. Availability depends on the selected configuration. |
| Video Compression |
Main Stream: H.265+, H.265, H.264+, H.264
Sub-Stream: H.265, H.264, MJPEG
Third Stream: H.265, H.264 |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| H.264 Type |
Baseline Profile, Main Profile, High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR, VBR |
| Scalable Video Coding |
Supported with H.264 and H.265 encoding |
| Region of Interest |
One fixed region for the main stream and sub-stream |
| Network |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
| Simultaneous Live View |
Up to 6 channels |
| API |
ONVIF Profile S and Profile G, ISAPI, SDK |
| User Access |
Up to 32 users with administrator, operator, and user access levels |
| Security |
Password protection, complex password support, HTTPS encryption, IP address filtering, security audit log, HTTP/HTTPS authentication, TLS 1.1/1.2, and ONVIF authentication |
| Network Storage |
NAS using NFS or SMB/CIFS and Auto Network Replenishment |
| Client Support |
Desktop client, mobile application, and compatible VMS platforms |
| Web Browser |
Plug-in Live View: IE 10 and IE 11
Plug-in-Free Live View: Chrome 57.0+ and Firefox 52.0+
Local Service: Chrome 57.0+ and Firefox 52.0+ |
| Image |
| Image Parameters Switch |
Yes |
| Image Settings |
Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, and white balance adjustment |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Wide Dynamic Range |
120 dB |
| Signal-to-Noise Ratio |
≥ 52 dB |
| Image Enhancement |
BLC, HLC, 3D DNR |
| Privacy Mask |
4 programmable polygon privacy masks |
| Interface |
| Ethernet Interface |
1 RJ45 10/100 Mbps self-adaptive Ethernet port |
| Onboard Storage |
Built-in microSD card slot supporting up to 512 GB |
| Built-in Microphone |
No |
| Reset Key |
Yes |
| Events and Analytics |
| Basic Events |
Motion detection with human and vehicle classification, video tampering alarm, and system exception events |
| Smart Events |
Line crossing and intrusion detection with human and vehicle classification, plus face detection |
| Event Linkage |
Upload to FTP, NAS, or memory card; notify surveillance center; send email; trigger recording or image capture |
| General |
| Power |
12 VDC: ±25%, maximum 6 W, reverse polarity protection
PoE: IEEE 802.3af, Class 3, maximum 7.2 W |
| Material |
Aluminum alloy body with plastic front cover |
| Dimensions |
Ø70 × 161.7 mm (Ø2.8" × 6.4") |
| Package Dimensions |
216 × 121 × 118 mm (8.5" × 4.8" × 4.6") |
| Weight |
Approximately 495 g (1.1 lb.) |
| Package Weight |
Approximately 759 g (1.7 lb.) |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less, non-condensing |
| Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less, non-condensing |
| General Functions |
Heartbeat, anti-flicker, password reset by email, and pixel counter |
| Approvals and Protection |
| EMC |
FCC, CE-EMC, RCM, IC, and KC |
| Safety |
UL, CB, CE-LVD, and BIS |
| Environmental Compliance |
CE-RoHS, WEEE, and REACH |
| Protection Rating |
IP67 weather protection |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Where is the DS-2CD2083G2-I commonly installed?
The DS-2CD2083G2-I is commonly installed at warehouse entrances, vehicle gates, loading docks, office buildings, parking access points, and commercial property perimeters that require outdoor video monitoring.
Is the DS-2CD2083G2-I suitable for warehouse perimeter monitoring?
Yes. Its 8MP resolution, 2.8 mm wide-angle lens, human and vehicle classification, and IP67-rated housing make it suitable for monitoring warehouse entrances, loading areas, exterior walls, and perimeter access points.
Can this camera monitor office building entrances?
Yes. The 2.8 mm lens provides broad coverage for office entrances, delivery areas, employee access points, exterior walkways, and nearby parking areas.
Is this camera suitable for retail and parking areas?
Yes. It can be used to monitor storefront exteriors, customer entrances, pickup areas, parking access points, and other wide commercial areas where visible outdoor surveillance is needed.
Who should choose the DS-2CD2083G2-I?
This model is suited to security installers, system integrators, facility managers, IT teams, property managers, and business owners who need an 8MP outdoor bullet camera with intelligent event classification.
What is the benefit of AcuSense human and vehicle classification?
AcuSense classification helps supported motion, line crossing, and intrusion events focus on people and vehicles. This can make event review more efficient by reducing attention given to unrelated scene movement.
What coverage does the 2.8 mm lens provide?
The 2.8 mm fixed lens provides a 107° horizontal field of view, making it suitable for wide coverage of entrances, walkways, loading areas, building approaches, and commercial perimeters.
Does the DS-2CD2083G2-I support Power over Ethernet?
Yes. It supports IEEE 802.3af PoE, allowing power and network data to be delivered through one Ethernet cable. It can also be powered by a compatible 12 VDC power source.
Can the camera record locally and connect to an NVR?
Yes. The built-in microSD card slot supports local storage up to 512 GB. The camera also supports ONVIF Profile S and G, ISAPI, SDK, NAS storage, and compatible network video recorders.
Does the DS-2CD2083G2-I have a built-in microphone?
No. The DS-2CD2083G2-I does not include a built-in microphone. The DS-2CD2083G2-IU is the related variant that includes a built-in microphone.
