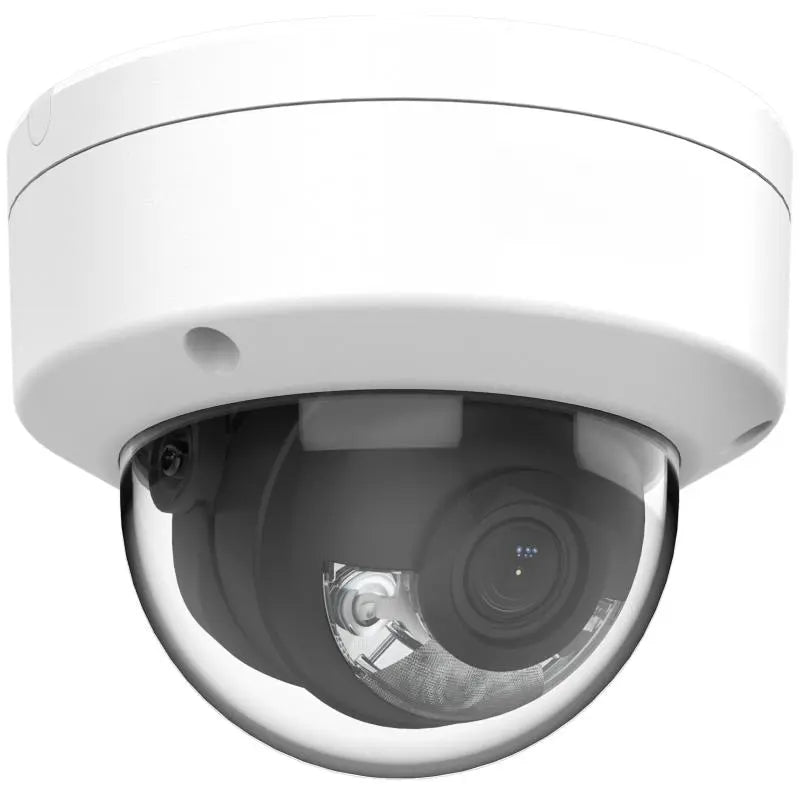

DS-2CD1147G2-LUF 4MP ColorVu Dome Camera 2.8mm
4MP ColorVu dome camera with human and vehicle detection, built-in microphone, and a 2.8 mm wide-angle lens.
In stock
Questions about camera placement, installation, or compatibility? [Ask a CCTV Specialist]
Installer or Dealer? Request Trade Pricing.
Ships from Bensenville, IL
Fast Order Processing
1-Year Warranty
30-Day Return Window
Built for commercial locations that need full-color video after dark, the DS-2CD1147G2-LUF combines 4MP ColorVu imaging, Motion Detection 2.0, human and vehicle classification, built-in audio recording, and local edge storage in a compact fixed dome design.
The camera captures video at up to 2560 × 1440 resolution and is available with 2.8 mm or 4 mm fixed lens options. Its F1.0 aperture and white light illumination support 24/7 color imaging, helping preserve useful visual details around entrances, walkways, service areas, parking access points, and other business locations.
Motion Detection 2.0 supports human and vehicle target classification, helping focus supported events on relevant activity. The camera also includes 120 dB WDR, BLC, HLC, and 3D DNR to improve image usability in scenes with strong backlight, shadows, or changing lighting conditions.
The exact LUF model includes a built-in microphone and a microSD card slot supporting up to 256 GB. H.265+ compression, IEEE 802.3af PoE, ONVIF Profile S/G/T compatibility, IP67 weather protection, and an IK08-rated housing support professional indoor and outdoor commercial installations.
Full-Color Monitoring Benefits
- 4MP ColorVu Imaging – Captures video at up to 2560 × 1440 resolution with full-color low-light capability.
- 24/7 Color Monitoring – The F1.0 aperture and white light help preserve color information after dark.
- Human and Vehicle Detection – Motion Detection 2.0 helps focus supported events on relevant targets.
- Built-in Audio Recording – The integrated microphone adds audio context to compatible surveillance recordings.
- Strong Backlight Handling – 120 dB WDR helps maintain image detail in high-contrast scenes.
- Local Edge Storage – The built-in memory card slot supports up to 256 GB of onboard recording.
Recommended Applications
- Retail Store Entrances
- Office Building Walkways
- Apartment Common Areas
- Commercial Service Doors
- Warehouse Personnel Entrances
- Customer Pickup Areas
- Parking Access Points
- Small Business Exteriors
- Covered Commercial Corridors
- Employee Entry Areas
| Camera | |
|---|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | 24/7 color imaging |
| Angle Adjustment | Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV: 96°, vertical FOV: 52°, diagonal FOV: 113° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth of Field | 2.8 mm:2 m to ∞ |
| DORI | |
| DORI | 2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m |
| Illuminator | |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| Video | |
| Main Stream | 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz:25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz:24 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream:H.265+/H.265/H.264+/H.264, Sub-stream:H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR,VBR |
| Region of Interest (ROI) | 1 fixed region(s) for main stream |
| Audio | |
| Audio Type | -U: Mono sound |
| Audio Compression | -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | -U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | -U: 8 kHz/16 kHz |
| Environment Noise Filtering | -U: Yes |
| Network | |
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile T, Profile G (only -U model supports)),ISAPI,SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Client | iVMS-4200,Mobile App |
| Web Browser | Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day,Night,Auto,Schedule |
| Image Enhancement | BLC,HLC,3D DNR |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Privacy Mask | 4 programmable polygon privacy masks |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
| Built-in Microphone | -U: Yes |
| Reset Key | -F: Yes |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
| Linkage | Upload to FTP/memory card (-F), notify surveillance center, send email, trigger recording (-F), trigger capture |
| General | |
| Power | 12 VDC ± 25%:0.4 A, max. 5 W,Ø5.5 mm coaxial power plug, PoE:802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W |
| Material | Base: aluminum alloy, cover: plastic |
| Dimension | Ø121.5 mm × 97.6 mm (Ø4.8 × 3.8\")" |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
| Weight | Approx. 500 g (1.1 lb.) |
| With Package Weight | Approx. 700 g (1.5 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | English, Ukrainian |
| General Function | Heartbeat,anti-banding,mirror,password protection,password reset via email |
| Approval | |
| EMC | FCC:47 CFR Part 15, Subpart B, CE-EMC:EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM:AS/NZS CISPR 32: 2015, KC:KN32: 2015, KN35: 2015 |
| Safety | UL:UL 62368-1, CB:IEC 62368-1: 2014+A11, CE-LVD:EN 62368-1: 2014/A11: 2017, BIS:IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
| Environment | CE-RoHS:2011/65/EU, WEEE:2012/19/EU, Reach:Regulation (EC) No 1907/2006 |
| Protection | IP67:IEC 60529-2013;IK08:IEC 62262:2002 |
Find answers to common questions about compatibility, installation, image quality, night vision, detection features, audio, storage, and network connectivity.
Where is the DS-2CD1147G2-LUF commonly installed?
The camera is suitable for retail entrances, office walkways, apartment common areas, warehouse personnel doors, service entrances, parking access points, and other commercial locations.
Is the DS-2CD1147G2-LUF suitable for full-color monitoring after dark?
Yes. ColorVu technology, an F1.0 aperture, and white light illumination support 24/7 color imaging in low-light environments.
Can this camera be used at business entrances and covered outdoor areas?
Yes. Its 4MP imaging, full-color low-light capability, built-in microphone, IP67 weather protection, and IK08 impact rating support a range of commercial installations.
What types of organizations may benefit from this camera?
Retail stores, offices, apartment communities, warehouses, schools, service businesses, and commercial property managers may use this model for entrance and walkway monitoring.
How does Motion Detection 2.0 improve event monitoring?
Motion Detection 2.0 supports human and vehicle classification, helping focus compatible motion events on relevant targets.
How does ColorVu support nighttime identification?
ColorVu uses an F1.0 aperture and supplemental white light to help retain useful color information such as clothing, vehicles, and surrounding scene details.
Does the DS-2CD1147G2-LUF include built-in audio?
Yes. The exact LUF model includes a built-in microphone for real-time audio recording through compatible surveillance systems.
Does this model support local storage and PoE?
Yes. The LUF model includes a built-in microSD, microSDHC, and microSDXC card slot supporting up to 256 GB and supports IEEE 802.3af PoE.
Can the DS-2CD1147G2-LUF integrate with compatible video systems?
Yes. The exact LUF model supports ONVIF Profile S, Profile G, and Profile T, along with ISAPI and SDK integration.
What are the maximum resolution and white light range?
The camera supports a maximum resolution of 2560 × 1440 and provides white light illumination up to 30 meters.
