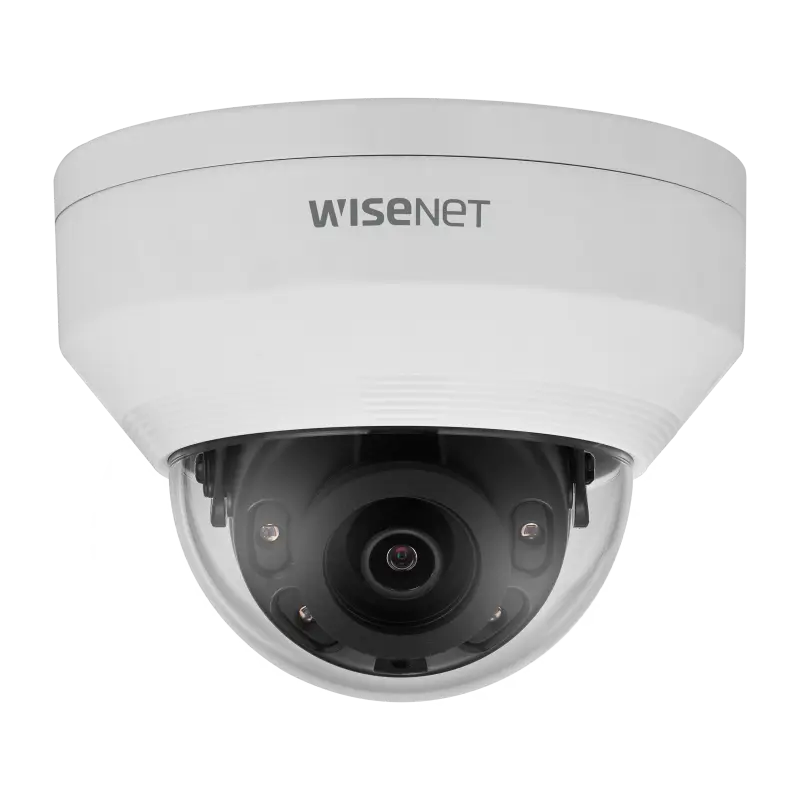

ANV-L7012R 4MP Outdoor Vandal Dome Camera for Schools, Offices & Public Areas
Top Seller
$189.00
Buying in Bulk? Local installers and contractors can Request Trade Pricing to unlock volume discounts for this project.
Premium Quality
Backed by a 2-Year Full Hardware Warranty.
30-Day Risk-Free
Satisfied or your money back, guaranteed.
USA-Based Live Support
Native technical backing for field technicians.
Free Shipping Over $70
Stocked locally and shipped fast from IL.
Midwestern Stock
3-5 days nationwide shipping. Next-day delivery for local Chicago installers!
Key Features
Product Description
Some camera locations face a challenge that goes beyond image quality. School hallways, apartment entrances, office lobbies, elevators, and public-facing facilities often expose surveillance equipment to accidental impacts, tampering, or intentional vandalism. In these environments, protecting the camera itself becomes just as important as capturing video.
The ANV-L7012R is a 4MP outdoor vandal dome camera built for locations where durability matters. Its IK10-rated dome housing helps protect critical surveillance infrastructure in public areas while maintaining a clean and professional appearance. Compared to traditional bullet cameras, the vandal dome design reduces opportunities for tampering and makes it more difficult to redirect or damage the camera.
For corridor-style environments, Hallway View support allows the camera image to be rotated for better coverage of narrow spaces such as hallways, stairwells, apartment corridors, and office passageways. This helps maximize useful video coverage without requiring additional cameras.
Integrated video analytics provide additional situational awareness through motion detection, directional detection, intrusion monitoring, enter/exit detection, and tampering alerts. Combined with H.265 compression, WiseStream II bandwidth optimization, local edge recording, and ONVIF compatibility, the ANV-L7012R is well suited for small and medium-sized business surveillance projects.
Key Features
- IK10 Vandal Resistance – Helps protect the camera in schools, apartment buildings, public entrances, and other high-traffic areas.
- Hallway View Support – Optimizes video coverage for corridors, stairwells, and narrow passageways.
- 4MP Resolution – Captures clear video for everyday commercial surveillance applications.
- Built-In Intelligent Analytics – Supports intrusion, directional, motion, and tampering detection.
- Smart IR Night Vision – Delivers dependable low-light monitoring up to 20 meters (65 feet).
- WiseStream II Compression – Reduces bandwidth and storage requirements while maintaining image quality.
Technical Specifications
- Camera Style: Outdoor Vandal Dome
- Resolution: 4MP (2560 × 1440)
- Image Sensor: 1/3" CMOS
- Lens: 3mm Fixed Lens
- Viewing Angle: 98.3° Horizontal
- Frame Rate: Up to 30fps
- Night Vision: IR Range up to 20m (65 ft)
- Wide Dynamic Range: 120dB True WDR
- Video Compression: H.265 / H.264 / MJPEG
- Analytics: Motion, Direction, Intrusion, Enter/Exit, Tampering Detection
- Local Storage: MicroSD / SDHC / SDXC
- Bandwidth Optimization: WiseStream II
- Power: PoE (802.3af)
- Weather Rating: IP66
- Impact Rating: IK10
- Hallway View: 90° / 270° Rotation
Compatibility
The ANV-L7012R supports Hanwha Vision NVRs, Wisenet WAVE VMS, and ONVIF-compatible recording platforms. The camera can be deployed in new installations or integrated into existing professional IP surveillance systems.
Ideal Applications
- School Hallways
- Apartment Entrances
- Office Lobbies
- Elevators
- Healthcare Facilities
- Retail Store Entrances
- Government Buildings
- Public Access Areas
Key Specs
| Brand | Hanwha |
| Camera Style | Dome |
| Resolution | 4MP (2K Quad HD) |
| System Compatibility | Wisenet Native, ONVIF Profile S/G/T |
| Compliance Status | FCC Certified |
| Protection Rating | IP66 Rated, IK10 Rated |
| Audio Support | No Audio |
Find answers to common questions about compatibility,
installation, Full-Color night vision, and AcuSense features.
Why choose a vandal dome camera instead of a standard bullet camera?
A vandal dome camera is typically preferred in public-facing areas because the enclosed housing helps protect the camera from tampering, accidental impact, and attempts to redirect the viewing angle.
What does the IK10 rating mean?
IK10 is an impact-resistance rating that indicates the camera housing is designed to withstand significant physical force. This makes it a good choice for schools, apartment buildings, and other high-traffic environments.
What is Hallway View and why is it useful?
Hallway View rotates the image to better fit narrow spaces such as corridors, stairwells, and entrances. It helps maximize coverage without wasting pixels on unnecessary side areas.
Is the ANV-L7012R suitable for school installations?
Yes. The vandal-resistant housing, hallway monitoring capabilities, and intelligent analytics make it well suited for schools, educational facilities, and campus buildings.
Can this camera be installed outdoors?
Yes. The IP66-rated enclosure helps protect against rain, dust, and outdoor environmental conditions throughout the year.
How far does the infrared night vision reach?
The built-in IR illumination provides coverage up to approximately 20 meters or 65 feet in low-light conditions.
What video analytics are included?
The camera supports motion detection, directional detection, intrusion monitoring, enter/exit detection, defocus detection, and tampering alerts.
Does the ANV-L7012R support local recording?
Yes. The camera includes a MicroSD/SDHC/SDXC card slot for edge recording and event storage.
Can the camera work with ONVIF-compatible systems?
Yes. ONVIF compatibility allows integration with many professional NVRs and video management platforms.
What types of properties is the ANV-L7012R best suited for?
The camera is ideal for schools, apartment buildings, office corridors, elevators, healthcare facilities, retail entrances, and other public-facing environments where vandal resistance is important.
