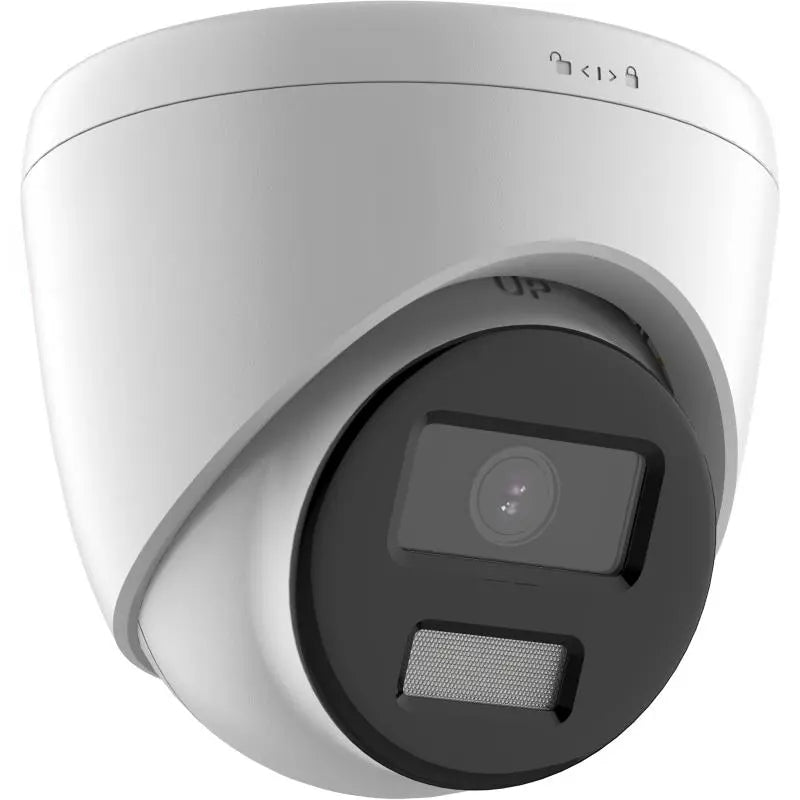

The DS-2CD1347G2-LUF is a 4MP ColorVu turret camera designed for commercial sites that need full-color low-light video, intelligent motion detection, and built-in audio recording.
Its 2.8 mm wide-angle lens provides broad coverage for storefronts, employee entrances, walkways, service doors, and parking access points. ColorVu imaging and white light illumination help preserve useful color detail after dark.
Motion Detection 2.0 supports human and vehicle classification, helping operators focus on more relevant activity. The built-in microphone adds audio context, while onboard storage and weather-resistant construction support flexible indoor and outdoor deployment.
Key Benefits
-
4MP ColorVu Imaging – Provides detailed full-color video in low-light environments.
-
2.8 mm Wide-Angle Coverage – Helps monitor entrances, walkways, and wider business areas.
-
Human and Vehicle Detection – Improves event filtering for supported motion alerts.
-
Built-In Microphone – Adds real-time audio recording to compatible systems.
-
Backlight Image Control – Helps maintain usable video around bright entrances and shaded areas.
-
Local Edge Recording – Supports onboard recording through the built-in memory card slot.
Recommended Applications
- After-Hours Storefronts
- Employee Entrances
- Retail Back Doors
- Office Exterior Walkways
- Commercial Service Entrances
- Apartment Community Paths
- Customer Pickup Areas
- Small Parking Access Points
- Warehouse Personnel Doors
- Covered Business Entrances
| Camera |
| Image Sensor |
1/3" Progressive Scan CMOS |
| Max. Resolution |
2560 × 1440 |
| Min. Illumination |
Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day & Night |
24/7 color imaging |
| Angle Adjustment |
Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° |
| Lens |
| Lens Type |
Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV |
2.8 mm:horizontal FOV: 96°, vertical FOV: 52°, diagonal FOV: 113° |
| Lens Mount |
M12 |
| Iris Type |
Fixed |
| Aperture |
F1.0 |
| Depth of Field |
2.8 mm:2 m to ∞ |
| DORI |
| DORI |
2.8 mm:D: 64 m, O: 25 m, R: 12 m, I: 6 m |
| Illuminator |
| Supplement Light Type |
White Light |
| Supplement Light Range |
Up to 30 m |
| Smart Supplement Light |
Yes |
| Video |
| Main Stream |
50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440)
24 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream |
50 Hz:25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz:24 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression |
Main stream:H.265+/H.265/H.264+/H.264
Sub-stream:H.265/H.264/MJPEG |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Type |
Baseline Profile,Main Profile,High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR,VBR |
| Region of Interest (ROI) |
1 fixed region(s) for main stream |
| Audio |
| Audio Type |
-U: Mono sound |
| Environment Noise Filtering |
-U: Yes |
| Audio Sampling Rate |
-U: 8 kHz/16 kHz |
| Audio Compression |
-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate |
-U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Network |
| Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| Simultaneous Live View |
Up to 6 channels |
| API |
Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK |
| User/Host |
Up to 32 users
3 user levels: administrator, operator, and user |
| Security |
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Client |
iVMS-4200,Mobile App |
| Web Browser |
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image |
| Wide Dynamic Range (WDR) |
120 dB |
| SNR |
≥ 52 dB |
| Day/Night Switch |
Day,Night,Auto,Schedule |
| Image Enhancement |
BLC,HLC,3D DNR |
| Image Settings |
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Privacy Mask |
4 programmable polygon privacy masks |
| Interface |
| Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage |
-F model supports built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone |
-U: Yes |
| Reset Key |
-F: Yes |
| Event |
| Basic Event |
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
| Linkage |
Upload to FTP/memory card (-F), notify surveillance center, send email, trigger recording (-F), trigger capture |
| General |
| Power |
12 VDC ± 25%:0.4 A, max. 5 W,Ø5.5 mm coaxial power plug
PoE:802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W |
| Material |
Metal & Plastic |
| Dimension |
Ø109.9 mm × 103.6 mm (Ø4.3 × 4.1\")" |
| Package Dimension |
150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
| Weight |
-L:Approx. 380 g (0.8 lb.)
-LUF:Approx. 420 g (0.9 lb.) |
| With Package Weight |
-L:Approx. 620 g (1.4 lb.)
-LUF:Approx. 650 g (1.4 lb.) |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language |
English, Ukrainian |
| General Function |
Heartbeat,anti-banding,mirror,password protection,password reset via email |
| Approval |
| EMC |
FCC:47 CFR Part 15, Subpart B
CE-EMC:EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
RCM:AS/NZS CISPR 32: 2015
KC:KN32: 2015, KN35: 2015 |
| Safety |
UL:UL 62368-1
CB:IEC 62368-1: 2014+A11
CE-LVD:EN 62368-1: 2014/A11: 2017
BIS:IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
| Environment |
CE-RoHS:2011/65/EU
WEEE:2012/19/EU
Reach:Regulation (EC) No 1907/2006 |
| Protection |
IP67:IEC 60529-2013 |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Where is the DS-2CD1347G2-LUF commonly installed?
The DS-2CD1347G2-LUF is commonly installed at storefronts, employee entrances, office walkways, retail back doors, service entrances, apartment paths, customer pickup areas, and other commercial locations requiring full-color monitoring.
Is this camera suitable for full-color monitoring after dark?
Yes. ColorVu technology, an F1.0 aperture, and white light illumination support 24/7 color imaging in low-light commercial environments.
Can the DS-2CD1347G2-LUF monitor business entrances and walkways?
Yes. Its 4MP resolution, wide-angle lens options, full-color low-light imaging, built-in microphone, and IP67 housing make it suitable for entrances and exterior walkways.
What types of businesses may benefit from this camera?
Retail stores, offices, apartment communities, small warehouses, service businesses, schools, and commercial property managers may use this model for exterior access monitoring.
How does Motion Detection 2.0 improve event monitoring?
Motion Detection 2.0 supports human and vehicle target classification, helping reduce alerts caused by general scene movement.
How does ColorVu help with nighttime identification?
ColorVu uses an F1.0 aperture and white light illumination to help retain useful color details such as clothing, vehicles, and surrounding scene context.
Does the DS-2CD1347G2-LUF include built-in audio?
Yes. The exact LUF model includes a built-in microphone for real-time audio recording through compatible surveillance systems.
Does this model support local storage and PoE?
Yes. The LUF model includes a built-in memory card slot supporting microSD, microSDHC, and microSDXC cards up to 512 GB and supports IEEE 802.3af PoE.
Can the DS-2CD1347G2-LUF integrate with ONVIF systems?
Yes. Because the exact model includes the -F suffix, it supports ONVIF Profile S, Profile G, and Profile T for integration with compatible NVRs and video management systems.
What are the maximum resolution and white light range of the DS-2CD1347G2-LUF?
The camera supports a maximum resolution of 2560 × 1440 and provides white light illumination up to 30 meters.
