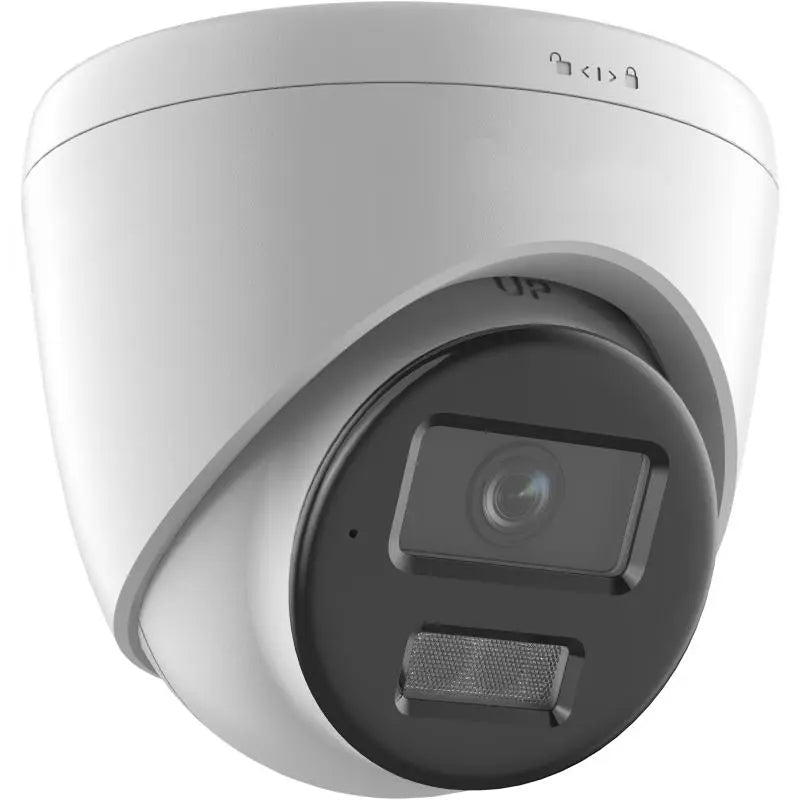

The DS-2CD1367G2H-LIUF is a 6MP ColorVu Smart Hybrid Light turret network camera designed for commercial surveillance applications that need clear video, full-color low-light imaging, intelligent target detection, and built-in audio recording. With 3200 × 1800 resolution, it provides detailed monitoring for entrances, storefronts, warehouses, offices, parking access points, and exterior business areas.
ColorVu technology uses an F1.0 aperture to capture more light, helping the camera deliver bright color images in very low-light environments. Smart Hybrid Light combines infrared and white light illumination, giving businesses flexible nighttime visibility for access points, walkways, loading areas, and commercial perimeters.
Human and vehicle detection helps focus alerts on relevant activity instead of general motion, improving event accuracy for commercial security teams. This makes the camera useful for businesses that need smarter monitoring around exterior doors, parking areas, service entrances, and perimeter zones.
The built-in microphone adds real-time audio recording for additional situational awareness through compatible surveillance systems. With onboard storage up to 512 GB on the -F model, H.265+ compression, ONVIF compatibility, PoE support, and IP67 weather protection, the DS-2CD1367G2H-LIUF is built for professional business security deployments.
Full-Color Monitoring Benefits
-
6MP Image Detail – Super HD resolution provides clear video for commercial monitoring applications.
-
ColorVu Low-Light Imaging – F1.0 aperture helps capture brighter color images in low-light scenes.
-
Smart Hybrid Light – IR and white light illumination support flexible nighttime monitoring up to 30 meters.
-
Human and Vehicle Detection – Target classification helps reduce false alarms and improve event relevance.
-
Built-in Audio Recording – Integrated microphone adds audio context through compatible surveillance platforms.
-
Local Edge Storage – Built-in microSD support up to 512 GB provides onboard recording flexibility.
Recommended Applications
- Retail Store Entrances
- Office Building Exteriors
- Warehouse Loading Areas
- Commercial Building Perimeters
- Parking Area Access Points
- Apartment Community Walkways
- School Exterior Doors
- Small Business Entrances
- Distribution Center Entrances
- Service Door Monitoring
| Camera |
| Image Sensor |
1/2.4" Progressive Scan CMOS |
| Max. Resolution |
3200 × 1800 |
| Min. Illumination |
Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° |
| Lens |
| Lens Type |
Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV |
2.8 mm:Horizontal FOV 115°, vertical FOV 60°, diagonal FOV 143° |
| Lens Mount |
M12 |
| Iris Type |
Fixed |
| Aperture |
F1.0 |
| DORI |
| DORI |
2.8 mm:D: 64 m, O: 25 m, R: 12 m, I: 6 m |
| Illuminator |
| Supplement Light Type |
IR,White Light |
| Supplement Light Range |
Up to 30 m |
| Smart Supplement Light |
Yes |
| IR Wavelength |
850 nm |
| Video |
| Main Stream |
50 Hz:
20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream |
50 Hz:
20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz:
20 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression |
Main stream:H.265+/H.265/H.264+/H.264
Sub-stream:H.265/H.264/MJPEG |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| H.264 Type |
Baseline Profile,Main Profile,High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR,VBR |
| Region of Interest (ROI) |
1 fixed region for main stream |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
| Audio |
| Audio Type |
Mono sound |
| Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate |
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate |
8 kHz/16 kHz |
| Environment Noise Filtering |
Yes |
| Network |
| Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP |
| Simultaneous Live View |
Up to 6 channels |
| API |
Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK |
| User/Host |
Up to 32 users
3 user levels: administrator, operator, and user |
| Security |
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Client |
iVMS-4200,Mobile App |
| Web Browser |
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image |
| Image Settings |
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Day/Night Switch |
Day,Night,Auto,Schedule |
| Wide Dynamic Range (WDR) |
120 dB |
| SNR |
≥ 52 dB |
| Image Enhancement |
BLC,HLC,3D DNR |
| Privacy Mask |
4 programmable polygon privacy masks |
| Interface |
| Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage |
-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone |
Yes |
| Reset Key |
-F: Yes |
| Event |
| Basic Event |
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
| Linkage |
Upload to memory card (-F model supports), trigger recording (-F model supports), upload to FTP,notify surveillance center,send email,trigger capture |
| General |
| Power |
12 VDC ± 25%:0.55 A, max. 6.6 W,Ø5.5 mm coaxial power plug,reverse polarity protection
PoE:IEEE 802.3af, Class 3, max. 8.0 W |
| Material |
Metal & Plastic |
| Dimension |
Ø110 mm × 102.7 mm (Ø4.33" × 4.04") |
| Package Dimension |
150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55") |
| Weight |
Approx. 415 g (0.9 lb.) |
| With Package Weight |
Approx. 656 g (1.4 lb.) |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language |
English, Ukrainian |
| General Function |
Heartbeat,anti-banding,mirror,password reset via email,password protection |
| Approval |
| EMC |
CE-EMC:EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
RCM:AS/NZS CISPR 32: 2015
IC:ICES-003: Issue 7 |
| Safety |
UL:UL 62368-1
CB:IEC 62368-1: 2014+A11
CE-LVD:EN 62368-1: 2014/A11: 2017
BIS:IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
| Environment |
CE-RoHS:2011/65/EU
WEEE:2012/19/EU
Reach:Regulation (EC) No 1907/2006 |
| Protection |
IP67:IEC 60529-2013 |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Where is the DS-2CD1367G2H-LIUF commonly installed?
The DS-2CD1367G2H-LIUF is commonly installed at retail entrances, office building exteriors, warehouse loading areas, commercial perimeters, parking access points, apartment walkways, school entrances, and small business locations.
Is this camera suitable for full-color nighttime monitoring?
Yes. ColorVu technology, an F1.0 aperture, and Smart Hybrid Light illumination help provide color imaging and flexible nighttime visibility in low-light commercial environments.
Can the DS-2CD1367G2H-LIUF monitor entrances and loading areas at night?
Yes. Smart Hybrid Light uses infrared and white light illumination up to 30 meters, making it useful for entrances, loading areas, walkways, and building perimeters.
What types of businesses typically deploy this camera?
Retail stores, warehouses, offices, schools, apartment communities, small businesses, distribution centers, and commercial property managers commonly use this model for outdoor surveillance.
Does the DS-2CD1367G2H-LIUF support human and vehicle detection?
Yes. The camera supports motion detection with human and vehicle target classification, helping reduce false alarms from general motion.
Does this model include built-in audio?
Yes. The DS-2CD1367G2H-LIUF includes a built-in microphone for real-time audio recording through compatible surveillance systems.
Does the DS-2CD1367G2H-LIUF support local recording?
Yes. The -F model includes a built-in memory card slot that supports microSD, microSDHC, and microSDXC cards up to 512 GB.
Is this camera compatible with ONVIF systems?
Yes. The requested -F model supports ONVIF Profile S, Profile T, and Profile G for integration with compatible professional NVRs and video management systems.
Is the DS-2CD1367G2H-LIUF designed for outdoor installation?
Yes. The camera has an IP67-rated weather-resistant housing designed for outdoor commercial environments exposed to rain, dust, and demanding conditions.
What is the maximum video resolution of the DS-2CD1367G2H-LIUF?
The camera supports a maximum resolution of 3200 × 1800, delivering 6MP Super HD video for commercial surveillance applications.
