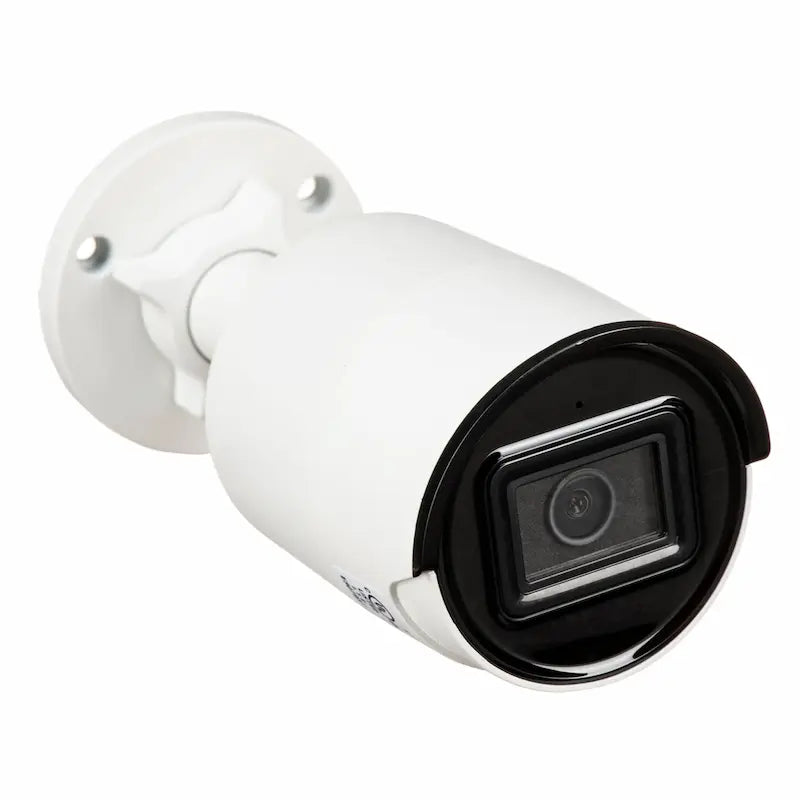

Built for commercial perimeter and exterior access monitoring, the DS-2CD2043G2-I combines 4MP video, human and vehicle target classification, long-range Smart IR illumination, and local edge storage in a fixed bullet design.
The camera captures video at up to 2688 × 1520 resolution and is available with 2.8 mmfixed lens options. These lens choices support different deployment needs, from wider building entrances and loading areas to narrower views along drive lanes, exterior walls, and perimeter approaches.
Human and vehicle classification helps focus motion and perimeter events on relevant targets. The camera also supports line crossing detection, intrusion detection, and face detection, while 120 dB WDR, BLC, HLC, and 3D DNR help maintain useful image detail in challenging lighting conditions.
Smart IR illumination provides nighttime visibility up to 40 meters. The DS-2CD2043G2-I also supports H.265+ compression, onboard microSD storage up to 512 GB, IEEE 802.3af PoE, ONVIF Profile S/G integration, and IP67 weather protection for professional outdoor surveillance deployments.
Perimeter Monitoring Advantages
-
4MP Video Detail – 2688 × 1520 resolution supports clear monitoring across commercial exterior areas.
-
Human and Vehicle Classification – Target-based detection helps improve the relevance of supported motion and perimeter events.
-
Flexible Lens Options – 2.8 mmlenses support wide, balanced, or narrower monitoring requirements.
-
Extended Night Visibility – Smart IR illumination supports nighttime monitoring up to 40 meters.
-
Strong Backlight Handling – 120 dB WDR helps preserve image detail in scenes with bright and dark areas.
-
Local Edge Recording – The built-in memory card slot supports up to 512 GB of onboard storage.
Recommended Applications
- Warehouse Perimeter Walls
- Loading Dock Approaches
- Commercial Drive Lanes
- Industrial Yard Boundaries
- Building Side Entrances
- Distribution Center Access Roads
- Office Property Perimeters
- Retail Service Areas
- Apartment Parking Entrances
- Exterior Equipment Areas
| Camera |
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Max. Resolution |
2688 × 1520 |
| Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lens |
| Focal Length & FOV |
2.8 mm:horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122° |
| Lens Type |
Fixed focal lens, 2.8 mm optional |
| Lens Mount |
M12 |
| Aperture |
F1.6 |
| Iris Type |
Fixed |
| DORI |
| DORI |
2.8 mm:D: 67 m, O: 26 m, R: 13 m, I: 6 m |
| Illuminator |
| Supplement Light Range |
Up to 40 m |
| Supplement Light Type |
IR |
| IR Wavelength |
850 nm |
| Smart Supplement Light |
Yes |
| Video |
| Main Stream |
50 Hz:25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream |
50 Hz:25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz:30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream |
50 Hz:10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz:10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Video Compression |
Main stream:H.265/H.264/H.264+/H.265+
Sub-stream:H.265/H.264/MJPEG
Third stream:H.265/H.264 |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Type |
Baseline Profile/Main Profile/High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR/VBR |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
| Region of Interest (ROI) |
1 fixed region for main stream and sub-stream |
| Audio |
| Audio Compression |
-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate |
-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/16-64 Kbps(AAC-LC) |
| Audio Sampling Rate |
-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering |
-U: Yes |
| Network |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets |
| Simultaneous Live View |
Up to 6 channels |
| API |
Open Network Video Interface (Profile S, Profile G), ISAPI, SDK |
| User/Host |
Up to 32 users. 3 user levels: administrator, operator and user |
| Security |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage |
NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client |
iVMS-4200, Mobile App, VMS Platform |
| Web Browser |
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+ |
| Image |
| Image Parameters Switch |
Yes |
| Image Settings |
Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) |
120 dB |
| Image Enhancement |
BLC, HLC, 3D DNR |
| SNR |
≥ 52 dB |
| Interface |
| Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage |
Built-in memory card slot, support microSD card, up to 512 GB |
| Built-in Microphone |
-U: Yes |
| Reset Key |
Yes |
| Event |
| Basic Event |
Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Smart Event |
Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)
Face detection |
| Linkage |
Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture |
| General |
| Power |
12 VDC ± 25%:0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE:802.3af, Class 3, 36 V to 57 V), 0.2 A to 0.13 A, max. 7 W |
| Dimension |
Ø70 × 161.7 mm (Ø2.76″ × 6.37″) |
| Package Dimension |
216 mm × 121 mm × 118 mm (8.6" × 4.8" × 4.7") |
| Weight |
Approx. 490 g (1.1 lb.) |
| With Package Weight |
Approx. 724 g (1.6 lb.) |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function |
Anti-flicker, heartbeat, password reset via e-mail, pixel counter |
| Language |
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Approval |
| EMC |
FCC:47 CFR Part 15, Subpart B
CE-EMC:EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014
RCM:AS/NZS CISPR 32: 2015
IC:ICES-003: Issue 6, 2016
KC:KN 32: 2015, KN 35: 2015 |
| Safety |
UL:UL 60950-1
CB:IEC 60950-1:2005 + Am 1:2009 + Am 2:2013
CE-LVD:EN 60950-1:2005 + Am 1:2009 + Am 2:2013
BIS:IS 13252(Part 1):2010+A1:2013+A2:2015 |
| Environment |
CE-RoHS:2011/65/EU
WEEE:2012/19/EU
Reach:Regulation (EC) No 1907/2006 |
| Protection |
IP67:IEC 60529-2013 |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Where is the DS-2CD2043G2-I commonly installed?
The DS-2CD2043G2-I is commonly installed along warehouse perimeter walls, loading dock approaches, commercial drive lanes, industrial yards, office property boundaries, service areas, and exterior access routes.
Why choose this bullet camera for commercial perimeter monitoring?
Its directional bullet design, 4MP resolution, human and vehicle classification, 40-meter Smart IR range, and IP67 housing make it suitable for defined outdoor monitoring areas.
Can the DS-2CD2043G2-I monitor loading areas and drive lanes at night?
Yes. Smart IR illumination provides nighttime visibility up to 40 meters, supporting monitoring around loading approaches, drive lanes, building sides, and perimeter areas.
What types of businesses may use this camera?
Warehouses, distribution centers, industrial facilities, retail properties, offices, apartment communities, logistics operators, and commercial property managers may use this model for exterior surveillance.
How does human and vehicle classification improve event monitoring?
Human and vehicle classification helps focus supported motion and perimeter events on relevant targets and can reduce alerts caused by general background movement.
What smart event functions does the DS-2CD2043G2-I support?
The camera supports line crossing detection, intrusion detection, and face detection in addition to motion detection and video tampering alerts.
Does the DS-2CD2043G2-I include built-in audio?
No. Built-in microphone support applies to the separate -U variant. The exact DS-2CD2043G2-I model does not include a built-in microphone.
Does this camera support local storage and PoE?
Yes. It includes a built-in microSD card slot supporting up to 512 GB and can be powered through IEEE 802.3af PoE or a compatible 12 VDC source.
Can the DS-2CD2043G2-I integrate with ONVIF surveillance systems?
Yes. The provided specifications confirm ONVIF Profile S and Profile G support for integration with compatible professional NVRs and video management systems.
What are the maximum resolution and IR range of the DS-2CD2043G2-I?
The camera supports a maximum resolution of 2688 × 1520 and provides Smart IR illumination up to 40 meters.
