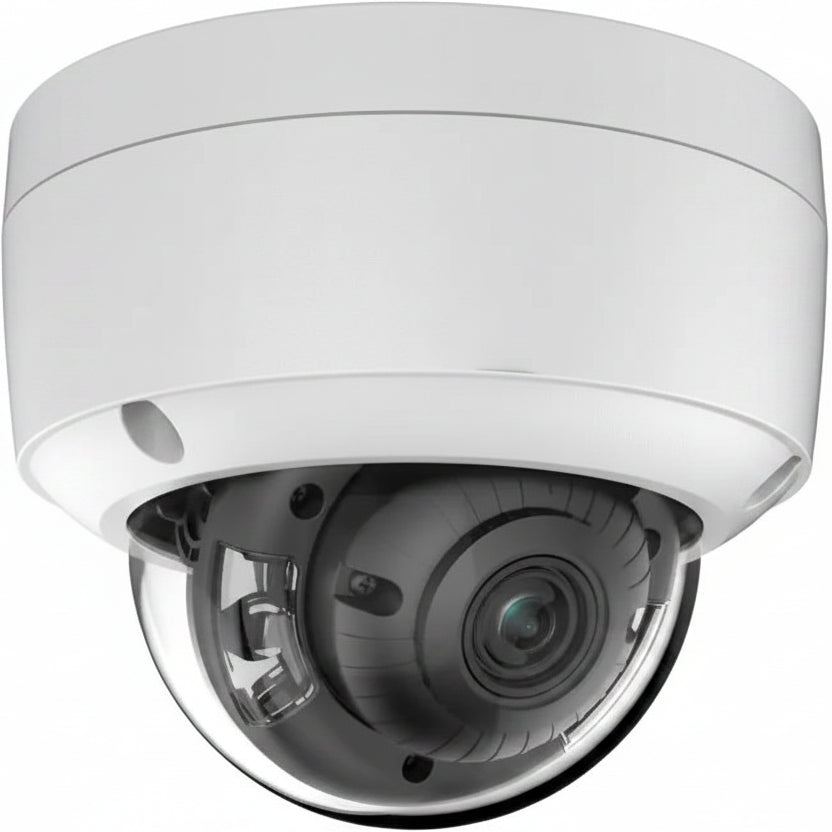

The DS-2CD2147G2-LSU is a 4MP ColorVu fixed dome network camera designed for commercial surveillance applications that require full-color low-light imaging, intelligent human and vehicle classification, built-in audio recording, and durable outdoor protection.
Its F1.0 aperture and supplemental white light support 24/7 color imaging, helping preserve useful visual details such as clothing color, vehicle color, and surrounding scene information in low-light environments. The camera records at up to 2688 × 1520 resolution and supports a 2.8 mm fixed lens with a wide field of view.
Deep learning-based human and vehicle classification supports more relevant motion and perimeter events. This can help reduce alerts caused by some types of non-target movement while improving event review around entrances, walkways, parking areas, loading zones, and other commercial locations.
The integrated microphone supports synchronized audio recording through compatible surveillance systems. The camera also supports H.265+ compression, H-Series private protocol, ONVIF, ISAPI, IEEE 802.3af PoE, and professional NVR integration.
Key Features
-
4MP Video Resolution – Captures video at up to 2688 × 1520 resolution for detailed commercial monitoring.
-
24/7 Full-Color Imaging – ColorVu technology, an F1.0 aperture, and supplemental white light support color video in low-light environments.
-
Human and Vehicle Classification – Deep learning-based detection helps focus supported events on relevant targets.
-
Built-in Microphone – Supports synchronized audio recording with compatible NVR and video management systems.
-
Wide-Area Coverage – The 2.8 mm fixed lens provides a wide viewing angle for entrances, corridors, and public-facing areas.
-
Durable Dome Housing – IP67 weather protection and IK10 impact resistance support exposed and public-area installations.
Technical Specifications
-
Maximum Resolution: 4MP, 2688 × 1520
-
Maximum Frame Rate: Up to 30 fps
-
Lens: 2.8 mm fixed lens
-
Horizontal Field of View: Approximately 109°
-
Low-Light Technology: ColorVu 24/7 full-color imaging
-
Supplemental Light: White light up to approximately 30 m (98 ft)
-
Audio: Built-in microphone
-
Video Compression: H.265+, H.265, H.264+, and H.264
-
System Compatibility: H-Series private protocol, ONVIF, and ISAPI
-
Power: 12 VDC and IEEE 802.3af PoE
-
Protection Ratings: IP67 and IK10
Recommended Applications
- Retail Store Entrances
- Office Building Lobbies
- Apartment Common Areas
- Commercial Walkways
- Parking Garage Access Areas
- School and Campus Facilities
- Warehouse Personnel Entrances
- Healthcare Facility Corridors
| Camera |
| Image Sensor |
1/1.8" Progressive Scan CMOS |
| Max. Resolution |
2688 × 1520 |
| Min. Illumination |
0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day & Night |
24/7 Color imaging |
| Angle Adjustment |
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Lens |
| Lens Type |
Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV |
2.8 mm: horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°
4 mm: horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°
|
| Lens Mount |
M16 |
| Iris Type |
Fixed |
| Aperture |
F1.0 |
| Depth of Field |
2.8 mm: 2.5 m to ∞
4 mm: 3.5 m to ∞
|
| DORI |
| DORI Range |
2.8 mm: D: 58 m, O: 23 m, R: 11 m, I: 2 m
4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m
|
| Illuminator |
| Supplement Light Type |
White Light |
| Supplement Light Range |
Up to 30 m |
| Smart Supplement Light |
Yes |
| Video |
| Main Stream |
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
|
| Sub-Stream |
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
|
| Third Stream |
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
|
| Video Compression |
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
|
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Type |
Baseline Profile/Main Profile/High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR/VBR |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
| Region of Interest (ROI) |
1 fixed region for main stream and sub-stream |
| Audio |
| Audio Type |
-SU: Mono sound |
| Audio Compression |
-SU: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate |
-SU: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate |
-SU: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering |
-SU: Yes |
| Network |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets |
| Simultaneous Live View |
Up to 6 channels |
| API |
Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK , ISUP5.0 |
| User/Host |
Up to 32 users. 3 user levels: administrator, operator and user |
| Security |
Password protection, complicated password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage |
MicroSD/microSDHC/microSDXC card (512 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hik memory card, memory card encryption and health detection are supported |
| Client |
iVMS-4200, Compatible Mobile App, VMS Platform |
| Web Browser |
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
|
| Image |
| Image Parameters Switch |
Yes |
| Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) |
130 dB |
| SNR |
≥ 52 dB |
| Image Enhancement |
BLC, HLC, 3D DNR |
| Interface |
| Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage |
Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 512 GB |
| Built-in Microphone |
-SU: Yes |
| Audio |
-SU: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
|
| Alarm |
-SU: 1 input, 1 output (max. 12 VDC, 30 mA) |
| Reset Key |
Yes |
| Event |
| Basic Event |
Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection |
| Linkage |
Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email, trigger alarm output (-SU), audible warning (-SU) |
| Deep Learning Function |
| Face Capture |
Yes |
| General |
| Power |
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.15 A, max. 6.5 W
|
| Dimension |
Ø121.4 mm × 100.1 mm (Ø4.8" × 3.9") |
| Package Dimension |
150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
| Weight |
Approx. 600 g (1.3 lb.) |
| With Package Weight |
Approx. 820 g (1.6 lb.) |
| Language |
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function |
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Approval |
| EMC |
FCC (47 CFR Part 15, Subpart B)
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
RCM (AS/NZS CISPR 32: 2015)
IC (ICES-003: Issue 7)
|
| Safety |
UL (UL 62368-1)
CB (IEC 62368-1: 2014+A11)
CE-LVD (EN 62368-1: 2014/A11: 2017)
LOA (IEC/EN 60950-1)
|
| Environment |
CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No 1907/2006) |
| Protection |
IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002) |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Will this camera work with my existing H-Series NVR?
Yes. The DS-2CD2147G2-LSU is designed for seamless integration with professional H-Series NVR systems. It supports native H-Series protocols, allowing plug-and-play installation, automatic camera discovery, full event recording, and access to advanced AI features without additional configuration.
Does this camera support ONVIF?
Yes. In addition to native H-Series protocol support, this camera is ONVIF compliant and also supports ISAPI. This allows integration with many third-party NVRs, VMS platforms, and network video recording systems that support ONVIF standards.
What makes Full-Color technology different from traditional infrared cameras?
Unlike standard IR cameras that switch to black-and-white video at night, the DS-2CD2147G2-LSU uses a large F1.0 aperture lens and supplemental warm light to deliver full-color video around the clock. This helps capture important details such as vehicle colors, clothing colors, and other identifying information that black-and-white footage may miss.
How far can the camera see at night?
The camera provides full-color night vision with warm white illumination up to approximately 100 feet (30 meters) under suitable conditions. Actual performance may vary depending on environmental lighting and installation location.
Does this camera support human and vehicle detection?
Yes. The built-in Smart AI Detection technology uses deep-learning algorithms to distinguish people and vehicles from other moving objects. This significantly reduces false alarms caused by rain, insects, tree branches, shadows, or animals.
Does the camera record audio?
Yes. The camera includes a built-in high-quality microphone that captures synchronized audio and video recordings. Audio can be stored directly on a compatible NVR or supported recording platform.
Is this camera suitable for outdoor installation?
Absolutely. The DS-2CD2147G2-LSU is rated IP67 weatherproof, making it resistant to rain, dust, snow, and harsh outdoor conditions. It is designed for reliable operation in both residential and commercial environments.
What does the IK10 vandal-resistant rating mean?
IK10 is one of the highest impact-resistance ratings available for security cameras. It means the camera housing is designed to withstand significant physical impacts and tampering attempts, making it ideal for schools, retail stores, warehouses, parking areas, and other public-facing locations.
Is the 2.8mm lens a good choice for my property?
The built-in 2.8mm lens provides an ultra-wide 109° field of view, making it an excellent choice for monitoring entrances, driveways, parking lots, storefronts, offices, and large open areas where broad coverage is more important than long-distance zoom.
Can I use this camera to expand an existing surveillance system?
Yes. This camera is commonly used as a replacement or expansion camera for existing H-Series surveillance systems. It allows businesses and property owners to add high-resolution Full-Color coverage without replacing their current NVR infrastructure.
