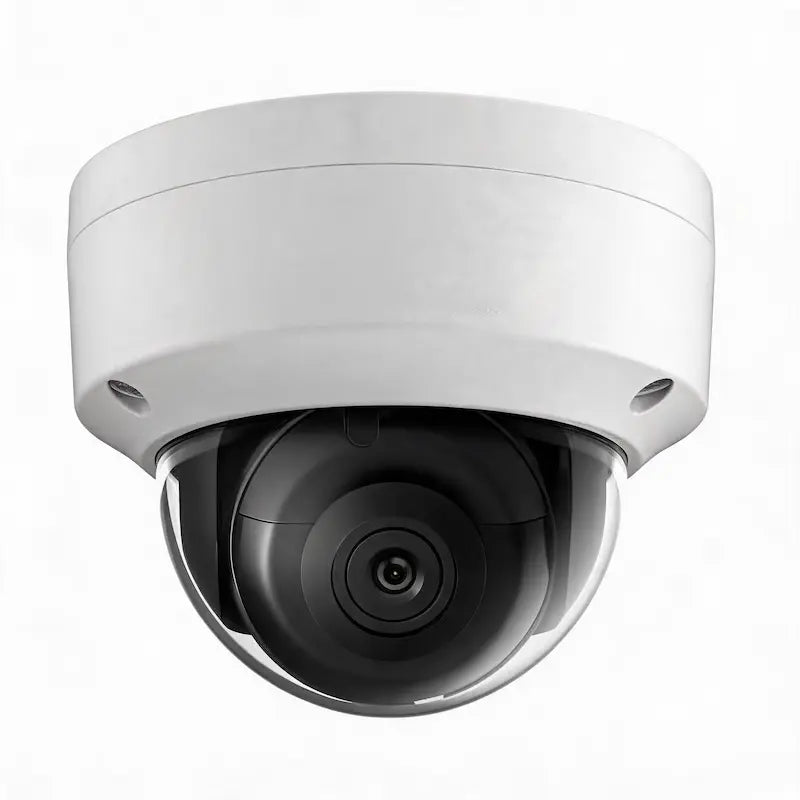

The DS-2CD2183G0-I is an 8MP vandal-resistant dome camera designed for commercial surveillance environments that require detailed video, durable protection, and reliable day-and-night monitoring.
Featuring an 8MP image sensor and a 2.8 mm wide-angle lens, the camera provides broad scene coverage for areas such as building entrances, office lobbies, retail spaces, hallways, and public access areas where wider monitoring coverage is required.
The camera combines Smart IR illumination with 120 dB WDR technology to maintain usable image detail in changing lighting conditions, including bright entrances, glass areas, shadows, and low-light environments.
Built for commercial installations, the IK10 vandal-resistant housing and IP67 weather protection support use in exposed indoor and outdoor locations. H.265+ compression, PoE connectivity, onboard storage support, and network integration features provide flexibility for professional surveillance deployments.
Key Benefits
-
8MP Detailed Monitoring – Captures high-resolution video for commercial security applications.
-
2.8 mm Wide-Angle Coverage – Helps monitor wider areas such as entrances, corridors, and public spaces.
-
Reliable Low-Light Performance – Smart IR supports nighttime monitoring in low-light conditions.
-
Improved Image Balance – 120 dB WDR helps maintain detail in scenes with strong lighting differences.
-
Vandal-Resistant Design – IK10-rated housing helps protect against physical impact in public areas.
-
Flexible System Integration – Supports PoE, network recording, and compatible surveillance platforms.
Recommended Applications
- Office Building Entrances
- School Hallways and Common Areas
- Retail Store Interiors
- Apartment Building Lobbies
- Hotel Public Areas
- Healthcare Facility Entrances
- Warehouse Personnel Access Points
- Commercial Parking Areas
| Camera |
|---|
| Image Sensor | 1/2.5" Progressive Scan CMOS |
| Min. Illumination | Color:0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON)
B/W:0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° |
| Lens |
|---|
| Focus | Fixed |
| Lens Type | 2.8 mm |
| FOV | 2.8 mm:Horizontal FOV 102°, Vertical FOV 53°, Diagonal FOV 124° |
| Aperture | F2.0 |
| Lens Mount | M12 |
| Aperture Type | Fixed |
| Illuminator |
|---|
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| Video |
|---|
| Max. Resolution | 3840 × 2160 |
| Main Stream | 50 Hz:12.5 fps (3840 × 2160); 20 fps (3072 × 1728); 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz:15 fps (3840 × 2160); 20 fps (3072 × 1728); 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50 Hz:25 fps (640 × 480, 640 × 360, 320 × 240)
60 Hz:30 fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50 Hz:25 fps (1280 × 720, 640 × 360, 352 × 288)
60 Hz:30 fps (1280 × 720, 640 × 360, 352 × 240) |
| Video Compression | Main stream:H.265/H.264
Sub-stream:H.265/H.264/MJPEG
Third stream:H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding support |
| Audio |
|---|
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2) |
| Network |
|---|
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G), ISAPI |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, WebSocket, WebSockets |
| User/Host | Up to 32 users. 3 levels: Administrator, Operator and User |
| Network Storage | Support Micro SD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR |
| Client | iVMS-4200, Mobile App, iVMS-5200, iVMS-4500 |
| Web Browser | Plug-in required live view:IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view:Chrome 45.0+, Firefox 52.0+ |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Image |
|---|
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered by Alarm In (-S) |
| Target Cropping | No |
| DNR | 3D DNR |
| Image Enhancement | BLC/3D DNR/HLC |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| Interface |
|---|
| Audio | 1 input (line in/mic in), 1 output (line out), terminal block, mono sound |
| Alarm | 1 input; 1 output (max. 12 VDC, 30 mA), terminal block |
| Video Output | No |
| On-Board Storage | Built-in microSD/SDHC/SDXC slot, up to 128 GB |
| Hardware Reset | Yes |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Event |
|---|
| Face Detection | Yes |
| General |
|---|
| General Function | One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Startup and Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, Ø5.5 mm
PoE (802.3af, Class 3) |
| Power Consumption and Current | DC:12 V, 0.6 A, max. 7.5 W
PoE:802.3af, 36 V to 57 V, 0.3 A to 0.2 A, max. 9 W |
| Camera Dimension | Camera:Ø111 mm × 82.4 mm (Ø4.4″ × 3.2″)
Package:134 × 134 × 108 mm (5.3″ × 5.3″ × 4.3″) |
| Camera Weight | Approx. 500 g (1.1 lb.) |
| Approval |
|---|
| Protection | IK10, IP67 |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Where is the DS-2CD2183G0-I commonly installed?
It is commonly installed in schools, office buildings, apartment communities, retail stores, warehouses, and other commercial environments.
Why choose an IK10-rated dome camera?
IK10-rated dome cameras provide increased resistance against vandalism and physical impact, making them suitable for public areas and high-traffic commercial locations.
Is this camera suitable for outdoor installation?
Yes. Its IP67-rated housing is designed for reliable operation in outdoor commercial environments exposed to rain, dust, and changing weather conditions.
Can this camera monitor building entrances?
Yes. Its 8MP resolution and multiple lens options make it suitable for monitoring entrances, corridors, parking garages, and other commercial access points.
Who should choose this camera?
This model is designed for security installers, system integrators, IT departments, facility managers, and commercial property owners.
What smart events are supported?
The camera supports line crossing detection, intrusion detection, and face detection to improve event awareness.
Does the DS-2CD2183G0-I support audio integration?
Yes. It includes audio input and output interfaces for integration with compatible surveillance systems.
Does it support PoE?
Yes. IEEE 802.3af PoE allows power and data transmission through a single Ethernet cable.
Can recordings be stored locally?
Yes. The built-in microSD card slot supports storage capacities up to 128 GB for local recording.
What is the maximum video resolution?
The camera supports a maximum resolution of 3840 × 2160, delivering detailed 8MP video for commercial surveillance.
