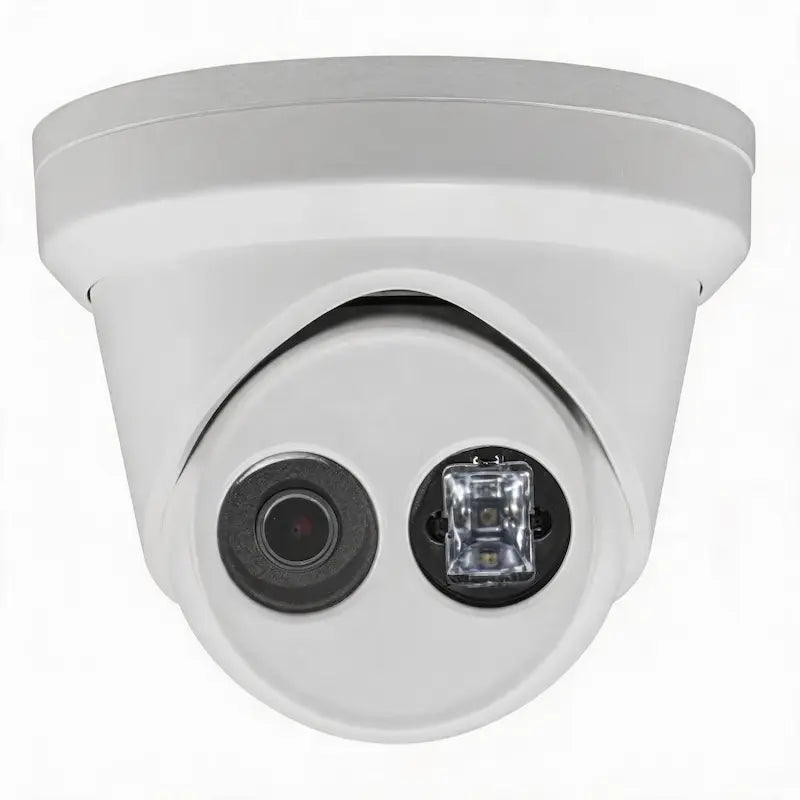

The DS-2CD2343G0-I is a professional 4MP fixed turret camera designed for reliable surveillance across commercial properties. Its compact turret design delivers high-quality video while providing flexible installation for both indoor and outdoor applications. Whether protecting office buildings, retail stores, schools, warehouses, or apartment communities, the camera helps improve visibility and supports day-to-day security operations.
With 4MP Quad HD resolution, the camera captures clear video for monitoring entrances, walkways, reception areas, loading zones, and other business-critical locations. Built-in smart event detection, including line crossing, intrusion detection, and face detection, helps operators identify important events more efficiently while improving overall situational awareness.
Strong lighting differences often create challenges for commercial surveillance. The integrated 120 dB Wide Dynamic Range technology helps maintain balanced image quality in areas with bright sunlight, glass entrances, or mixed indoor and outdoor lighting. Smart IR illumination also provides dependable nighttime visibility for around-the-clock monitoring.
Designed for long-term commercial deployment, the camera supports efficient H.265+ video compression to reduce bandwidth and storage requirements. A built-in microSD card slot allows local edge recording, while ONVIF compatibility enables integration with supported video management systems for flexible surveillance expansion.
Flexible Deployment Benefits
-
Reliable Commercial Monitoring – High-resolution imaging supports clear surveillance across business entrances, work areas, and outdoor facilities.
-
Intelligent Event Detection – Line crossing, intrusion detection, and face detection help improve event awareness without requiring continuous manual monitoring.
-
Flexible Installation Options – Multiple fixed lens options allow installers to optimize coverage for different commercial environments.
-
Improved Image Performance – 120 dB WDR and Smart IR technology help maintain clear video throughout changing lighting conditions.
-
Efficient Video Storage – H.265+ compression reduces storage requirements while supporting long-term recording.
-
Durable Outdoor Protection – IP67 weather resistance supports dependable operation in challenging commercial environments.
Recommended Applications
- Office Building Entrances
- Retail Store Exteriors
- Warehouse Access Points
- School Hallways
- Apartment Building Entrances
- Loading Docks
- Commercial Parking Areas
- Manufacturing Facilities
- Hotel Common Areas
- Business Reception Areas
| Camera |
|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | Color:0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON)
B/W:0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Lens |
|---|
| Focus | Fixed |
| Lens Type | 2.8mm |
| FOV | 2.8 mm:Horizontal FOV 103°, Vertical FOV 58°, Diagonal FOV 123° |
| Aperture | F1.6 |
| Lens Mount | M12 |
| Aperture Type | Fixed |
| Illuminator |
|---|
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| Video |
|---|
| Max. Resolution | 2688 × 1520 |
| Main Stream | 50 Hz:25 fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
60 Hz:30 fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50 Hz:25 fps (640 × 480, 640 × 360, 320 × 240)
60 Hz:30 fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50 Hz:25 fps (1280 × 720, 640 × 360, 352 × 288)
60 Hz:30 fps (1280 × 720, 640 × 360, 352 × 240) |
| Video Compression | Main stream:H.265/H.264
Sub-stream:H.265/H.264/MJPEG
Third stream:H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Audio |
|---|
| Audio Compression | G.722.1/G.711/G.726/MP2L2/PCM/MP3 |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3) |
| Network |
|---|
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, Ehome |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| User/Host | Up to 32 users. 3 levels: Administrator, Operator and User |
| Network Storage | Support Micro SD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR |
| Client | iVMS-4200, Mobile App, VMS Platform |
| Web Browser | Plug-in required live view:IE8+
Plug-in free live view:Chrome 57.0+, Firefox 52.0+, Safari 11+
Local Service:Chrome 41.0+, Firefox 30.0+ |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Image |
|---|
| Day/Night Switch | Day/Night/Auto/Schedule |
| Target Cropping | No |
| DNR | 3D DNR |
| Image Enhancement | BLC/3D DNR/HLC |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| Interface |
|---|
| On-Board Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Hardware Reset | Yes |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Event |
|---|
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event | Line crossing detection, intrusion detection, face detection |
| Face Detection | Yes |
| General |
|---|
| Linkage Method | Trigger recording:memory card, network storage, pre-record and post-record
Trigger captured pictures uploading:FTP, HTTP, NAS, Email
Trigger notification:HTTP, ISAPI, Email |
| Firmware Version | 5.6.3 |
| General Function | Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening |
| Startup and Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, Ø5.5 mm coaxial power plug
PoE (802.3af, Class 3) |
| Power Consumption and Current | DC:12 VDC, 0.5 A, max. 6 W
PoE:802.3af, 36 V to 57 V, 0.2 A to 0.1 A, max. 7.5 W |
| Camera Dimension | Camera:Ø127.3 × 95.9 mm (Ø5.0″ × 3.8″)
Package:150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″) |
| Camera Weight | Camera:Approx. 610 g (1.3 lb.)
With Package:Approx. 880 g (1.9 lb.) |
| Approval |
|---|
| Protection | IP67 (IEC 60529-2013) |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Where is the DS-2CD2343G0-I commonly installed?
This turret camera is commonly installed at office buildings, warehouses, retail stores, schools, apartment communities, and commercial entrances.
Is this camera suitable for outdoor commercial surveillance?
Yes. Its IP67-rated housing is designed for reliable outdoor operation in commercial environments.
Why choose a turret camera for business security?
Turret cameras provide flexible installation, wide viewing angles, and reduced IR reflection, making them a practical choice for commercial surveillance.
Can this camera monitor parking lots and loading docks?
Yes. With multiple lens options and 4MP resolution, it is suitable for entrances, loading docks, parking areas, and perimeter monitoring.
Who is this camera designed for?
It is designed for security installers, system integrators, IT managers, facility managers, and commercial property owners.
What smart events does this camera support?
It supports line crossing detection, intrusion detection, and face detection to improve event awareness in commercial surveillance systems.
Does the DS-2CD2343G0-I include audio recording?
No. This model does not include a built-in microphone or audio interfaces.
Does this camera support Power over Ethernet?
Yes. It supports IEEE 802.3af PoE for simplified installation using a single Ethernet cable.
Can video be stored directly on the camera?
Yes. The built-in microSD card slot supports storage capacities up to 128 GB for local recording.
What is the maximum video resolution?
The camera supports a maximum resolution of 2688 × 1520, providing detailed 4MP video for commercial surveillance.
