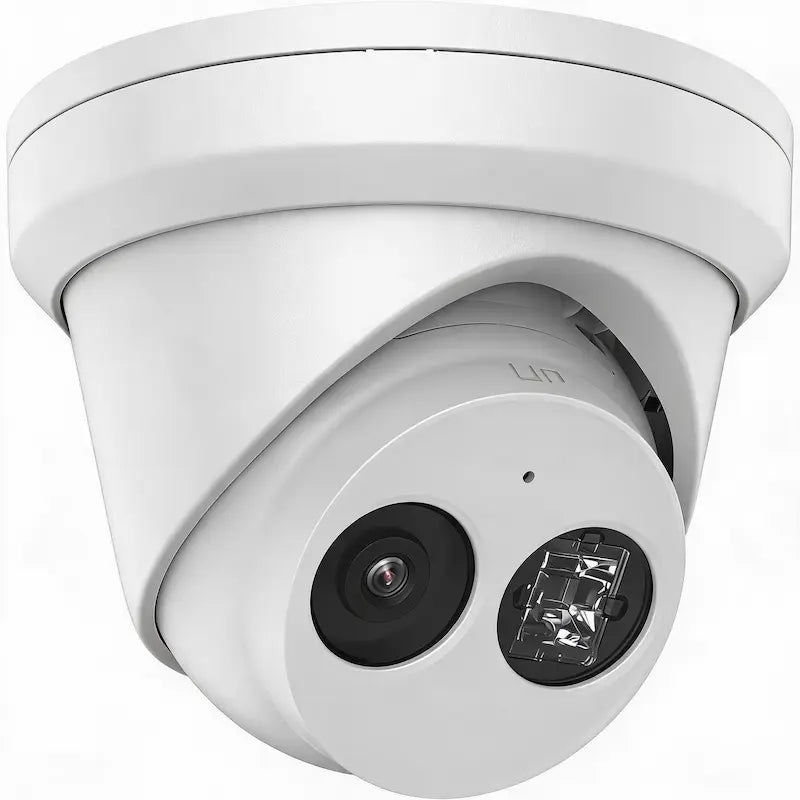

The DS-2CD2343G2-IU is a 4MP AcuSense fixed turret network camera designed for commercial surveillance applications that require intelligent event filtering, reliable outdoor performance, and built-in audio recording. With 2688 × 1520 resolution, it provides clear video for entrances, storefronts, warehouses, office buildings, parking access points, and business perimeter locations.
AcuSense technology focuses on human and vehicle target classification, helping reduce unnecessary alerts caused by weather, animals, or general background motion. This makes the camera a practical option for businesses that need more accurate event detection around access points, exterior doors, and perimeter areas.
The built-in microphone adds real-time audio recording for improved situational awareness through compatible surveillance systems. Combined with 120 dB Wide Dynamic Range, Smart IR illumination up to 30 meters, and image enhancement features, the camera supports dependable day and night monitoring in challenging commercial scenes.
With H.265+ compression, onboard microSD storage up to 512 GB, ONVIF Profile S/G support, PoE deployment, and IP67 weather protection, the DS-2CD2343G2-IU is built for professional security installations where video detail, intelligent detection, and audio awareness are important.
Flexible Deployment Benefits
-
4MP Video Detail – Quad HD resolution provides clear image quality for commercial monitoring applications.
-
AcuSense Detection – Human and vehicle classification helps improve event accuracy and reduce false alarms.
-
Built-in Audio Recording – Integrated microphone adds audio context for compatible video systems.
-
Strong Backlight Handling – 120 dB WDR helps maintain usable video in high-contrast scenes.
-
Nighttime Visibility – Smart IR illumination supports low-light monitoring up to 30 meters.
-
Outdoor Commercial Design – IP67 weather protection supports exposed business installations.
Recommended Applications
- Retail Store Entrances
- Office Building Exteriors
- Warehouse Loading Areas
- Commercial Building Perimeters
- Parking Area Access Points
- Apartment Community Walkways
- School Exterior Doors
- Distribution Center Entrances
- Small Business Entrances
- Service Door Monitoring
| Camera |
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Max. Resolution |
2688 × 1520 |
| Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens |
| Focal Length & FOV |
2.8 mm:Horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122° |
| Lens Mount |
M12 |
| Iris Type |
Fixed |
| Aperture |
F1.6 |
| DORI |
| DORI |
2.8 mm:D: 67 m, O: 26 m, R: 13 m, I: 6 m |
| Illuminator |
| Supplement Light Type |
IR |
| Supplement Light Range |
Up to 30 m |
| Smart Supplement Light |
Yes |
| IR Wavelength |
850 nm |
| Video |
| Main Stream |
50 Hz:25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream |
50 Hz:25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz:30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream |
50 Hz:10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz:10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Video Compression |
Main stream:H.265/H.264/H.264+/H.265+
Sub-stream:H.265/H.264/MJPEG
Third stream:H.265/H.264 |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Type |
Baseline Profile/Main Profile/High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR/VBR |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
| Region of Interest (ROI) |
1 fixed region for main stream and sub-stream |
| Audio |
| Audio Compression |
-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate |
-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16-64 Kbps (AAC-LC)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3) |
| Audio Sampling Rate |
-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering |
-U: Yes |
| Network |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets |
| Simultaneous Live View |
Up to 6 channels |
| API |
ONVIF (Profile S, Profile G), ISAPI, SDK |
| User/Host |
Up to 32 users. 3 user levels: administrator, operator and user |
| Security |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage |
NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client |
iVMS-4200, Mobile App, VMS Platform |
| Web Browser |
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+ |
| Image |
| Image Parameters Switch |
Yes |
| Image Settings |
Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) |
120 dB |
| SNR |
≥ 52 dB |
| Image Enhancement |
BLC, HLC, 3D DNR |
| Interface |
| Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage |
Built-in microSD, up to 512 GB |
| Built-in Microphone |
-U: yes |
| Reset Key |
Yes |
| Event |
| Basic Event |
Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Smart Event |
Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle))
Face detection |
| Linkage |
Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email |
| General |
| Power |
12 VDC ± 25%:0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE:802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 7 W |
| Dimension |
Ø127.3 × 95.9 mm (Ø5.01″ × 3.78″) |
| Package Dimension |
150 × 150 × 141 mm (5.9" × 5.9" × 5.6") |
| Weight |
Approx. 600 g (1.3 lb.) |
| With Package Weight |
Approx. 816 g (1.8 lb.) |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language |
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function |
Anti-flicker, heartbeat, password reset via e-mail, pixel counter |
| Approval |
| EMC |
FCC:47 CFR Part 15, Subpart B
CE-EMC:EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014
RCM:AS/NZS CISPR 32: 2015
IC:ICES-003: Issue 6, 2016
KC:KN 32: 2015, KN 35: 2015 |
| Safety |
UL:UL 60950-1
CB:IEC 60950-1:2005 + Am 1:2009 + Am 2:2013
CE-LVD:EN 60950-1:2005 + Am 1:2009 + Am 2:2013
BIS:IS 13252(Part 1):2010+A1:2013+A2:2015 |
| Environment |
CE-RoHS:2011/65/EU
WEEE:2012/19/EU
Reach:Regulation (EC) No 1907/2006 |
| Protection |
IP67:IEC 60529-2013 |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Where is the DS-2CD2343G2-IU commonly installed?
The DS-2CD2343G2-IU is commonly installed at retail entrances, office building exteriors, warehouse loading areas, commercial perimeters, parking access points, apartment walkways, school entrances, and small business locations.
Is this camera suitable for outdoor commercial monitoring?
Yes. The camera has an IP67-rated housing, making it suitable for outdoor commercial environments exposed to rain, dust, and demanding weather conditions.
Can the DS-2CD2343G2-IU monitor entrances and loading areas at night?
Yes. Smart IR illumination supports nighttime visibility up to 30 meters, making it useful for entrances, loading areas, walkways, and building perimeters.
What types of businesses typically deploy this camera?
Retail stores, warehouses, offices, schools, apartment communities, small businesses, distribution centers, and commercial property managers commonly use this model for outdoor surveillance.
Does the DS-2CD2343G2-IU support AcuSense human and vehicle detection?
Yes. The camera supports human and vehicle target classification for motion detection and smart events, helping reduce false alarms from non-relevant movement.
Does this model include built-in audio?
Yes. The DS-2CD2343G2-IU includes a built-in microphone for real-time audio recording through compatible surveillance systems.
Does the DS-2CD2343G2-IU support local recording?
Yes. The built-in microSD card slot supports local storage up to 512 GB for edge recording and backup.
Is this camera compatible with ONVIF systems?
The provided specifications list ONVIF Profile S and Profile G support, allowing integration with compatible professional NVRs and video management systems that support those profiles.
What is the difference between DS-2CD2343G2-I and DS-2CD2343G2-IU?
The DS-2CD2343G2-IU includes a built-in microphone for audio recording, while the standard DS-2CD2343G2-I model does not include built-in audio.
What is the maximum video resolution of the DS-2CD2343G2-IU?
The camera supports a maximum resolution of 2688 × 1520, delivering 4MP Quad HD video for commercial surveillance applications.
