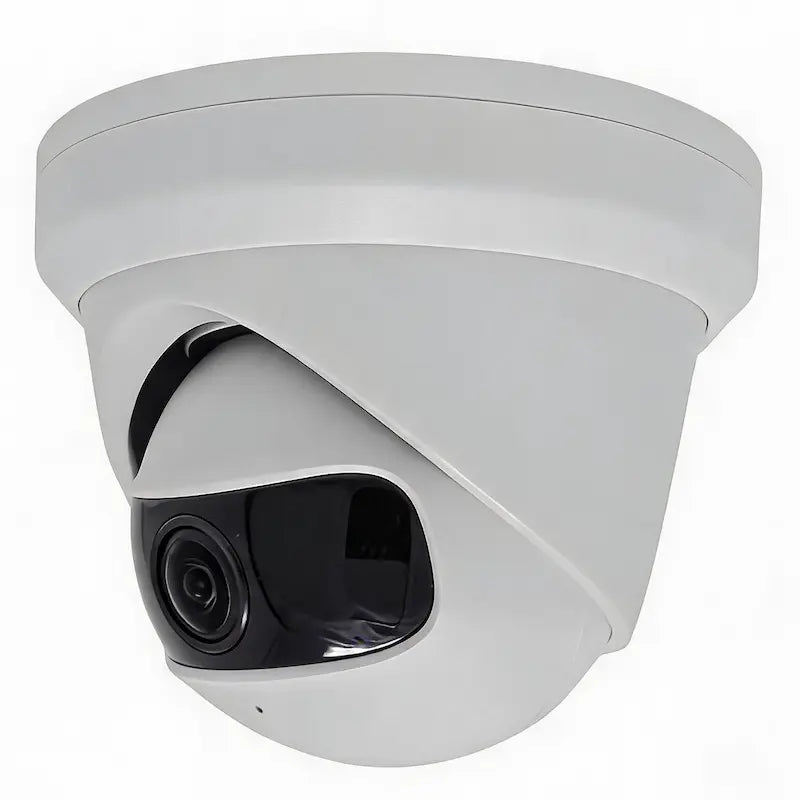

The DS-2CD2345G0P-I is a 4MP super wide-angle fixed turret network camera designed for commercial environments that need broad scene coverage from a single camera position. With a 1.68 mm lens and 180° horizontal field of view, it provides wide-area visibility for lobbies, hallways, retail spaces, small warehouses, reception areas, and other business locations where reducing blind spots is important.
Unlike a standard fixed camera, this model is built to capture an expansive scene in one view. Distortion correction helps improve image usability by reducing the warped appearance commonly associated with ultra-wide-angle lenses, making live viewing and playback easier for operators.
The camera supports 120 dB True WDR to improve visibility in high-contrast environments such as glass entrances, front desks, mixed-light corridors, and shaded indoor access areas. Built-in IR illumination provides low-light visibility up to 10 meters for indoor or covered-area monitoring after hours.
With H.265+ compression, onboard microSD storage up to 256 GB, ONVIF compatibility, PoE support, and a robust full metal turret structure, the DS-2CD2345G0P-I is a practical choice for commercial surveillance projects requiring compact wide-angle coverage.
Wide-Angle Coverage Benefits
-
180° Field of View – Captures a very wide scene from one installation point to help reduce blind spots.
-
4MP Image Detail – Quad HD resolution provides clear video for general commercial monitoring.
-
Distortion Correction – Helps improve the viewing experience by reducing fisheye-like lens distortion.
-
Strong Backlight Handling – 120 dB WDR improves visibility in high-contrast business environments.
-
Efficient Recording – H.265+ compression helps reduce bandwidth and storage use with compatible systems.
-
Local Edge Storage – Built-in microSD card slot supports up to 256 GB for onboard recording.
Recommended Applications
- Retail Store Interiors
- Office Lobbies
- Reception Areas
- School Hallways
- Commercial Corridors
- Small Warehouse Interiors
- Banking Halls
- Healthcare Waiting Areas
- Apartment Building Common Areas
- Business Entrance Areas
| Camera |
| Image Sensor |
1/2.7" Progressive Scan CMOS |
| Min. Illumination |
Color: 0.028 Lux @ (F2.0, AGC ON)
B&W: 0.0028 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Slow Shutter |
Yes |
| Wide Dynamic Range |
120 dB |
| Day & Night |
IR Cut Filter |
| Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens |
| Lens Type |
Fixed lens, 1.68 mm |
| FOV |
1.68 mm:Horizontal FOV: 180°, vertical FOV: 101°, diagonal FOV: 180° |
| Aperture |
F2.0 |
| Lens Mount |
M12 |
| Illuminator |
| IR Range |
Up to 10 m |
| Wavelength |
850 nm |
| Video |
| Max. Resolution |
2688 × 1520 |
| Main Stream |
50Hz:25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz:24fps (2688 × 1520), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720) |
| Sub Stream |
50Hz:25fps (640 × 480, 640 × 360, 320 × 240)
60Hz:30fps (640 × 480, 640 × 360, 320 × 240) |
| Video Compression |
Main Stream:H.265+/H.264+/H.265/H.264
Sub-stream:H.265/H.264/MJPEG |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| H.264 Type |
Baseline Profile/Main Profile/High Profile |
| H.265 Type |
Main Profile |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding support |
| Region of Interest (ROI) |
1 fixed region for main stream, sub-stream and third stream |
| Network |
| Simultaneous Live View |
Up to 6 channels |
| API |
ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
| Protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets |
| User/Host |
Up to 32 users, 3 levels: administrator, operator and user |
| Security |
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 |
| Network Storage |
microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR |
| Client |
iVMS-4200, Mobile App, VMS Platform |
| Web Browser |
Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+ |
| Image |
| Day/Night Switch |
Day/Night/Auto/Schedule |
| Image Enhancement |
BLC, HLC, 3D DNR |
| Image Settings |
Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser |
| Interface |
| On-board Storage |
Built-in micro SD slot, up to 256 GB |
| Hardware Reset |
Reset via reset button on camera body, web browser and client software |
| Communication Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
| Event |
| Basic Event |
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event |
Line crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection |
| General |
| Linkage Method |
Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email |
| Web Client Language |
32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| General Function |
Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening |
| Storage Conditions |
-10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing) |
| Power Supply |
12 VDC ± 25%:Φ 5.5 mm coaxial power plug; reverse polarity protection
PoE:802.3af, type 1, class 3 |
| Power Consumption and Current |
12 VDC:0.48 A, max. 5.8 W
PoE:802.3af, 36 V to 57 V, 0.19 A to 0.12 A, max. 6.8W |
| Camera Dimension |
Camera: Φ 127.3 × 104.1 mm (Φ 5" × 4.1")
With package: 150 × 150 × 141 mm (5.9 × 5.9" × 5.6") |
| Camera Weight |
Camera: Approx. 520 g (1.1 lb.)
With package: Approx. 700 g (1.5 lb.) |
| Approval |
| EMC |
FCC:47 CFR Part 15, Subpart B
CE-EMC:EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014
RCM:AS/NZS CISPR 32: 2015
IC:ICES-003: Issue 6, 2016
KC:KN 32: 2015, KN 35: 2015 |
| Safety |
UL:UL 60950-1
CB:IEC 60950-1:2005 + Am 1:2009 + Am 2:2013
CE-LVD:EN 60950-1:2005 + Am 1:2009 + Am 2:2013
BIS:IS 13252(Part 1):2010+A1:2013+A2:2015
LOA:IEC/EN 60950-1 |
| Environment |
CE-RoHS:2011/65/EU
WEEE:2012/19/EU
Reach:Regulation (EC) No 1907/2006 |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Where is the DS-2CD2345G0P-I commonly installed?
The DS-2CD2345G0P-I is commonly installed in retail interiors, office lobbies, reception areas, school hallways, commercial corridors, banking halls, healthcare waiting areas, apartment common areas, and other spaces requiring wide-angle coverage.
Is this camera suitable for wide-area indoor monitoring?
Yes. Its 180° super wide-angle field of view helps monitor broad indoor or covered commercial spaces from a single camera location.
Can the DS-2CD2345G0P-I reduce the need for multiple fixed cameras?
In some open-area applications, yes. The 180° field of view can help cover a wider scene than a standard fixed turret camera, depending on the layout and required detail level.
What types of businesses typically deploy this wide-angle turret camera?
Retail stores, offices, schools, healthcare facilities, banks, apartment buildings, small warehouses, and commercial property managers commonly deploy this model for broad scene monitoring.
What is the benefit of the 180° field of view?
The 180° field of view allows the camera to capture an expansive scene from one installation point, helping reduce blind spots in lobbies, hallways, entrances, and open commercial areas.
Does the DS-2CD2345G0P-I support distortion correction?
Yes. The camera supports distortion correction to help reduce the warped appearance that can occur with ultra-wide-angle lenses.
Does this camera support local recording?
Yes. The built-in microSD, microSDHC, and microSDXC card slot supports local storage up to 256 GB.
Is this camera compatible with ONVIF systems?
The provided specifications list ONVIF Profile S and Profile G support, allowing integration with compatible professional NVRs and video management systems that support those profiles.
Does the DS-2CD2345G0P-I include built-in audio?
No audio feature is listed in the provided specifications, so this model should be treated as a no-audio camera.
What is the maximum video resolution of the DS-2CD2345G0P-I?
The camera supports a maximum resolution of 2688 × 1520, delivering 4MP video for wide-angle commercial surveillance.
