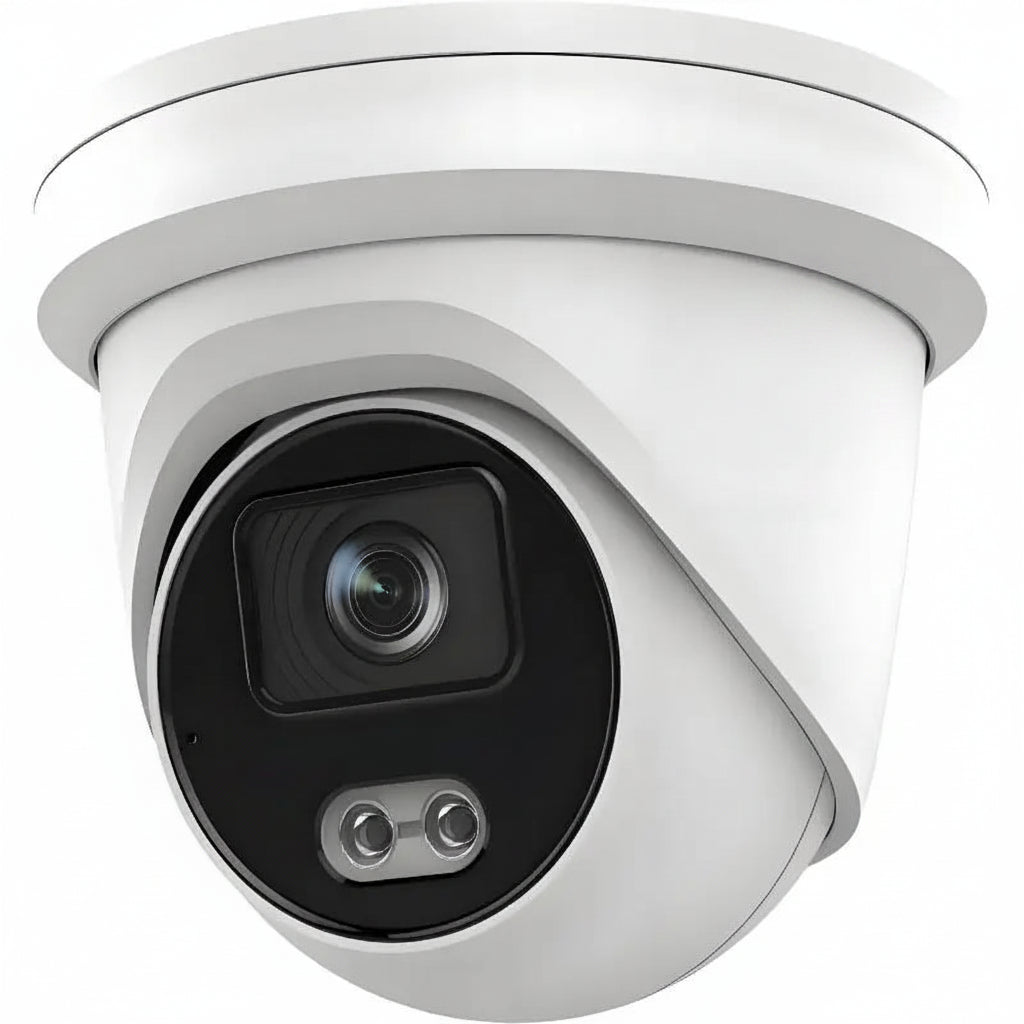

The DS-2CD2347G2-LU is a 4MP ColorVu fixed turret network camera designed for commercial locations that require full-color nighttime imaging, human and vehicle classification, built-in audio, and outdoor protection.
Its 2.8 mm fixed lens supports wide-area coverage, while the camera records video at up to 2688 × 1520 resolution. ColorVu technology and an F1.0 aperture help preserve useful color detail in low-light environments.
Human and vehicle classification helps focus supported motion and perimeter events on relevant targets. White light illumination provides full-color nighttime monitoring up to 30 meters, while 130 dB WDR helps maintain detail in high-contrast scenes.
The built-in microphone adds synchronized audio to compatible recordings. The camera also supports H.265+ compression, IEEE 802.3af PoE, ONVIF integration, and IP67 weather protection.
Full-Color Monitoring Benefits
-
4MP Video – Records at up to 2688 × 1520 resolution.
-
2.8 mm Fixed Lens – Supports wide coverage of entrances and outdoor areas.
-
24/7 ColorVu Imaging – Helps retain color detail in low-light conditions.
-
Human and Vehicle Detection – Helps focus supported events on relevant targets.
-
Built-in Microphone – Adds audio to compatible surveillance recordings.
-
130 dB WDR – Helps preserve detail in strong backlight.
Technical Specifications
-
Resolution: 4MP, 2688 × 1520
-
Frame Rate: Up to 30 fps
-
Lens: 2.8 mm fixed lens
-
Low-Light Technology: ColorVu full-color imaging
-
Supplemental Light: White light up to 30 m
-
WDR: 130 dB
-
Audio: Built-in microphone
-
Compression: H.265+, H.265, H.264+, H.264
-
Compatibility: ONVIF, ISAPI, SDK
-
Power: 12 VDC or IEEE 802.3af PoE
-
Protection: IP67
Recommended Applications
- Commercial Entrances
- Retail Exteriors
- Warehouse Loading Areas
- Office Walkways
- Parking Access Points
- Apartment Entrances
- Customer Pickup Areas
- Industrial Approaches
| Camera |
| Image Sensor |
1/1.8" Progressive Scan CMOS |
| Max. Resolution |
2688 × 1520 |
| Min. Illumination |
Color: 0.0005 Lux @ (F1.0, AGC ON)
With White Light: 0 Lux |
| Shutter Time |
1/3 s to 1/100,000 s |
| Angle Adjustment |
Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Lens |
| Lens Type |
2.8 mm fixed focal lens |
| Focal Length & FOV |
2.8 mm, Horizontal FOV 112°, Vertical FOV 61°, Diagonal FOV 134° |
| Lens Mount |
M16 |
| Iris Type |
Fixed |
| Aperture |
F1.0 |
| Depth of Field |
2.5 m to ∞ |
| DORI |
| DORI Distance |
Detect: 58 m, Observe: 23 m, Recognize: 11 m, Identify: 6 m |
| Illuminator |
| Supplement Light Type |
White light |
| Supplement Light Range |
Up to 30 m |
| Smart Supplement Light |
Yes |
| Video |
| Main Stream |
50 Hz: 25 fps at 2688 × 1520, 1920 × 1080, and 1280 × 720
60 Hz: 30 fps at 2688 × 1520, 1920 × 1080, and 1280 × 720 |
| Sub-Stream |
50 Hz: 25 fps at 1280 × 720, 640 × 480, and 640 × 360
60 Hz: 30 fps at 1280 × 720, 640 × 480, and 640 × 360 |
| Third Stream |
50 Hz: 10 fps at 1920 × 1080, 1280 × 720, 640 × 480, and 640 × 360
60 Hz: 10 fps at 1920 × 1080, 1280 × 720, 640 × 480, and 640 × 360
Third stream availability depends on the selected configuration. |
| Video Compression |
Main Stream: H.265, H.264, H.265+, H.264+
Sub-Stream: H.265, H.264, MJPEG
Third Stream: H.265, H.264 |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Type |
Baseline Profile, Main Profile, High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR, VBR |
| Scalable Video Coding |
Supported with H.264 and H.265 encoding |
| Region of Interest |
One fixed region for the main stream and sub-stream |
| Audio |
| Built-in Microphone |
Yes |
| Audio Compression |
G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC |
| Audio Bit Rate |
64 Kbps with G.711; 16 Kbps with G.722.1 and G.726; 32 to 192 Kbps with MP2L2; 8 to 320 Kbps with MP3; 16 to 64 Kbps with AAC-LC |
| Audio Sampling Rate |
8 kHz, 16 kHz, 32 kHz, 44.1 kHz, 48 kHz |
| Environment Noise Filtering |
Yes |
| Network |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets |
| Simultaneous Live View |
Up to 6 channels |
| API |
ONVIF Profile S, Profile G, and Profile T; ISAPI; SDK |
| User Access |
Up to 32 users with administrator, operator, and user access levels |
| Security |
Password protection, complex password support, HTTPS encryption, IP address filtering, security audit log, HTTP/HTTPS authentication, TLS 1.1/1.2, and ONVIF authentication |
| Network Storage |
Local microSD storage up to 512 GB, NAS using NFS or SMB/CIFS, and Auto Network Replenishment. Compatible memory cards may support encryption and health monitoring. |
| Client Support |
Desktop client, mobile application, and compatible VMS platforms |
| Web Browser |
Plug-in Live View: IE 10 and IE 11
Plug-in-Free Live View: Chrome 57.0+, Firefox 52.0+, and Edge 89+
Local Service: Chrome 57.0+, Firefox 52.0+, and Edge 89+ |
| Image |
| Image Parameters Switch |
Yes |
| Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain, and white balance adjustment through compatible client software or web browser |
| Day/Night Switch |
Auto, Schedule |
| Wide Dynamic Range |
130 dB |
| Signal-to-Noise Ratio |
≥ 52 dB |
| Image Enhancement |
BLC, HLC, 3D DNR |
| Interface |
| Ethernet Interface |
1 RJ45 10/100 Mbps self-adaptive Ethernet port |
| Onboard Storage |
Built-in microSD, microSDHC, and microSDXC card slot supporting up to 512 GB |
| Reset Key |
Yes |
| Event |
| Basic Events |
Motion detection with human and vehicle target classification, video tampering alarm, and system exception events |
| Smart Events |
Line crossing, intrusion, region entrance, region exit, and scene change detection |
| Face Capture |
Yes |
| Event Linkage |
Upload to NAS, memory card, or FTP; notify surveillance center; trigger recording or capture; send email |
| General |
| Power |
12 VDC: ±25%, 0.55 A, maximum 6.6 W, reverse polarity protection
PoE: IEEE 802.3af, Class 3, maximum 7.6 W |
| Dimensions |
Ø138.3 × 125.2 mm (Ø5.4" × 4.9") |
| Package Dimensions |
170 × 170 × 150 mm (7" × 7" × 5.9") |
| Weight |
Approximately 750 g (1.7 lb.) |
| Package Weight |
Approximately 1055 g (2.3 lb.) |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less, non-condensing |
| Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less, non-condensing |
| General Functions |
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset by email, and pixel counter |
| Approvals and Protection |
| EMC |
FCC, CE-EMC, RCM, IC, and KC |
| Safety |
UL, CB, CE-LVD, BIS, and LOA |
| Environmental Compliance |
CE-RoHS, WEEE, and REACH |
| Protection Rating |
IP67 weather protection |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Is the DS-2CD2347G2-L(U) compatible with H-Series NVR systems?
Yes. The DS-2CD2347G2-L(U) is designed for seamless integration with H-Series NVR systems and supports advanced event management, remote monitoring, synchronized recording, and efficient video storage.
What video quality does the DS-2CD2347G2-L(U) provide?
The camera delivers 4MP (2K Quad HD) resolution at up to 30fps, providing sharp images and detailed video evidence for residential and commercial security applications.
What is ColorVu full-color night vision?
ColorVu technology uses an advanced image sensor and F1.0 large-aperture lens to capture vivid full-color images around the clock, even in extremely low-light environments where traditional infrared cameras typically switch to black-and-white video.
Can this camera record full-color video at night?
Yes. The built-in white light and ColorVu technology allow the camera to capture full-color nighttime footage, helping improve identification of clothing colors, vehicles, and other important details.
Does the camera support AI human and vehicle detection?
Yes. AcuSense deep-learning analytics accurately classify people and vehicles while reducing false alarms caused by animals, weather conditions, moving shadows, or environmental activity.
How does 130dB True WDR improve image quality?
130dB True Wide Dynamic Range helps balance extremely bright and dark areas within the same scene, producing clearer images at entrances, parking lots, storefronts, garages, and other challenging lighting environments.
Can I connect the DS-2CD2347G2-L(U) to a third-party NVR?
Yes. The camera supports ONVIF Profile S, G, and T as well as ISAPI protocols, making it compatible with many third-party NVRs, video management systems, and surveillance platforms.
Does the camera support audio recording?
Yes. The -U version includes a built-in microphone that records synchronized audio alongside video footage, providing additional context for security events and investigations.
Is this camera suitable for outdoor installation?
Yes. The camera features an IP67 weatherproof rating and rugged metal housing, making it suitable for year-round outdoor use in residential, commercial, retail, and industrial environments.
Does the camera support Power over Ethernet (PoE)?
Yes. The camera supports IEEE 802.3af PoE, allowing both power and network connectivity through a single Ethernet cable, simplifying installation and reducing wiring costs.
