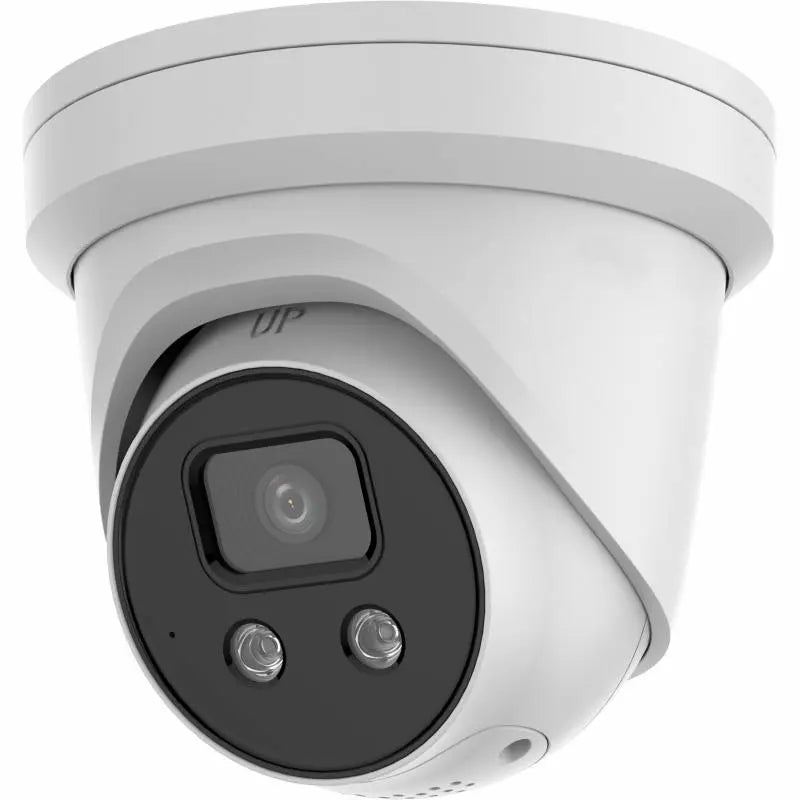

DS-2CD2386G2-ISU/SL 8MP Active Deterrence Turret, 2.8mm
In stock
Questions about camera placement, installation, or compatibility? [Ask a CCTV Specialist]
Installer or Dealer? Request Trade Pricing.
Ships from Bensenville, IL
Fast Order Processing
1-Year Warranty
30-Day Return Window
The DS-2CD2386G2-ISU/SL is an 8MP AcuSense fixed turret network camera designed for commercial locations that require detailed 4K video, human and vehicle classification, active warning functions, and two-way audio.
Its 2.8 mm fixed lens provides a 111° horizontal field of view for broad coverage of entrances, loading areas, walkways, parking access points, and building approaches. AcuSense helps supported motion and perimeter events focus on people and vehicles.
Powered-by-DarkFighter technology supports low-light image performance, while Smart IR provides nighttime visibility up to 30 meters. The camera also uses 120 dB WDR to help preserve detail in scenes with strong backlight.
Built-in warning and communication features include a strobe light, audible warning, microphone, speaker, Audio I/O, and Alarm I/O. The camera also supports microSD storage up to 512 GB, IEEE 802.3af PoE, ONVIF Profile S/G/T integration, and IP67 weather protection.
Active Deterrence Monitoring Benefits
- 8MP 4K Imaging – Records video at up to 3840 × 2160 for detailed monitoring and event review.
- 2.8 mm Wide-Angle Lens – Provides a 111° horizontal field of view for broad commercial coverage.
- Human and Vehicle Classification – Helps supported events focus on relevant target types.
- Active Warning Functions – Strobe light and audible warning provide configurable event responses.
- Built-in Two-Way Audio – Supports real-time listening and communication through compatible systems.
- DarkFighter Low-Light Imaging – Works with Smart IR illumination for nighttime monitoring up to 30 meters.
Technical Specifications
- Image Sensor: 1/1.8" Progressive Scan CMOS
- Maximum Resolution: 8MP, 3840 × 2160
- Maximum 4K Frame Rate: Up to 24 fps in 60 Hz mode
- Lens: 2.8 mm fixed focal lens
- Field of View: 111° horizontal, 59° vertical, 131° diagonal
- DORI Distance: 89.2 m / 35.4 m / 17.8 m / 8.9 m
- Night Vision: Smart IR up to 30 m
- Wide Dynamic Range: 120 dB
- Analytics: Human and vehicle classification with supported perimeter events
- Active Warning: Strobe light and audible warning
- Audio: Built-in microphone, speaker, one audio input, and one audio output
- Alarm Interface: One alarm input and one alarm output
- Onboard Storage: microSD, microSDHC, and microSDXC support up to 512 GB
- Video Compression: H.265+, H.265, H.264+, and H.264
- Compatibility: ONVIF Profile S/G/T, ISAPI, and SDK
- Power: 12 VDC or IEEE 802.3af PoE
- Protection Rating: IP67
Recommended Applications
- Warehouse Loading Docks
- Commercial Building Entrances
- Retail Store Exteriors
- Parking Access Points
- Distribution Center Entrances
- Manufacturing Facilities
- School Campus Entrances
- Apartment Community Access Points
| Camera | |
|---|---|
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON) B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Day & Night | IR cut filter |
| Wide Dynamic Range | 120 dB |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Lens | |
| Lens Type | 2.8 mm fixed focal lens |
| Field of View | Horizontal FOV 111°, Vertical FOV 59°, Diagonal FOV 131° |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Lens Mount | M12 |
| DORI | |
| DORI Distance | Detect: 89.2 m, Observe: 35.4 m, Recognize: 17.8 m, Identify: 8.9 m |
| Illuminator | |
| Supplement Light Type | Infrared |
| Supplement Light Range | Up to 30 m |
| IR Wavelength | 850 nm |
| Smart Supplement Light | Yes |
| Visual Alarm | Built-in strobe light |
| Video | |
| Main Stream | 50 Hz: 25 fps at 3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, and 1280 × 720 60 Hz: 24 fps at 3840 × 2160; 30 fps at 3200 × 1800, 2688 × 1520, 1920 × 1080, and 1280 × 720 |
| Sub-Stream | 50 Hz: 25 fps at 640 × 480 and 640 × 360 60 Hz: 30 fps at 640 × 480 and 640 × 360 |
| Third Stream | 10 fps at 1920 × 1080, 1280 × 720, 640 × 480, and 640 × 360. Availability depends on the selected configuration. |
| Video Compression | Main Stream: H.265, H.264, H.264+, H.265+ Sub-Stream: H.265, H.264, MJPEG Third Stream: H.265, H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding | Supported with H.264 and H.265 encoding |
| Region of Interest | One fixed region for the main stream and sub-stream |
| Target Cropping | Yes |
| Audio | |
| Audio Type | Mono sound |
| Built-in Microphone | Yes |
| Built-in Speaker | 1.2 W maximum power; up to 95 dB at 10 cm |
| Audio Input | 1 line input, terminal block, maximum input amplitude 3.3 Vpp |
| Audio Output | 1 line output, terminal block, maximum output amplitude 3.3 Vpp |
| Audio Compression | G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC |
| Audio Sampling Rate | 8 kHz, 16 kHz, 32 kHz, 44.1 kHz, 48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF Profile S, Profile G, and Profile T; ISAPI; SDK |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| User Access | Up to 32 users with administrator, operator, and user access levels |
| Security | Password protection, complex password support, HTTPS encryption, IP address filtering, security audit log, HTTP/HTTPS authentication, TLS 1.1/1.2, and ONVIF authentication |
| Network Storage | Local microSD storage up to 256 GB, NAS using NFS or SMB/CIFS, and Auto Network Replenishment. Compatible memory cards may support encryption and health monitoring. |
| Client Support | Desktop client, mobile application, and compatible VMS platforms |
| Web Browser | Plug-in Live View: IE 10+ Plug-in-Free Live View: Chrome 57.0+ and Firefox 52.0+ Local Service: Chrome 57.0+ and Firefox 52.0+ |
| Image | |
| Signal-to-Noise Ratio | ≥ 52 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, and white balance adjustment |
| Wide Dynamic Range | 120 dB |
| Interface | |
| Alarm Interface | 1 alarm input and 1 alarm output, maximum 24 VDC/24 VAC at 500 mA |
| Onboard Storage | Built-in microSD, microSDHC, and microSDXC card slot supporting up to 256 GB |
| Ethernet Interface | 1 RJ45 10/100 Mbps self-adaptive Ethernet port |
| Hardware Reset | Yes |
| Events and Analytics | |
| Basic Events | Motion detection with human and vehicle classification, video tampering alarm, and system exception events |
| Perimeter Protection | Line crossing, intrusion, region entrance, and region exit detection with human and vehicle classification |
| Additional Analytics | Scene change detection and face capture |
| Event Linkage | Upload to FTP, NAS, or memory card; notify surveillance center; send email; trigger recording, capture, alarm output, audible warning, or strobe light |
| General | |
| Power | 12 VDC: ±25%, maximum 9 W, reverse polarity protection PoE: IEEE 802.3af, Class 3, maximum 10 W |
| Material | Metal body except for the trim ring |
| Dimensions | Ø138.3 × 124.5 mm (Ø5.4" × 4.9") |
| Package Dimensions | 170 × 170 × 150 mm (6.9" × 6.9" × 5.9") |
| Weight | Approximately 840 g (1.9 lb.) |
| Package Weight | Approximately 1160 g (2.6 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less, non-condensing |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less, non-condensing |
| General Functions | Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset by email, and pixel counter |
| Approvals and Protection | |
| EMC | FCC, CE-EMC, RCM, IC, and KC |
| Safety | UL, CB, and CE-LVD |
| Environmental Compliance | CE-RoHS, WEEE, and REACH |
| Protection Rating | IP67 weather protection |
Find answers to common questions about compatibility, installation, image quality, night vision, detection features, audio, storage, and network connectivity.
Where is the DS-2CD2386G2-ISU/SL commonly installed?
This camera is commonly installed at warehouse loading docks, commercial entrances, retail exteriors, parking access points, distribution centers, manufacturing facilities, and apartment community entrances.
Is this camera suitable for warehouse loading docks?
Yes. Its 8MP imaging, 2.8 mm wide-angle lens, human and vehicle classification, two-way audio, and active warning functions make it suitable for monitoring loading docks, delivery zones, and shipping entrances.
Can this camera be used at office and retail entrances?
Yes. The 111° horizontal field of view supports broad coverage of office entrances, storefronts, customer pickup areas, exterior walkways, and nearby access points.
Is it suitable for parking and apartment access areas?
Yes. It can monitor parking entrances, vehicle access points, apartment community gates, pedestrian approaches, and other areas that benefit from wide coverage and event-triggered warnings.
What coverage does the 2.8 mm lens provide?
The 2.8 mm fixed lens provides a 111° horizontal field of view, a 59° vertical field of view, and a 131° diagonal field of view for broad area monitoring.
How do the active warning functions work?
Supported events can trigger the built-in strobe light, audible warning, recording, image capture, alarm output, or notifications. Available linkage options depend on the connected system and configuration.
What is the benefit of AcuSense classification?
AcuSense helps supported motion and perimeter events focus on people and vehicles. This can make event review more efficient by reducing attention given to unrelated scene movement.
Does the camera support PoE and NVR integration?
Yes. It supports IEEE 802.3af PoE and can integrate with compatible network video recorders and video management systems through ONVIF Profile S, G, and T, ISAPI, or SDK support.
Does it support local storage and two-way audio?
Yes. The camera supports microSD storage up to 512 GB and includes a built-in microphone and speaker for two-way audio. It also provides one audio input and one audio output.
What are the maximum resolution and infrared range?
The camera records at up to 3840 × 2160 resolution. Its Smart IR illumination supports nighttime monitoring at distances up to 30 meters.
