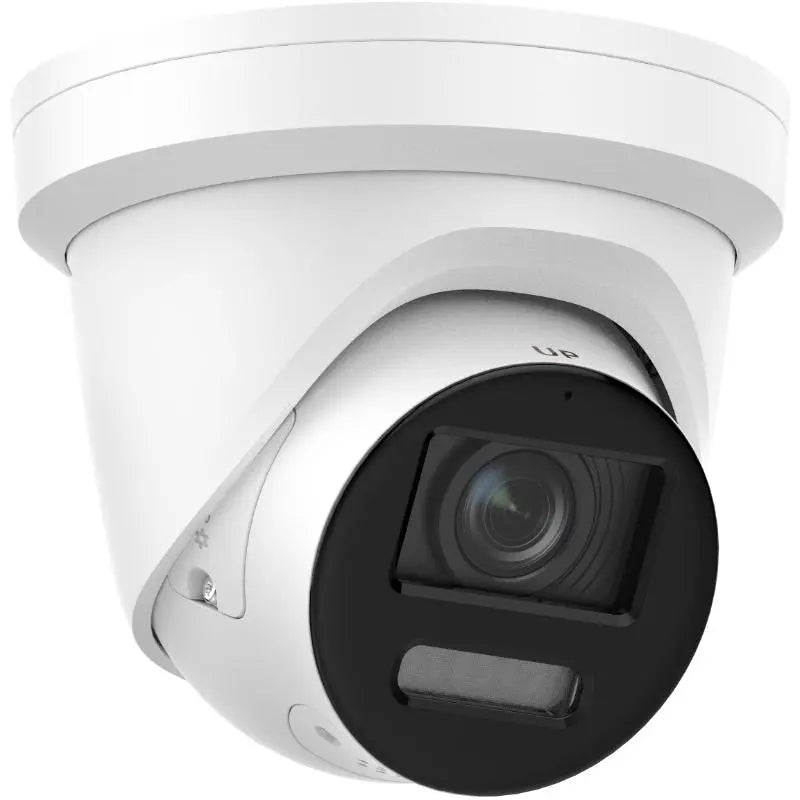

For larger commercial entrances and exterior areas where additional image detail is important, the DS-2CD2387G2-LSU/SL combines 8MP ColorVu imaging with human and vehicle classification, active visual and audible warnings, and built-in two-way audio.
The 1/1.2-inch image sensor, F1.0 aperture, and white light illumination support 24/7 color imaging in low-light environments. With illumination up to 30 meters, the camera can preserve useful color information around storefronts, parking entrances, service yards, vehicle gates, and other areas monitored after dark.
Deep learning-based human and vehicle classification supports more relevant perimeter events, including line crossing, intrusion, region entrance, and region exit detection. When configured with supported events, the built-in strobe light and audible warning can provide an immediate on-site response, while the microphone and speaker allow real-time communication through compatible surveillance platforms.
The camera also includes 130 dB WDR for challenging backlit scenes, onboard microSD storage up to 512 GB, Audio I/O, alarm input and output, H.265+ compression, PoE support, ONVIF Profile S/G/T compatibility, and an IP67-rated metal housing for professional outdoor installations.
High-Detail Active Deterrence Benefits
-
8MP Color Video – 3840 × 2160 resolution provides additional image detail across wide commercial scenes.
-
24/7 ColorVu Imaging – The F1.0 aperture and white light help retain color information in low-light environments.
-
Target-Based Event Detection – Human and vehicle classification helps focus perimeter alerts on relevant activity.
-
On-Site Warning Functions – Built-in strobe light and audible warning can respond to configured security events.
-
Real-Time Two-Way Audio – The integrated microphone and speaker support live communication through compatible systems.
-
Professional System Integration – Audio I/O, alarm I/O, ONVIF support, and onboard storage provide flexible deployment options.
Recommended Applications
- Large Storefront Entrances
- Warehouse Vehicle Gates
- Distribution Center Service Yards
- Multi-Lane Parking Entrances
- Office Campus Access Points
- Apartment Vehicle Gates
- Commercial Equipment Yards
- After-Hours Customer Pickup Areas
- Industrial Facility Entrances
- Remote Building Access Zones
| Camera |
| Image Sensor |
1/1.2″ Progressive Scan CMOS |
| Max. Resolution |
3840 × 2160 |
| Min. Illumination |
Color：0.0005 Lux @ (F1.0, AGC ON)，0 Lux with white light |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day & Night |
24/7 Color imaging |
| Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens |
| Lens Type |
Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV |
2.8 mm:Horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124° |
| Lens Mount |
M mount |
| Iris Type |
Fixed |
| Aperture |
F1.0 |
| Depth of Field |
2.8 mm:4 m to ∞ |
| DORI |
| DORI |
2.8 mm:D: 96 m, O: 38 m, R: 19 m, I: 9 m |
| Illuminator |
| Supplement Light Type |
White Light |
| Supplement Light Range |
Up to 30 m |
| Smart Supplement Light |
Yes |
| Video |
| Main Stream |
50 Hz:
25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3840 × 2160)
30 fps (3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream |
50 Hz:25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz:30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream |
50 Hz:10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz:10 fps (1920 x 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Video Compression |
Main stream:H.265/H.264/H.264+/H.265+
Sub-stream:H.265/H.264/MJPEG
Third stream:H.265/H.264 |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| H.264 Type |
Baseline Profile/Main Profile/High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR/VBR |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
| Region of Interest (ROI) |
1 fixed region for main stream and sub-stream |
| Audio |
| Environment Noise Filtering |
Yes |
| Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Network |
| Simultaneous Live View |
Up to 6 channels |
| API |
Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
| User/Host |
Up to 32 users. 3 user levels: administrator, operator and user |
| Security |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage |
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hik memory card, memory card encryption and health detection are supported. |
| Client |
iVMS-4200, Mobile App, VMS Platform |
| Web Browser |
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image |
| Wide Dynamic Range (WDR) |
130 dB |
| SNR |
≥ 52 dB |
| Privacy Mask |
8 programmable polygon privacy masks |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Image Enhancement |
BLC, HLC, 3D DNR |
| Image Parameters Switch |
Yes |
| Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Interface |
| Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage |
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone |
Yes |
| Built-in Speaker |
1.5 W, 10 cm: 95 dB |
| Audio |
Input:1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
Output:1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm |
1 input, 1 output (max. 24 VDC, 1 A) |
| Reset Key |
Yes |
| Event |
| Basic Event |
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Scene change detection |
| Linkage |
Upload to FTP/NAS/memory card, notify surveillance center, trigger record, trigger capture, send email |
| Deep Learning Function |
| Face Capture |
Yes |
| Perimeter Protection |
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle) |
| General |
| Power |
12 VDC ± 25%:0.63 A, max. 8.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE:802.3af, Class 3, 36 V to 57 V, 0.24 A to 0.15 A |
| Material |
Cover: metal, main body: metal |
| Dimension |
Ø138.3 mm × 120.1 mm (Ø5.4" × 4.7") |
| Package Dimension |
170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9") |
| Weight |
Approx. 900 g (2 lb.) |
| With Package Weight |
Approx. 1190 g (2.6 lb.) |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language |
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function |
Anti-flicker, heartbeat, mirror, password reset via e-mail, pixel counter |
| Approval |
| EMC |
FCC:47 CFR Part 15, Subpart B
CE-EMC:EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014
RCM:AS/NZS CISPR 32: 2015
IC:ICES-003: Issue 7
KC:KN32: 2015, KN35: 2015 |
| Safety |
UL:UL 62368-1
CB:IEC 62368-1: 2014+A11
CE-LVD:EN 62368-1: 2014/A11: 2017 |
| Environment |
CE-RoHS:2011/65/EU
WEEE:2012/19/EU
Reach:Regulation (EC) No 1907/2006 |
| Protection |
IP67:IEC 60529-2013 |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Where is the DS-2CD2387G2-LSU/SL commonly installed?
The DS-2CD2387G2-LSU/SL is commonly installed at large storefront entrances, warehouse vehicle gates, distribution center yards, commercial parking entrances, apartment gates, industrial access points, and other outdoor areas requiring detailed after-hours monitoring.
Is this camera suitable for monitoring wide commercial entrances after dark?
Yes. Its 8MP resolution, 1/1.2-inch sensor, F1.0 aperture, and white light illumination support detailed full-color monitoring across entrances and exterior access areas in low-light conditions.
Can this camera be used at warehouse gates and service yards?
Yes. Human and vehicle classification, active warning functions, two-way audio, and IP67 protection make it suitable for warehouse gates, loading approaches, service yards, and controlled vehicle access areas.
What types of organizations may benefit from this model?
Warehouses, distribution centers, retail properties, apartment communities, office campuses, industrial facilities, commercial property managers, and multi-site businesses may use this model for proactive outdoor monitoring.
When should a buyer choose this 8MP model instead of a lower-resolution active deterrence camera?
The 8MP model is appropriate when additional image detail is needed across larger entrances, wider exterior scenes, vehicle access points, or other areas where operators may need to review more visual information.
How does ColorVu support nighttime monitoring?
ColorVu combines a large 1/1.2-inch sensor, an F1.0 aperture, and white light illumination to help maintain color video and preserve useful scene details in low-light environments.
How do the active deterrence and two-way audio features work together?
The strobe light and audible warning can provide an on-site response to configured events, while the built-in microphone and speaker allow authorized users to listen and communicate through compatible surveillance platforms.
Does the DS-2CD2387G2-LSU/SL support local recording and PoE?
Yes. The built-in memory card slot supports microSD, microSDHC, and microSDXC cards up to 512 GB, and the camera supports IEEE 802.3af PoE.
Can this camera integrate with professional surveillance and alarm systems?
Yes. It supports ONVIF Profile S, Profile G, and Profile T, along with Audio I/O, one alarm input, and one alarm output for compatible system integration.
What is the maximum video resolution of the DS-2CD2387G2-LSU/SL?
The camera supports a maximum resolution of 3840 × 2160, delivering 8MP 4K UHD video.
