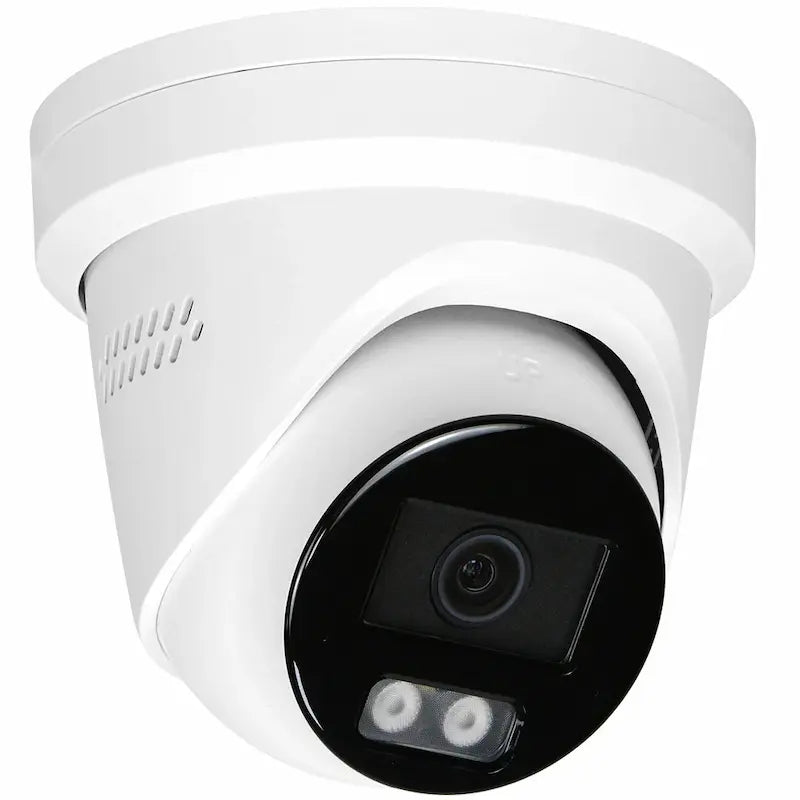

Built for demanding commercial locations that need detailed nighttime video and an immediate on-site response, the DS-2CD2387G3-LIS2UY/SL combines 8MP ColorVu 3.0 imaging, HikAI-ISP image processing, Smart Hybrid Light, person and vehicle classification, two-way audio, and active deterrence in a fixed turret design.
ColorVu 3.0 technology works with an F1.0 aperture and a 1/1.8-inch image sensor to support 24/7 color imaging. HikAI-ISP helps reduce image noise, while scene-adaptive 130 dB WDR, defog, EIS, BLC, HLC, and 3D DNR help maintain useful image detail across low-light, backlit, and changing commercial environments.
Smart Hybrid Light combines infrared and white light illumination with three supplemental lighting modes and a range of up to 30 meters. Deep learning-based person and vehicle classification supports motion detection and perimeter events such as line crossing, intrusion, region entrance, and region exit monitoring.
The built-in dual-microphone array and high-output speaker support real-time two-way audio. The /SL version also provides a white strobe light and audible warning for active deterrence. Audio I/O, alarm I/O, onboard microSD storage up to 512 GB, IEEE 802.3at PoE, IP67 weather protection, and NEMA 4X anti-corrosion protection support flexible professional deployment.
ColorVu 3.0 and Active Deterrence Benefits
-
Detailed Full-Color Monitoring – 8MP resolution, an F1.0 aperture, and ColorVu 3.0 help preserve useful color information in low-light scenes.
-
Cleaner Video in Challenging Conditions – HikAI-ISP noise reduction and scene-adaptive 130 dB WDR help improve image usability across changing lighting conditions.
-
Adaptive Night Illumination – Smart Hybrid Light combines infrared and white light with three supplemental lighting modes.
-
Relevant Target Classification – Deep learning helps distinguish people and vehicles for supported motion and perimeter events.
-
High-Quality Two-Way Audio – The dual-microphone array and built-in speaker support real-time monitoring and communication.
-
Proactive On-Site Response – The /SL model can activate a white strobe light and audible warning when linked to supported events.
Recommended Applications
- Commercial Vehicle Entrances
- Warehouse Service Yards
- Distribution Center Gates
- After-Hours Retail Entrances
- Industrial Access Points
- Apartment Vehicle Gates
- Office Campus Perimeters
- Equipment Storage Areas
- Commercial Properties with Moderate Corrosion Exposure
- Remote Building Access Zones
| Camera |
| Image Sensor |
1/1.8" Progressive Scan CMOS |
| Max. Resolution |
3840 × 2160 |
| Min. Illumination |
Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light |
| Shutter Time |
1 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° |
| Lens |
| Lens Type |
Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV |
2.8 mm:horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3° |
| Lens Mount |
M16 |
| Iris Type |
Fixed |
| Aperture |
F1.0 |
| Depth of Field |
2.8 mm:3.3 m to ∞ |
| DORI |
| DORI |
2.8 mm:D: 89 m, O: 35 m, R: 17 m, I: 8 m |
| Illuminator |
| Supplement Light Type |
White Light,IR |
| Supplement Light Range |
Up to 30 m |
| Smart Supplement Light |
Yes |
| IR Wavelength |
850 nm |
| Video |
| Main Stream |
50 Hz:
25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
30 fps (3840 × 2160，3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream |
50 Hz:25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz:30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream |
50 Hz:10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz:10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings. |
| Video Compression |
Main stream:H.265/H.264/H.264+/H.265+
Sub-stream:H.265/H.264/MJPEG
Third stream:H.265/H.264
*Third stream is supported under certain settings. |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| H.264 Type |
Baseline Profile,Main Profile,High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR,VBR |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
| Region of Interest (ROI) |
1 fixed region for main stream |
| Audio |
| Audio Type |
Mono sound |
| Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering |
Yes |
| Network |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
| Simultaneous Live View |
Up to 6 channels |
| API |
ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
| User/Host |
Up to 32 users
3 user levels: administrator, operator, and user |
| Security |
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
| Network Storage |
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR) |
| Client |
iVMS-4200,Mobile App,VMS Platform |
| Web Browser |
Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+
Local service: Chrome 80+, Firefox 80+, Edge 89+ |
| Image |
| Image Parameters Switch |
Yes |
| Image Settings |
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Day/Night Switch |
Day,Night,Auto,Schedule |
| Image Enhancement |
BLC,HLC,3D DNR,Distortion Correction,Defog |
| SNR |
≥ 52 dB |
| Wide Dynamic Range (WDR) |
130 dB |
| Image Stabilization |
EIS |
| Privacy Mask |
4 programmable polygon privacy masks |
| Interface |
| Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage |
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Speaker |
Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB. |
| Audio |
Built-in Microphone:-2U: Arrayed dual-microphone
Input:1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
Output:1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm |
1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Reset Key |
Yes |
| Event |
| Basic Event |
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
| Smart Event |
Scene change detection |
| Linkage |
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light flashing |
| Deep Learning Function |
| Face Capture |
Yes |
| Perimeter Protection |
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle) |
| General |
| Power |
12 VDC ± 25%:1.29 A, max. 15.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection
PoE:IEEE 802.3at, Class 4, max. 17 W |
| Material |
Cover: metal, main body: metal |
| Dimension |
Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5") |
| Package Dimension |
170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3") |
| Weight |
Approx. 820 g (1.8 lb.) |
| With Package Weight |
Approx. 1200 g (2.6 lb.) |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function |
Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding |
| Language |
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Flashing Light |
/SRB model:Red and Blue Light
/SL model:White Light |
| Approval |
| EMC |
CE-EMC:EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
RCM:AS/NZS CISPR 32: 2015
IC:ICES-003: Issue 7
KC:KN32: 2015, KN35: 2015 |
| Safety |
UL:UL 62368-1
CB:IEC 62368-1: 2014+A11
CE-LVD:EN 62368-1: 2014/A11: 2017 |
| Environment |
CE-RoHS:2011/65/EU |
| Protection |
IP67:IEC 60529-2013 |
| Anti-Corrosion Protection |
NEMA 4X (NEMA 250-2018) |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Where is the DS-2CD2387G3-LIS2UY/SL commonly installed?
The DS-2CD2387G3-LIS2UY/SL is commonly installed at commercial vehicle entrances, warehouse service yards, distribution center gates, industrial access points, apartment vehicle gates, office campus perimeters, and after-hours retail entrances.
Is this camera suitable for commercial areas with moderate corrosion exposure?
Yes. The camera carries NEMA 4X anti-corrosion protection and is classified for environments with moderate corrosion demands. It should not be represented as having the highest level of marine or direct-shoreline corrosion protection.
Can this camera monitor gates and exterior access areas after dark?
Yes. ColorVu 3.0, an F1.0 aperture, and Smart Hybrid Light support full-color and adaptive nighttime monitoring with supplemental illumination up to 30 meters.
What types of organizations may benefit from this model?
Warehouses, distribution centers, industrial facilities, apartment communities, office campuses, retail properties, commercial property managers, and multi-site businesses may use this camera for proactive outdoor monitoring.
How do HikAI-ISP and scene-adaptive WDR improve image quality?
HikAI-ISP helps reduce image noise, while scene-adaptive 130 dB WDR helps balance image detail in scenes with strong backlight, deep shadows, or changing illumination.
How do ColorVu 3.0 and Smart Hybrid Light work together?
ColorVu 3.0 supports 24/7 color imaging through the F1.0 optical design and image sensor, while Smart Hybrid Light provides infrared and white light illumination with three supplemental lighting modes.
What type of active deterrence light does the /SL version use?
The /SL version uses a white strobe light and supports audible warning. Red and blue warning lights are associated with the separate /SRB version.
Does the DS-2CD2387G3-LIS2UY/SL support two-way audio?
Yes. The camera includes a built-in dual-microphone array and built-in speaker for two-way audio. It also provides separate audio input and output interfaces.
Does this camera support local storage, PoE, and ONVIF integration?
Yes. It supports microSD, microSDHC, and microSDXC cards up to 512 GB, IEEE 802.3at PoE, and ONVIF Profile S, Profile G, and Profile T.
What resolution and lens options are available for the DS-2CD2387G3-LIS2UY/SL?
The camera supports a maximum resolution of 3840 × 2160 and is available with 2.8 mm and 4 mm fixed lens options.
