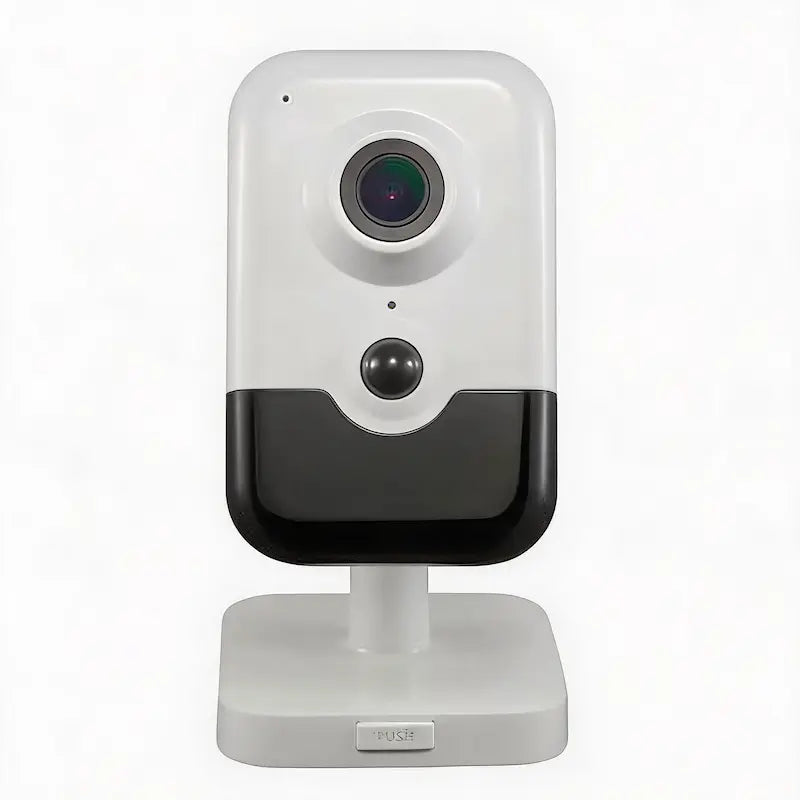

The DS-2CD2443G0-IW is a 4MP indoor cube camera designed for commercial environments that require discreet monitoring, intelligent detection, and convenient two-way communication.
Featuring a compact design and 2.8 mm wide-angle lens, the camera is ideal for offices, reception areas, retail counters, clinics, classrooms, and other indoor locations where flexible placement and broad coverage are important.
The built-in PIR sensor helps improve motion detection by identifying human activity while reducing unnecessary alerts caused by environmental movement. This makes the camera suitable for occupied business spaces where reliable event monitoring is needed.
With built-in microphone, speaker, and Wi-Fi connectivity, the camera supports remote communication and flexible installation. Its compact form factor provides an effective solution for indoor security monitoring, customer interaction, and business operations.
Key Benefits
-
4MP Indoor Monitoring – Provides detailed video for offices and commercial spaces.
-
2.8 mm Wide-Angle Coverage – Helps monitor broader indoor areas with one camera.
-
PIR Human Detection – Helps reduce unnecessary alerts from general motion activity.
-
Two-Way Audio – Supports remote communication with visitors and staff.
-
Wi-Fi Connectivity – Provides flexible installation options for indoor locations.
-
Compact Cube Design – Fits discreetly into professional and customer-facing environments.
Recommended Applications
- Office Reception Areas
- Retail Checkout Counters
- Healthcare Clinics
- School Administrative Offices
- Hotel Reception Desks
- Financial Service Counters
- Meeting Rooms
- Customer Service Areas
| Camera |
|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Day & Night | IR cut filter |
| Wide Dynamic Range | 120 dB |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| DNR | 3D DNR |
| Lens |
|---|
| Lens | 2.8/4 mm |
| Aperture | F1.6 |
| FOV | 2.8 mm:Horizontal FOV: 98°, Vertical FOV: 55°, Diagonal FOV: 114° |
| Lens Mount | M12 |
| Illuminator |
|---|
| IR Range | 10 m |
| Wavelength | 850 nm |
| PIR |
|---|
| PIR Angle | Horizontal: 90°, Vertical: 80° |
| PIR Range | 10 m |
| Video |
|---|
| Max. Resolution | 2688 × 1520 |
| Main Stream | 50 Hz:25 fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)
60 Hz:30 fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080) |
| Sub Stream | 50 Hz:25 fps (640 × 480, 640 × 360, 320 × 240)
60 Hz:30 fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50 Hz:25 fps (1280 × 720, 640 × 360, 352 × 288)
60 Hz:30 fps (1280 × 720, 640 × 360, 352 × 240) |
| Video Compression | Main Stream:H.265/H.264
Sub-Stream:H.265/H.264/MJPEG
Third Stream:H.265/H.264 |
| H.264 Type | Main Profile / High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| SVC | Support H.264 and H.265 encoding |
| Audio |
|---|
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/G.726/MP2L2/PCM |
| Audio Bit Rate | 64 Kbps (G.711) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 160 Kbps (MP2L2) |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Smart Feature-Set |
|---|
| Smart Event | Line crossing detection, intrusion detection, face detection |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Linkage Method | Trigger Recording:Memory card, network storage, pre-record and post-record
Trigger Captured Pictures Uploading:FTP, HTTP, NAS, email
Trigger Notification:HTTP, ISAPI, email |
| Face Detection | Yes |
| Image |
|---|
| Image Enhancement | BLC / 3D DNR / HLC |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wi-Fi |
|---|
| Channel Bandwidth | 20 M / 40 M |
| Security | WPA, WPA2 |
| Transfer Rate | 11b:11 Mbps
11g:54 Mbps
11n:Up to 150 Mbps |
| Wireless Range | 50 m |
| Wireless Standards | IEEE 802.11b/g/n |
| Frequency Range | 2.412 GHz to 2.4835 GHz |
| Network |
|---|
| Network Storage | NAS (NFS, SMB/CIFS), ANR |
| Protocols | 802.11b:DQPSK, DBPSK, CCK
802.11g/n:OFDM/64-QAM, 16-QAM, QPSK, BPSK |
| API | Open Network Video Interface (Profile S, Profile G), ISAPI |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users. 3 user levels: administrator, operator, and user |
| Client | iVMS-4200, Mobile App, iVMS-5200, iVMS-4500 |
| Web Browser | Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view: Chrome 45.0+, Firefox 52.0+ |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login |
| Firmware Version | 5.6.3 |
| Interface |
|---|
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Audio | 1 built-in mic, 1 built-in speaker, mono sound |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 128 GB |
| Compression Standard | H.264+:Main stream supports
H.265+:Main stream supports |
| General |
|---|
| General Function | One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Reset | Yes |
| Startup and Operating Conditions | -10 °C to +40 °C (14 °F to +104 °F). Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%
PoE: 802.3af, Class 3 |
| Power Consumption and Current | 12 VDC, 0.5 A, max. 6 W, Ø5.5 mm coaxial plug power
PoE: 802.3af, 36 V to 57 V, 0.2 A to 0.1 A, max. 7 W |
| Material | Plastic |
| Dimensions | 102.8 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3") |
| Weight | Camera: Approx. 128 g (0.3 lb.) |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Where is the DS-2CD2443G0-IW commonly installed?
This indoor cube camera is commonly installed in office reception areas, retail checkout counters, healthcare clinics, meeting rooms, customer service desks, and small business environments.
Why choose a PIR cube camera for indoor commercial monitoring?
A PIR cube camera detects body heat, helping reduce false motion alerts caused by lighting changes, shadows, or general indoor movement.
Is this camera suitable for retail stores?
Yes. Its compact design, two-way audio, PIR detection, and 4MP imaging make it suitable for checkout counters, service desks, and retail office areas.
Can this camera be used in an office reception area?
Yes. The compact indoor design and two-way audio support visitor monitoring and communication at reception desks, entry points, and front office areas.
Who should choose the DS-2CD2443G0-IW?
This model is designed for business owners, office managers, retail operators, healthcare facilities, IT teams, and installers needing compact indoor surveillance.
What is the benefit of PIR detection?
PIR detection senses body heat, making it more reliable for human motion detection than standard video motion alerts in many indoor environments.
Does the DS-2CD2443G0-IW support two-way audio?
Yes. It includes a built-in microphone and built-in speaker, allowing real-time two-way communication through compatible surveillance platforms.
Does this camera support Wi-Fi?
Yes. The DS-2CD2443G0-IW supports IEEE 802.11b/g/n Wi-Fi connectivity, as well as wired Ethernet connection.
Can recordings be stored locally?
Yes. The built-in memory card slot supports microSD, microSDHC, and microSDXC cards up to 128 GB for local edge recording.
What is the maximum video resolution?
The camera supports a maximum resolution of 2688 × 1520, delivering 4MP video for indoor commercial surveillance.
