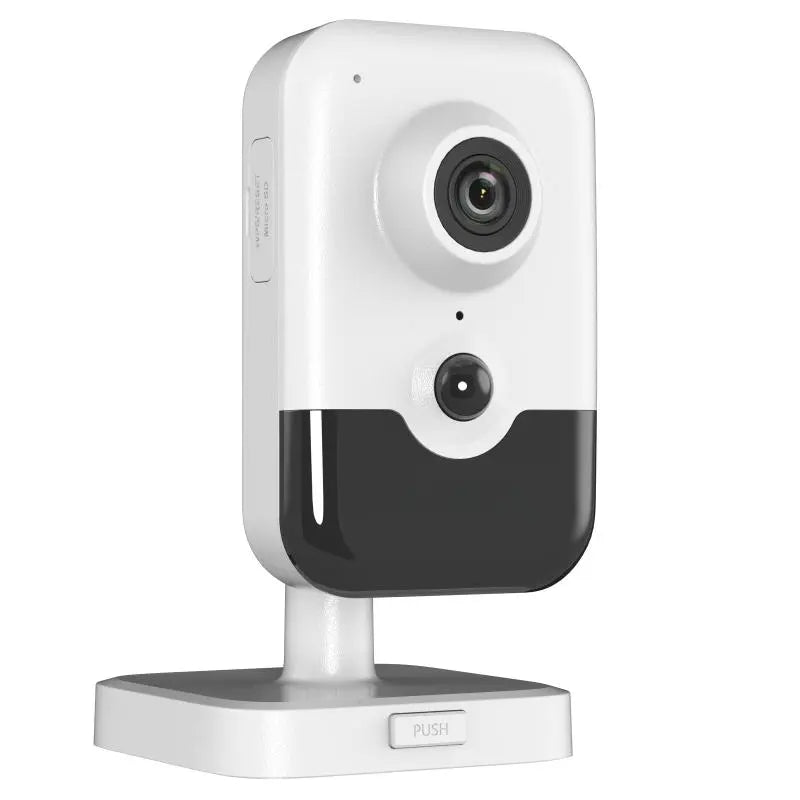

Designed for indoor business areas where video, audio, and temperature-based motion sensing are needed in one compact device, the DS-2CD2443G2-I combines 4MP AcuSense imaging, PIR detection, two-way audio, and local edge recording in a fixed cube camera design.
Deep learning-based human and vehicle classification helps focus video events on relevant targets, while the integrated passive infrared sensor detects human body heat within a range of up to 8 meters. Using video analytics and PIR sensing together can provide additional event context in offices, reception areas, retail spaces, stockrooms, and other controlled indoor environments.
The built-in microphone and speaker support real-time two-way communication through compatible surveillance platforms. The speaker can also provide an audible warning when configured with supported event actions. For low-light monitoring, Smart IR illumination provides visibility up to 10 meters without requiring continuous room lighting.
The camera supports 120 dB WDR, H.265+ compression, face detection, onboard microSD storage up to 512 GB, IEEE 802.3af PoE, and ONVIF Profile S/G/T integration. Its compact form factor makes it a practical option for indoor commercial locations that need video verification, audio communication, and localized motion awareness.
Indoor Monitoring and Response Benefits
-
Dual Detection Technologies – AcuSense target classification and PIR body-heat detection provide complementary event information.
-
Real-Time Communication – The built-in microphone and speaker support two-way audio through compatible systems.
-
Audible Event Response – The integrated speaker can issue an audible warning when linked to supported events.
-
Wide Indoor Viewing Options – Available 2 mm, 2.8 mm, and 4 mm lenses support different room sizes and viewing requirements.
-
Low-Light Visibility – Smart IR illumination supports indoor monitoring up to 10 meters in dark conditions.
-
Local Edge Recording – The built-in memory card slot supports up to 512 GB of onboard storage.
Recommended Applications
- Office Reception Areas
- Retail Checkout Zones
- Customer Service Counters
- Small Business Stockrooms
- Employee Entry Areas
- Indoor Delivery Vestibules
- Clinic Reception Desks
- Apartment Leasing Offices
- Administrative Work Areas
- Indoor Waiting Areas
| Camera |
| Image Sensor |
1/3" Progressive Scan CMOS |
| Max. Resolution |
2688 × 1520 |
| Min. Illumination |
2.8 mm:color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lens |
| Focal Length & FOV |
2.8 mm, horizontal FOV 104.3°, vertical FOV 55.9°, diagonal FOV 123.8° |
| Aperture |
2.8 mm:F1.6 |
| Lens Mount |
M12 |
| DORI |
| DORI |
2.8 mm:D: 56.0 m, O: 22.2 m, R: 11.2 m, I: 5.6 m |
| Illuminator |
| Supplement Light Type |
IR |
| Supplement Light Range |
Up to 10 m |
| IR Wavelength |
850 nm |
| Smart Supplement Light |
Yes |
| Video |
| Main Stream |
50 Hz:25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream |
50 Hz:25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz:30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream |
50 Hz:10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz:10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Video Compression |
Main stream:H.265/H.264/H.264+/H.265+
Sub-stream:H.265/H.264/MJPEG
Third stream:H.265/H.264 |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Type |
Baseline Profile/Main Profile/High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR/VBR |
| Scalable Video Coding (SVC) |
Yes |
| Region of Interest (ROI) |
1 fixed region for main stream and sub-stream |
| Audio |
| Environment Noise Filtering |
Yes |
| Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Network |
| Simultaneous Live View |
Up to 6 channels |
| API |
ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
| User/Host |
Up to 32 users
3 user levels: administrator, operator, and user |
| Security |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage |
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hik memory card, memory card encryption and health detection are supported. |
| Client |
iVMS-4200, Mobile App, VMS Platform |
| Web Browser |
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image |
| Wide Dynamic Range (WDR) |
120 dB |
| Privacy Mask |
4 programmable polygon privacy masks |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Image Enhancement |
BLC, HLC, 3D DNR |
| Image Parameters Switch |
Yes |
| Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Transducer |
| Detection Angle |
Horizontal: 90°, vertical: 80° |
| Transducer Type |
PIR |
| Detection Range |
Up to 8 m |
| Interface |
| Built-in Microphone |
Yes |
| Built-in Speaker |
Power: 1 W. Max. sound pressure level: 10 cm: 91 dB. |
| On-Board Storage |
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Reset Key |
Yes |
| Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Event |
| Basic Event |
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
| Smart Event |
Face detection |
| Linkage |
Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email, audible warning |
| Deep Learning Function |
| Perimeter Protection |
Line crossing, intrusion
Support alarm triggering by specified target types (human and vehicle) |
| General |
| Power |
12 VDC± 25%, 0.49 A, max. 5.8 W, Ø5.5 mm coaxial power plug
PoE:IEEE 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 6.8 W |
| Language |
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function |
Heartbeat, mirror, password reset via email, pixel counter, anti-banding |
| Storage Conditions |
-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing) |
| Material |
Plastic |
| Dimension |
2 mm:102.9 mm × 65.2 mm × 28.8 mm (4.1" × 2.6\" × 1.1\")
2.8 mm and 4 mm:102.9 mm × 65.2 mm × 32.6 mm (4.1 × 2.6\" × 1.3\") " |
| Package Dimension |
150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9") |
| Weight |
Approx. 120 g (0.3 lb.) |
| With Package Weight |
Approx. 430 g (0.9 lb.) |
| Approval |
| EMC |
FCC SDoC(47 CFR Part 15, Subpart B);
CE-EMC(EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
KC(KN 32: 2015, KN 35: 2015) |
| Safety |
UL(UL 62368-1);
CB(IEC 62368-1:2014+A11);
CE-LVD(EN 62368-1:2014/A11:2017) |
| Environment |
CE-RoHS(2011/65/EU);
WEEE(2012/19/EU);
Reach(Regulation (EC) No 1907/2006) |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Where is the DS-2CD2443G2-I commonly installed?
The DS-2CD2443G2-I is commonly installed in office reception areas, retail checkout zones, customer service counters, small stockrooms, employee entry areas, leasing offices, clinics, and indoor waiting spaces.
Is this cube camera suitable for reception desks and customer-facing areas?
Yes. Its compact indoor design, wide-angle lens options, built-in microphone, speaker, PIR detection, and two-way audio make it suitable for reception desks and customer-facing business areas.
Can the DS-2CD2443G2-I monitor small stockrooms or employee areas after dark?
Yes. Smart IR illumination supports low-light and zero-light monitoring up to 10 meters, making the camera useful for smaller indoor rooms and access areas.
What types of businesses may use this indoor cube camera?
Offices, retail stores, clinics, apartment leasing offices, service businesses, schools, small warehouses, and commercial facilities may use this model for indoor video verification and communication.
How does PIR detection complement AcuSense video analytics?
The PIR sensor detects human body heat within an area up to 8 meters, while AcuSense analyzes video targets such as people and vehicles. Together, these technologies provide additional context for indoor event detection.
When should a business choose a cube camera with two-way audio?
A cube camera with two-way audio is useful when staff need to monitor an indoor area, hear activity, and communicate with visitors, employees, or delivery personnel through a compatible surveillance platform.
Can the built-in speaker provide an audible warning?
Yes. The camera supports audible warning linkage through its built-in speaker when configured with supported events and compatible system settings.
Does the DS-2CD2443G2-I support local recording and PoE?
Yes. The camera supports microSD, microSDHC, and microSDXC cards up to 512 GB and can be powered through IEEE 802.3af PoE or a compatible 12 VDC power source.
Can this camera integrate with ONVIF surveillance systems?
Yes. The DS-2CD2443G2-I supports ONVIF Profile S, Profile G, and Profile T for integration with compatible professional NVRs and video management systems.
What is the maximum video resolution of the DS-2CD2443G2-I?
The camera supports a maximum resolution of 2688 × 1520, delivering 4MP video at up to 30 frames per second in 60 Hz environments.
