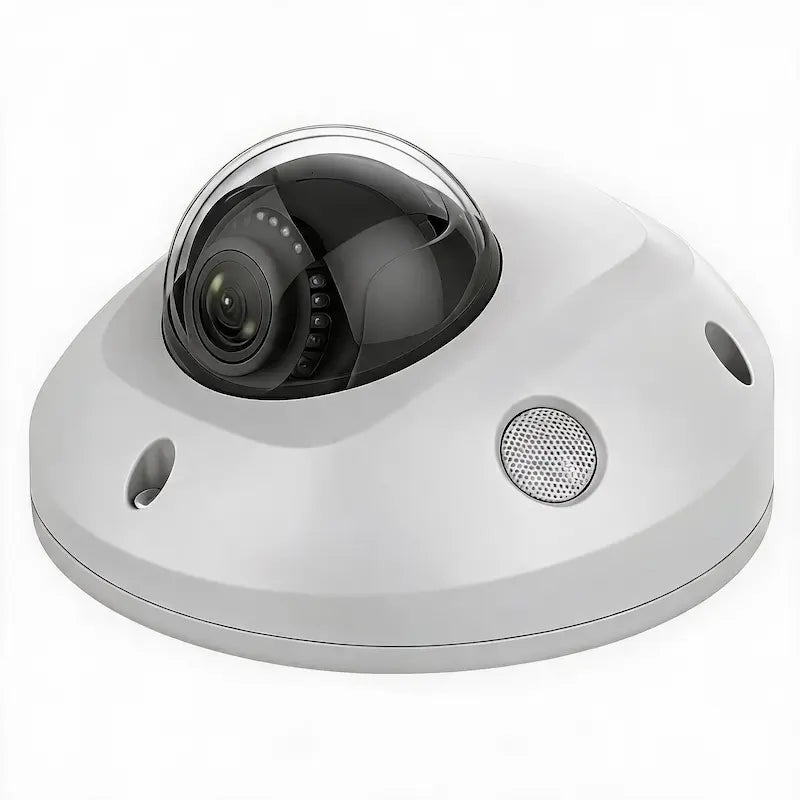

Designed for compact commercial installations that require discreet video monitoring and flexible audio integration, the DS-2CD2523G0-IS combines 2MP Full HD imaging, a built-in microphone, Audio I/O, smart event detection, and onboard recording in a low-profile mini dome design.
The camera records at up to 1920 × 1080 resolution and is available with 2.8 mm, 4 mm, and 6 mm fixed lens options. Its 120 dB Wide Dynamic Range helps maintain usable image detail in areas with strong contrast, including glass entrances, reception areas, covered walkways, and parking access points.
Infrared illumination supports low-light and zero-light monitoring up to 10 meters. The camera also provides line crossing detection, intrusion detection, and face detection for commercial locations that need more event awareness than basic motion detection alone.
The DS-2CD2523G0-IS includes a built-in microphone, audio input and output connections, alarm input and output, and a microSD card slot supporting up to 128 GB. H.265+ compression, IEEE 802.3af PoE, ONVIF Profile S/G/T compatibility, IP66 weather protection, and an IK08-rated housing support flexible professional deployment.
Compact Monitoring and Integration Benefits
-
2MP Full HD Video – 1920 × 1080 resolution supports clear general-purpose commercial monitoring.
-
Built-in Audio Recording – The integrated microphone adds sound context to compatible surveillance recordings.
-
Flexible Audio Connections – Audio input and output interfaces support compatible external audio equipment.
-
Smart Event Detection – Line crossing, intrusion, and face detection provide additional event awareness.
-
Low-Light Monitoring – Infrared illumination supports visibility up to 10 meters in dark environments.
-
Local Edge Storage – The built-in memory card slot supports up to 128 GB of onboard recording.
Recommended Applications
- Office Reception Areas
- Retail Store Entrances
- Apartment Building Lobbies
- Covered Commercial Walkways
- Parking Garage Access Areas
- School Administrative Areas
- Healthcare Facility Corridors
- Warehouse Office Entrances
- Elevator Lobby Areas
- Small Business Entry Points
| Camera |
| Image Sensor |
1/2.7" Progressive Scan CMOS |
| Min. Illumination |
Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR on |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Slow Shutter |
Yes |
| Wide Dynamic Range |
120 dB |
| Day & Night |
IR Cut Filter |
| Angle Adjustment |
Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens |
| Lens Type |
2.8, 4, 6 mm |
| FOV |
4 mm:horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102° |
| Aperture |
F2.0 |
| Lens Mount |
M12 |
| Illuminator |
| IR Range |
Up to 10 m |
| Wavelength |
850 nm |
| Video |
| Max. Resolution |
1920 × 1080 |
| Main Stream |
50Hz:25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz:30 fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream |
50Hz:25 fps (640 × 480, 640 × 360, 320 × 240)
60Hz:30 fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream |
50Hz:25 fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288)
60Hz:30 fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240) |
| Video Compression |
Main stream:H.265/H.264
Sub-stream:H.265/H.264 /MJPEG
Third stream:H.265/H.264 |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| H.264 Type |
Main Profile/High Profile |
| H.265 Type |
Main Profile |
| H.264+ |
Main stream supports |
| H.265+ |
Main stream supports |
| Scalable Video Coding (SVC) |
Support H.264 and H.265 encoding |
| Audio |
| Environment Noise Filtering |
Yes |
| Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression |
G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM |
| Audio Bit Rate |
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Network |
| Simultaneous Live View |
Up to 6 channels |
| API |
ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome |
| Protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets |
| User/Host |
Up to 32 users. 3 levels: administrator, operator and user |
| Security |
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 |
| Network Storage |
Support Micro SD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR |
| Client |
Wired network:Mobile App, iVMS-4200, VMS Platform
Wi-Fi:iVMS-4200, VMS Platform
*Wi-Fi connection with Mobile App directly is not possible. |
| Web Browser |
Plug-in required live view: IE 8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local Service: Chrome 41.0+, Firefox 30.0+ |
| Alarm Trigger |
Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login |
| Wi-Fi |
| Encryption Mode |
-W: WPA, WPA2 |
| Wi-Fi Protocol |
-W: IEEE 802.11b/g/n |
| Frequency Range |
-W: 2.412 GHz to 2.4835 GHz |
| Channel Bandwidth |
-W: 20 MHz |
| Wireless Range |
-W: Up to 50 m (The performance varies based on actual environment) |
| Transfer Rate |
-W:
11b:11 Mbps
11g:54 Mbps
11n:up to 150 Mbps |
| Image |
| Day/Night Switch |
Auto/Schedule/Day/Night/Triggered by Alarm In (-S) |
| Image Enhancement |
BLC/3D DNR/HLC |
| Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| Interface |
| Audio |
-S:
Inputs:2 inputs: line in, or mic in (built-in microphone)
Output:1 output: line out, mono sound, terminal block |
| Alarm |
-S:
Input:1 input: alarm in
Output:1 output: alarm out (max. 12 VDC, 30 mA), terminal block |
| On-board Storage |
Built-in MicroSD/SDHC/SDXC slot, up to 128 GB |
| Hardware Reset |
Yes |
| Communication Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
| Event |
| Basic Event |
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event |
Line crossing detection, intrusion detection, face detection |
| Face Detection |
Yes |
| General |
| Linkage Method |
Trigger recording:memory card, network storage, pre-record and post-record
Trigger captured pictures uploading:FTP, HTTP, NAS, Email
Trigger notification:HTTP, ISAPI, alarm output , Email |
| Firmware Version |
V5.6.5 |
| Web Client Language |
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| General Function |
Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening |
| Startup and Operating Conditions |
-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) |
| Power Supply |
12 VDC:± 25%
PoE:802.3af, class 3 |
| Power Consumption and Current |
12 VDC:0.7 A, max. 8.5 W, Ø5.5mm coaxial plug power
PoE:802.3af, 36 V to 57 V, 0.3 A to 0.1 A, max. 10 W |
| Camera Dimension |
Ø120 mm × 67.4 mm (Ø4.7" × 2.7") |
| Camera Weight |
Camera: approx. 400 g (0.9 lb.) |
| Approval |
| Protection |
Ingress protection:IP66 (IEC 60529-2013)
IK08:IEC 60529-2013 |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Where is the DS-2CD2523G0-IS commonly installed?
The DS-2CD2523G0-IS is commonly installed in office reception areas, retail entrances, apartment lobbies, parking garage access points, covered walkways, school administrative areas, healthcare corridors, and small business entry areas.
Why choose this mini dome camera for a commercial entrance?
Its compact design, 2MP Full HD imaging, built-in microphone, smart event features, local storage, and audio connections make it suitable for discreet entrance monitoring.
Can the DS-2CD2523G0-IS be used in covered outdoor locations?
Yes. The camera has an IP66-rated enclosure and supports operation from -30 °C to 60 °C when installed according to applicable mounting and environmental requirements.
What types of organizations may use this camera?
Offices, retail stores, apartment communities, schools, healthcare facilities, warehouses, parking facilities, and commercial property managers may use this model for general video and audio monitoring.
Does the DS-2CD2523G0-IS support human and vehicle classification?
No human and vehicle target classification is listed in the provided specifications. The camera supports motion detection, line crossing detection, intrusion detection, and face detection.
What smart event functions are included?
The camera supports line crossing detection, intrusion detection, and face detection in addition to basic motion detection and video tampering alerts.
Does this model support two-way audio?
The camera includes a built-in microphone plus audio input and output interfaces, but no built-in speaker is listed. Real-time talk-back requires compatible external audio equipment.
Does the DS-2CD2523G0-IS support local recording and PoE?
Yes. It supports microSD, SDHC, and SDXC cards up to 128 GB and can be powered through IEEE 802.3af PoE or a compatible 12 VDC source.
Can this camera integrate with ONVIF surveillance systems?
Yes. The camera supports ONVIF Profile S, Profile G, and Profile T for integration with compatible professional NVRs and video management systems.
What are the maximum resolution and IR range of the DS-2CD2523G0-IS?
The camera supports a maximum resolution of 1920 × 1080 and provides infrared illumination up to 10 meters.
