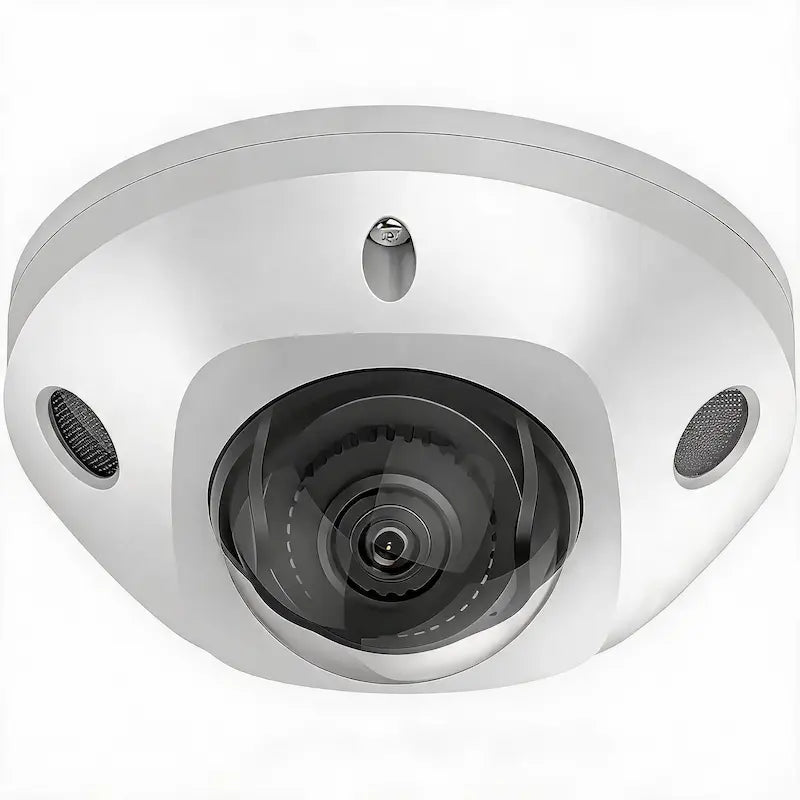

DS-2CD2543G2-IS 4MP 2K AcuSense Mini Dome Camera 2.8mm
4MP mini dome camera with AcuSense detection, built-in microphone, and a 2.8 mm wide-angle lens.
In stock
Questions about camera placement, installation, or compatibility? [Ask a CCTV Specialist]
Installer or Dealer? Request Trade Pricing.
Ships from Bensenville, IL
Fast Order Processing
1-Year Warranty
30-Day Return Window
Designed for compact commercial installations where discreet appearance, intelligent event detection, and built-in audio recording are important, the DS-2CD2543G2-IS combines 4MP video, human and vehicle classification, Smart IR illumination, and local edge storage in a low-profile dome housing.
The camera captures video at up to 2688 × 1520 resolution and is available with 2 mm, 2.8 mm, and 4 mm fixed lens options. Human and vehicle target classification supports more relevant motion and perimeter events, helping security teams reduce alerts caused by general background movement.
Smart IR illumination provides nighttime visibility up to 30 meters, while 120 dB WDR, BLC, HLC, and 3D DNR help maintain usable image detail around entrances, corridors, parking structures, and other areas with challenging lighting conditions.
The DS-2CD2543G2-IS includes a built-in microphone, Audio I/O, alarm input and output, and a microSD card slot supporting up to 512 GB. H.265+ compression, IEEE 802.3af PoE, ONVIF Profile S/G support, IP67 weather protection, and an IK8-rated enclosure support flexible commercial deployment.
Built for Compact Commercial Installations
- 4MP Video Detail – 2688 × 1520 resolution supports clear monitoring across entrances, corridors, and public-facing areas.
- Human and Vehicle Classification – Intelligent target detection helps improve the relevance of motion and perimeter events.
- Built-in Audio Recording – The integrated microphone adds audio context to supported surveillance recordings.
- Flexible Audio Integration – Audio input and output connections support compatible external audio devices.
- Nighttime Monitoring – Smart IR illumination provides visibility up to 30 meters in low-light and zero-light conditions.
- Local Edge Recording – The built-in memory card slot supports up to 512 GB of onboard storage.
Recommended Applications
- Office Building Entrances
- Retail Store Corridors
- Apartment Building Lobbies
- Parking Garage Access Areas
- School Interior Hallways
- Healthcare Facility Corridors
- Commercial Reception Areas
- Warehouse Office Entrances
- Elevator Lobby Areas
- Covered Exterior Walkways
| Camera | |
|---|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm:horizontal FOV 104.3°, vertical FOV 55.9°, diagonal FOV 123.8° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Depth of Field | 2.8 mm:1.4 m to ∞ |
| DORI | |
| DORI | 2.8 mm:D: 64 m, O: 25 m, R: 13 m, I: 6 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz:25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz:30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz:25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz:30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz:10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz:10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
| Video Compression | Main stream:H.265/H.264/H.265+/H.264+ Sub-stream:H.265/H.264/MJPEG Third stream:H.265/H.264 *Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio | |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)/16-64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X (except for -W model), QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G), ISAPI, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client | iVMS-4200, Mobile App, VMS Platform *Wi-Fi connection with Mobile App directly is not possible. |
| Web Browser | Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Wi-Fi | |
| Encryption Mode | -W: 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK |
| Wi-Fi Protocol | -W: 802.11b:CCK, QPSK, BPSK 802.11g/n:OFDM |
| Frequency Range | -W: 2.4 GHz to 2.4835 GHz |
| Channel Bandwidth | -W: 20/40 MHz |
| Modulation | -W: 802.11b:CCK, QPSK, BPSK 802.11g/n:OFDM |
| Transfer Rate | -W: 802.11b:11 Mbps 802.11g:54 Mbps 802.11n:up to 300 Mbps |
| Wireless Range | -W: Up to 80 m (The performance varies based on actual environment) |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD card, up to 512 GB |
| Built-in Microphone | Yes |
| Audio | -IS/IWS: Input:1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium Output:1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | -IS/IWS: 1 input, 1 output (max. 12 VDC, 20 mA) |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Smart Event | Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)) Face detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email |
| General | |
| Power | -IS: 12 VDC ± 25%:0.45 A, max. 5.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE:802.3af, Class 3, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W -IWS: 12 VDC ± 25%:0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE:802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 7 W |
| Dimension | Ø110 mm × 57.4 mm (Ø 4.3" × 2.3") |
| Package Dimension | 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3") |
| Weight | Approx. 380 g (0.8 lb.) |
| With Package Weight | Approx. 615 g (1.4 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-flicker, heartbeat, password reset via email, pixel counter |
| Approval | |
| RF | -W: FCC ID:FCC Part 15.247(BT or 2.4G) CE-RED:EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G) |
| EMC | FCC:47 CFR Part 15, Subpart B CE-EMC:EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014 RCM:AS/NZS CISPR 32: 2015 IC:ICES-003: Issue 7 KC:KN32: 2015, KN35: 2015 |
| Safety | UL:UL 62368-1 CB:IEC 62368-1: 2014+A11 CE-LVD:EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS:2011/65/EU WEEE:2012/19/EU Reach:Regulation (EC) No 1907/2006 |
| Protection | IP67:IEC 60529-2013 IK8:IEC 62262:2002 |
Find answers to common questions about compatibility, installation, image quality, night vision, detection features, audio, storage, and network connectivity.
Where is the DS-2CD2543G2-IS commonly installed?
The DS-2CD2543G2-IS is commonly installed at office entrances, retail corridors, apartment lobbies, parking garage access areas, school hallways, healthcare corridors, reception areas, and covered exterior walkways.
Why choose this compact dome camera for commercial installations?
Its low-profile dome design, 4MP imaging, human and vehicle classification, built-in microphone, local storage, and flexible interface options make it suitable for discreet commercial monitoring.
Can the DS-2CD2543G2-IS be used in covered outdoor areas?
Yes. The camera has an IP67-rated enclosure and supports operation from -30 °C to 60 °C when installed according to applicable mounting and environmental requirements.
What types of organizations may use this camera?
Offices, retail stores, schools, healthcare facilities, apartment communities, warehouses, parking facilities, and commercial property managers may use this model for entrance, corridor, and public-area monitoring.
How does human and vehicle classification improve event monitoring?
Human and vehicle classification helps focus supported motion and perimeter events on relevant targets and can reduce alerts caused by general scene movement.
Does the DS-2CD2543G2-IS support face detection?
Yes. The camera supports face detection in addition to motion detection and perimeter events such as line crossing and intrusion detection.
Does this model support two-way audio?
The camera includes a built-in microphone and separate audio input and output interfaces, but no built-in speaker is listed. Two-way communication requires compatible external audio equipment.
Does the DS-2CD2543G2-IS support local recording and PoE?
Yes. The camera supports microSD cards up to 512 GB and can be powered through IEEE 802.3af PoE or a compatible 12 VDC power source.
Can this camera integrate with ONVIF surveillance systems?
Yes. The provided specifications confirm ONVIF Profile S and Profile G support for integration with compatible NVRs and video management systems.
What is the maximum resolution and IR range of the DS-2CD2543G2-IS?
The camera supports a maximum resolution of 2688 × 1520 and provides Smart IR illumination up to 30 meters.
