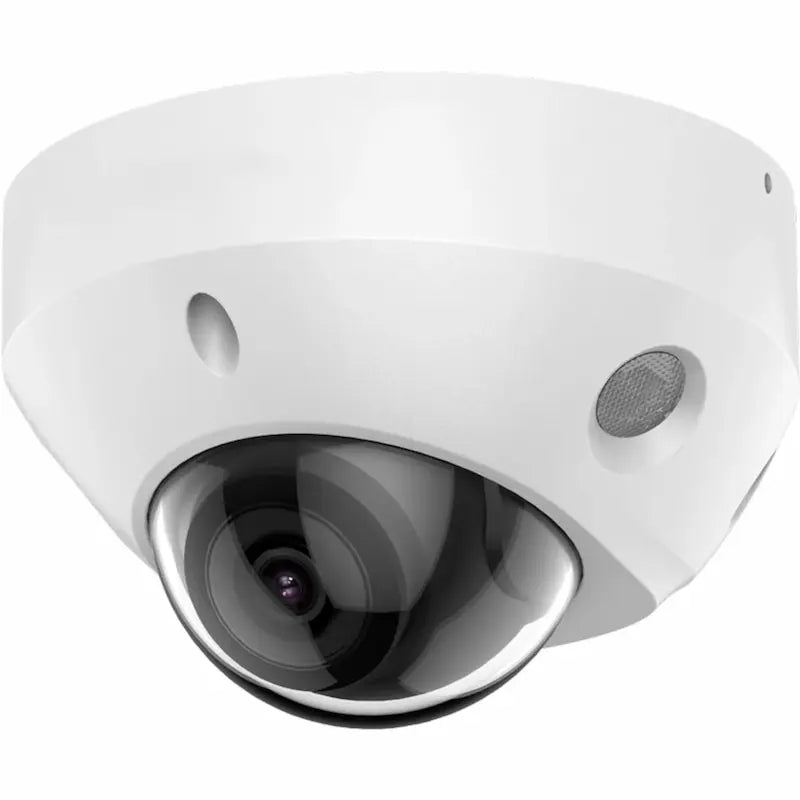

The DS-2CD2583G2-IS is an 8MP AcuSense mini dome camera designed for commercial surveillance applications that require detailed video, intelligent event detection, and a compact installation design.
Its low-profile mini dome housing is suitable for offices, retail stores, schools, healthcare facilities, and other public areas where discreet monitoring is important. The camera provides 8MP resolution for detailed video capture and supports human and vehicle classification to help improve event review efficiency.
Smart IR illumination and 120 dB WDR help maintain clear image quality in changing lighting conditions, including entrances, corridors, reception areas, and outdoor walkways.
With support for onboard storage, audio integration, alarm interfaces, H.265+ compression, and IP67 weather protection, the DS-2CD2583G2-IS provides a flexible solution for indoor and outdoor commercial surveillance deployments.
Key Benefits
-
8MP Detailed Imaging – Provides high-resolution video for commercial monitoring and investigation.
-
AcuSense Human & Vehicle Classification – Helps focus supported events on relevant targets.
-
Compact Mini Dome Design – Fits discreetly into offices, retail spaces, and public areas.
-
Reliable Day and Night Monitoring – Smart IR and 120 dB WDR support changing lighting conditions.
-
Flexible System Integration – Supports audio, alarm connections, and onboard storage.
-
IP67 Weather Protection – Supports indoor and outdoor commercial installations.
Recommended Applications
- Office Building Entrances
- Retail Store Interiors
- School Hallways
- Healthcare Facility Corridors
- Apartment Building Lobbies
- Hotel Common Areas
- Warehouse Personnel Entrances
- Commercial Building Exteriors
| Camera |
|---|
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color:0.005 Lux @ (F1.6, AGC ON)
B/W:0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: -30° to 30°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Lens |
|---|
| Lens Type | Fixed focal lens, 2.8mm optional |
| Focal Length & FOV | 2.8 mm:Horizontal FOV 106.4°, Vertical FOV 58.4°, Diagonal FOV 124.8° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Depth of Field | 2.8 mm:1.4 m to ∞ |
| DORI |
|---|
| DORI | 2.8 mm:D: 88 m, O: 35 m, R: 18 m, I: 9 m |
| Illuminator |
|---|
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video |
|---|
| Main Stream | 50 Hz:20 fps (3840 × 2160); 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:20 fps (3840 × 2160); 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz:25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz:30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz:10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz:10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings. |
| Video Compression | Main stream:H.265/H.264/H.264+/H.265+
Sub-stream:H.265/H.264/MJPEG
Third stream:H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio |
|---|
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)/16-64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Network |
|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G), ISAPI, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client | iVMS-4200, Mobile App, VMS Platform |
| Web Browser | Plug-in required live view:IE 10, IE 11
Plug-in free live view:Chrome 57.0+, Firefox 52.0+
Local service:Chrome 57.0+, Firefox 52.0+ |
| Image |
|---|
| Image Parameters Switch | Yes |
| Image Settings | Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Interface |
|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD card, up to 512 GB |
| Built-in Microphone | Yes |
| Audio | -IS:1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | -IS:1 input, 1 output (max. 12 VDC, 20 mA) |
| Reset Key | Yes |
| Event |
|---|
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Smart Event | Line crossing detection, intrusion detection, face detection |
| Linkage | Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email |
| General |
|---|
| Power | DC:12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE:802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.14 A, max. 8 W |
| Dimension | Ø113.6 mm × 72.6 mm (Ø4.5″ × 2.9″) |
| Package Dimension | 134 mm × 134 mm × 108 mm (5.3″ × 5.3″ × 4.3″) |
| Weight | Approx. 400 g (0.9 lb.) |
| With Package Weight | Approx. 635 g (1.4 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Anti-flicker, heartbeat, password reset via e-mail, pixel counter |
| Approval |
|---|
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN32: 2015, KN35: 2015) |
| Safety | UL (UL 62368-1); CB (IEC 62368-1: 2014+A11); CE-LVD (EN 62368-1: 2014/A11: 2017) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67: IEC 60529-2013, IK08: IEC 62262:2002 |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Where is the DS-2CD2583G2-IS commonly installed?
This dome camera is commonly installed in office buildings, retail stores, schools, healthcare facilities, apartment entrances, hotel corridors, and other commercial environments requiring discreet surveillance.
Why choose a dome camera for commercial buildings?
Dome cameras provide a compact appearance, flexible installation, and wide-area coverage, making them well suited for public areas where aesthetics and reliable monitoring are equally important.
Is this camera suitable for schools and healthcare facilities?
Yes. Its compact dome design, AI human and vehicle classification, and durable construction make it a practical choice for educational and healthcare environments.
Can this camera be used outdoors?
Yes. The IP67 weather-resistant housing allows reliable operation in outdoor commercial environments such as building entrances, walkways, and public access areas.
Who should consider this model?
This model is designed for security installers, system integrators, facility managers, IT departments, and organizations requiring intelligent commercial surveillance.
What are the advantages of AcuSense technology?
AcuSense technology distinguishes people and vehicles from other moving objects, helping reduce nuisance alarms and improving monitoring efficiency.
Does this camera support audio integration?
Yes. The camera includes a built-in microphone along with audio input and output interfaces for integration with compatible surveillance systems.
Does the DS-2CD2583G2-IS support PoE?
Yes. It supports IEEE 802.3af Power over Ethernet for simplified installation using a single Ethernet cable for power and network connectivity.
Can recordings be stored on the camera?
Yes. The built-in microSD card slot supports storage capacities up to 512 GB for local recording in addition to compatible network storage.
What is the maximum recording resolution?
The camera supports a maximum resolution of 3840 × 2160, providing detailed 8MP video for commercial surveillance applications.
