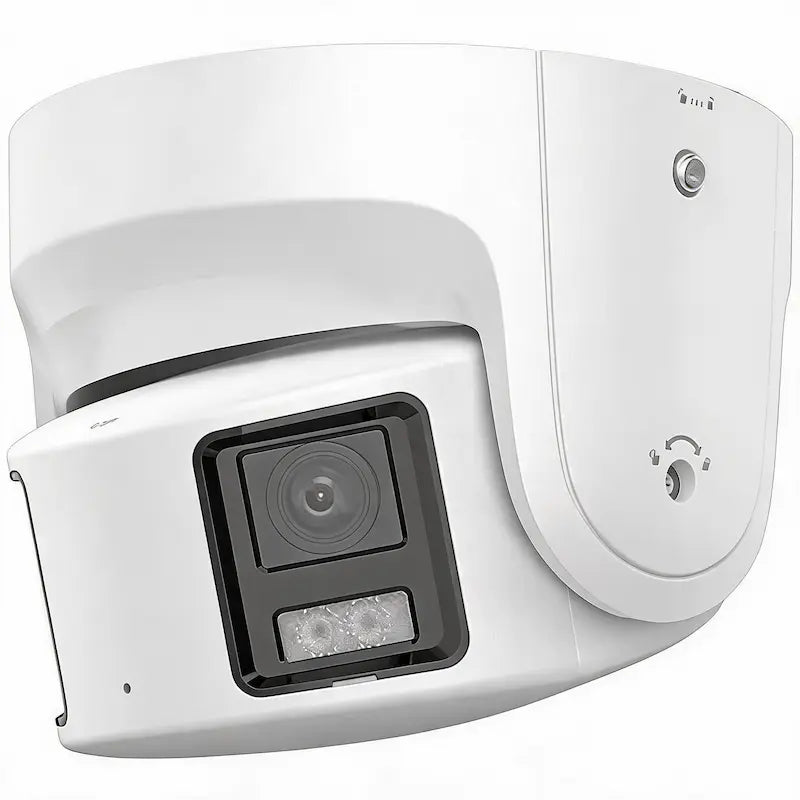

The DS-2CD3387G2P-LSU/SL is an 8MP panoramic turret camera designed for commercial surveillance applications that require wide-area coverage, intelligent detection, and active deterrence capabilities.
Its panoramic dual-lens design helps monitor large areas with fewer cameras, making it ideal for warehouses, parking areas, logistics facilities, commercial buildings, school campuses, and industrial properties where broad visibility is important.
Powered by intelligent human and vehicle classification, the camera helps security teams focus on relevant events while reducing unnecessary alerts. Integrated strobe lighting and audible warnings provide an active response option for monitored areas and restricted zones.
The camera delivers reliable day and night monitoring with full-color imaging, two-way audio, and flexible system integration. With support for professional surveillance platforms, it provides a practical solution for wide-area commercial security deployments.
Key Benefits
-
180° Panoramic Coverage – Monitors wide areas while helping reduce blind spots and camera count.
-
Human and Vehicle Classification – Helps improve event accuracy and security monitoring efficiency.
-
Active Deterrence – Strobe light and audible warnings support proactive response options.
-
24/7 Full-Color Monitoring – Maintains color visibility in low-light surveillance environments.
-
Two-Way Audio – Supports communication and additional event verification.
-
Commercial System Integration – Designed for professional surveillance deployments.
Recommended Applications
- Warehouse Perimeters
- Logistics Centers
- Parking Areas
- Manufacturing Facilities
- School Campuses
- Retail Property Entrances
- Commercial Building Exteriors
- Industrial Site Monitoring
| Camera |
|---|
| Image Sensor | 2 × 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 5120 × 1440 |
| Min. Illumination | Color:0.0005 Lux @ (F1.0, AGC ON)
0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Angle Adjustment | Pan: 0° to 30°, Tilt: -75° to 75° |
| Lens |
|---|
| Lens Type | Fixed focal lens, dual lens: 4 mm |
| Focal Length & FOV | 4 mm:Horizontal FOV 180° ± 10°, Vertical FOV 44° |
| Lens Mount | M16 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth of Field | 3.6 m to ∞ |
| DORI |
|---|
| DORI | 4 mm:D: 77 m, O: 30 m, R: 15 m, I: 7 m |
| Illuminator |
|---|
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| Video |
|---|
| Main Stream | When WDR is On:50 Hz: 12.5 fps (5120 × 1440); 60 Hz: 15 fps (5120 × 1440)
When WDR is Off:50 Hz: 20 fps (5120 × 1440); 60 Hz: 20 fps (5120 × 1440) |
| Sub-Stream | When WDR is On:50 Hz: 12.5 fps (1920 × 536, 960 × 272); 60 Hz: 15 fps (1920 × 536, 960 × 272)
When WDR is Off:50 Hz: 20 fps (1920 × 536, 960 × 272); 60 Hz: 20 fps (1920 × 536, 960 × 272) |
| Video Compression | Main stream:H.265+/H.265/H.264+/H.264
Sub-stream:H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Audio |
|---|
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Network |
|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users. 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), NVR
Together with high-end Hik memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, Mobile App, VMS Platform |
| Web Browser | Plug-in required live view:IE 10, IE 11
Plug-in free live view:Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service:Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image |
|---|
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 130 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 8 rectangular privacy masks |
| Interface |
|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | Yes |
| Built-in Speaker | Max. power consumption: 1.2 W. Max. sound pressure: 10 cm: 95 dB |
| Audio | 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | 1 input, 1 output (max. 24 VDC, 1 A) |
| Reset Key | Yes |
| Event |
|---|
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), alarm input and output, flashing alarm light output, audible alarm output, exception |
| Smart Event | Scene change detection, audio exception detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing |
| Deep Learning Function |
|---|
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle) |
| General |
|---|
| Power | DC:12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug
PoE:IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W |
| Material | Base: metal, cover: metal |
| Dimension | Ø155 mm × 155.7 mm (Ø6.1″ × 6.1″) |
| Package Dimension | 230 mm × 230 mm × 230 mm (9″ × 9″ × 9″) |
| Weight | Approx. 1110 g (2.4 lb.) |
| With Package Weight | Approx. 1900 g (4.2 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-banding, heartbeat, password reset via email, password protection, one-key reset |
| Approval |
|---|
| EMC | FCC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7 |
| Safety | UL: UL 62368-1; CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
What makes the DS-2CD3387G2P-LSU/SL different from a standard turret camera?
Its dual-lens design provides a seamless 180° panoramic view, allowing a single camera to monitor a much wider area than a conventional turret camera.
Where is a 180° panoramic camera most effective?
It is ideal for warehouse perimeters, parking lots, logistics centers, industrial facilities, retail plazas, and other large commercial spaces where wide-area visibility is important.
Does this camera provide color images at night?
Yes. The F1.0 aperture and white-light illumination enable 24/7 full-color monitoring in low-light environments.
How does active deterrence improve commercial security?
The integrated white flashing light and audible warning help discourage unauthorized activity before an incident escalates.
Who should deploy this camera?
This model is designed for security installers, system integrators, facility managers, and organizations protecting large commercial properties.
What AI detection features are included?
The camera supports human and vehicle classification with perimeter protection, including line crossing, intrusion, region entrance, and region exiting detection.
Does this camera support two-way audio?
Yes. It includes a built-in microphone, built-in speaker, and audio input/output interfaces for two-way communication.

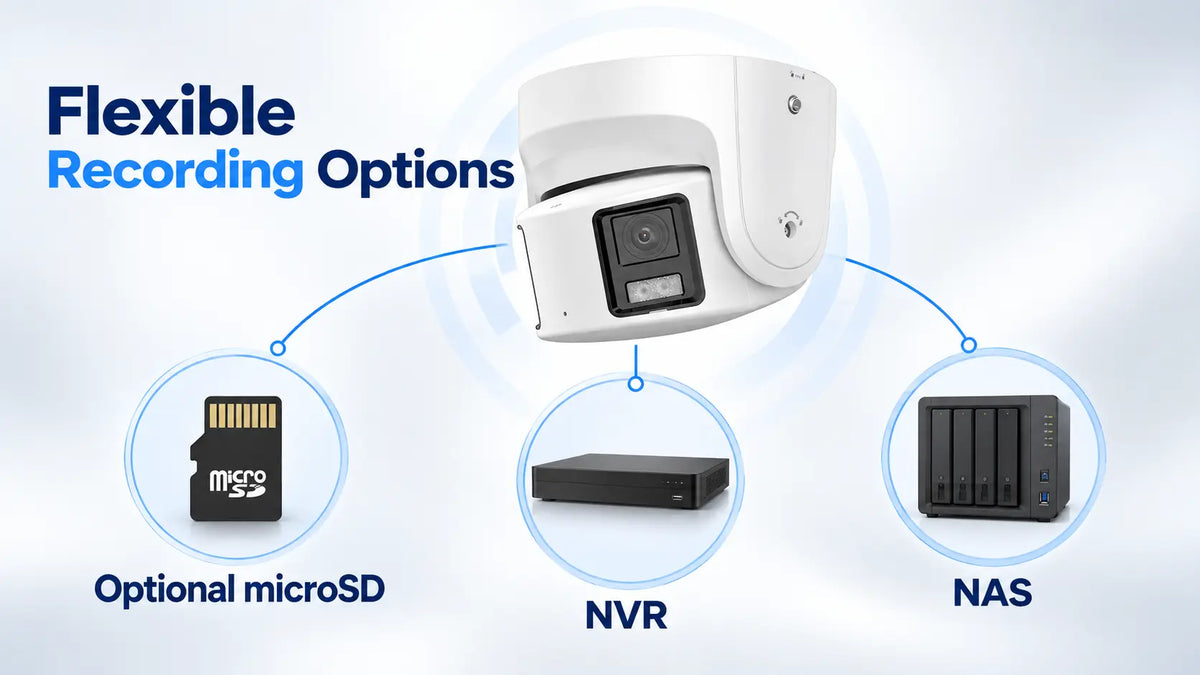

Can video recordings be stored locally?
Yes. The integrated microSD card slot supports cards up to 512 GB for local edge recording.
Is the camera compatible with ONVIF systems?
Yes. It supports ONVIF Profile S, G, and T for integration with compatible video management systems.
How many traditional cameras can a 180° panoramic model replace?
Depending on the installation environment, a 180° panoramic camera can often reduce the number of standard fixed cameras required to monitor wide commercial areas.
