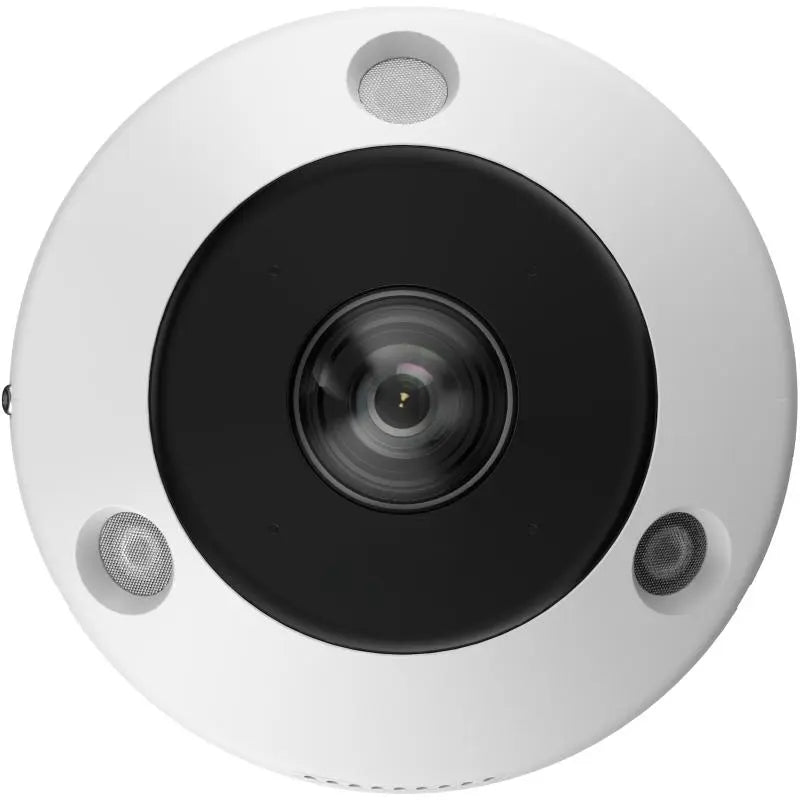

The DS-2CD6365G1-IVS is a 6MP DeepinView fisheye network camera designed for commercial environments that need wide-area visibility, intelligent analytics, and flexible viewing from a single camera location. With a 180° fisheye lens, multiple dewarping modes, and 2560 × 2560 resolution, it provides practical coverage for retail stores, office lobbies, schools, healthcare facilities, warehouses, transportation areas, and public-facing business spaces.
Deep learning analytics help turn surveillance video into useful business and security insight. The camera supports heat map reporting, people counting, queue management, and intersection analysis, making it suitable for analyzing visitor movement, dwell time, queue performance, traffic flow, and space utilization.
Multiple dewarping modes allow the fisheye image to be displayed in more intuitive viewing layouts, including panoramic views, PTZ-style views, fisheye plus PTZ layouts, hemisphere views, and 4PTZ fusion view. This helps operators monitor large open spaces without relying on multiple conventional cameras in every area.
The built-in 4-microphone array and speaker support two-way audio communication, while IR illumination provides visibility in low-light and zero-light environments up to 15 meters. With IP67 weather protection, IK10 vandal resistance, Audio I/O, alarm I/O, RS-485, ONVIF compatibility, and onboard edge recording, the DS-2CD6365G1-IVS is built for professional commercial surveillance and analytics deployments.
360° Coverage Advantages
-
Fisheye Wide-Area Monitoring – 180° horizontal and vertical coverage helps reduce blind spots from a single camera position.
-
Flexible Dewarping Modes – Multiple display modes provide intuitive views for live monitoring, playback, and situational awareness.
-
Business Intelligence Analytics – Heat map, people counting, queue management, and intersection analysis help analyze visitor movement and area usage.
-
Two-Way Communication – Built-in microphones and speaker support real-time audio monitoring and communication through compatible systems.
-
Durable Commercial Design – IP67 and IK10 ratings support demanding environments where weather and tamper resistance matter.
-
Professional Integration – Audio I/O, alarm I/O, RS-485, ONVIF support, and onboard storage provide flexible system integration options.
Recommended Applications
- Retail Store Sales Floors
- Shopping Center Corridors
- Office Lobbies
- School Common Areas
- Healthcare Waiting Areas
- Warehouse Interior Zones
- Transportation Facilities
- Banking Halls
- Hotel Lobbies
- Public Service Areas
| Camera |
| Image Sensor |
1/1.8" Progressive Scan CMOS |
| Max. Resolution |
2560 × 2560 |
| Min. Illumination |
Color: 0.01 Lux @ (F2.25, AGC ON),B/W: 0.005 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR |
| Shutter Time |
1 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Lens |
| Lens Type |
Fixed focal lens, 1.16 mm |
| Focal Length & FOV |
1.16 mm:Horizontal FOV 180°, vertical FOV 180° |
| Iris Type |
Fixed |
| Aperture |
F2.25 |
| Depth of Field |
0.2 m to ∞ |
| DORI |
| DORI |
D:23.2 m
O:9.2 m
R:4.6 m
I:2.3 m |
| Illuminator |
| Supplement Light Type |
IR |
| Supplement Light Range |
Up to 15 m |
| Supplement Light Number |
3 |
| IR Wavelength |
850 nm |
| Smart Supplement Light |
Yes |
| HEOP |
| Open Resources |
Memory:60 MB
Smart RAM:800 MB
eMMC:2 GB |
| Computing Power |
2 TOPS |
| Open Capability |
HEOP 2.0 OpendevSDK |
| Deep Learning Structure |
Caffe,TensorFlow,PyTorch |
| Programming Language |
C,C++ |
| Video |
| Main Stream |
50 Hz:25 fps /60 Hz:30 fps
Fisheye View:
2560 × 2560, 2048 × 2048, 1280 × 1280
180 Panorama View:
2048 × 1536, 1920 × 1440
180 Dual Channel Panorama View:
2048 × 768, 1920 × 720
Panorama View:
2048 × 1536, 1920 × 1440
4PTZ View:
camera 01/camera 02/camera 03/camera 04: 1024 × 768
Fisheye + 3PTZ View:
camera 01: 2048 × 2048, 1024 × 1024
camera 02/camera 03/camera 04: 1024 × 768
4PTZ Fusion View:
2048 × 1536, 1600 × 1200 |
| Sub-Stream |
50 Hz:25 fps /60 Hz:30 fps
Fisheye View:
720 × 720, 480 × 480
180 Panorama View:
640 × 480, 320 × 240
180 Dual Channel Panorama View:
640 × 480, 320 × 240
Panorama View:
640 × 360, 320 × 240
4PTZ View:
camera 01/camera 02/camera 03/camera 04: 640 × 480, 320 × 240
Fisheye + 3PTZ View:
camera 01: 720 × 720
camera 02/camera 03/camera 04: 640 × 480, 320 × 240 |
| Video Compression |
Main stream:H.265+/H.265/H.264+/ H.264
Sub-stream:H.265/H.264/MJPEG |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| H.264 Type |
Baseline Profile,Main Profile,High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR,VBR |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
| Region of Interest (ROI) |
4 fixed regions for each stream |
| Fisheye Display |
| Mount Type |
Support wall/table/ceiling mounting |
| Decoding Mode |
Support hardware decoding and software decoding |
| Display Mode |
20 display modes in total
Software decoding:fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder
Hardware decoding:fisheye view, 180 panorama view, 180 dual channel panorama, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion |
| Audio |
| Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering |
Yes |
| Network |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets, SIP |
| Simultaneous Live View |
Up to 20 channels |
| API |
Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX |
| User/Host |
Up to 32 users
3 user levels: administrator, operator, and user |
| Security |
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) |
| Network Storage |
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Together with high-end Hik memory card, memory card encryption and health detection are supported. |
| Client |
iVMS-4200,iVMS-4500,iVMS-5200,Mobile App |
| Web Browser |
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image |
| Image Parameters Switch |
Yes |
| Image Settings |
saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser |
| Day/Night Switch |
Day,Night,Auto,Schedule,Alarm Trigger |
| Wide Dynamic Range (WDR) |
120 dB |
| Image Enhancement |
BLC,HLC,3D DNR,Distortion Correction,Defog |
| Privacy Mask |
8 programmable polygon privacy masks |
| Picture Overlay |
LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. |
| Interface |
| Ethernet Interface |
1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
| On-Board Storage |
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
| Built-in Microphone |
Yes, 4 built-in microphones |
| Built-in Speaker |
Yes, 1 built-in speaker |
| Audio |
Input:1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
Output:1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm |
2 inputs, 2 outputs (max. 24 VDC, 1 A) |
| RS-485 |
1 RS-485 (Half duplex, Hik, Pelco-P, Pelco-D, self-adaptive) |
| Reset Key |
1 Reset Key |
| Event |
| Basic Event |
Motion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection |
| Linkage |
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture |
| Deep Learning Function |
| People Counting |
Counts people entering, exiting and passing by separately (The data is stored in the flash.)
Supports real-time uploading and uploading by statistic cycle
Sends email reports on daily, weekly, monthly or annually basis
Supports up to 3 detection regions, and independent arming schedule and linkage method |
| Queue Management |
Supports up to 8 detection regions, and independent arming schedule and linkage method
Supports 2 detection modes: regional people queuing-up, waiting time detection
Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue
Supports raw data export for further analysis
Supports real-time data uploading and scheduled data uploading
Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold
Waiting time detection: supports 1 alarm trigger condition, including greater than threshold |
| Heat Map |
A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.
Two report types are available, space heat map and time heat map line chart. |
| Intersection Analysis |
Detects and analyze flow in an intersection-like scene, and generate reports
Support one intersection of up to 10 ways |
| General |
| Power |
12 VDC ± 20%:1 A, max. 11.5 W,two-core terminal block
PoE:IEEE 802.3af, Class 3, max. 12.5 W |
| Material |
Metal |
| Dimension |
Ø140.3 mm × 59.4 mm (Ø5.5" × 2.3") |
| Package Dimension |
260 mm × 230 mm × 135 mm (10.2" × 9.1" × 5.3") |
| Weight |
Approx. 715 g (1.58 lb.) |
| With Package Weight |
Approx. 1206 g (2.66 lb.) |
| Storage Conditions |
-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language |
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function |
Heartbeat,flash log,password reset via email,password protection,one-key reset,anti-banding |
| Heater |
Yes |
| Cable Length |
0.31 m (1.02 ft.) |
| Approval |
| EMC |
CE-EMC:EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019
RCM:AS/NZS CISPR 32: 2015
IC:ICES-003: Issue 7
KC:KN32: 2015, KN35: 2015 |
| Safety |
UL:UL 62368-1
CB:IEC 62368-1: 2014+A11
CE-LVD:EN 62368-1: 2014/A11: 2017
BIS:IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
| Environment |
CE-RoHS:2011/65/EU
WEEE:2012/19/EU
Reach:Regulation (EC) No 1907/2006 |
| Protection |
IP67:IEC 60529-2013
IK10:IEC 62262:2002 |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Where is the DS-2CD6365G1-IVS commonly installed?
The DS-2CD6365G1-IVS is commonly installed in retail stores, shopping centers, office lobbies, school common areas, healthcare waiting rooms, warehouse interiors, transportation facilities, banking halls, hotels, and public service areas.
Is this camera suitable for retail analytics?
Yes. The camera supports heat map reporting, people counting, queue management, and intersection analysis, making it useful for retail traffic analysis, dwell time review, queue performance, and store layout evaluation.
Can the DS-2CD6365G1-IVS replace multiple standard cameras?
In many open-area applications, yes. Its fisheye lens and dewarping modes provide broad panoramic coverage from a single camera location, which can reduce the need for multiple fixed cameras in some spaces.
What types of businesses typically deploy this fisheye camera?
Retail businesses, shopping centers, schools, healthcare facilities, hotels, offices, banks, transportation facilities, warehouses, and commercial property managers commonly deploy this model for wide-area monitoring and analytics.
What heatmap features does the DS-2CD6365G1-IVS support?
The camera supports heat map reporting based on people count or dwell time in configured areas, with space heat map and time heat map line chart report types.
Does this camera support people counting and queue management?
Yes. The camera supports people counting for entering, exiting, and passing-by traffic, as well as queue management with regional people queuing-up and waiting time detection.
Does the DS-2CD6365G1-IVS support two-way audio?
Yes. The camera includes four built-in microphones and one built-in speaker, and it also provides audio input and output interfaces for compatible external audio integration.
What dewarping modes are supported?
The camera supports multiple display modes, including fisheye view, 180 panorama view, 360 panorama view, 360 panorama with PTZ views, 4PTZ view, fisheye plus PTZ layouts, hemisphere, AR hemisphere, cylinder, and 4PTZ fusion views depending on decoding mode.
Is this camera compatible with ONVIF systems?
Yes. It supports ONVIF Profile S, Profile G, and Profile T for integration with compatible professional NVRs and video management systems.
What is the maximum video resolution of the DS-2CD6365G1-IVS?
The camera supports a maximum resolution of 2560 × 2560, delivering 6MP fisheye video for wide-area commercial surveillance.
