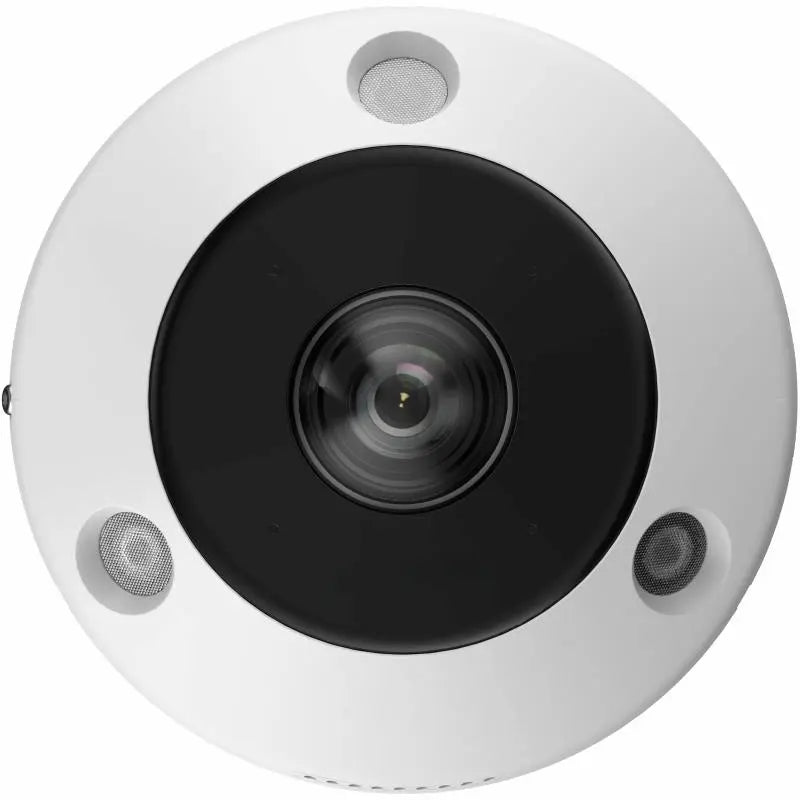

The DS-2CD63C5G1-IVS is a 12MP DeepinView fisheye network camera designed for commercial spaces that require wide-area monitoring, intelligent analytics, and flexible viewing from a single installation point.
Its fisheye lens provides broad scene coverage for retail floors, office lobbies, school common areas, healthcare facilities, warehouses, and other locations where reducing blind spots and camera count is important.
Multiple dewarping modes transform the fisheye image into practical panoramic and PTZ-style views, helping operators monitor large areas more naturally during live viewing and playback. Deep learning analytics support people counting, heat mapping, queue management, and intersection analysis for both security monitoring and business insight.
Integrated infrared illumination supports low-light monitoring, while the built-in microphone array and speaker enable compatible two-way audio applications. The durable enclosure and onboard recording support make the camera suitable for professional indoor and protected outdoor deployments.
Key Benefits
-
12MP Fisheye Imaging – Captures detailed video across a wide monitoring area from one camera position.
-
Wide-Area Coverage – Helps reduce blind spots in open commercial and public-facing spaces.
-
Flexible Dewarping Views – Supports panoramic, multi-PTZ, and combined viewing layouts.
-
Business Analytics – Provides people counting, heat map, queue, and movement analysis tools.
-
Two-Way Audio Support – Built-in microphones and speaker enable compatible audio communication.
-
Commercial-Grade Design – Supports demanding installations requiring weather and impact resistance.
Recommended Applications
- Retail Store Sales Floors
- Shopping Center Corridors
- Office Lobbies
- School Common Areas
- Healthcare Waiting Areas
- Warehouse Interior Zones
- Transportation Facilities
- Banking Halls
- Hotel Lobbies
- Public Service Areas
| Camera |
|---|
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3504 × 3504 |
| Min. Illumination | Color: 0.03 Lux @ (F2.2, AGC ON), B/W: 0.006 Lux @ (F2.2, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Lens |
|---|
| Lens Type | Fixed focal lens, 1.29 mm |
| Focal Length & FOV | 1.29 mm, Horizontal FOV 180°, Vertical FOV 180° |
| Iris Type | Fixed |
| Aperture | F2.2 |
| Depth of Field | 0.2 m to ∞ |
| DORI |
|---|
| DORI | D: 27.9 m
O: 11.1 m
R: 5.6 m
I: 2.8 m |
| Illuminator |
|---|
| Supplement Light Type | IR |
| Supplement Light Range | Up to 15 m |
| Supplement Light Number | 3 |
| IR Wavelength | 850 nm |
| Smart Supplement Light | Yes |
| HEOP |
|---|
| Open Resources | Memory: 60 MB
Smart RAM: 800 MB
eMMC: 2 GB |
| Computing Power | 2 TOPS |
| Open Capability | HEOP 2.0 OpendevSDK |
| Deep Learning Structure | Caffe, TensorFlow, PyTorch |
| Programming Language | C, C++ |
| Video |
|---|
| Main Stream | 50 Hz: 25 fps / 60 Hz: 30 fps
Fisheye View:3504 × 3504, 3024 × 3024, 2560 × 2560, 2048 × 2048
180° Panorama View:3072 × 2304, 2048 × 1536
180° Dual Channel Panorama View:3072 × 1152
Panorama View:3072 × 2304, 2048 × 1536
4PTZ View:Camera 01/02/03/04: 1600 × 1200
Fisheye + 3PTZ View:Camera 01: 2560 × 2560, 2048 × 2048, 1280 × 1280; Camera 02/03/04: 1600 × 1200
4PTZ Fusion View:3200 × 2400, 2048 × 1536 |
| Sub-Stream | 50 Hz: 25 fps / 60 Hz: 30 fps
Fisheye View:720 × 720, 480 × 480
180° Panorama View:640 × 480, 320 × 240
180° Dual Channel Panorama View:640 × 480, 320 × 240
Panorama View:640 × 360, 320 × 240
4PTZ View:Camera 01/02/03/04: 640 × 480, 320 × 240
Fisheye + 3PTZ View:Camera 01: 720 × 720; Camera 02/03/04: 640 × 480, 320 × 240 |
| Video Compression | Main Stream:H.265+/H.265/H.264+/H.264
Sub-Stream:H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 4 fixed regions for each stream |
| Fisheye Display |
|---|
| Mount Type | Support wall/table/ceiling mounting |
| Decoding Mode | Support hardware decoding and software decoding |
| Display Mode | 20 display modes in total
Software Decoding:Fisheye view, 180° panorama view, 360° panorama view, 360° panorama + PTZ, 360° panorama + 3PTZ, 360° panorama + 6PTZ, 360° panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder
Hardware Decoding:Fisheye view, 180° panorama view, 180° dual channel panorama, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion |
| Audio |
|---|
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 192 Kbps (MP2L2) / 8 to 320 Kbps (MP3) / 16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Network |
|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets, SIP |
| Simultaneous Live View | Up to 20 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Supports Session Initiation Protocol (SIP) for integration with VoIP systems, peer-to-peer or integrated with SIP/PBX |
| User/Host | Up to 32 users
3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Together with high-end Hik memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, iVMS-4500, iVMS-5200, Mobile App |
| Web Browser | Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image |
|---|
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule, Alarm Trigger |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | BLC, HLC, 3D DNR, distortion correction, defog |
| Privacy Mask | 8 programmable polygon privacy masks |
| Picture Overlay | Logo picture can be overlaid on video with 128 × 128 24-bit BMP format |
| Interface |
|---|
| Ethernet Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
| Built-in Microphone | Yes, 4 built-in microphones |
| Built-in Speaker | Yes, 1 built-in speaker |
| Audio | 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | 2 inputs, 2 outputs (max. 24 VDC, 1 A) |
| RS-485 | 1 RS-485 (half duplex, Hik, Pelco-P, Pelco-D, self-adaptive) |
| Reset Key | 1 reset key |
| Event |
|---|
| Basic Event | Motion detection, video tampering alarm, alarm input and output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture |
| Deep Learning Function |
|---|
| People Counting | Counts people entering, exiting, and passing by separately (data stored in flash)
Supports real-time uploading and uploading by statistic cycle
Sends email reports on a daily, weekly, monthly, or annual basis
Supports up to 3 detection regions, with independent arming schedule and linkage method |
| Queue Management | Supports up to 8 detection regions, with independent arming schedule and linkage method
Supports 2 detection modes: regional people queuing-up, waiting time detection
Generates reports comparing efficiency of different queuing-ups and displays changing queue status
Supports raw data export for further analysis
Supports real-time and scheduled data uploading
Regional queuing-up supports 4 alarm trigger conditions (greater than, less than, equal to, not equal to threshold); waiting time detection supports 1 (greater than threshold) |
| Heat Map | A graphic description of visits (by amount of people or dwell time) in a configured area
Two report types available: space heat map and time heat map line chart |
| Intersection Analysis | Detects and analyzes flow in an intersection-like scene and generates reports
Supports one intersection of up to 10 ways |
| General |
|---|
| Power | DC Power:12 VDC ± 20%, 1 A, max. 11.5 W, two-core terminal block
PoE:IEEE 802.3af, Class 3, max. 12.5 W |
| Material | Metal |
| Dimension | Ø140.3 mm × 59.4 mm (Ø5.5" × 2.3") |
| Package Dimension | 260 mm × 230 mm × 135 mm (10.2" × 9.1" × 5.3") |
| Weight | Approx. 715 g (1.58 lb.) |
| With Package Weight | Approx. 1206 g (2.66 lb.) |
| Storage Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Heartbeat, flash log, password reset via email, password protection, one-key reset, anti-banding |
| Heater | Yes |
| Cable Length | 0.31 m (1.02 ft.) |
| Approval |
|---|
| EMC | CE-EMC:EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019
RCM:AS/NZS CISPR 32: 2015
IC:ICES-003: Issue 7
KC:KN32: 2015, KN35: 2015 |
| Safety | UL:UL 62368-1
CB:IEC 62368-1: 2014+A11
CE-LVD:EN 62368-1: 2014/A11: 2017
BIS:IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
| Environment | CE-RoHS:2011/65/EU
WEEE:2012/19/EU
Reach:Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013, IK10: IEC 62262:2002 |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Where is the DS-2CD63C5G1-IVS commonly installed?
The DS-2CD63C5G1-IVS is commonly installed in retail stores, shopping centers, office lobbies, school common areas, healthcare waiting rooms, warehouse interiors, transportation facilities, and other commercial spaces requiring wide-area visibility.
Is this camera suitable for retail analytics?
Yes. The camera supports heat map reporting, people counting, queue management, and intersection analysis, making it useful for retail traffic analysis, dwell time review, queue performance, and store layout evaluation.
Can the DS-2CD63C5G1-IVS replace multiple standard cameras?
In many open-area applications, yes. Its fisheye lens and dewarping modes provide broad panoramic coverage from a single camera location, which can reduce the need for multiple fixed cameras in some spaces.
What types of businesses typically deploy this fisheye camera?
Retail businesses, shopping centers, schools, healthcare facilities, hotels, offices, banks, transportation facilities, warehouses, and commercial property managers commonly deploy this model for wide-area monitoring and analytics.
What heatmap features does the DS-2CD63C5G1-IVS support?
The camera supports heat map reporting based on people count or dwell time in configured areas, with space heat map and time heat map line chart report types.
Does this camera support two-way audio?
Yes. The camera includes four built-in microphones and one built-in speaker, and it also provides audio input and output interfaces for compatible audio integration.
What dewarping modes are supported?
The camera supports multiple display modes, including fisheye view, 180 panorama view, 360 panorama view, 360 panorama with PTZ views, 4PTZ view, fisheye plus PTZ layouts, hemisphere, AR hemisphere, and cylinder views depending on decoding mode.
Is this camera compatible with ONVIF systems?
Yes. It supports ONVIF Profile S, Profile G, and Profile T for integration with compatible professional NVRs and video management systems.
Is the DS-2CD63C5G1-IVS designed for demanding environments?
Yes. The camera has IP67 weather protection and IK10 vandal resistance, making it suitable for demanding commercial environments where durability is important.
What is the maximum video resolution of the DS-2CD63C5G1-IVS?
The camera supports a maximum resolution of 3504 × 3504, delivering 12MP fisheye video for wide-area commercial surveillance.
