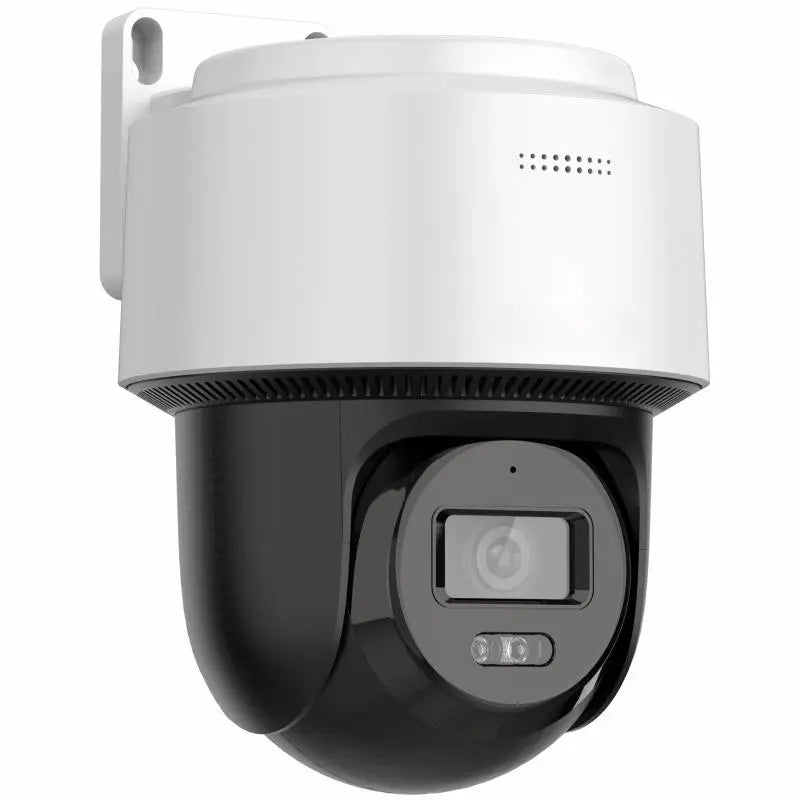

The DS-2DE2C400MWG-E is a 4MP outdoor Smart Hybrid Light PT network camera designed for commercial locations that need flexible viewing control, intelligent human detection, two-way audio, and reliable outdoor monitoring. With 2560 × 1440 resolution and pan-tilt movement, it provides practical coverage for entrances, storefronts, walkways, service areas, parking access points, and small business exteriors.
Human detection helps the camera focus on relevant activity instead of general motion, while Auto-Tracking Lite supports automatic tracking of human targets within the camera’s movement range. This makes it useful for businesses that need improved awareness around entry points, exterior doors, and customer-facing outdoor areas.
Smart Hybrid Light combines infrared and white light illumination to support nighttime monitoring in different lighting conditions. With IR and white light range up to 30 meters, the camera can provide flexible visibility for commercial entrances, drive-up areas, loading zones, and outdoor walkways.
Built-in two-way audio allows real-time communication through compatible surveillance systems, while onboard microSD storage up to 512 GB supports local edge recording. With ONVIF compatibility, PoE support, remote management capability, and IP66 weather protection, the DS-2DE2C400MWG-E is a practical PT solution for professional commercial surveillance deployments.
PT Monitoring Benefits
-
Flexible Pan-Tilt Coverage – PT movement allows operators to monitor more area than a fixed-view camera from a single installation point.
-
Human Detection – Target-based detection helps reduce unnecessary alerts caused by general motion.
-
Auto-Tracking Lite – Supports automatic human target tracking within the camera’s movement range.
-
Smart Hybrid Light – IR and white light illumination support adaptable nighttime visibility up to 30 meters.
-
Two-Way Audio – Built-in microphone and speaker allow real-time communication through compatible platforms.
-
Local Edge Storage – Built-in microSD card slot supports up to 512 GB for onboard recording.
Recommended Applications
- Retail Store Entrances
- Small Business Exteriors
- Office Building Access Points
- Commercial Walkways
- Parking Area Entrances
- Apartment Community Entrances
- School Exterior Doors
- Warehouse Side Entrances
- Service Yard Monitoring
- Outdoor Reception Areas
| Camera |
|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with light |
| Lens |
|---|
| Focal Length | 2.8 mm |
| FOV | 2.8 mm:Horizontal FOV 94°, Vertical FOV 49°, Diagonal FOV 114° |
| Aperture | F1.6 |
| Illuminator |
|---|
| Supplement Light Type | IR, White Light |
| Supplement Light Range | White light distance: up to 30 m, IR distance: up to 30 m |
| IR Wavelength | 850 nm |
| PTZ |
|---|
| Movement Range (Pan) | 0° to 345° |
| Movement Range (Tilt) | 0° to 80° |
| Pan Speed | Up to 25°/s |
| Tilt Speed | Up to 20°/s |
| Video |
|---|
| Main Stream | 50 Hz:20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz:20 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz:25 fps (640 × 480, 640 × 360) |
| Video Compression | H.265, H.264, MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline profile, Main profile, High profile |
| H.265 Type | Main profile |
| Audio |
|---|
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 16 Kbps (G.722.1)/64 Kbps (G.711)/32 to 192 Kbps (MP2L2)/16 Kbps (G.726)/16 to 64 Kbps (AAC-LC)/8 to 48 Kbps (PCM) |
| Audio Sampling Rate | 8 kHz, 16 kHz |
| Environment Noise Filtering | Yes |
| Network |
|---|
| Protocols | IPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, DNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK |
| Image |
|---|
| Image Settings | Saturation, brightness, contrast, and sharpness adjustable by client software or web browser |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | BLC, HLC, 3D DNR |
| Interface |
|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Built-in Microphone | 1 built-in microphone |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Speaker | 1 built-in speaker |
| Event |
|---|
| Basic Event | Motion detection (support alarm triggering by specified target type — human), video tampering alarm, exception |
| Linkage | Upload to FTP/memory card, notify surveillance center, send email, trigger capture, audible warning, auto-tracking lite |
| General |
|---|
| Power | 12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: IEEE 802.3af, 36 V to 57 V, 0.2 A to 0.3 A, max. 10.5 W |
| Dimension | Camera dimension: 163.9 mm × 185.8 mm × 131.9 mm (6.45" × 7.31" × 5.19")
With package dimension: 224 mm × 164 mm × 230 mm (8.82" × 6.46" × 9.06") |
| Weight | Camera weight: 600 g (1.32 lb.)
With package weight: 900 g (2.0 lb.) |
| Material | Plastic |
| Operating Condition | -30 °C to 40 °C (-22 °F to 104 °F). Humidity 90% or less (non-condensing) |
| General Function | Mirror, password protection, watermark |
| Approval |
|---|
| EMC | CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014) |
| Safety | CB (IEC 62368-1: 2014 + A11), CE-LVD (EN 62368-1: 2014/A11: 2017) |
| Environment | CE-RoHS (2011/65/EU), Reach (Regulation (EC) No 1907/2006) |
| Protection | IP66 (IEC 60529-2013) |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Where is the DS-2DE2C400MWG-E commonly installed?
The DS-2DE2C400MWG-E is commonly installed at retail entrances, small business exteriors, office access points, parking area entrances, apartment community entrances, school exterior doors, warehouse side entrances, and commercial walkways.
Is this camera suitable for outdoor commercial monitoring?
Yes. The camera has an IP66-rated housing, making it suitable for outdoor commercial environments exposed to rain, dust, and changing weather conditions.
Can the DS-2DE2C400MWG-E track people automatically?
Yes. The camera supports Human Detection and Auto-Tracking Lite, allowing it to follow detected human targets within its pan and tilt movement range.
What types of businesses typically deploy this PT camera?
Retail stores, small businesses, office buildings, apartment communities, schools, warehouses, service yards, and commercial property managers commonly deploy this model for flexible outdoor monitoring.
What is the benefit of Smart Hybrid Light?
Smart Hybrid Light combines infrared and white light illumination to support flexible nighttime monitoring and improve visibility based on scene conditions.
Does the DS-2DE2C400MWG-E support two-way audio?
Yes. The camera includes one built-in microphone and one built-in speaker, allowing two-way communication through compatible surveillance platforms.
Does this camera support local recording?
Yes. The built-in memory card slot supports microSD, microSDHC, and microSDXC cards up to 512 GB for local edge recording.
Is this camera compatible with ONVIF systems?
Yes. The camera supports ONVIF Profile S, Profile G, and Profile T for integration with compatible professional NVRs and video management systems.
Does the DS-2DE2C400MWG-E support PoE?
Yes. The camera supports 12 VDC power and IEEE 802.3af PoE, giving installers flexible power options for professional IP surveillance deployments.
What is the maximum video resolution of the DS-2DE2C400MWG-E?
The camera supports a maximum resolution of 2560 × 1440, delivering 4MP Quad HD video for commercial surveillance applications.
