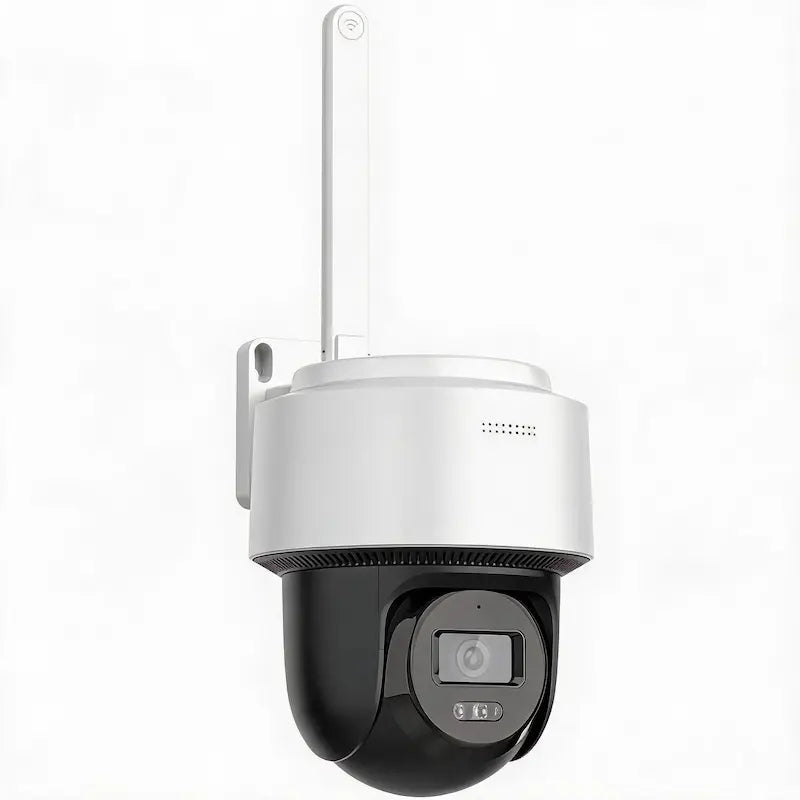

The DS-2DE2C400MWG/W is a 4MP outdoor PT network camera designed for commercial environments that require flexible viewing control, intelligent detection, and wireless deployment support. With pan and tilt movement, Smart Hybrid Light technology, and built-in two-way audio, it provides a practical solution for monitoring business entrances, parking areas, service yards, and exterior access points.
Human detection and Auto-Tracking Lite help the camera focus on relevant activity, improving monitoring efficiency for small business sites, retail properties, warehouses, offices, and facility entrances. Instead of relying only on standard motion detection, the camera supports smarter event awareness for day-to-day security operations.
Smart Hybrid Light combines infrared and white light illumination to improve nighttime visibility while adapting to different scene conditions. This makes the camera suitable for outdoor areas where security teams need both low-light monitoring and clearer visual detail when activity occurs.
With Wi-Fi 6 support, onboard microSD storage, two-way audio, ONVIF compatibility, and IP66 weather protection, the DS-2DE2C400MWG/W is well suited for commercial projects where flexible placement, remote communication, and reliable outdoor monitoring are important.
PT Monitoring Benefits
-
Flexible Viewing Control – Pan and tilt movement helps monitor wider outdoor areas compared with a fixed camera.
-
Smarter Human Detection – Human detection and Auto-Tracking Lite help improve event awareness around commercial properties.
-
Adaptive Night Visibility – Smart Hybrid Light uses IR and white light to support clearer nighttime monitoring.
-
Two-Way Communication – Built-in microphone and speaker allow remote communication through compatible surveillance platforms.
-
Wireless Deployment Support – Wi-Fi 6 provides flexible installation options where wired network access is limited.
-
Outdoor Commercial Use – IP66 weather protection supports operation in outdoor business environments.
Recommended Applications
- Small Business Entrances
- Retail Store Exteriors
- Office Building Access Points
- Warehouse Side Entrances
- Commercial Parking Areas
- Service Yards
- Apartment Community Entrances
- School Exterior Walkways
- Loading Areas
- Outdoor Reception Points
| Camera |
|---|
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color:0.005 Lux @ (F1.6, AGC ON)
B/W:0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Lens |
|---|
| Focal Length | 2.8 mm, 4 mm |
| FOV | 2.8 mm:Horizontal FOV 94°, Vertical FOV 49°, Diagonal FOV 114°
4 mm:Horizontal FOV 70°, Vertical FOV 35°, Diagonal FOV 85° |
| Aperture | F1.6 |
| Illuminator |
|---|
| Supplement Light Type | IR, White Light |
| Supplement Light Range | IR distance:Up to 25 m
White light distance:Up to 25 m |
| IR Wavelength | 850 nm |
| PTZ |
|---|
| Movement Range (Pan) | 0° to 345° |
| Movement Range (Tilt) | 0° to 80° |
| Pan Speed | Up to 25°/s |
| Tilt Speed | Up to 20°/s |
| Power-off Memory | Yes |
| Video |
|---|
| Main Stream | 50 Hz:20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz:20 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz:20 fps (768 × 432)
60 Hz:20 fps (768 × 432) |
| Video Compression | H.265, H.264, MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Audio |
|---|
| Audio Compression | G.711ulaw/AAC-LC |
| Audio Bit Rate | AAC-LC:16 Kbps, 32 Kbps, 64 Kbps
G.711ulaw:64 Kbps |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Wireless (Wi-Fi) |
|---|
| Wi-Fi Protocols | IEEE802.11b, IEEE802.11g, IEEE802.11n, IEEE802.11ax |
| Frequency Range | 2.4 GHz to 2.4835 GHz |
| Channel Bandwidth | 20/40 MHz |
| Network |
|---|
| Protocols | IPv4/IPv6, HTTP, QoS, SMTP, NTP, RTSP, RTP, RTCP, TCP/IP, UDP, DHCP, Bonjour, SNMP, DNS, DDNS |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Client | Wired network:Mobile App, iVMS-4200
Wi-Fi:iVMS-4200
*Wi-Fi connection with Mobile App directly is not possible |
| Image |
|---|
| Image Settings | Saturation, brightness, contrast, and sharpness adjustable by client software or web browser |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 programmable rectangle privacy masks |
| Interface |
|---|
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Built-in Microphone | 1 built-in microphone |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Speaker | 1 built-in speaker |
| Event |
|---|
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Linkage | Notify surveillance center, send email, trigger recording, trigger capture, audible warning |
| Approval |
|---|
| Protection | IP66 (IEC 60529-2013) |
| General |
|---|
| Power | 12 VDC ± 25%, reverse polarity protection, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug
*A switching adapter is included in the package. |
| Dimension | 131.9 mm × 163.9 mm × 312.6 mm (5.19″ × 6.45″ × 12.31″) |
| Weight | 600 g (1.32 lb.) |
| With Package Weight | 900 g (2.0 lb.) |
| Material | Plastic |
| Operating Condition | -30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
| Language | English, Ukrainian |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Where is the DS-2DE2C400MWG/W commonly installed?
The DS-2DE2C400MWG/W is commonly installed at small business entrances, retail storefronts, office access points, parking areas, service yards, and outdoor commercial locations.
Is this camera suitable for outdoor commercial monitoring?
Yes. Its IP66-rated housing, Smart Hybrid Light technology, and pan-tilt movement make it suitable for outdoor commercial surveillance applications.
Can this camera track people automatically?
Yes. The camera supports Human Detection and Auto-Tracking Lite, helping follow relevant human activity within its movement range.
Does the DS-2DE2C400MWG/W support Wi-Fi?
Yes. It supports Wi-Fi 6 through IEEE 802.11b/g/n/ax on the 2.4 GHz band, while also offering wired Ethernet connectivity.
What is the benefit of Smart Hybrid Light?
Smart Hybrid Light combines infrared and white light illumination to support flexible nighttime monitoring based on scene conditions.
Does this camera support two-way audio?
Yes. It includes a built-in microphone and built-in speaker, allowing two-way communication through compatible surveillance software.
Can recordings be stored locally?
Yes. The built-in memory card slot supports microSD, microSDHC, and microSDXC cards up to 512 GB for local edge recording.
Is this camera compatible with ONVIF systems?
Yes. It supports ONVIF Profile S, Profile G, and Profile T for integration with supported NVRs and video management systems.
Does Wi-Fi connection work directly with Hik-Connect?
No. According to the provided specifications, direct Wi-Fi connection with Hik-Connect is not supported. Wired network access supports Hik-Connect.
What is the maximum video resolution of the DS-2DE2C400MWG/W?
The camera supports a maximum resolution of 2560 × 1440, delivering 4MP Quad HD video for commercial surveillance.
