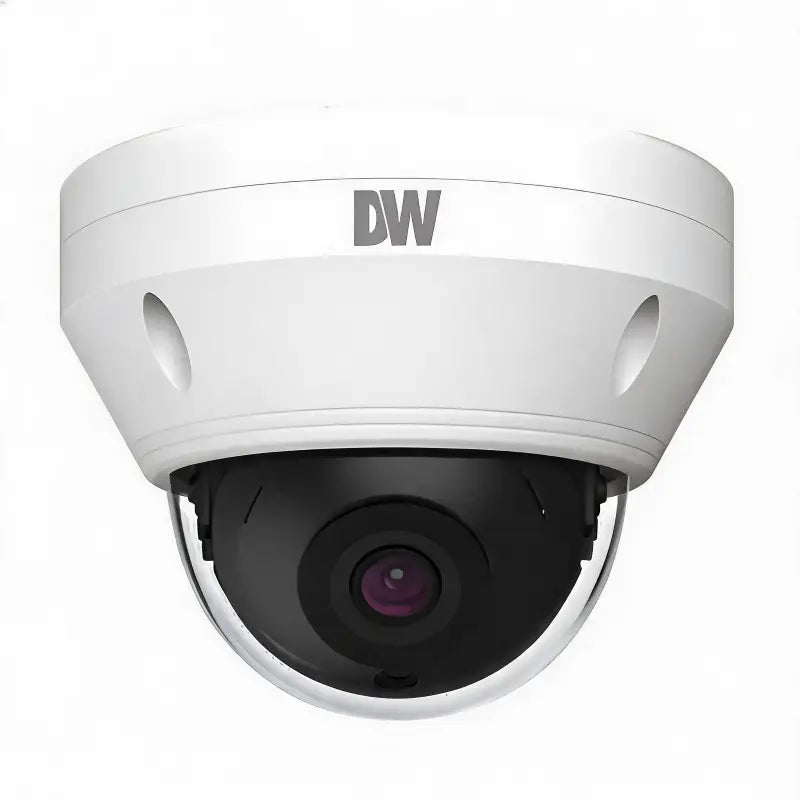

DWC-VSDG04Bi 4MP Vandal-Resistant Dome IP Camera with WDR & Smart IR
Top Seller
$398.00
Buying in Bulk? Local installers and contractors can Request Trade Pricing to unlock volume discounts for this project.
Premium Quality
Backed by a 2-Year Full Hardware Warranty.
30-Day Risk-Free
Satisfied or your money back, guaranteed.
USA-Based Live Support
Native technical backing for field technicians.
Free Shipping Over $70
Stocked locally and shipped fast from IL.
Midwestern Stock
3-5 days nationwide shipping. Next-day delivery for local Chicago installers!
Key Features
Product Description
Many surveillance environments suffer from difficult lighting conditions rather than a lack of camera coverage. Building entrances, storefronts, apartment lobbies, parking structures, and school hallways often contain bright outdoor light alongside darker interior spaces, making it difficult for standard cameras to capture usable video throughout the scene.
The DWC-VSDG04Bi was built to address this challenge. Equipped with True WDR 120dB technology, the camera helps maintain image detail in both bright and dark areas simultaneously, improving visibility when subjects move through backlit entrances, loading docks, and other high-contrast environments.
Beyond image optimization, the camera combines a rugged IK10-rated vandal-resistant dome housing with IP67 weather protection, making it suitable for public-facing installations where long-term reliability is essential. Built-in analytics including line crossing, perimeter intrusion, and tampering detection help security teams focus on meaningful events while reducing manual monitoring.
Support for DW Spectrum®, ONVIF-compliant systems, H.265 compression, local edge storage, and PoE deployment makes the DWC-VSDG04Bi an excellent choice for commercial security projects requiring dependable performance, flexible integration, and simplified installation.
Key Features
- True WDR 120dB – Helps maintain image detail in scenes with bright highlights and dark shadows.
- 4MP Quad HD Resolution – Provides clear video for everyday commercial surveillance applications.
- IK10 Vandal Resistance – Protects the camera against impacts and tampering in public-facing areas.
- Smart IR Night Vision – Delivers clear nighttime monitoring up to 100 ft.
- Built-In Video Analytics – Supports line crossing, intrusion, and tampering detection.
- DW Spectrum & ONVIF Support – Simplifies integration with professional surveillance platforms.
Technical Specifications
- Camera Style: Dome Camera
- Resolution: 4MP (2560 × 1440)
- Image Sensor: 1/3" CMOS
- Lens: 2.8mm Fixed Lens
- Viewing Angle: 94° Horizontal Field of View
- Night Vision: Smart IR up to 100 ft
- Wide Dynamic Range: True WDR 120dB
- Video Compression: H.265 / H.264 / MJPEG
- Analytics: Line Crossing, Perimeter Intrusion, Video Tampering Detection
- Audio Support: Built-In Microphone, Audio Input
- Local Storage: MicroSD / SDHC / SDXC up to 1TB
- Power: PoE (802.3af) or 12V DC
- Weather Protection: IP67 Rated
- Impact Protection: IK10 Rated
- Operating Temperature: -22°F to 140°F (-30°C to 60°C)
- Warranty: 5-Year Limited Warranty
Compatibility
The DWC-VSDG04Bi supports DW Spectrum®, ONVIF-compliant NVRs, and professional Video Management Systems (VMS). H.265 compression and dual-stream capability help optimize storage and bandwidth usage across both new and existing surveillance deployments.
Ideal Applications
- Building Entrances
- Retail Stores
- Apartment Communities
- Schools & Educational Facilities
- Parking Structures
- Office Buildings
- Healthcare Facilities
- Commercial Properties
Key Specs
| Brand | Digital Watchdog |
| Camera Style | Dome |
| Resolution | 4MP (2K Quad HD) |
| System Compatibility | DW Spectrum Support, VMS Compatible, ONVIF Profile S/G/T |
| Compliance Status | FCC Certified, CE/RoHS |
| Special Features | Built-in SD Slot, Smart AI Detection |
| Protection Rating | IP67 Rated, IK10 Rated |
| Audio Support | Built-in Mic |
Find answers to common questions about compatibility,
installation, Full-Color night vision, and AcuSense features.
What is the advantage of True WDR on the DWC-VSDG04Bi?
True WDR helps balance extremely bright and dark areas within the same scene. This is especially useful at building entrances, storefronts, and loading docks where sunlight can create strong backlighting. The result is more usable video and better visibility of people entering or leaving the area.
Is the DWC-VSDG04Bi suitable for outdoor installations?
Yes. The camera features an IP67-rated enclosure that helps protect against rain, dust, and harsh environmental conditions. It is designed for reliable outdoor operation throughout the year in both residential and commercial environments.
What does the IK10 vandal-resistant rating mean?
An IK10 rating indicates that the camera housing is built to withstand significant physical impact. This makes it a good choice for schools, apartment buildings, parking structures, and other public-facing locations where cameras may be exposed to tampering or accidental damage.
Does the camera support DW Spectrum?
Yes. The DWC-VSDG04Bi is fully compatible with DW Spectrum Video Management Software, allowing users to manage live video, recordings, analytics, and system administration from a centralized platform.
Can this camera work with ONVIF-compatible systems?
Yes. ONVIF support allows the camera to integrate with many third-party NVRs and Video Management Systems. This flexibility is useful when adding cameras to an existing surveillance deployment without replacing the entire system.
What video analytics are available on the DWC-VSDG04Bi?
The camera supports intelligent analytics including line crossing detection, perimeter intrusion monitoring, and video tampering detection. These features help operators focus on important events and reduce the need for constant manual monitoring.
How far does the Smart IR night vision reach?
The Smart IR system provides infrared illumination up to approximately 100 feet. It automatically adjusts infrared intensity to help reduce overexposure when subjects move closer to the camera.
Does the camera support local storage?
Yes. The DWC-VSDG04Bi supports microSD, SDHC, and SDXC cards up to 1TB. Local edge recording can provide additional redundancy or serve as a standalone recording option in certain deployments.
Does the DWC-VSDG04Bi support PoE?
Yes. Power over Ethernet allows power and network connectivity to be delivered through a single Ethernet cable. This simplifies installation and helps reduce overall cabling requirements.
What types of properties is this camera best suited for?
The DWC-VSDG04Bi is well suited for schools, apartment complexes, retail stores, office buildings, parking facilities, healthcare environments, and commercial properties where reliable surveillance, vandal resistance, and strong image performance are important.
