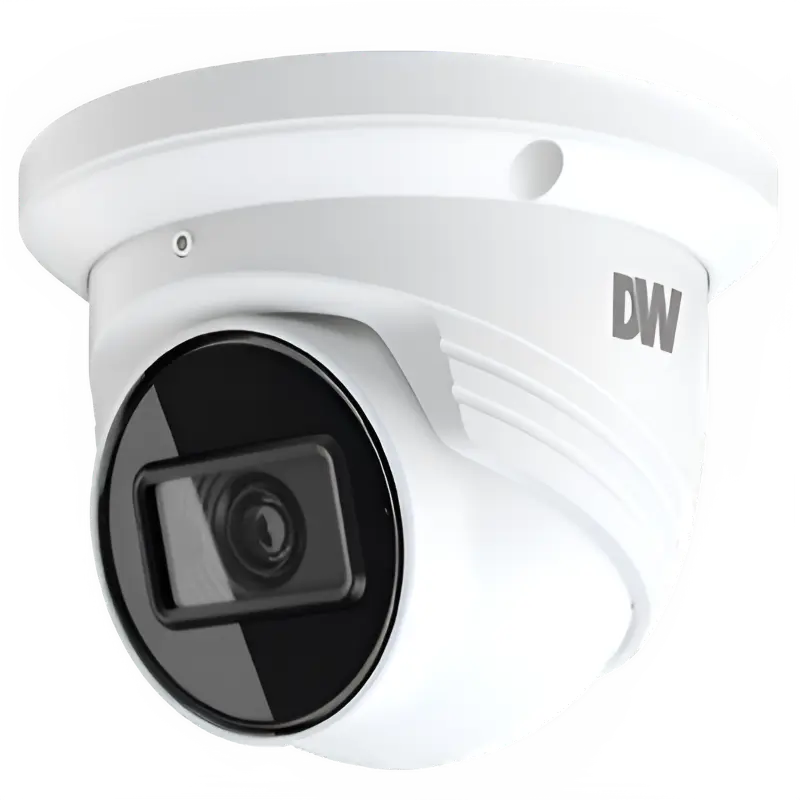

DWC-VSTB04Bi 4MP Smart IR Turret IP Camera with True WDR & Analytics
Top Seller
$349.00
Buying in Bulk? Local installers and contractors can Request Trade Pricing to unlock volume discounts for this project.
Premium Quality
Backed by a 2-Year Full Hardware Warranty.
30-Day Risk-Free
Satisfied or your money back, guaranteed.
USA-Based Live Support
Native technical backing for field technicians.
Free Shipping Over $70
Stocked locally and shipped fast from IL.
Midwestern Stock
3-5 days nationwide shipping. Next-day delivery for local Chicago installers!
Key Features
Product Description
Many surveillance cameras perform well during the day but struggle when lighting conditions become unpredictable. Entrances, storefronts, parking facilities, and building access points often contain bright sunlight, shadows, vehicle headlights, and changing environmental conditions that can make important details difficult to capture.
The DWC-VSTB04Bi is designed specifically for these challenging environments. Equipped with True WDR 120dB technology, the camera helps maintain balanced image exposure in scenes containing both bright and dark areas. Whether monitoring a backlit entrance or a loading dock with varying lighting conditions, the camera delivers more usable video evidence throughout the day.
At night, Smart IR technology provides up to 100 feet of infrared illumination while automatically adjusting intensity to reduce overexposure when subjects move closer to the camera. This helps maintain image clarity and facial visibility without requiring additional lighting.
Beyond image quality, the camera includes intelligent video analytics such as line crossing detection, perimeter intrusion monitoring, and video tampering alerts. Combined with built-in audio recording, local edge storage, ONVIF compatibility, and DW Spectrum® integration, the DWC-VSTB04Bi offers a reliable surveillance solution for commercial and professional security applications.
Key Features
- True WDR 120dB – Improves visibility in scenes with strong backlighting and difficult lighting contrasts.
- Smart IR Night Vision – Provides clear infrared monitoring up to 100 feet while reducing overexposure.
- Advanced Video Analytics – Supports line crossing, perimeter intrusion, and video tampering detection.
- Built-In Microphone – Captures audio alongside video for additional event context.
- IK10 & IP67 Protection – Designed for public-facing and outdoor installations.
- DW Spectrum & ONVIF Support – Integrates with a wide range of professional surveillance systems.
Technical Specifications
- Camera Style: Turret Camera
- Image Sensor: 1/3" CMOS
- Maximum Resolution: 4MP (2560 × 1440)
- Lens: 2.8mm Fixed Lens
- Viewing Angle: 94° Horizontal Field of View
- Night Vision: Smart IR up to 100 ft
- Wide Dynamic Range: True WDR 120dB
- Video Compression: H.265 / H.264 / MJPEG
- Audio Support: Built-In Microphone + Audio Input
- Analytics: Line Crossing, Perimeter Intrusion, Video Tampering Detection
- Local Storage: MicroSD / SDHC / SDXC up to 1TB
- Power: PoE (802.3af) or 12V DC
- Protection Rating: IP67 Weatherproof, IK10 Impact Resistant
- Operating Temperature: -22°F to 140°F (-30°C to 60°C)
- Warranty: 5-Year Limited Warranty
Compatibility
The DWC-VSTB04Bi supports ONVIF-compliant NVRs, DW Spectrum® Video Management Software, and other professional surveillance platforms. H.265 compression, dual-stream support, and flexible integration options make it suitable for both new deployments and upgrades to existing IP surveillance systems.
Ideal Applications
- Building Entrances
- Retail Stores
- Parking Areas
- Office Buildings
- Apartment Communities
- Schools & Educational Facilities
- Commercial Properties
- Warehouse Access Points
Key Specs
| Brand | Digital Watchdog |
| Camera Style | Turret |
| Resolution | 4MP (2K Quad HD) |
| System Compatibility | DW Spectrum Support, VMS Compatible, ONVIF Profile S/G/T |
| Compliance Status | FCC Certified, CE/RoHS |
| Special Features | Smart AI Detection, Built-in SD Slot |
| Protection Rating | IK10 Rated, IP67 Rated |
| Audio Support | Built-in Mic |
Find answers to common questions about compatibility,
installation, Full-Color night vision, and AcuSense features.
What is the benefit of True WDR on the DWC-VSTB04Bi?
True WDR helps balance bright and dark areas within the same scene. This is especially useful for entrances, storefronts, and parking areas where strong sunlight or backlighting can make faces and vehicles difficult to identify.
How far does the Smart IR night vision reach?
The DWC-VSTB04Bi provides Smart IR illumination up to 100 feet. Smart IR automatically adjusts infrared intensity to help prevent overexposure when people or vehicles move close to the camera.
Does this camera support ONVIF-compatible systems?
Yes. The camera is ONVIF compliant and can be integrated with many third-party NVRs, Video Management Systems, and professional surveillance platforms.
Can the DWC-VSTB04Bi work with DW Spectrum?
Yes. The camera is fully compatible with DW Spectrum, allowing centralized video management, recording, event monitoring, and remote system administration.
What video analytics are included?
The camera supports line crossing detection, perimeter intrusion monitoring, and video tampering detection. These analytics help identify important events while reducing the need for constant manual monitoring.
Does the camera record audio?
Yes. The DWC-VSTB04Bi includes a built-in microphone and audio input, allowing audio recording to be captured alongside video footage.
Can the camera continue recording if the network connection is interrupted?
Yes. Local edge recording is supported through MicroSD, SDHC, and SDXC memory cards, helping maintain recording continuity during temporary network interruptions.
Is the DWC-VSTB04Bi suitable for outdoor installation?
Yes. The camera features an IP67-rated enclosure that helps protect against rain, dust, and harsh weather conditions, making it suitable for year-round outdoor deployment.
What does the IK10 rating mean?
IK10 impact resistance indicates the housing is designed to withstand significant physical impact, making it suitable for public-facing areas where cameras may be exposed to tampering or accidental damage.
What types of properties is this camera best suited for?
The DWC-VSTB04Bi is ideal for retail stores, office buildings, apartment communities, schools, parking facilities, warehouses, and other commercial environments requiring reliable surveillance and advanced analytics.
