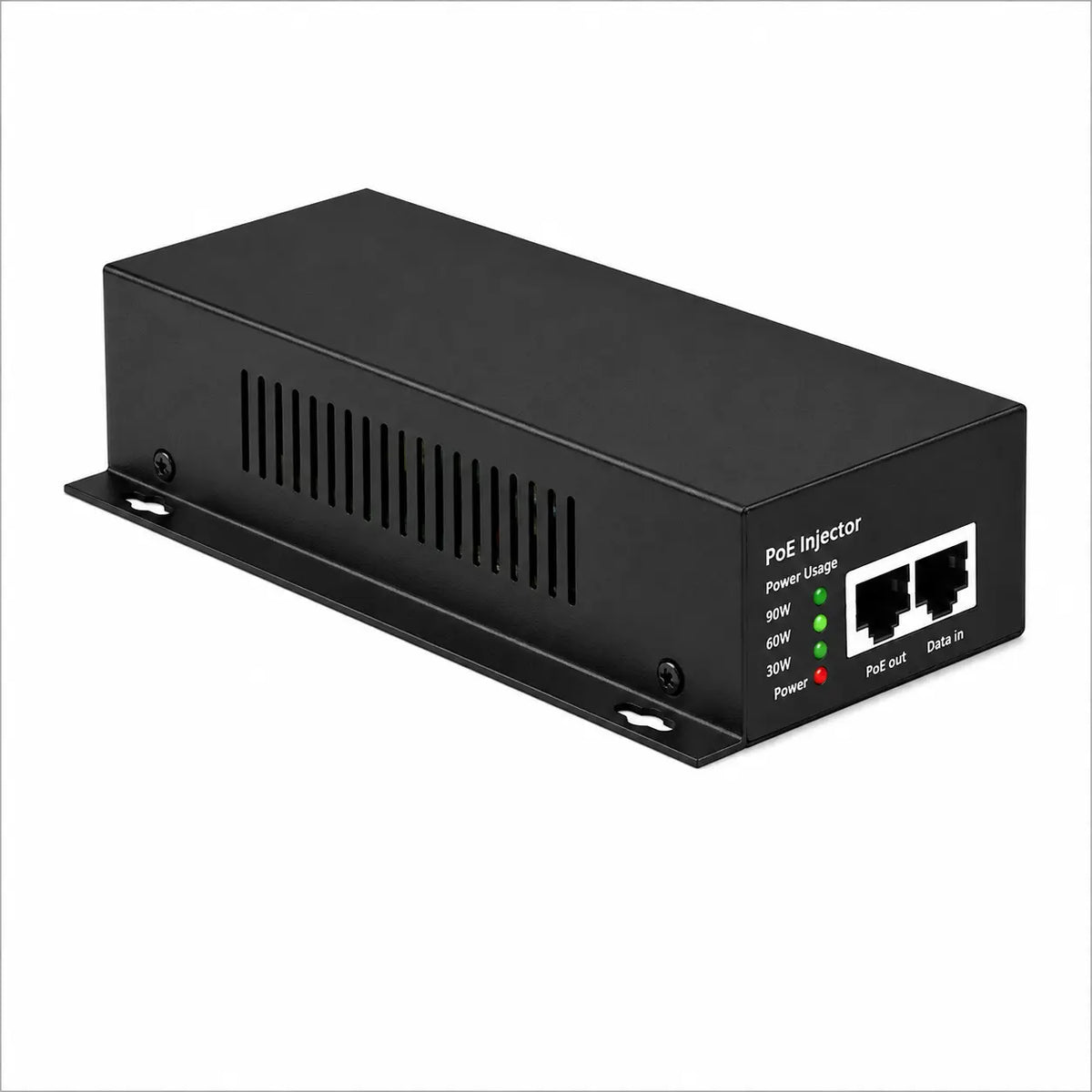

90W Gigabit PoE++ Injector, IEEE 802.3af/at/bt, 100m Reach

Single-port Gigabit PoE++ injector with up to 90W output, 10/100/1000 Mbps data, auto-sensing, and an internal AC power supply.

In stock

Questions about compatibility, PoE power, or choosing the right port count? [Ask a CCTV Specialist]

Installer or Dealer? Request Trade Pricing.

✓ Up to 90W PoE++ power output
✓ IEEE 802.3af/at/bt compliant
✓ 10/100/1000 Mbps Gigabit data
✓ Up to 100 m Ethernet distance
✓ Auto-sensing PoE detection
✓ Built-in fanless power supply

Chicago-Area Warehouse

Same-Day Processing Available

1-Year Warranty

30-Day Return Window

This 90W Gigabit PoE++ injector adds standards-based Power over Ethernet to a compatible network connection, allowing power and Gigabit data to travel over the same Ethernet cable to supported IP cameras, PTZ cameras, wireless access points, and other high-power PoE devices.

The injector provides one Gigabit LAN input and one Gigabit PoE output with 10/100/1000 Mbps data support. It complies with IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt and provides up to 90W of PoE output for compatible powered devices.

Auto-sensing technology detects compatible PoE equipment before applying power, while non-PoE network devices are not supplied with PoE power. The injector uses all four pairs of compatible Cat5e or Cat6 Ethernet cabling for high-power PoE operation.

An internal 100–240 VAC power supply, fanless design, LED status indicators, and plug-and-play operation simplify installation without software configuration. The injector supports Ethernet and PoE transmission up to 100 meters according to the supplied product details.

Key Benefits

Up to 90W PoE++ Output – Supplies high-power PoE for compatible IEEE 802.3bt devices that require more power than standard PoE or PoE+ equipment.
Gigabit Network Connection – Supports 10/100/1000 Mbps Ethernet data through the LAN and PoE ports.
Broad Standards Support – Works with compatible IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt powered devices.
Automatic PoE Detection – Detects compatible powered devices before delivering PoE power to the connected equipment.
Integrated AC Power Supply – Accepts 100–240 VAC input without requiring a separate external power adapter.
Plug-and-Play Operation – Requires no software configuration for normal installation with compatible network equipment.

Recommended Applications

High-Power PTZ IP Cameras
Commercial IP Camera Installations
Wireless Access Points
VoIP Network Devices
Single-Camera PoE Upgrades
Remote Network Devices
Office Network Installations
Warehouse Surveillance Systems
Commercial Building Networks
High-Power PoE Device Deployments

Network Interface
RJ45 Interfaces	2 × RJ45 ports: 1 × LAN input, 1 × PoE output
Ethernet Data Rate	10/100/1000 Mbps
Supported Cabling	Standard Cat5e / Cat6 Ethernet cabling
Maximum Transmission Distance	Up to 100 m

PoE
PoE Standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Maximum PoE Output	Up to 90 W
PoE Output Voltage	50 VDC
Power Delivery	4-pair PoE over standard Ethernet cabling
PoE Detection	Auto-sensing powered-device detection
Passive PoE Compatibility	Does not support passive 24 V PoE devices

Power
AC Input	100–240 VAC
Input Frequency	50/60 Hz
Power Supply	Internal power supply
AC Interface	1 × AC input socket

General
Model Number	PoE++ Injector (90W)
Product Type	Single-Port Gigabit PoE++ Injector
Configuration	Plug and play; no software configuration required
Cooling	Fanless design
LED Indicators	System POWER and PoE ACTIVE
EAN	0722390681354
Package Dimensions	9.7 × 7.6 × 2.4 in

Find answers to common questions about compatibility, PoE power, supported equipment, product selection, and use with security camera and surveillance systems.

How much PoE power can this injector provide?

The injector provides up to 90W of PoE output for compatible powered devices using IEEE 802.3af, IEEE 802.3at, or IEEE 802.3bt.

What network speed does the PoE injector support?

The LAN and PoE connections support 10/100/1000 Mbps Ethernet for compatible Gigabit network devices.

How far can the injector transmit power and data?

The supplied product details specify transmission up to 100 meters over compatible Ethernet cabling. Actual performance depends on cable quality, connected-device power requirements, and installation conditions.

Does this PoE injector require software configuration?

No. It is designed for plug-and-play operation and automatically detects compatible PoE powered devices without software configuration.

Does the injector support passive 24V PoE devices?

No. The injector is designed for standards-based IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt powered devices and does not support passive 24V PoE equipment.
