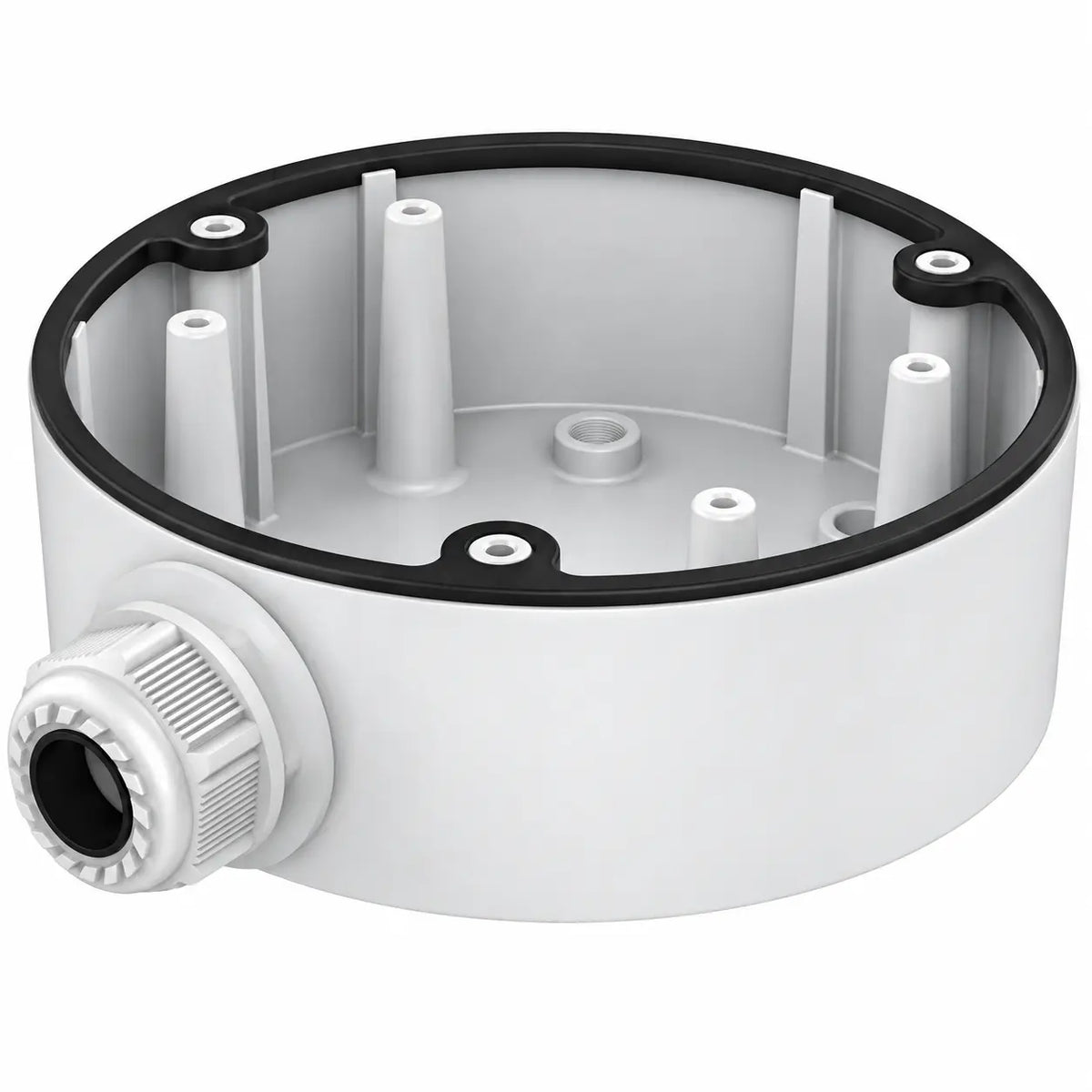

CB120 DS-1280ZJ-DM46 Aluminum Junction Box for Fixed Dome Cameras
Aluminum junction box with bottom and side cable routing for compatible fixed dome cameras in indoor or properly sealed outdoor installations
In stock
Questions about compatibility, installation, or choosing the right accessory? [Ask a CCTV Specialist]
Installer or Dealer? Request Trade Pricing.
Ships from Bensenville, IL
Fast Order Processing
1-Year Warranty
30-Day Return Window
The CB120 / DS-1280ZJ-DM46 junction box provides a dedicated mounting and cable-management solution for compatible fixed dome security cameras. It creates space for camera connectors and supports both bottom and side cable entry for a cleaner installation.
The aluminum alloy construction supports indoor use and properly sealed outdoor installations. Compatibility depends on the exact camera model, so confirm the supported model before ordering.
Key Benefits
- Cleaner Cable Management – Helps keep camera connectors and wiring organized inside the mounting base.
- Bottom and Side Cable Entry – Supports flexible cable routing based on the installation layout.
- Aluminum Alloy Construction – Provides a rigid mounting base for compatible dome camera installations.
- Indoor or Outdoor Installation – Supports indoor use and outdoor applications when the required waterproof sealing is properly installed.
Recommended Applications
- Fixed Dome Camera Installations
- Commercial Building Surveillance
- Retail Store Camera Systems
- Office Camera Installations
- Warehouse Surveillance
- Indoor and Outdoor Camera Mounting
| Product Information | |
|---|---|
| Model / Reference | CB120 / DS-1280ZJ-DM46 |
| Product Type | Junction Box / Conduit Base |
| Application | Mounting and cable management for compatible fixed dome cameras |
| Physical Specifications | |
|---|---|
| Material | Aluminum alloy with surface spray treatment |
| Color | White |
| Dimensions | Ø120 × 37.2 mm (Ø4.72 × 1.46 in) |
| Weight | 250 g (0.55 lb.) |
| Maximum Load Capacity | 4.5 kg (9.92 lb.) |
| Cable Routing | Bottom outlet and side outlet supported |
| Installation | |
|---|---|
| Environment | Indoor / outdoor |
| Mounting Surface | Flat mounting surface required |
| Outdoor Installation | Waterproof rubber sealing is required for outdoor applications |
| Surface Support Requirement | Mounting surface must support at least 3 times the combined weight of the camera and junction box |
| Compatibility | |
|---|---|
| Confirmed Compatible Models | DS-2CD2143G0-IU DS-2CD2143G2-IU DS-2CD2183G0-IU DS-2CD2183G2-IU PCI-D15F2S PCI-D15F4S PCI-D15F6S ECI-D12F2 |
| Not Compatible With | DS-2CD1123G0-I DS-2CD1143G0-I DS-2CD2122FWD-I DS-2CD2123G0-I DS-2CD2143G0-I DS-2CD2142FWD-I DS-2CD2155FWD-I DS-2CD2183G0-I DS-2CD2185FWD-I |
| Package Information | |
|---|---|
| EAN | 0722390682351 |
| Package Dimensions | 6.3 × 5.7 × 2.4 in |
Find answers to common questions about compatibility, installation, supported equipment, product selection, and use with security camera and surveillance systems.
What is the CB120 DS-1280ZJ-DM46 used for?
It is a junction box and conduit base that provides mounting support and internal cable space for compatible fixed dome security cameras.
Which cameras are confirmed compatible with the CB120 DS-1280ZJ-DM46?
The current supplier listing confirms models including DS-2CD2143G0-IU, DS-2CD2143G2-IU, DS-2CD2183G0-IU, DS-2CD2183G2-IU, and several specifically listed OEM models. Confirm the exact camera model before ordering.
Can the DS-1280ZJ-DM46 be installed outdoors?
Yes. The official specifications support outdoor use when the required waterproof rubber sealing is properly installed.
Does the junction box support side cable entry?
Yes. The official DS-1280ZJ-DM46 specifications support both bottom and side cable outlets for flexible cable routing.
What is the maximum load capacity of the DS-1280ZJ-DM46?
The official specification lists a maximum load capacity of 4.5 kg or 9.92 lb.
