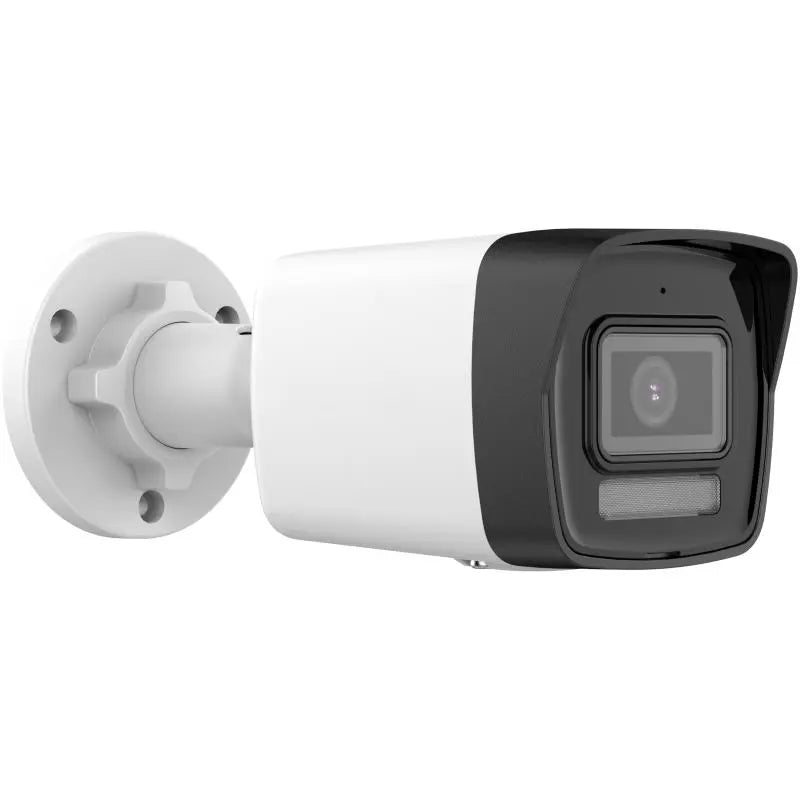

Designed for exterior commercial areas that need high-resolution video and flexible nighttime illumination, the DS-2CD1083G2-LIUF combines 8MP imaging, human and vehicle detection, Smart Hybrid Light, built-in audio recording, and local edge storage in a fixed bullet design.
The camera captures video at up to 3840 × 2160 resolution and is available with 2.8 mm or 4 mm fixed lens options. Human and vehicle target detection helps focus motion events on relevant activity around warehouse walls, loading approaches, parking access lanes, service roads, and other perimeter locations.
Smart Hybrid Light combines infrared and white light illumination with a range of up to 30 meters. This gives installers flexible nighttime monitoring options while 120 dB WDR, BLC, HLC, and 3D DNR help maintain useful image detail in scenes with bright entrances, shadows, or changing exterior lighting.
The LIUF model includes a built-in microphone and onboard microSD storage supporting up to 512 GB. H.265+ compression, IEEE 802.3af PoE, ONVIF Profile S/G/T compatibility, and IP67 weather protection support professional deployment in outdoor commercial surveillance systems.
Perimeter Monitoring Advantages
-
8MP Image Detail – 3840 × 2160 resolution supports detailed monitoring across exterior commercial areas.
-
Human and Vehicle Detection – Target classification helps focus motion events on relevant activity.
-
Adaptive Night Illumination – Smart Hybrid Light combines IR and white light for nighttime monitoring up to 30 meters.
-
Built-in Audio Recording – The integrated microphone adds audio context to supported video recordings.
-
Local Edge Storage – The built-in memory card slot supports up to 512 GB of onboard recording.
-
Outdoor Commercial Design – IP67 protection supports installation in exposed business environments.
Recommended Applications
- Warehouse Perimeter Walls
- Loading Dock Approaches
- Commercial Parking Lanes
- Industrial Yard Boundaries
- Building Side Entrances
- Distribution Center Access Roads
- Retail Service Areas
- Office Property Perimeters
- Apartment Parking Entrances
- Small Business Exterior Walls
| Camera |
| Image Sensor |
1/2.7" Progressive Scan CMOS |
| Max. Resolution |
3840 × 2160 |
| Min. Illumination |
Color: 0.01 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° |
| Lens |
| Lens Type |
Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV |
2.8 mm:horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134° |
| Lens Mount |
M12 |
| Iris Type |
Fixed |
| Aperture |
F2.0 |
| DORI |
| DORI |
2.8 mm:D: 79 m, O: 31 m, R: 15 m, I: 7 m |
| Illuminator |
| Supplement Light Type |
IR,White Light |
| Supplement Light Range |
Up to 30 m |
| Smart Supplement Light |
Yes |
| IR Wavelength |
850 nm |
| Video |
| Main Stream |
50 Hz:
12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream |
50 Hz:12.5 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz:15 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression |
Main stream:H.265+/H.265/H.264+/H.264
Sub-stream:H.265/H.264/MJPEG |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| H.264 Type |
Baseline Profile,Main Profile,High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR,VBR |
| Region of Interest (ROI) |
1 fixed region for main stream |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
| Audio |
| Audio Type |
Mono sound |
| Environment Noise Filtering |
Yes |
| Audio Sampling Rate |
8 kHz/16 kHz |
| Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Network |
| Security |
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Simultaneous Live View |
Up to 6 channels |
| API |
Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK |
| Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
| User/Host |
Up to 32 users
3 user levels: administrator, operator, and user |
| Client |
iVMS-4200,Mobile App |
| Web Browser |
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image |
| Wide Dynamic Range (WDR) |
120 dB |
| SNR |
≥ 52 dB |
| Day/Night Switch |
Day,Night,Auto,Schedule |
| Image Enhancement |
BLC,HLC,3D DNR |
| Image Settings |
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Privacy Mask |
4 programmable polygon privacy masks |
| Interface |
| Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage |
-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone |
Yes |
| Reset Key |
-F: Yes |
| Event |
| Basic Event |
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
| Linkage |
Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture |
| General |
| Power |
12 VDC ± 25%:0.41 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection
PoE:IEEE 802.3af, Class 3, max. 6.5 W |
| Material |
Metal & Plastic |
| Dimension |
170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7") |
| Package Dimension |
216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6") |
| Weight |
Approx. 285 g (0.6 lb.) |
| With Package Weight |
Approx. 481 g (1.1 lb.) |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language |
English, Ukrainian |
| General Function |
Heartbeat,anti-banding,mirror,password protection,password reset via email |
| Approval |
| EMC |
CE-EMC:EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
RCM:AS/NZS CISPR 32: 2015
IC:ICES-003: Issue 7 |
| Safety |
UL:UL 62368-1
CB:IEC 62368-1: 2014+A11
CE-LVD:EN 62368-1: 2014/A11: 2017
BIS:IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
| Environment |
CE-RoHS:2011/65/EU
WEEE:2012/19/EU
Reach:Regulation (EC) No 1907/2006 |
| Protection |
IP67:IEC 60529-2013 |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Where is the DS-2CD1083G2-LIUF commonly installed?
The DS-2CD1083G2-LIUF is commonly installed along warehouse perimeter walls, loading dock approaches, commercial parking lanes, industrial yards, office property boundaries, service roads, and exterior building access areas.
Why choose a bullet camera for perimeter monitoring?
The visible directional design of a bullet camera makes it well suited for monitoring defined areas such as walls, drive lanes, loading approaches, fence lines, and exterior access routes.
Can this camera monitor warehouse and parking areas after dark?
Yes. Smart Hybrid Light combines infrared and white light illumination with a range of up to 30 meters for nighttime monitoring.
What types of businesses may use this model?
Warehouses, distribution centers, retail properties, industrial facilities, apartment communities, offices, small businesses, and commercial property managers may use this camera for outdoor monitoring.
How does Smart Hybrid Light improve nighttime monitoring?
Smart Hybrid Light integrates infrared and white light illumination, giving the camera flexible supplemental lighting options for changing nighttime conditions.
How can human and vehicle detection improve event monitoring?
Human and vehicle target detection helps focus motion events on relevant activity and can reduce alerts caused by general scene movement.
Does the DS-2CD1083G2-LIUF support audio recording?
Yes. The camera includes a built-in microphone for real-time audio recording through compatible surveillance systems. It does not include a built-in speaker for two-way audio.
Does this model support local storage and PoE?
Yes. The LIUF model includes a built-in microSD, microSDHC, and microSDXC card slot supporting up to 512 GB and supports IEEE 802.3af PoE.
Can the DS-2CD1083G2-LIUF integrate with ONVIF systems?
Yes. The exact LIUF model supports ONVIF Profile S, Profile G, and Profile T for integration with compatible professional NVRs and video management systems.
What is the maximum video resolution of the DS-2CD1083G2-LIUF?
The camera supports a maximum resolution of 3840 × 2160, delivering 8MP 4K UHD video at up to 15 frames per second in 60 Hz environments.
