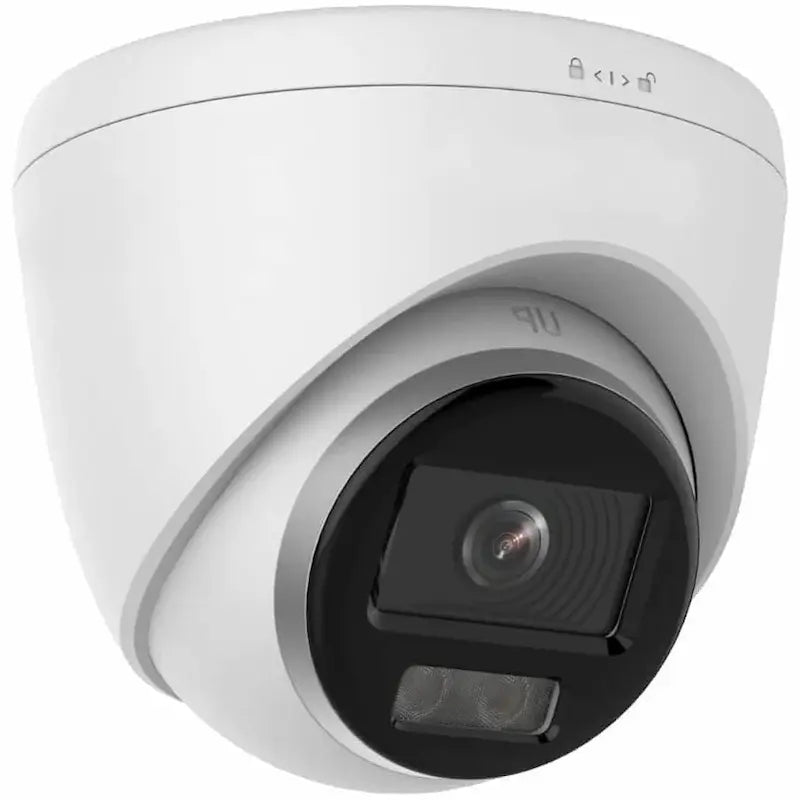

Built for commercial entrances and exterior access areas where nighttime visibility and audio context matter, the DS-2CD1343G2-LIUF combines 4MP video, human and vehicle detection, Smart Hybrid Light illumination, and a built-in microphone in a compact turret design.
The camera supports 2560 × 1440 resolution and is available with 2.8 mm or 4 mm fixed lens options. Human and vehicle target detection helps security teams focus on relevant activity around storefronts, employee entrances, loading doors, and other monitored areas while reducing alerts from general motion.
Smart Hybrid Light uses both infrared and white light illumination to support adaptable nighttime monitoring up to 30 meters. Its 120 dB WDR, BLC, HLC, and 3D DNR functions help maintain useful image detail around entrances affected by bright exterior light, shadows, or changing illumination.
The LIUF model includes a built-in microphone and an onboard microSD card slot supporting up to 512 GB. H.265+ compression, PoE support, ONVIF Profile S/G/T compatibility, and IP67 weather protection make it suitable for professional business surveillance systems.
Adaptive Night Monitoring Benefits
-
Flexible Night Illumination – IR and white light support different nighttime monitoring requirements around business properties.
-
Relevant Target Detection – Human and vehicle detection helps operators focus on activity that may require review.
-
Audio Context – The built-in microphone can add useful sound information to recorded video.
-
Balanced Image Quality – 120 dB WDR helps improve visibility around doors, windows, and other high-contrast scenes.
-
Local Recording Capability – The integrated memory card slot supports up to 512 GB of onboard storage.
-
Outdoor Installation Support – The IP67-rated enclosure is designed for exposed commercial locations.
Recommended Applications
- Covered Storefront Entrances
- Employee Access Doors
- Retail Back Entrances
- Office Exterior Walkways
- Warehouse Personnel Doors
- Small Loading Areas
- Apartment Community Paths
- School Side Entrances
| Camera |
| Image Sensor |
1/3" Progressive Scan CMOS |
| Max. Resolution |
2560 × 1440 |
| Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° |
| Lens |
| Lens Type |
Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV |
2.8 mm:Horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114° |
| Lens Mount |
M12 |
| Iris Type |
Fixed |
| Aperture |
F1.6 |
| DORI |
| DORI |
2.8 mm:D: 63 m, O: 25 m, R: 12 m, I: 6 m |
| Illuminator |
| Supplement Light Type |
IR,White Light |
| Supplement Light Range |
Up to 30 m |
| Smart Supplement Light |
Yes |
| IR Wavelength |
850 nm |
| Video |
| Main Stream |
50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440)
24 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream |
50 Hz:25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz:24 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression |
Main stream:H.265+/H.265/H.264+/H.264
Sub-stream:H.265/H.264/MJPEG |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Type |
Baseline Profile,Main Profile,High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR,VBR |
| Region of Interest (ROI) |
1 fixed region for main stream |
| Audio |
| Audio Type |
Mono sound |
| Environment Noise Filtering |
Yes |
| Audio Sampling Rate |
8 kHz/16 kHz |
| Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate |
64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Network |
| Security |
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Simultaneous Live View |
Up to 6 channels |
| API |
Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK |
| Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| User/Host |
Up to 32 users
3 user levels: administrator, operator, and user |
| Client |
iVMS-4200,Mobile App |
| Web Browser |
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+ |
| Image |
| Wide Dynamic Range (WDR) |
120 dB |
| SNR |
≥ 52 dB |
| Day/Night Switch |
Day,Night,Auto,Schedule |
| Image Enhancement |
BLC,HLC,3D DNR |
| Image Settings |
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Privacy Mask |
4 programmable polygon privacy masks |
| Interface |
| Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage |
-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone |
Yes |
| Reset Key |
-F: Yes |
| Event |
| Basic Event |
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
| Linkage |
Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture |
| General |
| Power |
12 VDC ± 25%:0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection
PoE:IEEE 802.3af, Class 3, max. 6.5 W |
| Material |
Metal & Plastic |
| Dimension |
Ø110 mm × 89.2 mm (Ø4.3" × 3.5") |
| Package Dimension |
150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
| Weight |
Approx. 340 g (0.7 lb.) |
| With Package Weight |
Approx. 560 g (1.2 lb.) |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language |
English, Ukrainian |
| General Function |
Heartbeat,anti-banding,mirror,password protection,password reset via email |
| Approval |
| EMC |
FCC:47 CFR Part 15, Subpart B
CE-EMC:EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
RCM:AS/NZS CISPR 32: 2015
IC:ICES-003: Issue 7 |
| Safety |
UL:UL 62368-1
CB:IEC 62368-1: 2014+A11
CE-LVD:EN 62368-1: 2014/A11: 2017
BIS:IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
| Environment |
CE-RoHS:2011/65/EU
WEEE:2012/19/EU
Reach:Regulation (EC) No 1907/2006 |
| Protection |
IP67:IEC 60529-2013 |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Where is the DS-2CD1343G2-LIUF commonly installed?
The DS-2CD1343G2-LIUF is commonly installed at covered storefront entrances, employee access doors, office walkways, warehouse personnel entrances, retail back doors, apartment paths, and other commercial access areas.
Why is this turret camera suitable for business entrances?
Its compact turret design, 4MP imaging, human and vehicle detection, built-in microphone, and Smart Hybrid Light make it well suited for monitoring activity around commercial entry points.
Can the DS-2CD1343G2-LIUF monitor loading doors after dark?
Yes. Smart Hybrid Light provides IR and white light illumination up to 30 meters, supporting nighttime monitoring around loading doors, service entrances, and exterior access areas.
What types of businesses may benefit from this model?
Retail stores, offices, small warehouses, schools, apartment communities, service businesses, and commercial property managers may use this model for entrance and exterior access monitoring.
How does Smart Hybrid Light support nighttime monitoring?
Smart Hybrid Light combines infrared and white light illumination, giving the camera flexible lighting capabilities for changing nighttime conditions.
When should a buyer choose this model instead of a two-way audio camera?
This model is suitable when recorded audio is needed for additional incident context but built-in talk-back communication is not required. It includes a microphone but no built-in speaker.
How can human and vehicle detection improve event monitoring?
Human and vehicle target detection helps focus alerts on relevant activity and can reduce notifications caused by general scene movement.
Does the DS-2CD1343G2-LIUF include onboard storage?
Yes. The LIUF model includes a built-in memory card slot supporting microSD, microSDHC, and microSDXC cards up to 512 GB.
Does this camera support PoE and ONVIF integration?
Yes. It supports IEEE 802.3af PoE and ONVIF Profile S, Profile G, and Profile T for integration with compatible professional surveillance systems.
What is the maximum video resolution of the DS-2CD1343G2-LIUF?
The camera supports a maximum resolution of 2560 × 1440, delivering 4MP Quad HD video.
