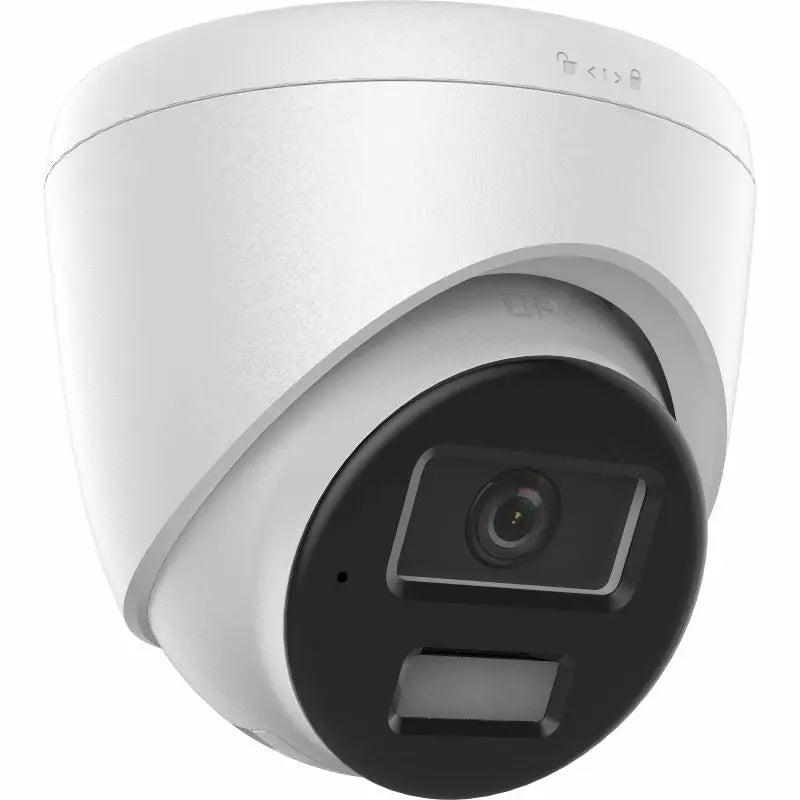

The DS-2CD1343G2-LIUF/SL is a 4MP Smart Hybrid Light turret network camera designed for commercial surveillance applications that need clear video, intelligent detection, two-way audio, and proactive deterrence. With 2560 × 1440 resolution, it provides reliable monitoring for entrances, storefronts, warehouses, offices, parking access points, and exterior business areas.
Human and vehicle detection helps the camera focus on relevant targets instead of general motion, improving event accuracy for commercial security teams. This makes it a practical choice for businesses that need smarter monitoring around access points, service doors, walkways, and perimeter areas.
Smart Hybrid Light combines infrared and white light illumination to support flexible nighttime monitoring. The camera can provide IR visibility in low-light conditions and white light illumination when enhanced detail or deterrence is needed.
Built-in two-way audio allows real-time communication through compatible surveillance systems, while audible warning and flashing light linkage help deter unwanted activity when configured with supported events. With onboard storage up to 512 GB, H.265+ compression, ONVIF compatibility, PoE support, and IP67 weather protection, the DS-2CD1343G2-LIUF/SL is built for professional business security deployments.
Active Deterrence Benefits
-
4MP Video Detail – Quad HD resolution provides clear video for commercial monitoring applications.
-
Human and Vehicle Detection – Target classification helps reduce false alarms and improve event relevance.
-
Smart Hybrid Light – IR and white light illumination support adaptable nighttime visibility.
-
Two-Way Audio – Built-in microphone and speaker allow real-time communication through compatible platforms.
-
Audible and Visual Deterrence – Audible warning and flashing light linkage help discourage unwanted activity.
-
Local Edge Storage – Built-in microSD support up to 512 GB provides onboard recording flexibility.
Recommended Applications
- Retail Store Entrances
- Office Building Exteriors
- Warehouse Loading Areas
- Commercial Building Perimeters
- Small Business Entrances
- Parking Area Access Points
- Apartment Community Walkways
- School Exterior Doors
- Distribution Center Entrances
- Service Door Monitoring
| Camera |
|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| ShutterTime | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Lens |
|---|
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length &FOV | 2.8 mm:Horizontal FOV 98°, Vertical FOV 54°, Diagonal FOV 114° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI |
|---|
| DORI | 2.8 mm:D: 63 m, O: 25 m, R: 12 m, I: 6 m |
| Illuminator |
|---|
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video |
|---|
| Main Stream | 50 Hz:20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720)
60 Hz:20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz:25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz:24 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main Stream:H.265+/H.265/H.264+/H.264
Sub-Stream:H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Audio |
|---|
| Audio Type | Mono sound |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Network |
|---|
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile T, Profile G), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP |
| User/Host | Up to 32 users, 3 user levels: administrator, operator, and user |
| Client | iVMS-4200,Mobile App |
| Web Browser | Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image |
|---|
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Privacy Mask | 4 programmable rectangle privacy masks |
| Interface |
|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | Yes, 1 built-in microphone |
| Built-in Speaker | Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB |
| Reset Key | Yes |
| Event |
|---|
| Basic Event | Motion detection (support alarm triggering by specified target types — human and vehicle), video tampering alarm, exception |
| Linkage | Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light |
| General |
|---|
| Power | 12 VDC ± 25%, 0.66 A, max. 8 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: IEEE 802.3af, Class 3, max. 9.5 W |
| Material | Metal & Plastic |
| Dimension | Ø110 mm × 102.7 mm (Ø4.33" × 4.04") |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
| Weight | Approx. 340 g (0.7 lb.) |
| With Package Weight | Approx. 560 g (1.2 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | English, Ukrainian |
| General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
| Flashing Light | Yes |
| Approval |
|---|
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
RCM: AS/NZS CISPR 32: 2015
IC: ICES-003: Issue 7 |
| Safety | UL: UL 62368-1
CB: IEC 62368-1: 2014+A11
CE-LVD: EN 62368-1: 2014/A11: 2017
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
| Environment | CE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Where is the DS-2CD1343G2-LIUF/SL commonly installed?
The DS-2CD1343G2-LIUF/SL is commonly installed at retail entrances, office building exteriors, warehouse loading areas, commercial perimeters, parking access points, apartment walkways, school entrances, and small business locations.
Is this camera suitable for outdoor commercial monitoring?
Yes. The camera has an IP67-rated housing, making it suitable for outdoor commercial environments exposed to rain, dust, and demanding weather conditions.
Can the DS-2CD1343G2-LIUF/SL monitor entrances and loading areas at night?
Yes. Smart Hybrid Light uses infrared and white light illumination up to 30 meters, supporting nighttime monitoring for entrances, loading areas, walkways, and building perimeters.
What types of businesses typically deploy this camera?
Retail stores, warehouses, offices, schools, apartment communities, small businesses, distribution centers, and commercial property managers commonly use this model for outdoor surveillance.
Does the DS-2CD1343G2-LIUF/SL support human and vehicle detection?
Yes. The camera supports motion detection with human and vehicle target classification, helping reduce false alarms from general motion.
Does this model support two-way audio?
Yes. The DS-2CD1343G2-LIUF/SL includes a built-in microphone and built-in speaker, allowing two-way communication through compatible surveillance systems.
Does the DS-2CD1343G2-LIUF/SL support active deterrence?
Yes. The camera supports audible warning and flashing light linkage, helping deter unwanted activity when configured with supported events.
Does this camera support local recording?
Yes. The built-in memory card slot supports microSD, microSDHC, and microSDXC cards up to 512 GB for local edge recording.
Is this camera compatible with ONVIF systems?
Yes. The camera supports ONVIF Profile S, Profile G, and Profile T for integration with compatible professional NVRs and video management systems.
What is the maximum video resolution of the DS-2CD1343G2-LIUF/SL?
The camera supports a maximum resolution of 2560 × 1440, delivering 4MP Quad HD video for commercial surveillance applications.
