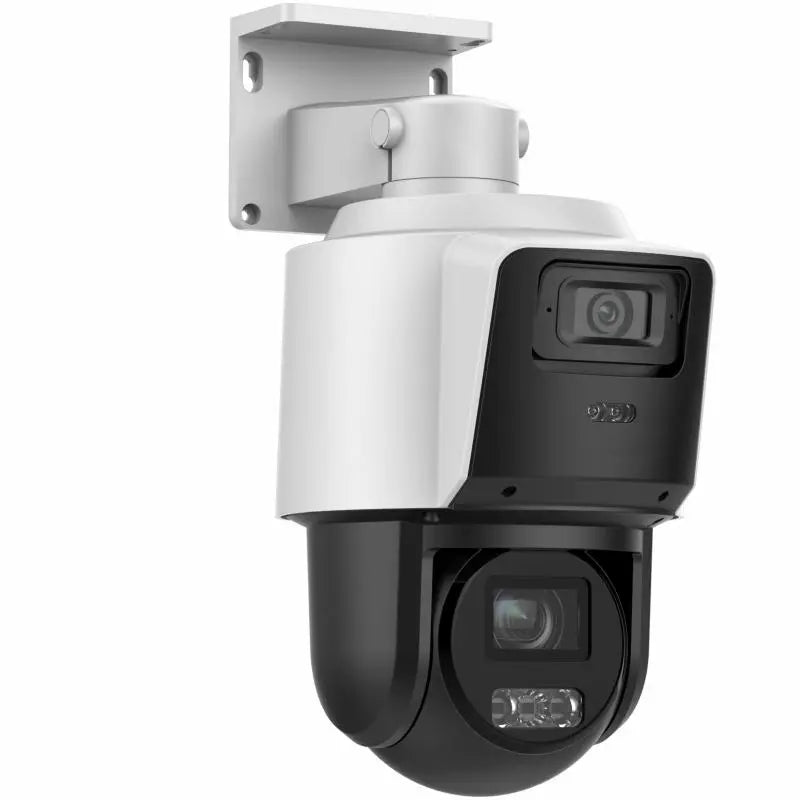

The DS-2SE3C404MWG-E/14 is a TandemVu dual-channel PTZ network camera designed for commercial sites that need wide-area awareness and close-up detail from a single device. It combines a fixed 4MP bullet channel with a 4MP PTZ channel, allowing operators to monitor a broad scene while using optical zoom to inspect activity when needed.
The bullet channel provides wide coverage with a 2.8 mm lens, while the PTZ channel supports 4× optical zoom and 16× digital zoom for flexible visual verification. This makes the camera suitable for entrances, parking areas, loading zones, warehouse exteriors, school walkways, and other business environments where both overview monitoring and targeted detail matter.
Human and vehicle detection helps security teams focus on relevant activity and reduce unnecessary alerts caused by general motion. Powered-by-DarkFighter low-light performance, 120 dB WDR, HLC, BLC, 3D DNR, defog, regional exposure, and regional focus help improve image usability in challenging outdoor lighting conditions.
With built-in two-way audio, onboard microSD storage, ONVIF compatibility, 12V DC power support, PoE+ deployment, and IP66 outdoor protection, the DS-2SE3C404MWG-E/14 is built for professional commercial surveillance projects requiring flexible coverage and intelligent event awareness.
Dual-Channel PTZ Monitoring Benefits
-
Wide View and Detail – Fixed bullet monitoring and PTZ zoom inspection help cover large areas while retaining the ability to view closer details.
-
Human and Vehicle Detection – Smart target detection helps filter relevant activity for commercial security teams.
-
4× Optical Zoom – The PTZ channel allows operators to inspect entrances, drive lanes, loading areas, and perimeter activity.
-
Low-Light Performance – DarkFighter technology and image enhancement features help maintain usable video in challenging lighting.
-
Two-Way Audio – Built-in microphone and speaker allow real-time communication through compatible surveillance platforms.
-
Flexible Installation – 12V DC and PoE+ support give installers practical deployment options for professional IP systems.
Recommended Applications
- Commercial Building Entrances
- Warehouse Loading Areas
- Parking Lot Access Points
- Retail Store Exteriors
- School Walkways
- Apartment Community Entrances
- Business Park Perimeters
- Industrial Facility Entrances
- Service Yards
- Outdoor Reception Areas
| Camera |
|---|
| Image Sensor | Bullet Channel:1/2.8" Progressive Scan CMOS
PTZ Channel:1/2.8" Progressive Scan CMOS |
| Min. Illumination | Bullet Channel:Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR
PTZ Channel:Color: 0.01 Lux @ (F1.5, AGC ON), B/W: 0.005 Lux @ (F1.5, AGC ON), 0 Lux with IR |
| Shutter Speed | 1 s to 1/30,000 s |
| Slow Shutter | Yes |
| Day & Night | ICR |
| Zoom | PTZ Channel:4× optical, 16× digital |
| Max. Resolution | Bullet Channel:2560 × 1440
PTZ Channel:2560 × 1440 |
| Lens |
|---|
| Focus | Auto, manual, semi-auto |
| Focal Length | Bullet Channel:2.8 mm
PTZ Channel:2.8 to 12 mm, 4× optical |
| Zoom Speed | PTZ Channel:Approx. 3.3 s |
| FOV | Bullet Channel:Horizontal FOV: 114.9°, Vertical FOV: 62.4°, Diagonal FOV: 136.4°
PTZ Channel:Horizontal FOV: 98° to 34.2°, Vertical FOV: 52° to 19.2°, Diagonal FOV: 111° to 39° |
| Aperture | Bullet Channel:F1.6
PTZ Channel:F1.5 to F2.9 |
| Illuminator |
|---|
| Supplement Light Type | Bullet Channel:Hybrid (IR and White Light)
PTZ Channel:IR |
| Smart Supplement Light | Yes |
| Supplement Light Range | PTZ Channel:IR distance: up to 40 m
Bullet Channel:IR distance: up to 30 m; White light distance: 30 m |
| PTZ |
|---|
| Movement Range (Pan) | 0° to 350° |
| Movement Range (Tilt) | Bullet Channel:7° to 17° (manually adjust)
PTZ Channel:-5° to 90° |
| Pan Speed | Pan speed: configurable from 0.1° to 30°/s; preset speed: 30°/s |
| Tilt Speed | Tilt speed: configurable from 0.1° to 30°/s, preset speed 30°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Power-off Memory | Yes |
| Park Action | Preset, patrol scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Task | Dome reboot, preset, patrol scan, dome adjust, aux output |
| Video |
|---|
| Region of Interest (ROI) | 1 fixed region for main stream |
| Main Stream | Bullet Channel:50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
PTZ Channel:50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | Bullet Channel:50 Hz: 25 fps (640 × 480, 640 × 360); 60 Hz: 30 fps (640 × 480, 640 × 360)
PTZ Channel:50 Hz: 25 fps (640 × 480, 640 × 360); 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Third Stream | Bullet Channel:50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
PTZ Channel:50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | H.265, H.264, MJPEG |
| Video Bit Rate | 32 Kbps to 16,384 Kbps |
| H.264 Type | Main Profile, Baseline Profile, High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | Yes |
| Audio |
|---|
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC |
| Audio Bit Rate | MP2L2:32, 40, 48, 56, 64, 80, 96, 112, 128, 144, 160 Kbps
AAC:16, 32, 64 Kbps
MP3:8, 16, 32, 40, 48, 56, 64, 80, 96, 112, 128, 144, 160 Kbps |
| Audio Sampling Rate | MP2L2:16 kHz
AAC-LC:16 kHz
PCM:8 kHz, 16 kHz
MP3:8 kHz, 16 kHz |
| Environment Noise Filtering | Yes |
| Network |
|---|
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Network Storage | NAS (NFS, SMB/CIFS), ANR |
| Protocols | TCP/IP, SMTP, RTSP, FTP, WebSockets, IGMP, WebSocket, QoS, RTCP, HTTPS, PPPoE, SNMP, NTP, RTP, UDP, DNS, HTTP, DHCP, Bonjour, 802.1X, IPv4/IPv6, DDNS, ICMP, UPnP |
| Simultaneous Live View | 20 |
| User/Host | 32 |
| Security | 802.1X authenticated access, MAC address binding, authenticated username and password, IP address filter, HTTPS encryption |
| Client | iVMS-4200, Mobile App |
| Web Browser | IE8+, Chrome 31 to 44, Firefox 30 to 51, Safari 8.0+ |
| Image |
|---|
| Image Settings | Sharpness, saturation, brightness, contrast |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Defog | Digital defog |
| Day/Night Switch | Day, night, auto, scheduled-switch |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | Bullet Channel:24 programmable polygon privacy masks
PTZ Channel:24 programmable polygon privacy masks |
| Regional Focus | Bullet Channel:No
PTZ Channel:Yes |
| Regional Exposure | Bullet Channel:No
PTZ Channel:Yes |
| Image Parameters Switch | Yes |
| Interface |
|---|
| Built-in Microphone | 1 built-in microphone |
| Built-in Speaker | 1 built-in speaker |
| Ethernet Interface | RJ45, self-adaptive 10M/100M Ethernet port |
| On-Board Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 512 GB |
| Reset | Yes |
| Event |
|---|
| Basic Event | Motion detection, video tampering alarm, exception, alarm input and output |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection |
| Linkage | Bullet Channel:Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording
PTZ Channel:Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan) |
| General |
|---|
| General Function | Mirror, watermark, IP address filter, password protection |
| Power | 12 VDC, max. 13.5 W, PoE+ |
| Operating Condition | -30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing) |
| Material | PC |
| Dimension | 311.5 mm × 223.5 mm × 156 mm (12.26" × 8.80" × 6.14") |
| Weight | Approx. 1.37 kg (3.02 lb.) |
| Approval |
|---|
| Protection | IP66 Standard, surge protection and voltage transient protection |
Find answers to common questions about compatibility, installation, infrared night vision, recording storage, and AcuSense human and vehicle classification.
Where is the DS-2SE3C404MWG-E/14 commonly installed?
The DS-2SE3C404MWG-E/14 is commonly installed at commercial building entrances, parking lot access points, warehouse loading areas, school walkways, retail exteriors, apartment community entrances, and business perimeter locations.
Is this camera suitable for monitoring both wide areas and close-up details?
Yes. The TandemVu design combines a fixed 4MP bullet channel for wide-area coverage with a 4MP PTZ channel that supports 4× optical zoom for closer visual inspection.
Can the DS-2SE3C404MWG-E/14 monitor parking lots and loading areas?
Yes. Its dual-channel design, human and vehicle detection, PTZ zoom, and outdoor IP66 protection make it suitable for parking areas, loading zones, drive lanes, and exterior commercial spaces.
What types of businesses typically deploy this TandemVu PTZ camera?
Security installers, warehouses, retail businesses, schools, apartment communities, industrial facilities, office parks, logistics sites, and commercial property managers commonly deploy this model.
What is the benefit of TandemVu technology in this model?
TandemVu technology allows the camera to capture a wide overview and detailed PTZ views at the same time, helping operators maintain context while zooming in on activity.
Does this camera support human and vehicle detection?
Yes. The camera supports human and vehicle detection to help identify relevant activity and reduce unnecessary motion-based alerts.
Does the DS-2SE3C404MWG-E/14 support two-way audio?
Yes. It includes one built-in microphone and one built-in speaker, allowing two-way communication through compatible surveillance platforms.
Is this camera compatible with ONVIF systems?
Yes. It supports ONVIF Profile S, Profile G, and Profile T for integration with compatible professional NVRs and video management systems.
Is the DS-2SE3C404MWG-E/14 designed for outdoor installation?
Yes. The camera has IP66 protection, making it suitable for outdoor commercial environments when installed according to the manufacturer’s installation requirements.
What is the maximum video resolution of the DS-2SE3C404MWG-E/14?
Both the bullet channel and PTZ channel support up to 2560 × 1440 resolution, delivering 4MP video from each channel.
